Full-Race Motorsports 2017-2021 Honda Civic Type-R FK8 BorgWarner EFR V Band Turbo Kit

2017-2021 Honda Civic Type-R enthusiasts around the world spoke, and we listened. Each component of this kit was engineered to complement and retain OEM torque strategies – not hacking or compromising the control system that makes this car so good.  Designed to be a straightforward bolt-on installation with no permanent modifications required – Full-Race design and engineering quality applied to the FK8 chassis results in a turbo kit that spools like stock at light throttle and boosts unmistakably like a Turbo Honda at WOT.  Completely civilized when you want it, and a monster when you need it.

Electronic Wastegate Control

The 2017-2021 Honda Civic Type-R 2.0-liter engine’s ability to electronically control boost (wastegate position) is hugely important to the overall vehicle performance.  It may not sound like a big deal on internet forums where dump tubes and external wastegates are the norms – but electronic internal wastegate actuation is a major component of the FK8’s unique Bosch engine management control system’s logic. We worked extensively with Hondata and MHI (OE Turbo Supplier to Honda) to retain this OEM electronic wastegate control.

Key Design Features

• 100% V-band connections for Turbo and Manifold
• Fully retained OEM Electronic Wastegate actuator
• 3.5″ oversized MAF Intake and Airbox (Hondata MAF scaling available)
• 3″ EFR Vband Downpipe
• Billet Aluminum Oil and Water fittings
• Full-Race Motorsports Charge Piping, Couplers, and Clamps

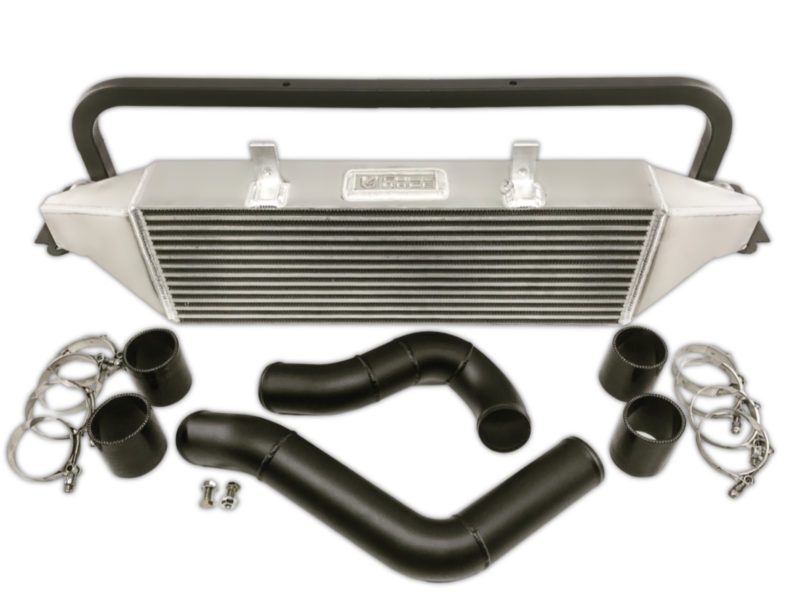

• Full-Race Motorsports Intercooler Kit (Recommended)

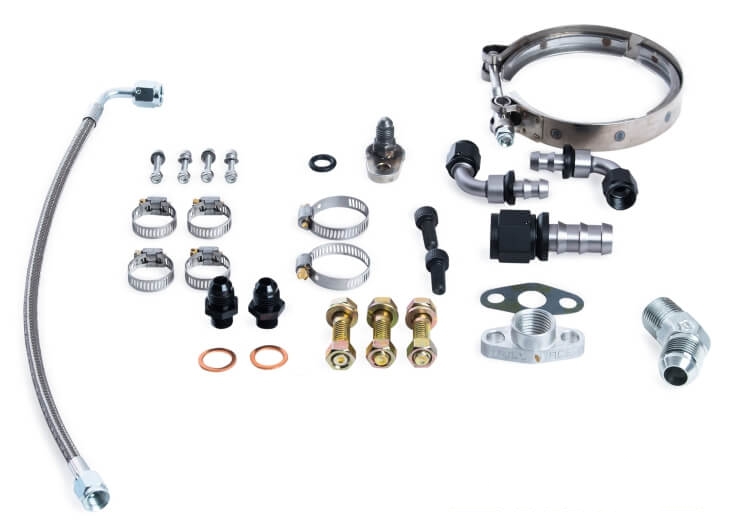

Kit Box With hardware And Fittings

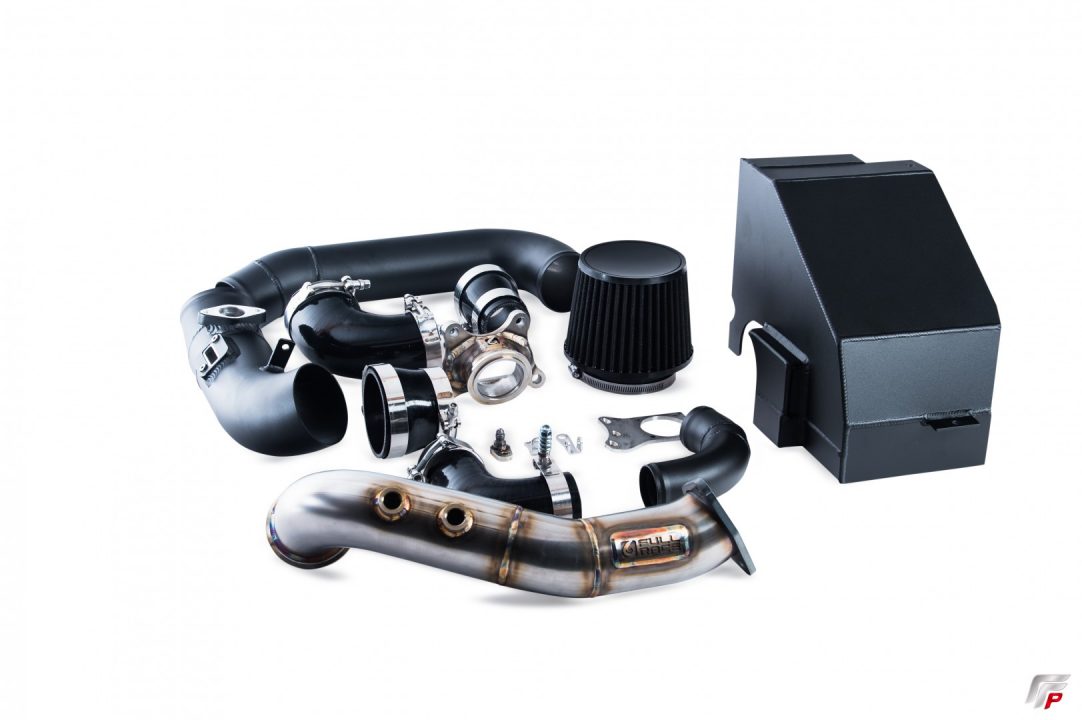

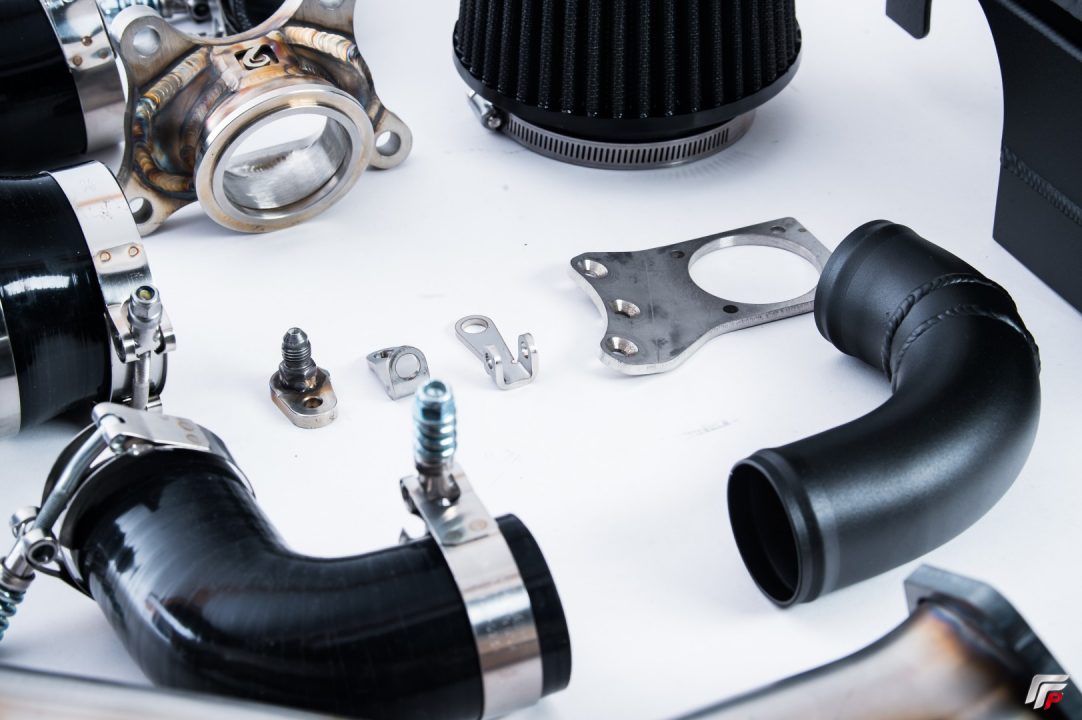

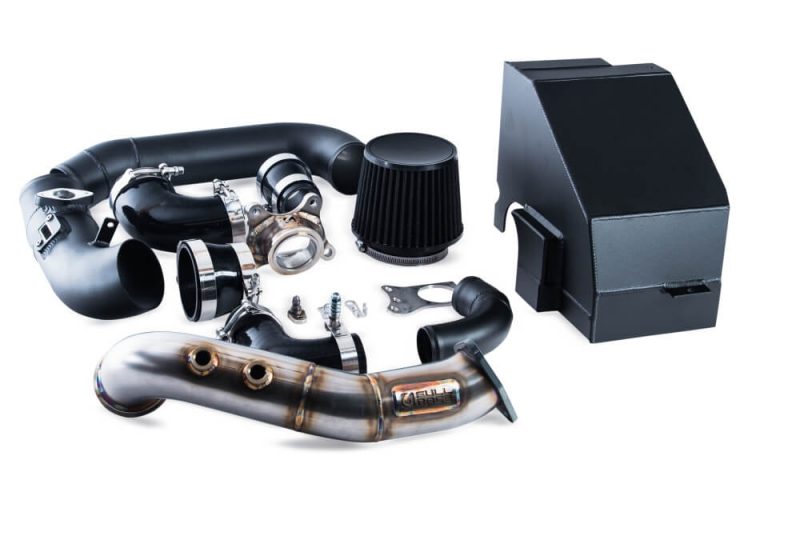

HONDA CIVIC TYPE R (FK8) TURBO KIT CONTENTS:

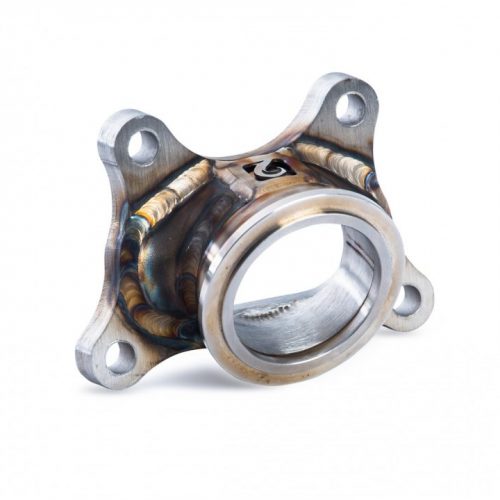

Manifold

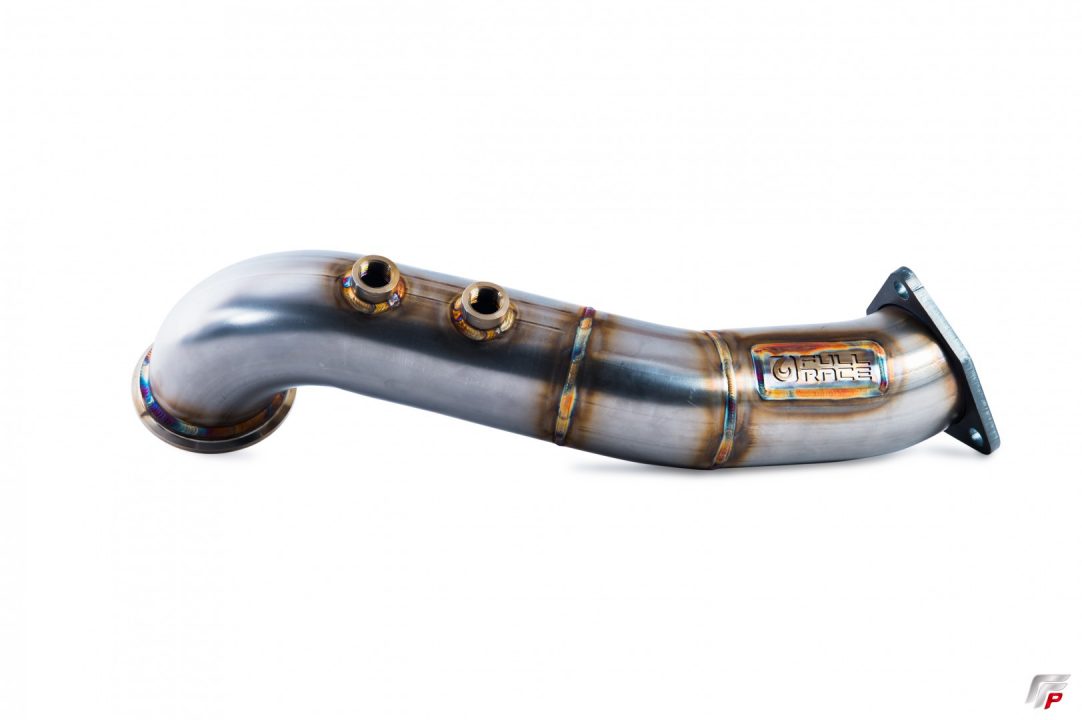

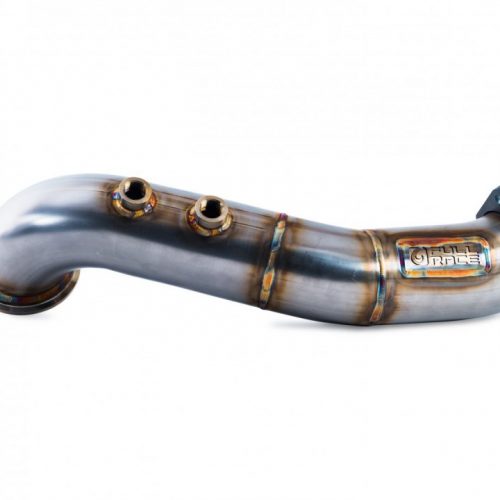

Down Pipe

G Series Turbo

Intercooler Pipes

Air Box **Will require one hole drilled for M6 Bolt done upon install.**

Intake pipes

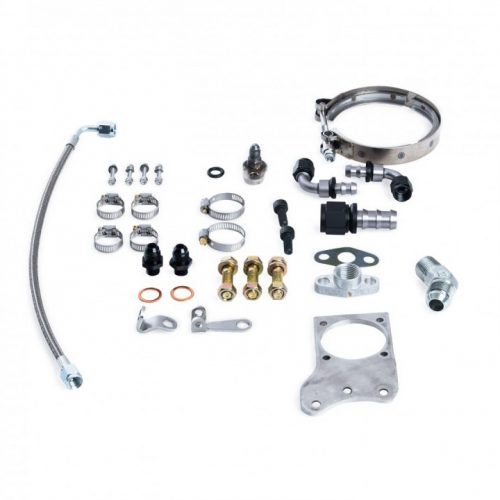

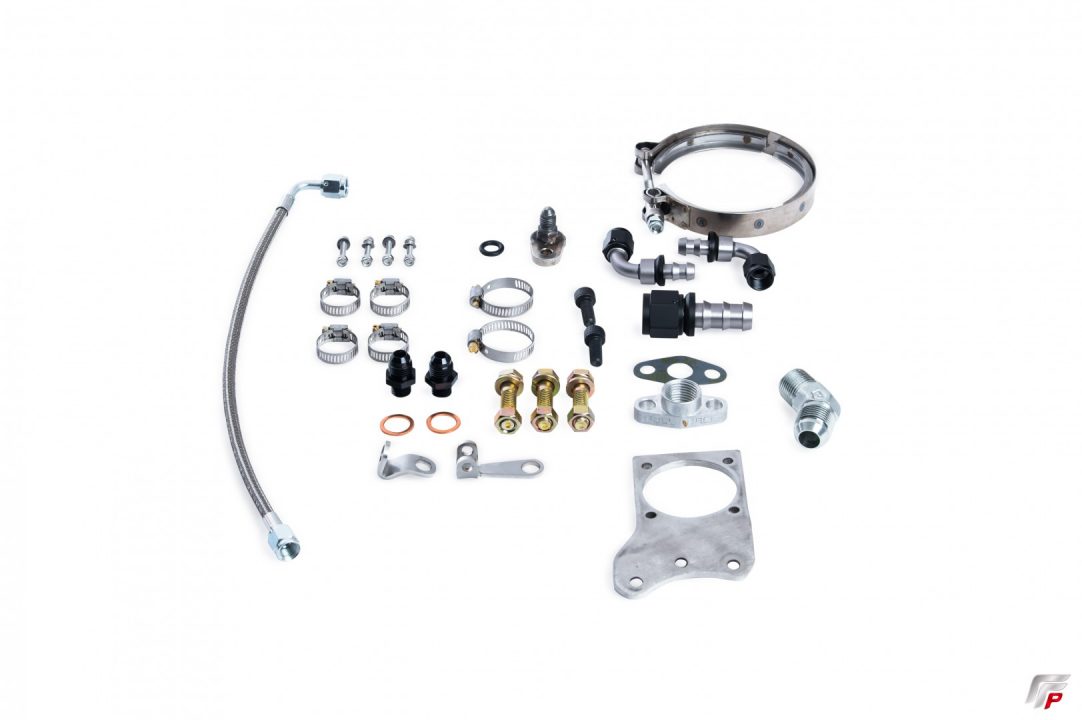

Turbo Kit Box (Hardware)

Manifold Hardware

G Series V-Band Inlet Clamp

Downpipe Hardware

G Series V-Band Clamp

(3) 3/8×16 Hex Nut

(3) 3/8 Lock Washer

(3) 3/8 16×1.5 Hex Bolt

Oil Feed Line

-4 AN Straight To -4 90 Degree Stainless Line (14.5”)

CTR Oil Feed Line Fitting w/ O-Ring

1/8”NPT to -4AN Straight Fitting

Oil Return Line

-10 AN Twist-Lok Straight Hose End

-10 AN to 1/2” 45 Degree  Male Connector

G Series Drain Flange

G Series Drain Gasket

M8x20  Socket Cap Screw

24”  5/8” ID Push On Hose Black

11/16 Hose Clamps

Coolant Line

M14-8AN Male Straight

14MM Crush Washers

-8 AN 90 Degree Push-lock

½” Hose Clamp

60” ½”ID Jiffy Push On Hose Black

Couplers

2” x 2” 90 Degree Black Coupler

2.5” x3 ” 90 Degree Black Coupler

3”x 3.5” Straight Transition Black Coupler

2” x 2.5” Straight Transition Coupler (Stock Intercooler Only)

(3) 2” T-Bolt Clamp

(3) 2.5” T-Bolt Clamp (Only 2 If Using FR Intercooler)

(2) 3” T-Bolt Clamp

(1) 3.5” T-Bolt Clamp

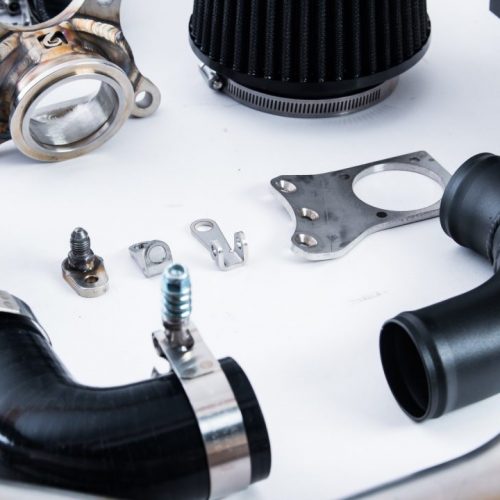

Electronic Wastegate Hardware

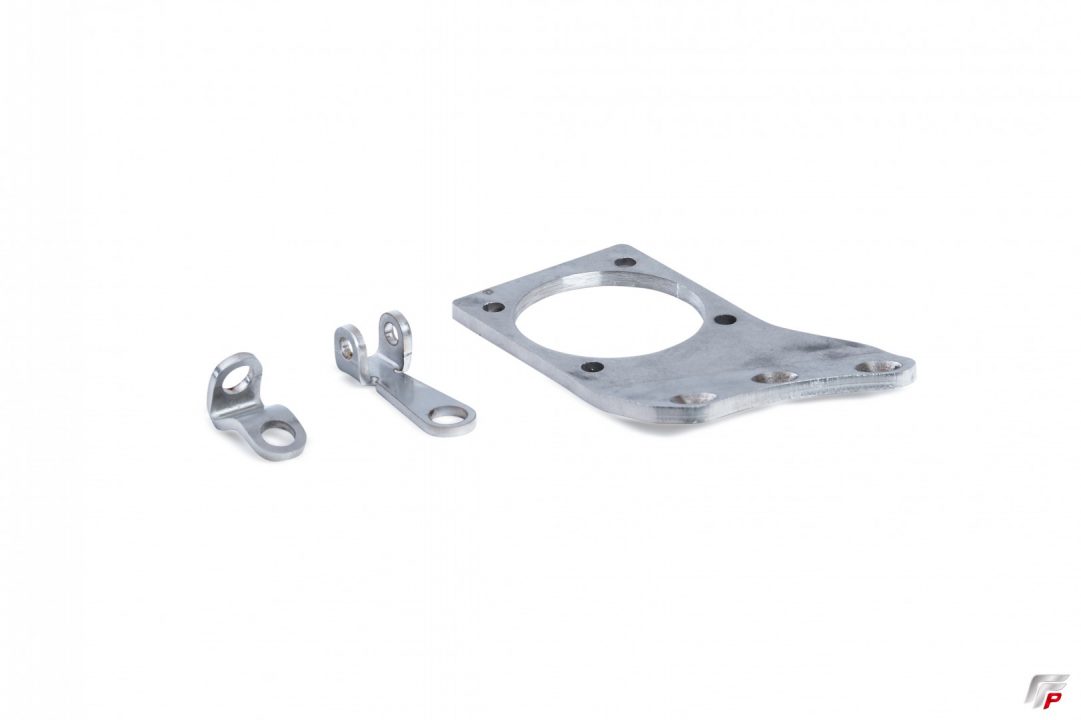

Electronic Wastegate Bracket

(1) CTR Electronic Wastegate Linkage Kit

Misc

(1) Anti Seize Packet

(1) 3.5” Air Filter

(1) M6 Flanged Nut

(1) M6-1.0×16 Hex Bolt

(1) 6” x 24” Gold Foil
