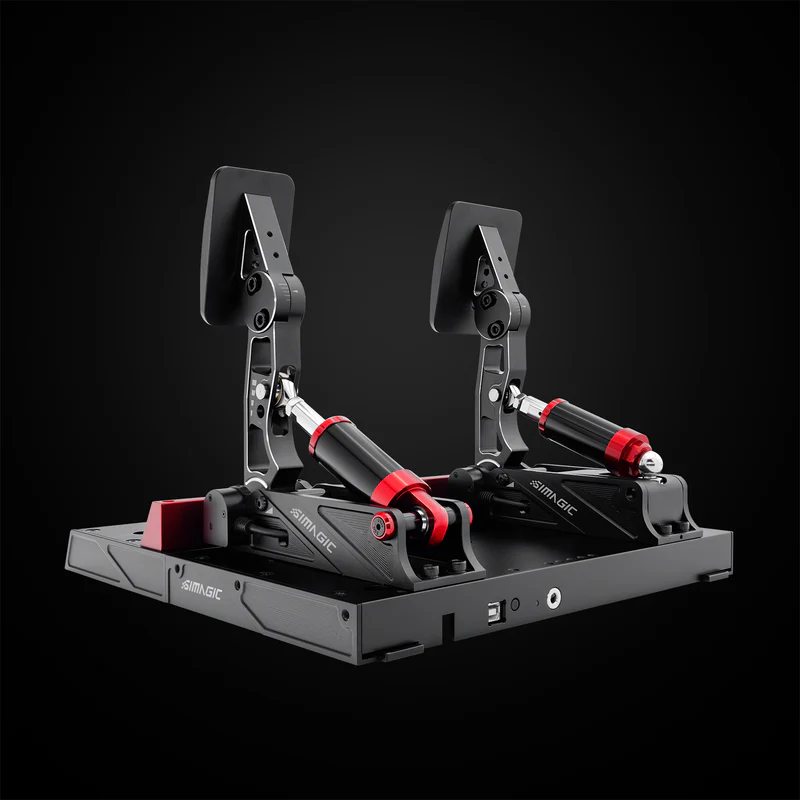

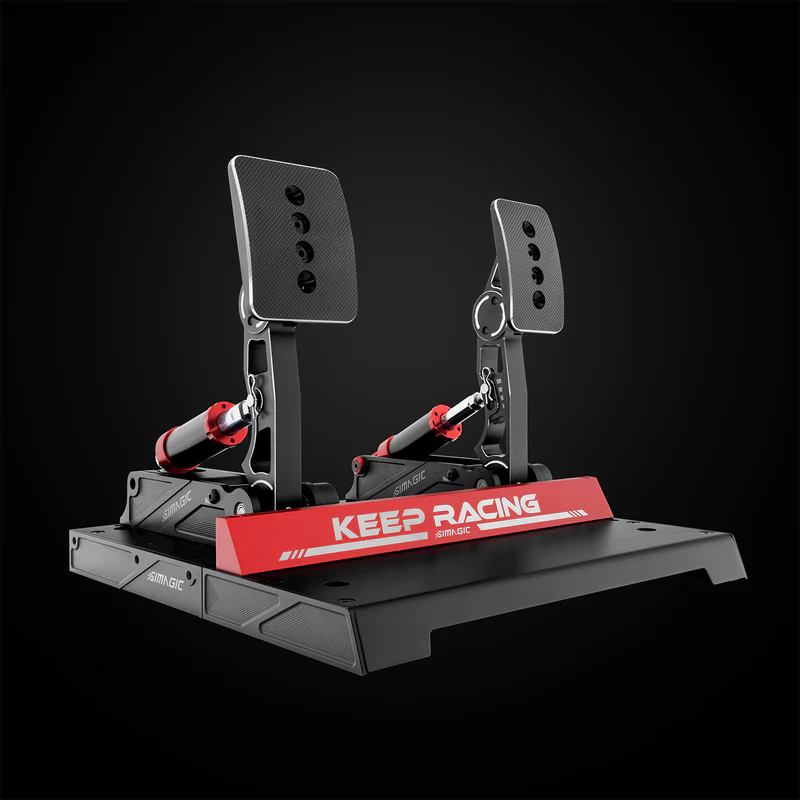

Simagic – P1000-F Pedal
Simagic P1000-F Pedal
-
High-precision 12-bit (4096 intervals) sensor for ultra-smooth response
-
USB connection – compatible with PC or SIMAGIC wheel-base (CAN-Bus)
-
Fully adjustable travel, spring-force and linearity for a custom feel
-
Brake features Hall-angle or load-cell sensor (100 kg) for realistic pedal feedback
-
CNC-machined anodised aluminium pedal-plate, with angle/position adjustment
-
Includes pedal control box; supports inverted installation
-
All-metal construction; sleek and durable build for demanding sim-racing setups
Simagic – P1000-F Pedal
| Product Name |
P1000-F/P1000-FRS
|
| Resolution |
12Bit（4096）【High accuracy sensor】
|
| USB Connection |
PC、SIMAGIC Wheelbase(Can-Bus Port)
|
| Adjustable Travel | Supported |
| Adjustable Spring Force Level |
Brake
|
| Hall angle sensor/ Loadcell sensor | (Throttle – Hall angle sensor)
(Brake-Hall angle sensor/Loadcell sensor) |
| Loadcell sensor |
100KG
|
| Haptic Pedal Reactor | Optional |
| Hydraulic Cylinder |
Optional/lncluded
|
| Inverted Installation |
Optional (Can’t change the oil container after invertion)
|
| Pedal Plate |
Anodized Aluminum Alloy
|
| Angle/Position Adjustment | Supported |
| Adjustable Linearity | Supported |
| Adjustable Brake Force | Supported |
| Adjustable Deadzones | Supported |
| Pedal Control Box | Included |
| Building Material |
CNC Aluminum Alloy
|
| Dimensions ( Length x Width x Height) |
334.8mm x336mm x 267mm
|
| Net Weight |
4.65kg
|
