Xtreme-DI XDI 2017-2020 Ford F-150 / Raptor 3.5L EcoBoost High Pressure Fuel System Package
- ✅ Xtreme-DI High Pressure Fuel System — 2017-2020 Ford F-150 / Raptor 3.5L EcoBoost
- ✅ Choose EVO (36% flow increase, 250bar) or HPFP60 (63% flow increase, 260bar)
- ✅ Optional +50% XDI DI Injectors — Flow-matched ±1% at 100 & 200bar
- ✅ Optional ID 1050-XDS Port Injectors — Full E85 support
- ✅ Compatible with all known fuels including E85 — Bolt-on install, no special tools
- ✅ Tuning support: Standalone, SCT, HPT
Xtreme-DI XDI High Pressure Fuel System — Ford F-150 Gen2 / Raptor 3.5L EcoBoost

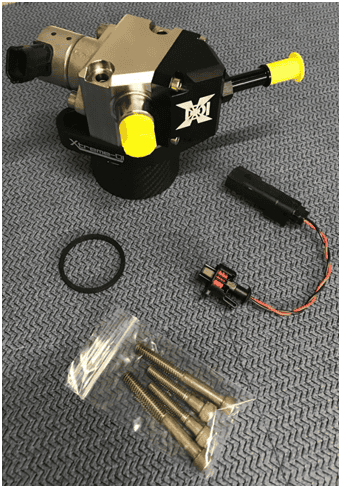

Build your ultimate fuel system with the Xtreme-DI configurator. Select your high pressure fuel pump, DI injectors, port injectors, and fuel filter options below to create the perfect package for your 2017-2020 Ford F-150 or Raptor 3.5L EcoBoost build.
⛽ High Pressure Fuel Pump Options

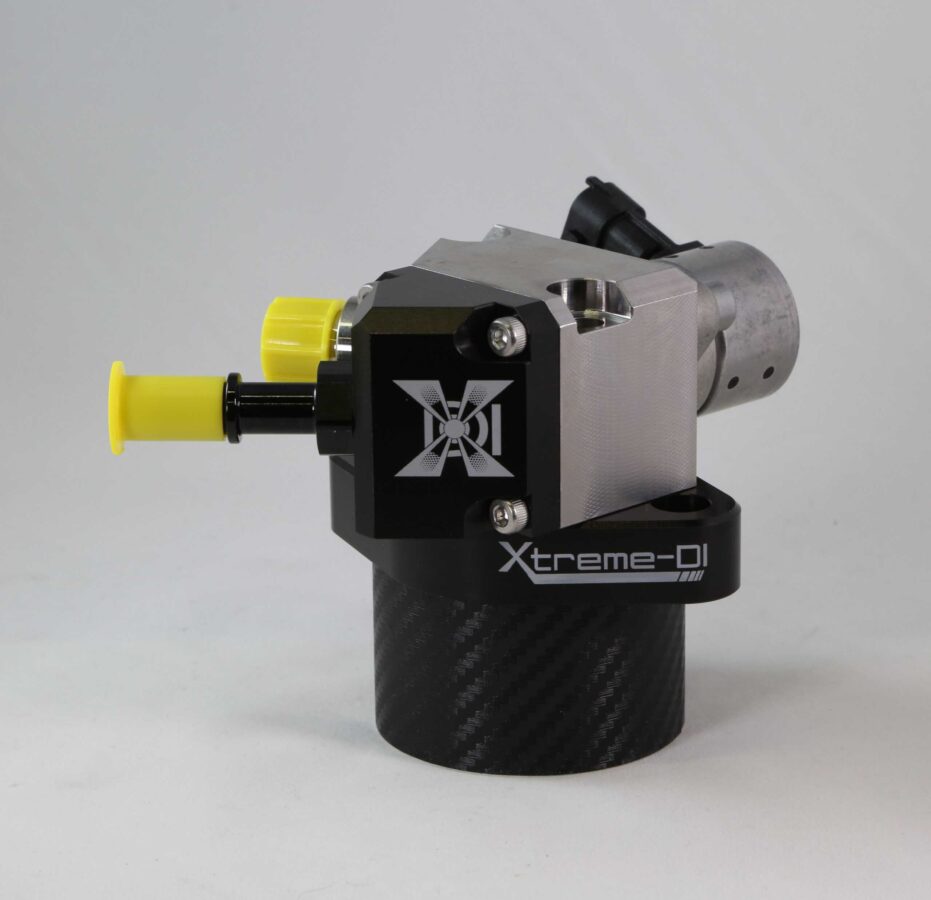

XDI EVO — 36% flow increase over OEM. Max rail pressure 250bar / 3600psi. Same piston size as HPFP35 but with redesigned internals that maintain flow capacity all the way to 240bar. The EVO shines at 180bar+ where the HPFP35 starts losing flow capacity.

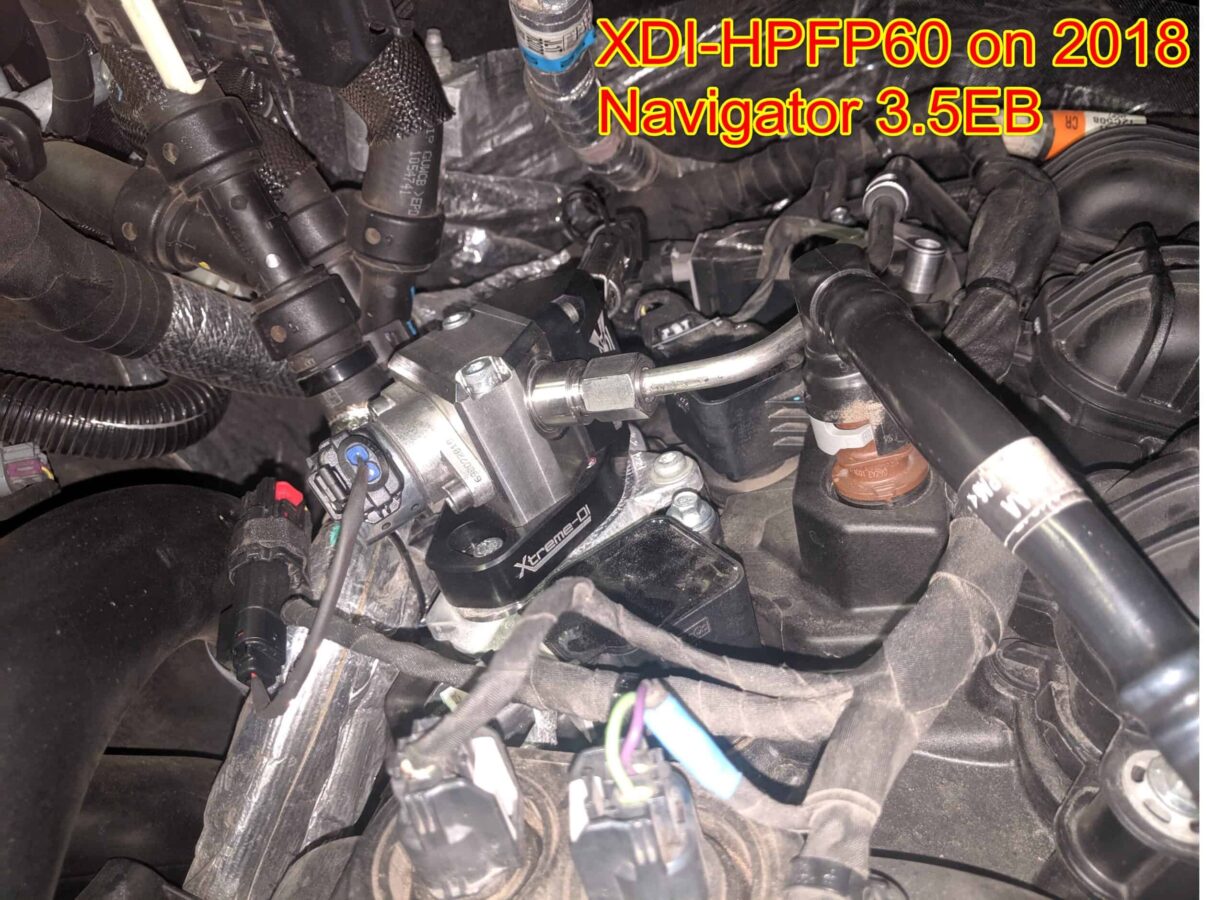

XDI HPFP60 — 63% flow increase over OEM. Max rail pressure 260bar / 3800psi. The biggest capacity pump in the XDI lineup for the F-150 platform. Built for maximum fueling demands — big turbos, built motors, full E85.
💉 DI Injector Option
XDI +50% DI Injectors (Set of 6) — 100% XDI manufactured and tested. Based on the OEM Bosch core for perfect ECU compatibility. Flow-matched to within ±1% at 100bar and 200bar. E85 compatible. OEM spray pattern maintains perfect idle, cold start and drivability. Minimal tuning changes required.
🔧 Port Injector Option
Injector Dynamics ID 1050-XDS (Set of 6) — 1065cc/min at 3.0 Bar. Dual Slope Matching for superior cylinder-to-cylinder consistency. Compatible with all known fuels. USCAR connector. Max fuel pressure 10.0 Bar (145 psi).
🔩 Specifications
| Application | 2017-2020 Ford F-150 3.5L EcoBoost / Raptor / Limited |
| EVO Max Rail Pressure | 250bar / 3600psi |
| HPFP60 Max Rail Pressure | 260bar / 3800psi |
| Fuel Compatibility | All known fuels, all Ethanol blends |
| Electric Connector | Bosch Compact 2-pin |
| Tuning Support | Standalone, SCT, HPT |
| Housing Material | Stainless steel, hard coated Aluminum |
| Install | Bolt-on, no special tools required |
