BMS BMW XM (G09) – Wheel Spacers w/10 Bolts
BMW XM Wheel Spacers Simple, bolt-on handling and looks for your BMW XM Wider Stance = Better Handling & More Aggressive Looks BMW XM wheel spacers […]
BMW XM Wheel Spacers
Simple, bolt-on handling and looks for your BMW XM
Wider Stance = Better Handling & More Aggressive Looks

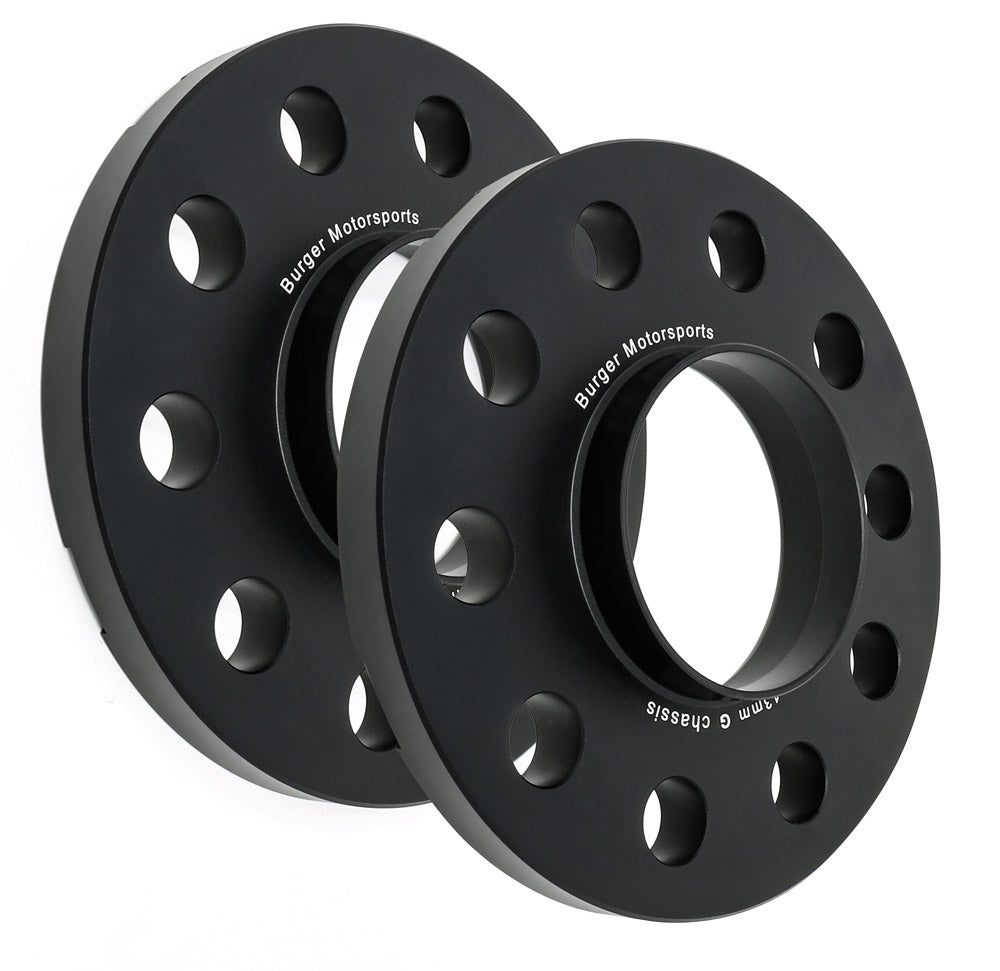

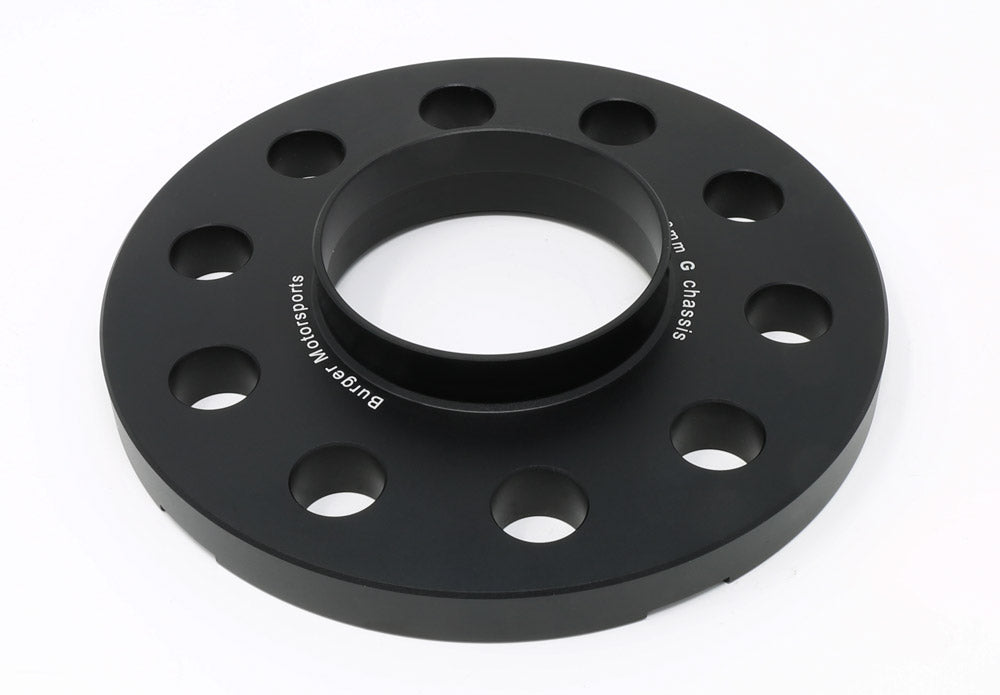

BMW XM wheel spacers by Burger Motorsports are an excellent, cost-effective way to improve handling while dramatically enhancing the look of your BMW. Our wheel spacers push your rims and tires outward for an instant “fat” aggressive look, better lateral stability, and handling. Spacers are also great for filling in the wheel well, creating clearance for aftermarket suspension, different wheel offsets, big brakes, making your winter tires not look so inset, or just making your BMW XM look awesome. BMS spacers are specifically designed and manufactured by Burger Motorsports for your BMW ensuring a perfect vibration-free fit. Comes with a packet of anti-seize grease to place on the factory hub to aid in later removal.
Build & Quality: Each Burger Motorsports BMW XM wheel spacer is CNC machined from high grade 7075-T6 aluminum alloy and anodized black for protection. Our BMW XM Wheel Spacers are sold in pairs (2 pcs) with 10 12.9 grade extended lug bolts that exceed OE standards. To do the whole car you will need 2 spacer kits. All Burger Motorsports wheel spacers are hub-centric. They tested and are safe to use on the BMW XM’s xDrive (all-wheel drive) system and are compatible with the 4 wheel steering.
Hub-Centric: This means our spacer’s center bore matches your factory BMW XM hub and the factory-like hub on the Burger Motorsports spacers match the center bore in your wheel for a vibration-free fit.

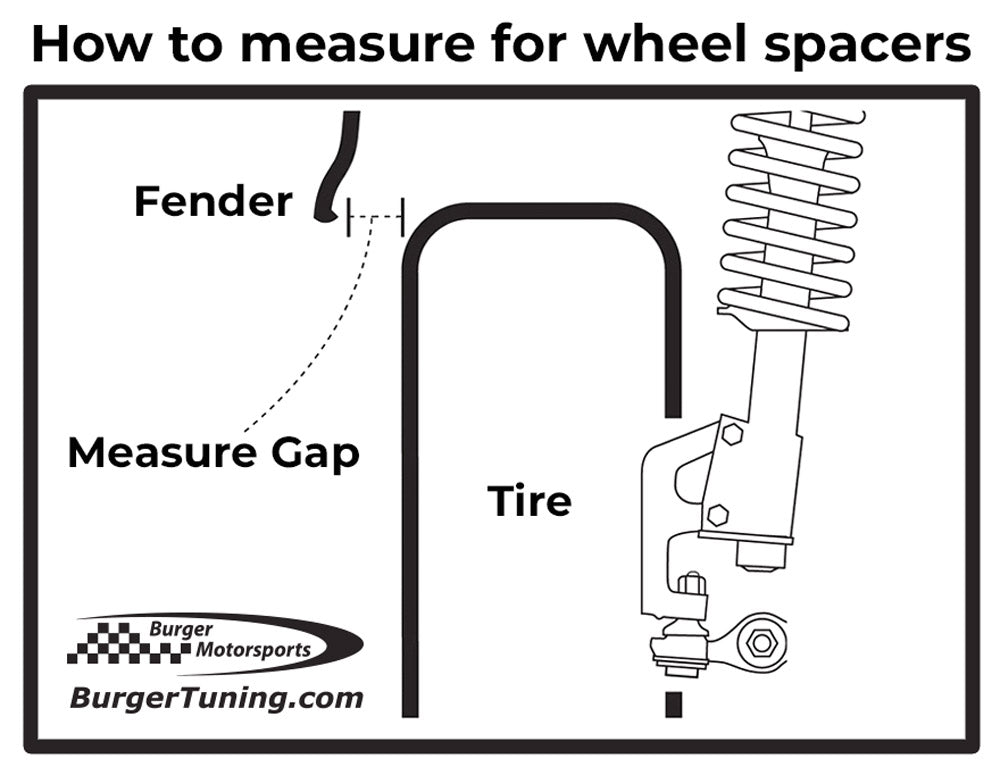

What width wheel spacer should I get?
The BMW XM with factory wheels and tire sizes take 15mm in the front and 20mm in the rear.

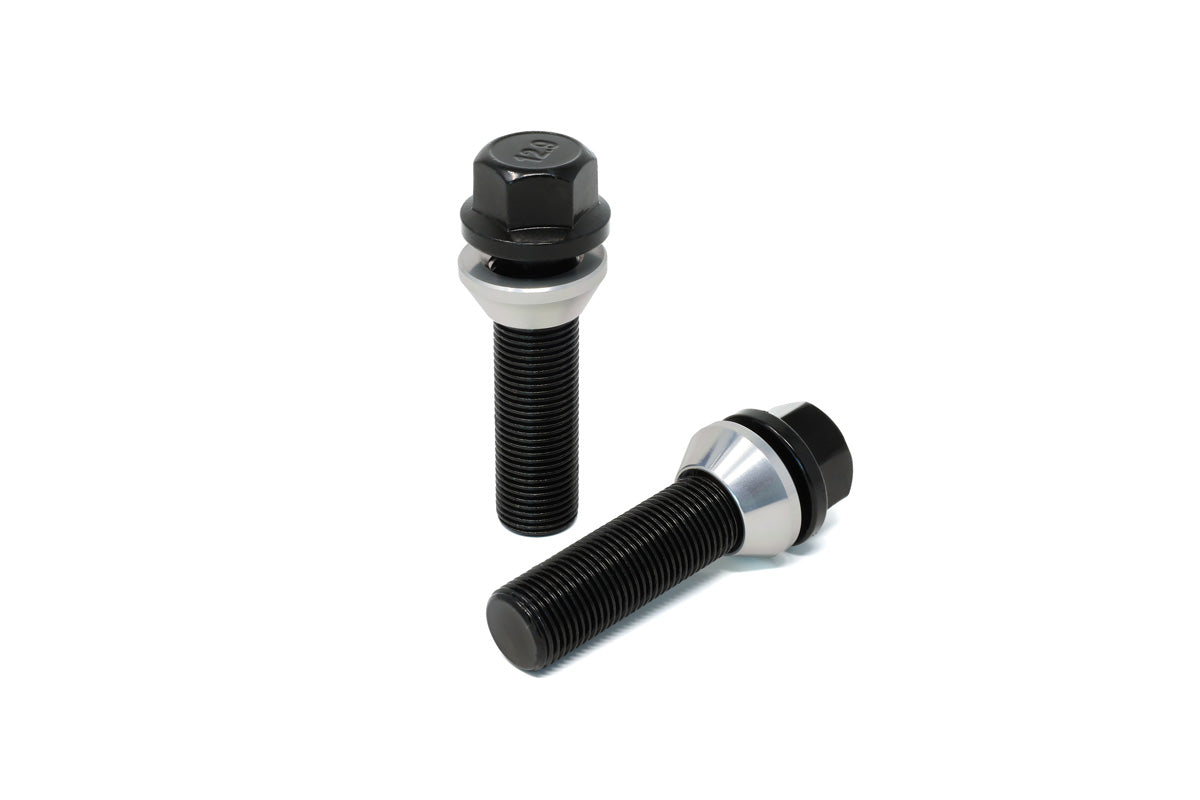

Concentric Floating Seat Lug Bolts: Each bolt is made from 12.9 Motorsport Grade steel for strength and safety and zinc plated for corrosion resistance. They contain a concentric floating seat washer to give the bolt a secure mating surface to torque to stay torqued and to reduce wheel seat chafing during installation and removal.
What about the perfect length extended lug bolts?
We got you. We include 10 of them with each pair spacers. The XM is a heavy beast so we provide upgraded 12.9 grade bolts. Factory uses 8.8 grade.
The photos and guidelines on this website are for reference only. Your XM might have different results with the same size spacers due to different wheels, tire sizes, packages, and offsets.
Installation: Simply remove the wheel, place the spacer on the hub and bolt the wheel back up with the supplied longer lug bolts. Download the install guide.
FREE Wheel Pin tool with purchase of 2 pairs of wheel spacers on the same receipt.
To get the free wheel pin with a 2 pair wheel spacer purchase, add 2 pairs of wheel spacers to your cart, go to the link below and add the free wheel pin to the cart. When you hit the checkout button the items will be discounted to FREE!
Click Here for the BMW Wheel Pin Tool ($10.00 Value)
Vehicle Fitment
BMW XM
• 2023+ S68 G09 BMW XM 4.4L
• 2024+ S68 G09 BMW XM Label 4.4L
G09 XM BMW Wheel Spacer Specifications
Bolt Thread Size: M14 x 1.25
Bolt Seat: Cone Seat / Concentric
Wheel Fasteners: Extended 12.9 grade zinc coated lug bolts
Spacer Material: Lightweight Anodized Black 7075-T6 Aluminum
Torque Specifications 105 ft-lbs (142 nm) please re-torque after the first 50 miles or so
What’s included:
(2) Wheel Spacers
(10) Extended 12.9 grade Concentric Swivel Washer Lug Bolts
(1) Packet of anti-seize
⚠️ Read instructions before installing. DO NOT mix up the included bolts. The bolts are the spacer width longer than the factory bolts. They are different lengths depending on spacer width. Do not use extended spacer bolts without spacers.
