Ready to take your S63TU powered BMW to the next level?

Our latest kit for the S63TU M5/M6/X5M/X6M, the new JB4 includes functions never before available to the platform, including on-the-fly map switching, boost limiting in lower gears for improved traction, an in-dash boost gauge, full CANbus data logging, code read/delete, integrated water/methanol tuning with progressive safety systems, and the ability to tune for as much boost as your octane and/or fuel system will allow. For most running pump fuels, expect power gains of around 100whp over stock. For those who want to push the factory turbos with a water/methanol injection kit and higher octane, fuel power gains of up to 240whp over stock are possible. The JB4 also supports larger S63TU turbos. We’ve had customers report as much as 900hp to the wheels using simple Stage1 turbos! The JB4 is absolutely the most flexible and easy to use tuning solution for the s63tu platform and is even compatible with cars already running flash maps who want to add more power, WMI control, or extra features to their tuning.

No ECU flash needed and compatible with locked 🔒 ECUs

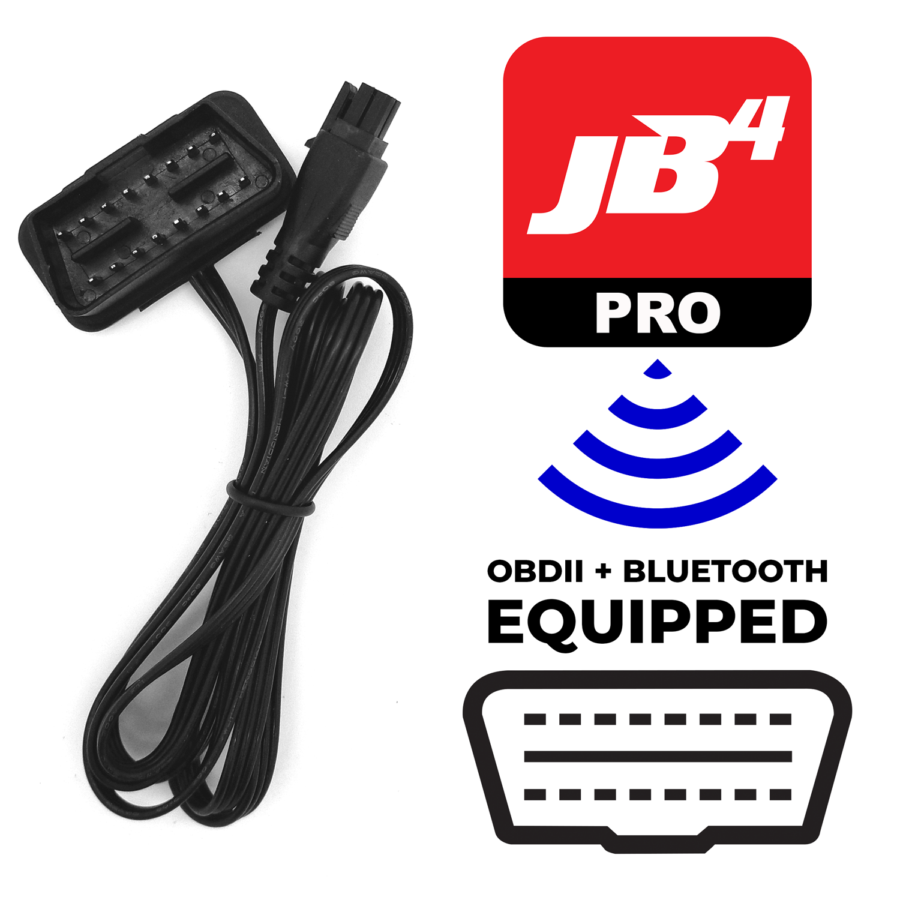

Installation is fully reversible, attaching to the TMAP sensors and OBDII port. The included BCM wires are optional and allow the JB4 to take direct control of the wastegates for more precise boost targeting for higher boost maps.

The JB4 is a full plug and play device that installs and removes in minutes at home without special tools and unlike flash maps that permanently write over your DME with the JB4 your DME is never aware it’s running more than the factory power levels. And when you’re ready to change things up the JB4 is not VIN locked and can be moved to your next vehicle or resold.

For those running a DCT transmission, we’ve found the factory clutch packs are only good for around 640whp before they start slipping. If you are planning for more power than this, plan to upgrade to Dodson or SSP clutch packs sooner or later.

For those running aftermarket turbocharger systems with dual aftermarket Tial wastegates, we have a special version of the S63TU JB4 specifically to control Tial wastegates. Email us so we can manually invoice you for the JB4_S63TU_TIAL version.

For the current map guide, firmware, and notes, refer to this thread.

Wirelessly Connect to your JB4: Grab one of our smartphone connection options to wirelessly connect the JB4 BMW tuner to your Bluetooth 4.0 compatible iOS or Android device. Both options allow you to record and analyze vehicle and tuning data, change JB4 performance maps, and update JB4 firmware as we release free newer versions with updates, more powerful maps, and new features under development.

JB4 Mobile by DMAC was released in 2014 and has become the gold standard for phone-to-tuner integration with its unique gauge display options/themes and advanced security systems. The JB4 Mobile app is purchased separately for $29 and requires the JB4 Mobile adapter.

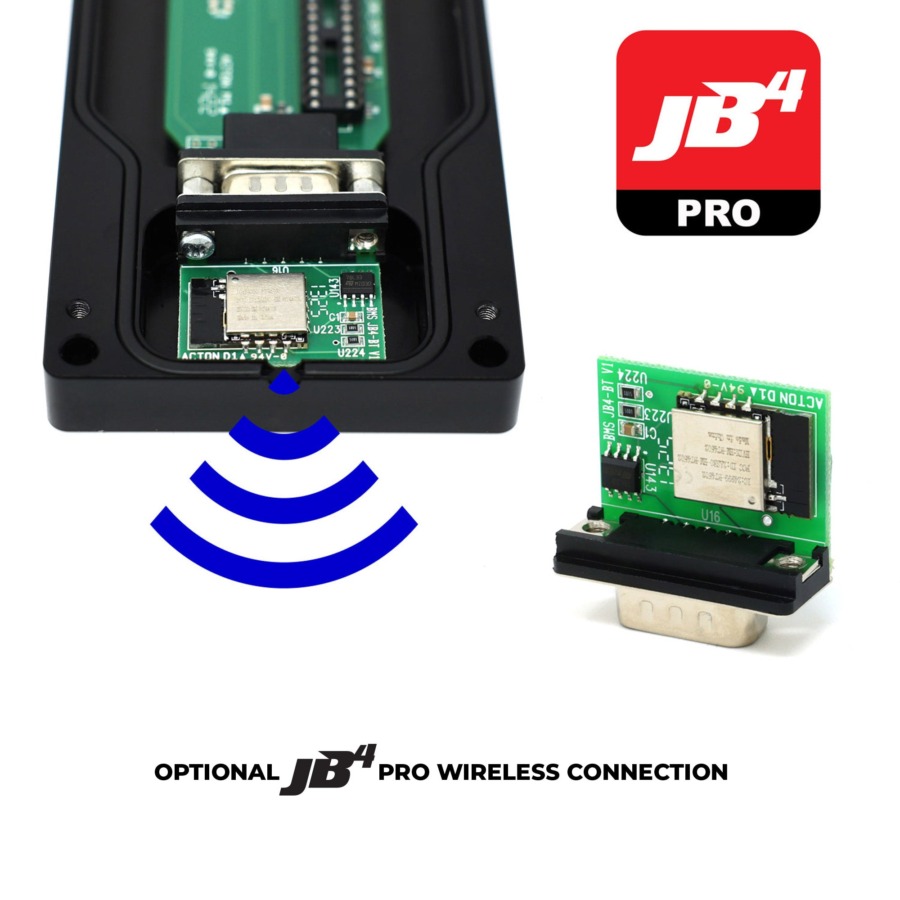

JB4PRO by Burger Motorsports is our brand-new in-house adapter designed from the ground up for ease of use and reliability. Our new adapter fits fully inside the JB4 enclosure for enhanced weather protection and a more streamlined look. The JB4PRO Free app features an intuitive easy-to-use interface, help buttons, and advanced log analysis tools that can estimate the performance of your car and help identify any tuning concerns. More information on the differences between the app options is available here.

JB4 Features & Benefits

• Power gains of up to 60hp and 60tq to the wheels on a stock vehicle

• Improves 0-60 times and 1/4 mile times • Preloaded with custom JB4 tuning software and up to 8 maps for various fuel and modification levels

• Ethanol (E85) compatible tuning maps

• Able to read/delete fault codes

• View and record up to 40 gauges/engine parameters in real-time with the JB4 app.

• Boost by gear in 1st, 2nd, and 3rd can be controlled via the JB4 app for a perfect launch

• Compatible with JB4 Mobile for smartphone logging, tuning changes, and adjustment

• The JB4 offers a lot more performance, functionality, and safety than your average performance chip

• Quick Plug & Play Installation

• CANbus OBDII integration offering unrivaled tuning features and performance

• Improved performance over non-integrated chip tunes

• Runs as smoothly as stock. This is how your vehicle should have come from the factory

• Compatible with all driving modes

• Fuel economy unchanged during normal driving

• 91 octane fuel or better required for performance gains

• Not VIN locked and can be removed without a trace and resold down the road

• Includes the rugged JB4 billet aluminum enclosure for protection

• Made in the USA

• 5 year warranty

Vehicle Fitment

BMW M5

• 2012-2017 BMW F10 M5

BMW M6

• 2012-2017 BMW F12 13 M6

BMW X5M/X6M

• 2015-2019 BMW F85 F86 X5M and X6M

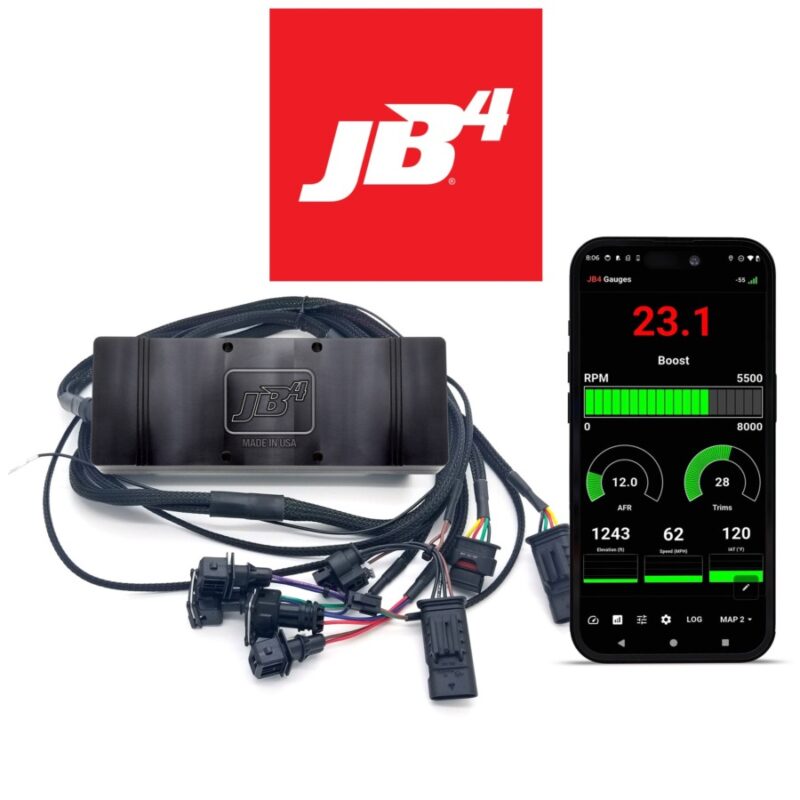

What is a JB4?

The JB4 is a plug & play tune available for turbocharged vehicles. The JB4 tuner installs between your car’s sensors and its DME/ECU (computer) and manipulates vehicle performance through these connections making your vehicle much faster. While it’s not the only tuning system that operates this way the JB4 separates itself from the competition with much more advanced connection points and processing including CANbus, fuel & spark control, Bluetooth to your smartphone, and a variety of innovative and advanced features not possible with any other system. BMS regularly publishes free mapping and firmware updates adding performance and features as ongoing development allows. In addition, the JB4 system is not VIN-locked to your vehicle and can quickly be removed and swapped between cars or resold at a later time. Often imitated but never duplicated the JB4 has been the gold standard in plug and play turbocharged performance tuning for over a decade and is sold in over 67 countries worldwide.

INSTALL VIDEO

DYNO RESULTS

JB4, pump gas

JB4, BMS intake, BMS charge pipes, methanol injection, Dodson clutch packs, 95 octane

VIDEO
