CTS Turbo Front Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts
Description CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below). This kit is designed to eliminate the clunk that is […]
Description
- Interlocking subframe shims center the front subframe to the body
- Machined in house from T6061 Billet aluminum
- OE replacement stretch bolts (4) and upgraded ARP bolts (2)
- Eliminates subframe clunks and shifting

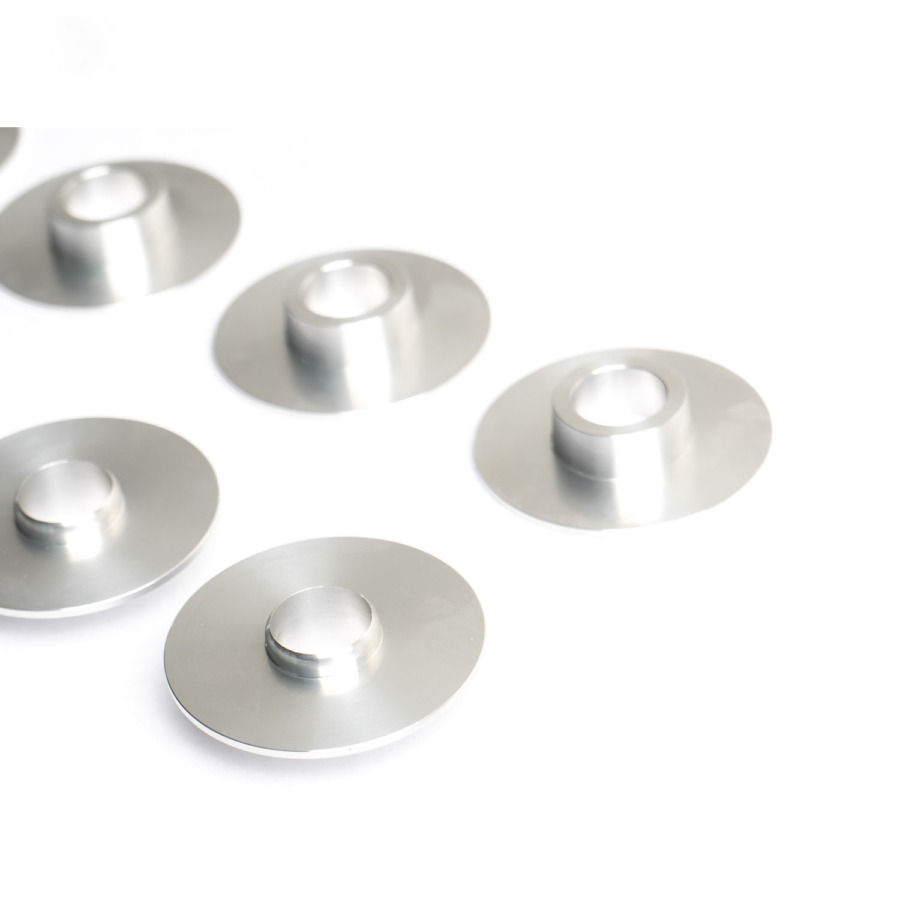

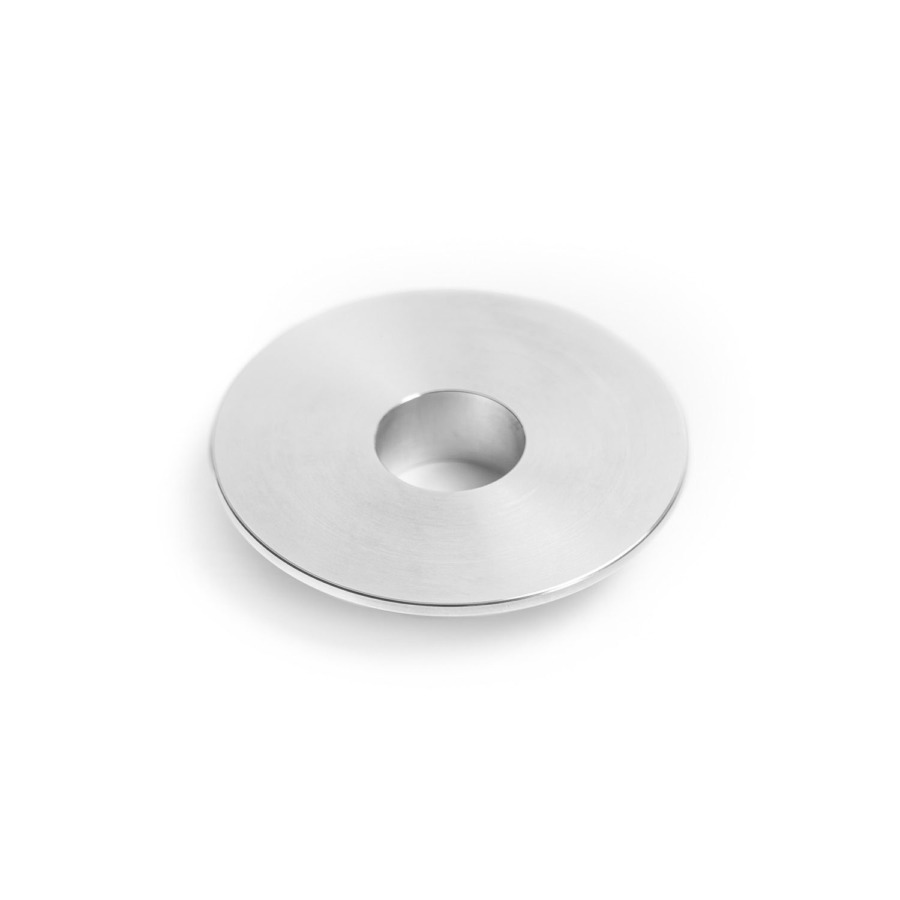

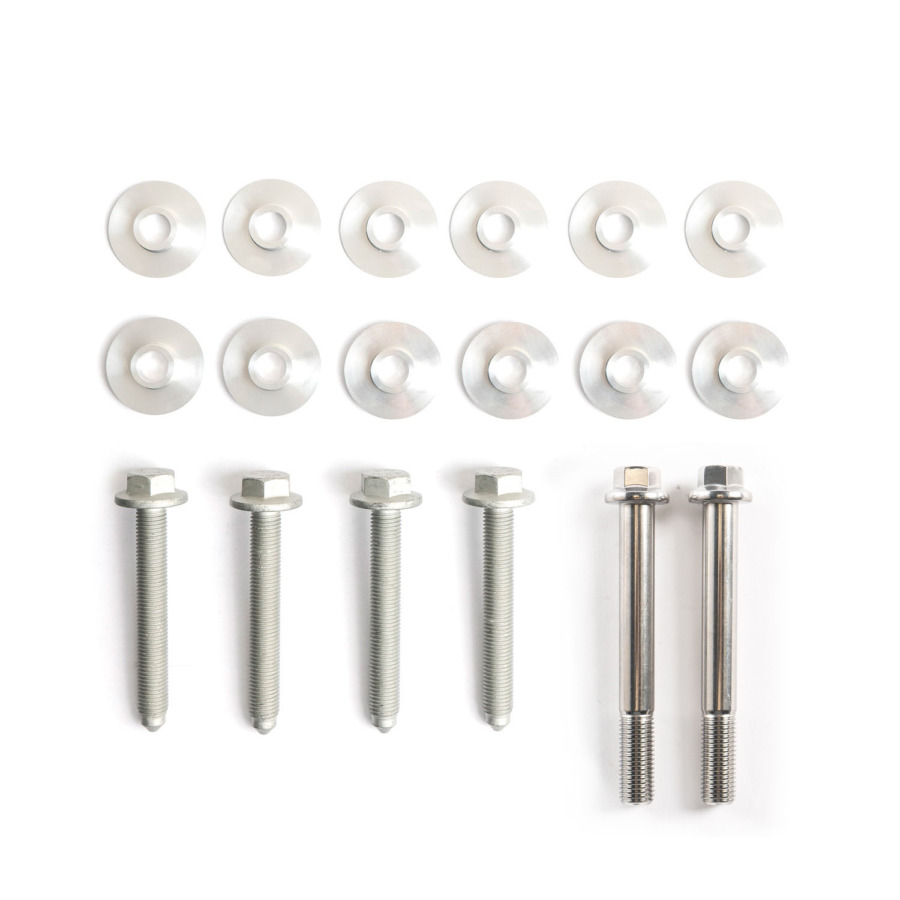

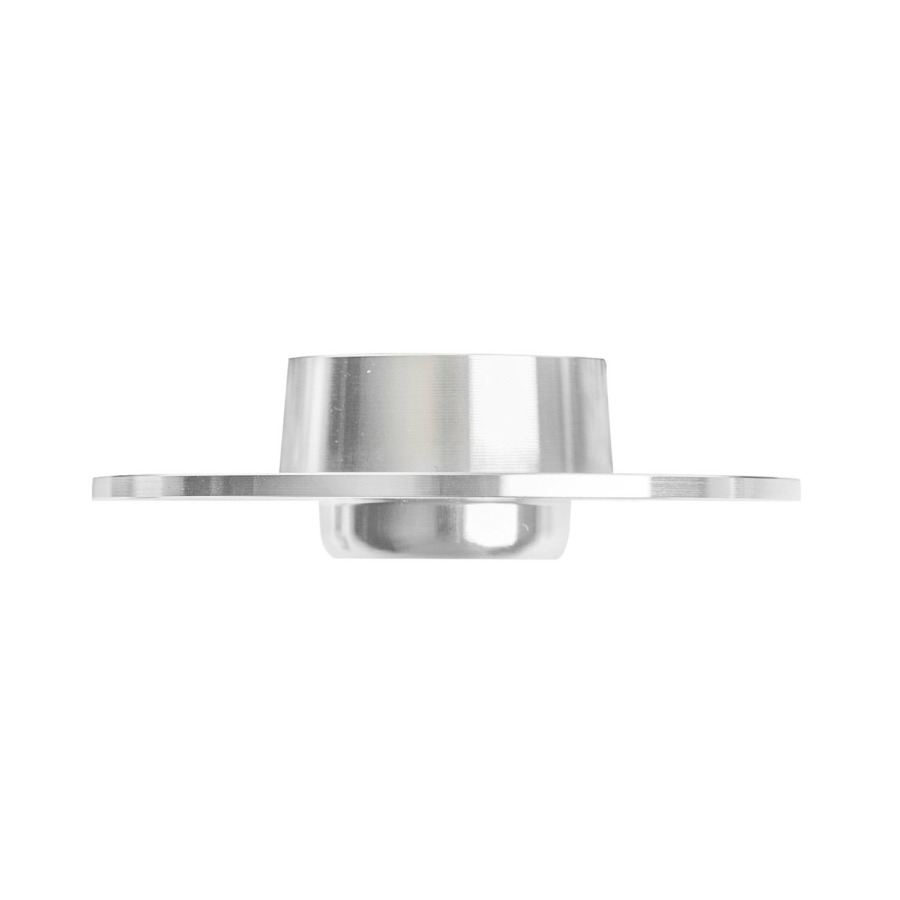

- 6 x Upper Insert
- 6 x Lower Insert
- 4 x Short OE Bolts

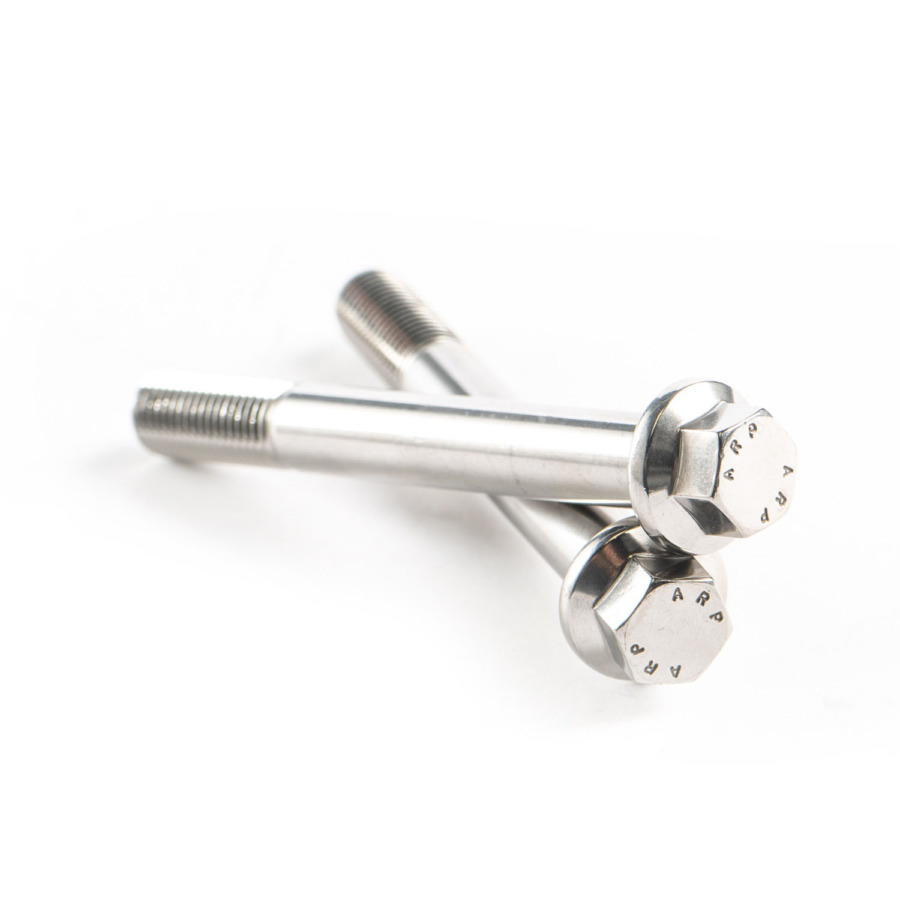

- 2 x ARP Long Bolts
Torque specs:
- ARP bolts = 85Nm (can be re-used)
- 18mm bolts = 70Nm+180deg (do not re-use)
- 16mm bolts = 50Nm + 90deg (can be re-used once)
- 13mm bolts = 20Nm + 90deg (can be re-used once)
Fitment:
- MK5 GTI/GLI/R32/Jetta/Rabbit
- MK6 GTI/Golf R/Golf – Aluminum Subframe only, will not fit Jettas with steel subframe
- 8P Audi A3/S3
- B6 Passat/Passat CC
Note: wheel alignment required after installation.
