Product Overview

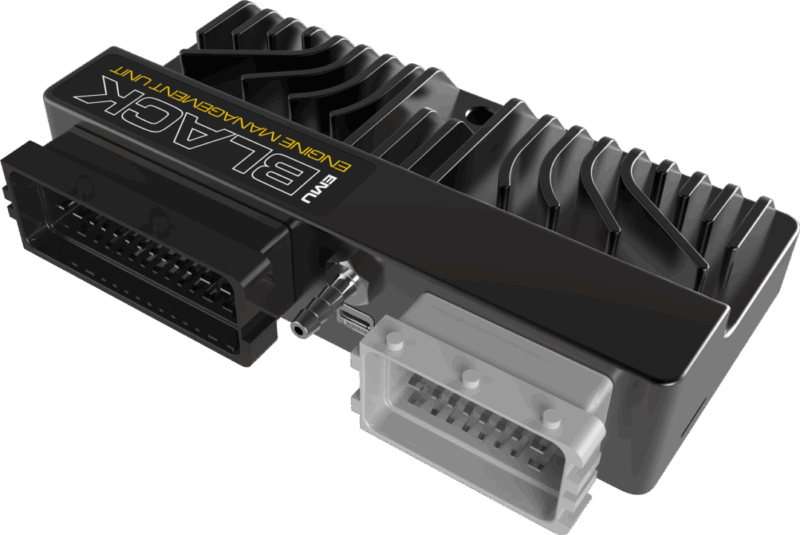

The ECUMaster EMU Black is a full standalone engine management unit designed for high-performance and competition builds where the factory ECU is no longer capable of managing the engine. Whether you’re running an engine swap, forced induction build, individual throttle bodies, or a complete race engine, the EMU Black gives you full control over fueling, ignition timing, boost, drive-by-wire throttle, and wideband AFR — all from a single compact unit with a built-in 4-bar MAP sensor. With 8 injector drivers, 6 high-current direct coil drivers, onboard DBW control, and an IP65-rated weatherproof enclosure, the EMU Black handles everything from naturally aspirated track cars to 40+ PSI turbo builds without requiring additional modules or breakout boxes.

Key Features

• Built-In 4-Bar MAP Sensor — No external MAP sensor needed. Reads up to 43.5 PSI of boost pressure directly from the ECU
• Direct Wideband Control — Drives Bosch LSU 4.2 or 4.9 wideband O2 sensors directly. No standalone wideband controller required
• 8 Injector Drivers — Supports up to 8 cylinders with individual cylinder fuel trim for precision tuning
• 6 High-Current Direct Coil Drivers — Fire ignition coils directly without external igniters or coil drivers. Supports wasted spark and sequential ignition
• Drive-By-Wire (DBW) Throttle Control — Onboard H-bridge motor driver for electronic throttle body control with built-in safety protocols
• 2 EGT Channels — Direct thermocouple inputs for exhaust gas temperature monitoring without external amplifiers
• 9 Analog Inputs — Extensive sensor input capacity for TPS, CLT, IAT, oil pressure, fuel pressure, and custom sensors
• IP65 Weatherproof Enclosure — Sealed against dust and water jets. Mount it in the engine bay without a protective box
• EMU Black Tuning Software — Free Windows-based tuning software with real-time data logging, 3D fuel and ignition tables, and advanced diagnostics

Specifications

Vehicle Compatibility

For competition use only. This product does not carry a CARB EO number and is not legal for use on emissions-controlled vehicles in states that require emissions testing.

Installation

The EMU Black requires custom wiring to your engine’s sensors, injectors, coils, and throttle body. A vehicle-specific wiring harness adapter (sold separately for common platforms) or a custom pinout wiring job is required. Tuning is performed via the free EMU Black software over USB. Professional installation and tuning by a qualified EFI tuner is strongly recommended unless you have experience with standalone engine management systems.
