Morimoto 2005-2013 Chevrolet Corvette C6 XB Evo LED Headlights
- Dual Bi-LED Projectors: Type 2 Ishida Optic with Nichia LEDs from Japan — wider beam, brighter hot spot, IIHS-exceeding output.
- 6 Functions Built In: Low beam, high beam, DRL (white/amber), turn signal (sequential/fade-off), parking light, welcome sequence.
- Side Shooter Optics: Evo-exclusive side-firing optics for maximum width and the signature Morimoto look.
- 100% Plug & Play: Direct fit to factory harness — no modifications, no dash errors, no flickering. All C6 trims: Base through ZR1.
- DOT/SAE Compliant: FMVSS108 certified with UV-Shield hard-coated polycarbonate lenses. 5-year limited warranty.
DOT / SAE Compliant
Plug & Play

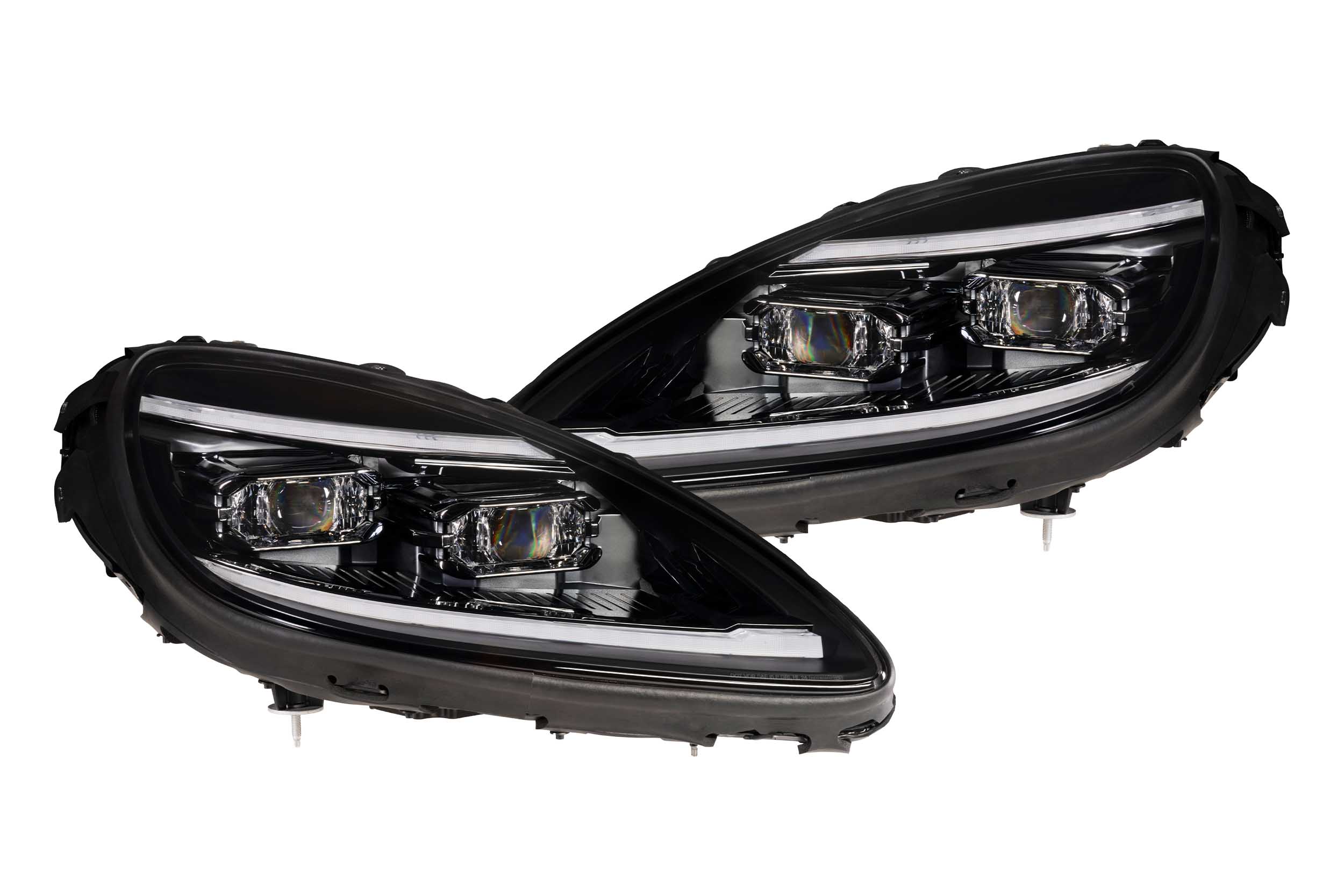

The Morimoto XB Evo LED Headlights are the definitive lighting upgrade for the 2005-2013 Chevrolet Corvette C6. Engineered and tested in the USA by Morimoto’s lead optical engineer Yoshi Ishida, these headlights feature dual Type 2 Ishida Optic Bi-LED projectors powered by Nichia LEDs from Japan — delivering a wider beam, brighter hot spot, and dramatically improved nighttime visibility.
Much more than a design refresh — the XB Evo showcases unique side shooter optics, a configurable welcome sequence, and Morimoto’s proprietary signal swap system for DRL and turn signal personalization. DOT, SAE, and FMVSS108 compliant. Exceeds IIHS standards. 100% plug-and-play with a 5-year warranty.
Type 2 Ishida Optic Bi-LED projectors
Configurable DRL & sequential turn signals

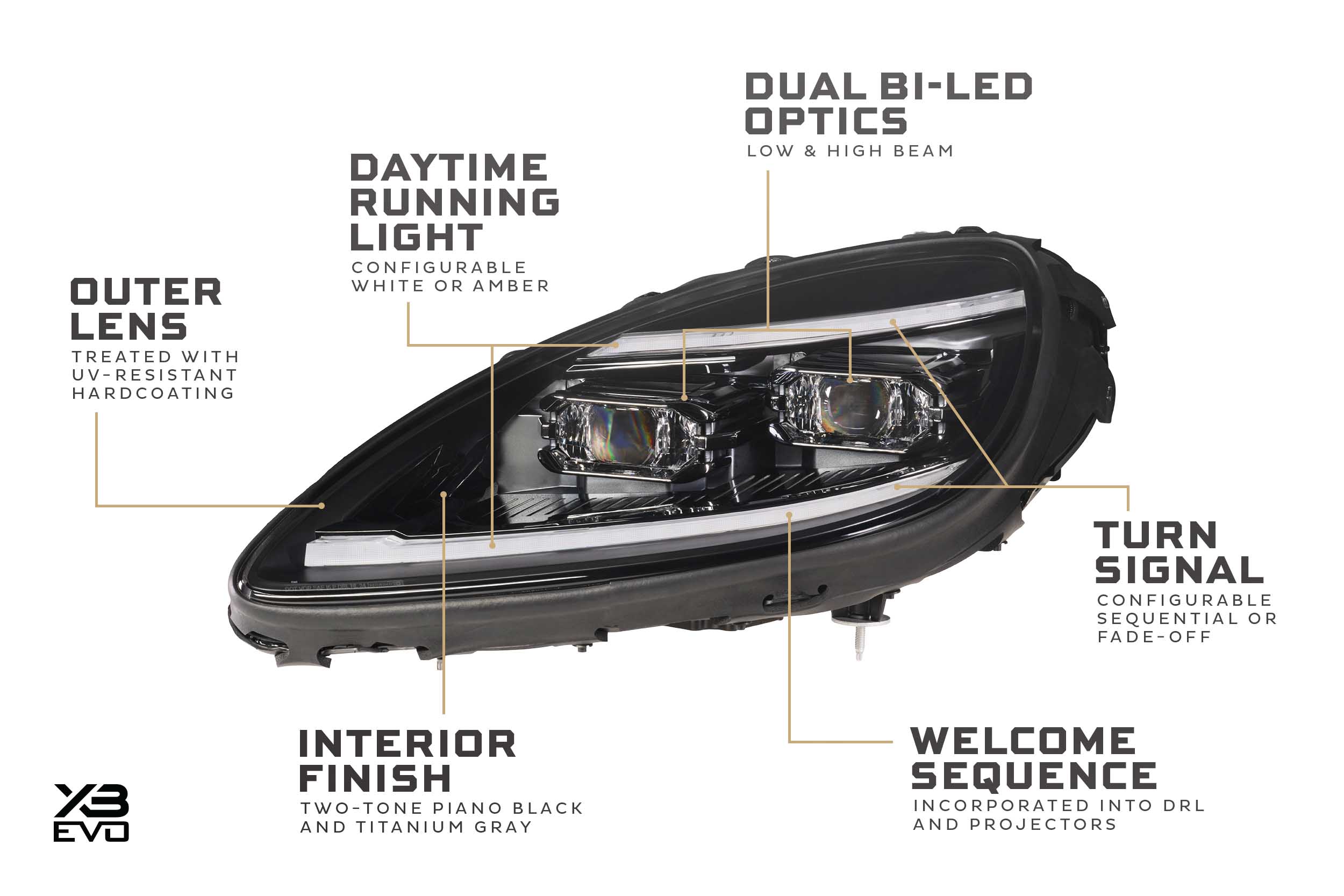

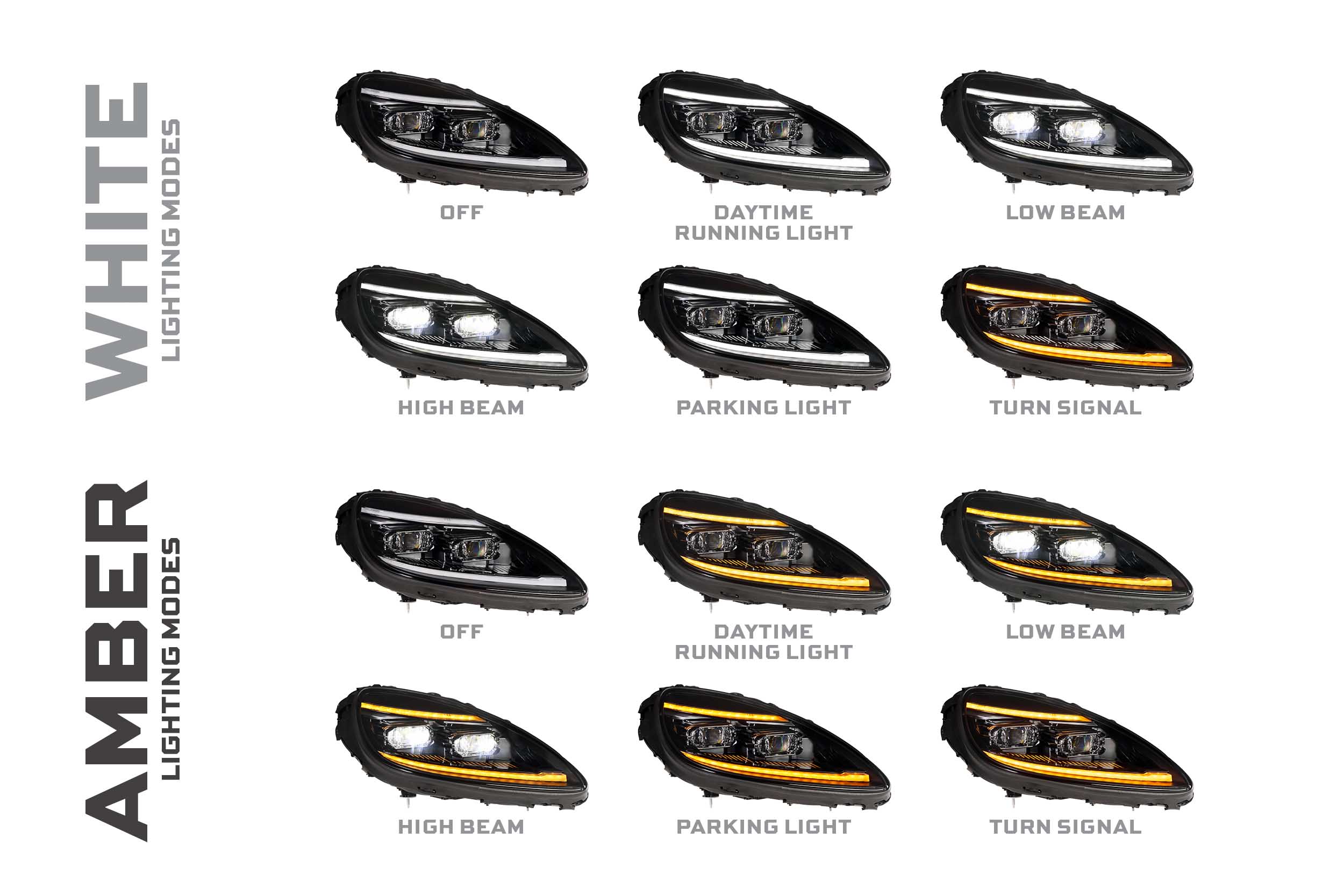

6 Functions, One Headlight

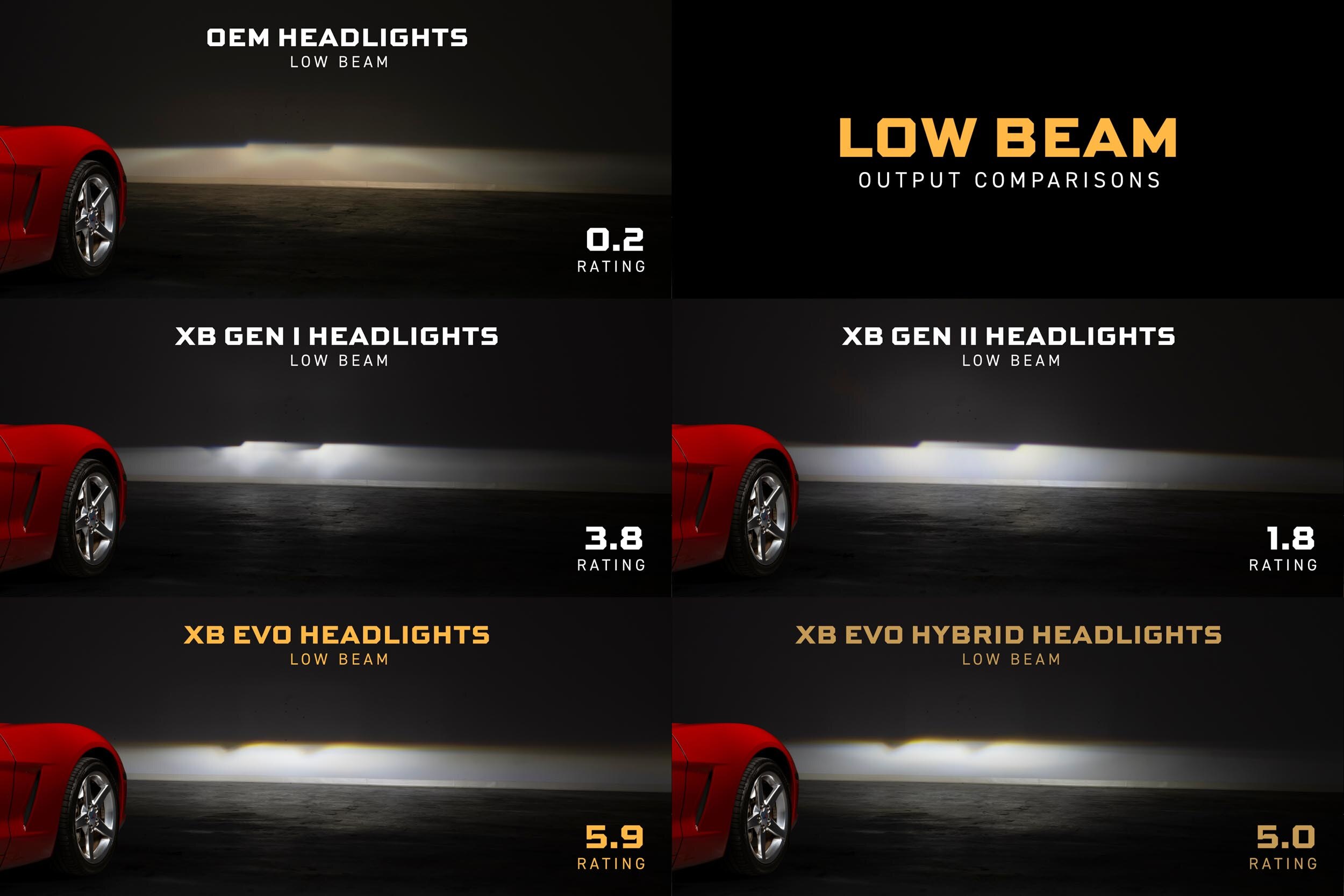

Low Beam
Dual Bi-LED projectors with wide beam pattern
High Beam

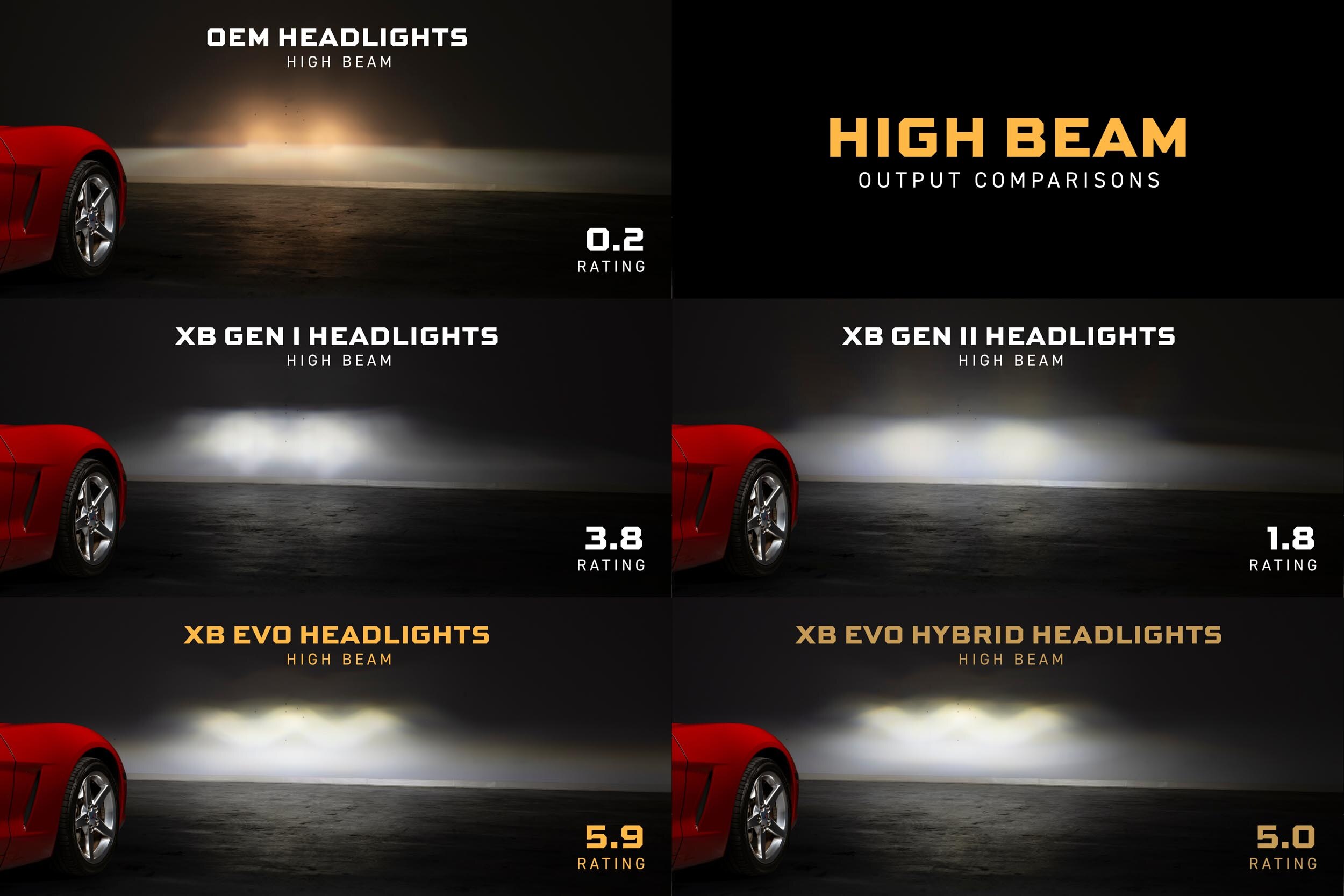

Bright hot spot exceeding IIHS standards

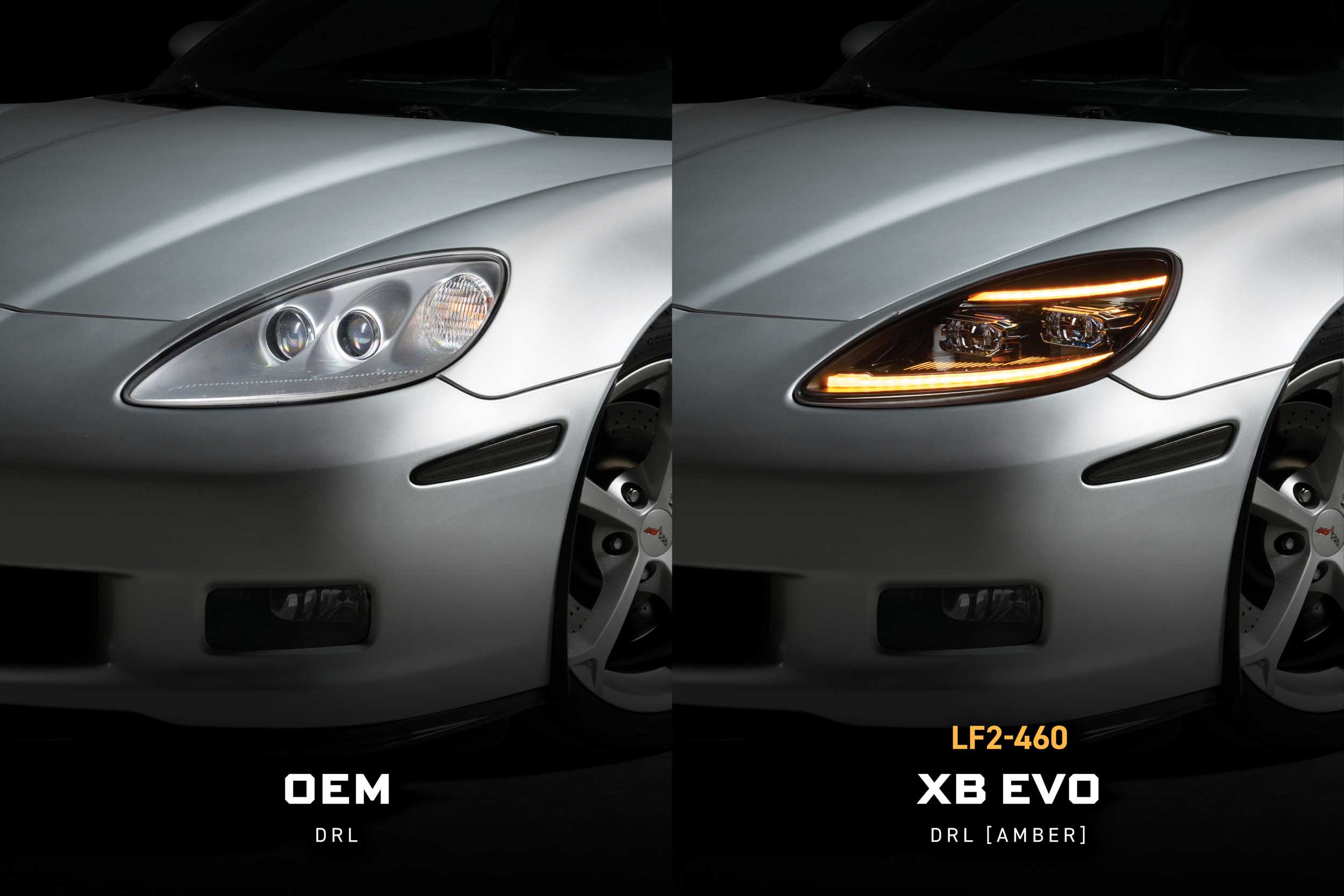

DRL
White or amber — configurable via mode selector
Turn Signal
Sequential or fade-off — your choice
Parking Light
Integrated parking light function
Welcome Sequence
Animated startup — Evo exclusive feature
XB Evo Technology

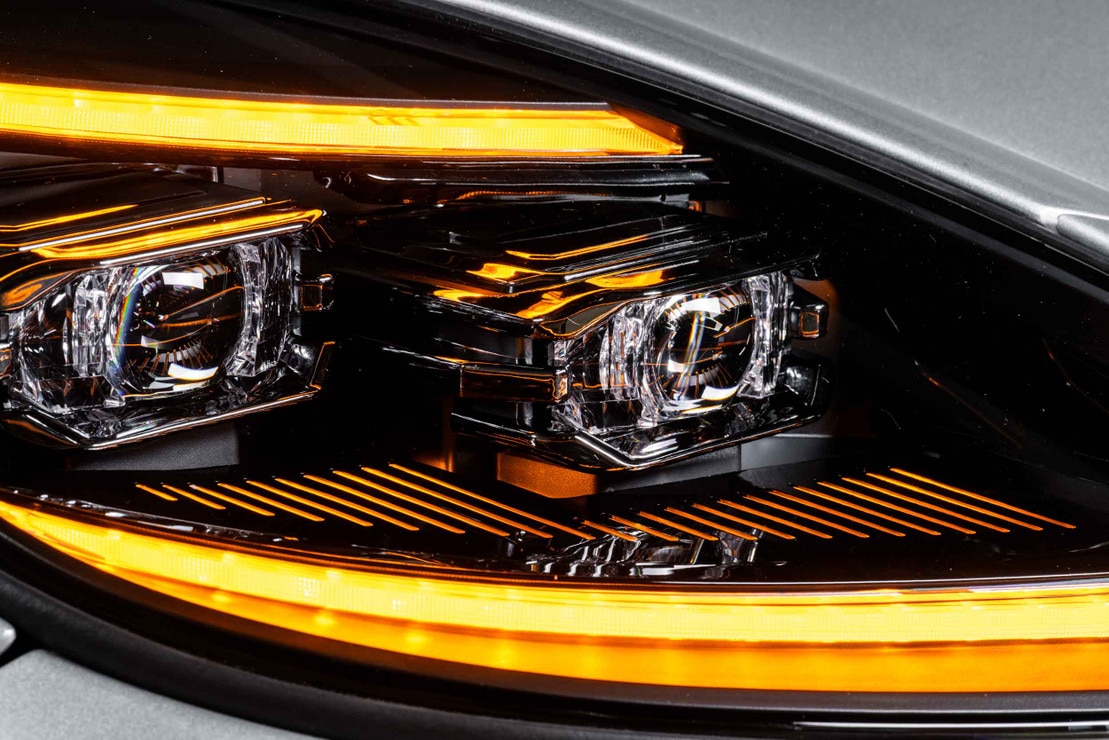

Type 2 Ishida Optic Bi-LED
Each headlight houses 2 projectors, each powered by a Nichia NC4W193F LED at 750mA. Designed by Morimoto’s lead optical engineer Yoshi Ishida in California — the same technology trusted by OE manufacturers.

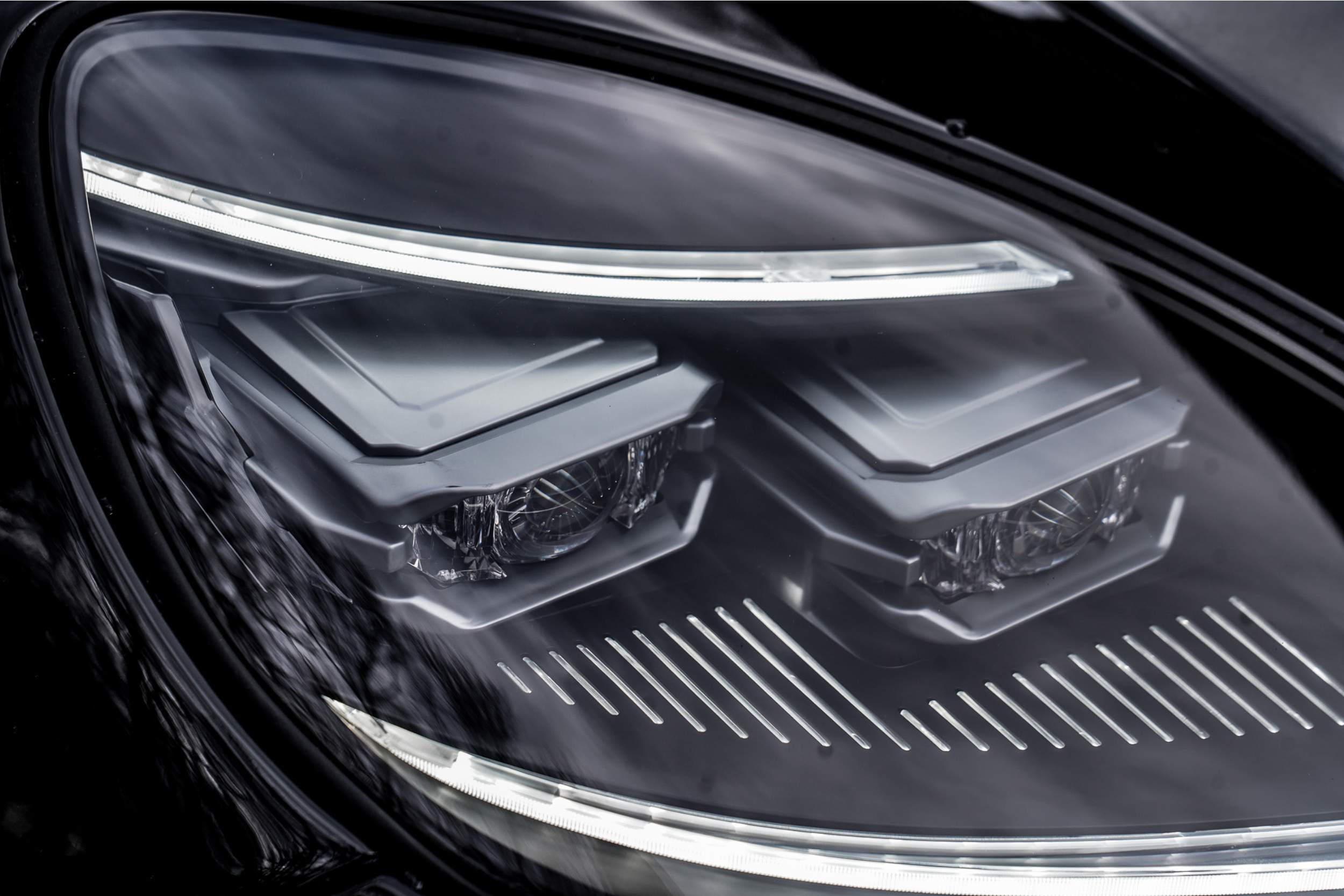

Side Shooter Optics
Exclusive to the Evo version — unique side-firing optics add width to the headlight output and create the signature Morimoto look. Special surface textures maximize intensity from all viewing angles.
Proprietary Signal Swap System
Personalize your DRL and turn signal behavior using the included mode selectors. Choose white or amber DRL. Choose sequential or fade-off turn signals. No coding, no modules — just swap the magnetic selector.
UV-Shield Hard Coating
Polycarbonate lenses with UV-resistant hard coating exceeding OE Toyota headlight standards. Resistant to cracking, fading, and yellowing — these should easily last the life of your Corvette.

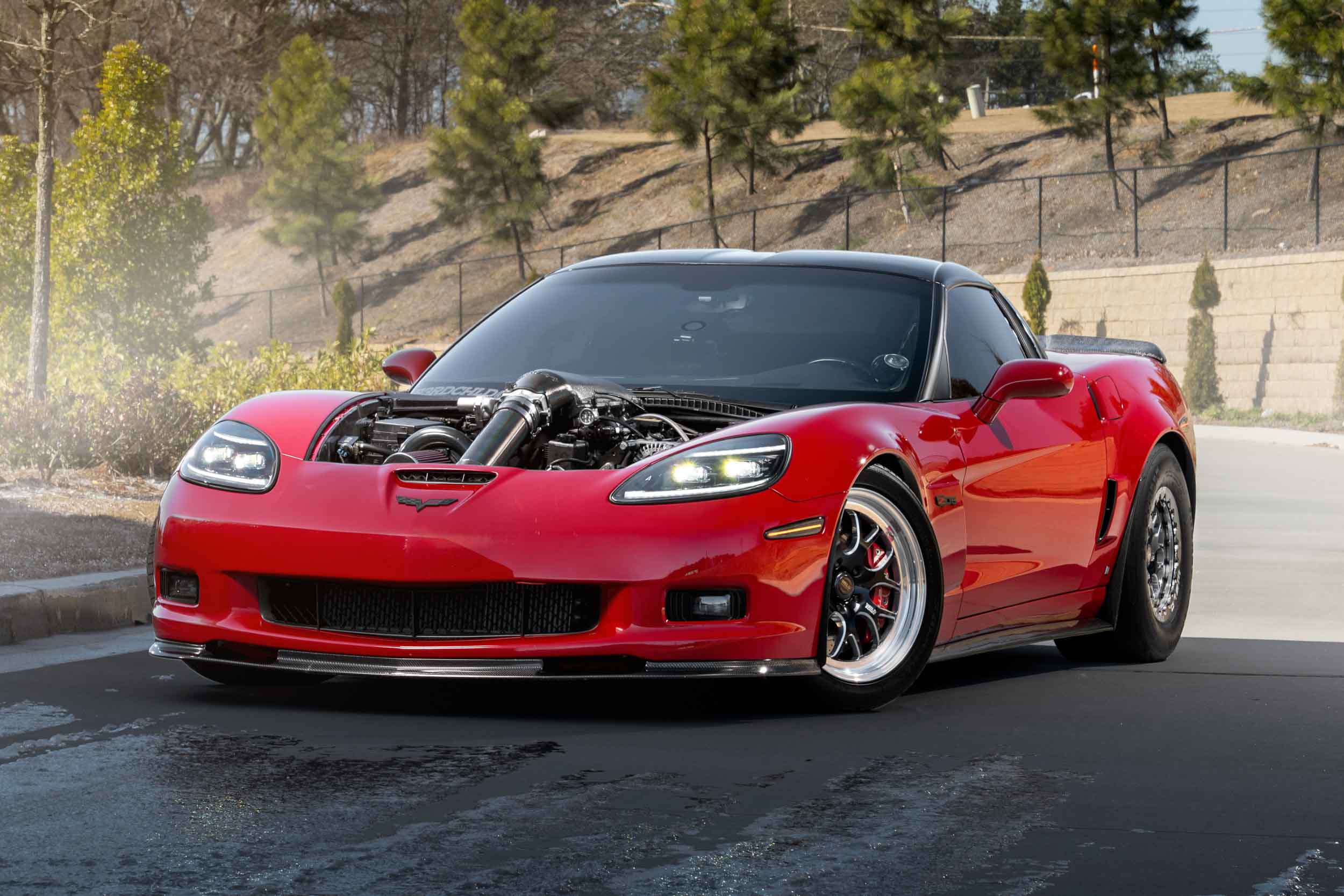

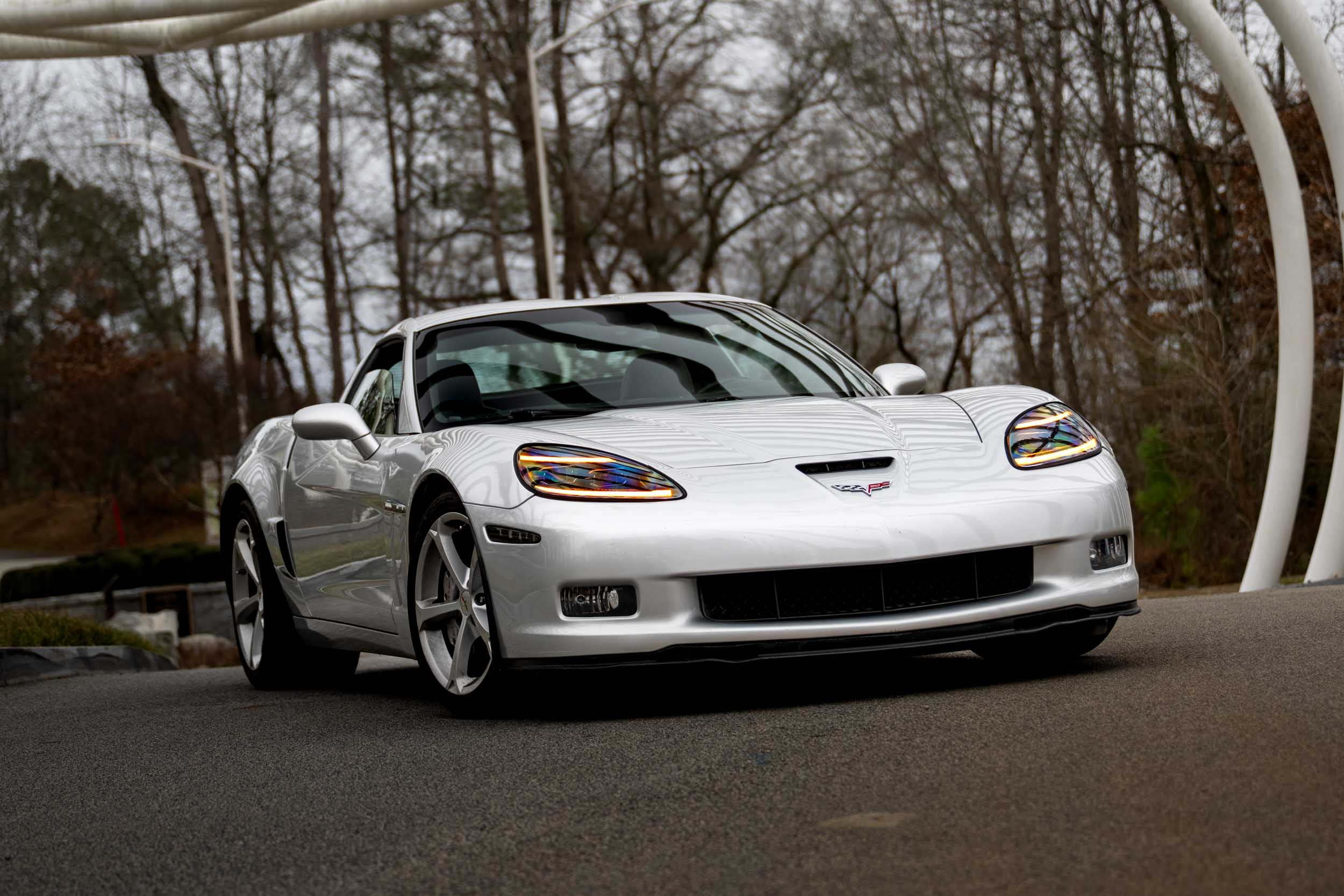

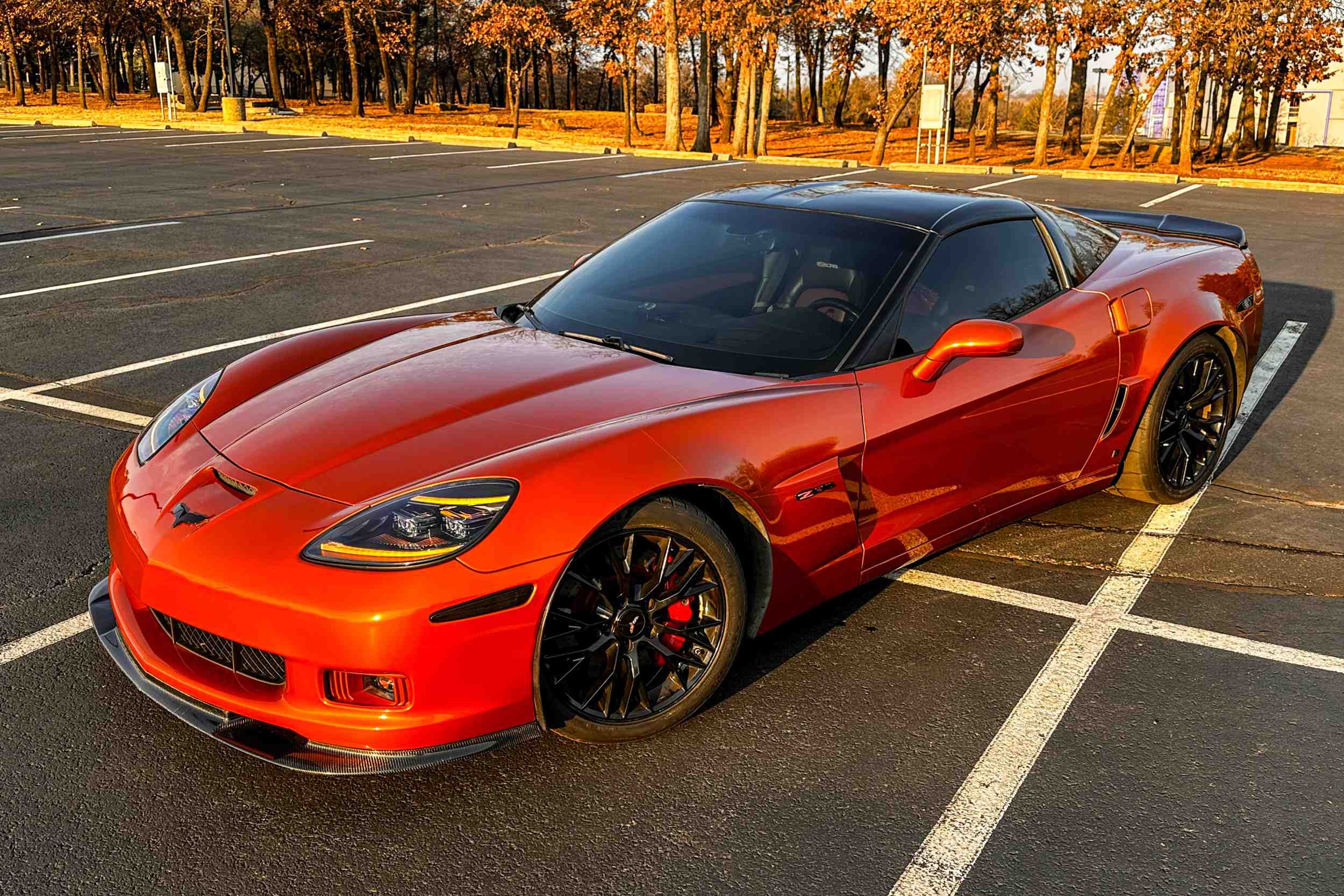

XB Evo headlights installed on a C6 Corvette
Technical Specifications
| Main Optics | 2x Type 2 Ishida Optic Bi-LED per headlight |
| LED Source | Nichia NC4W193F (Japan) — 1x per projector @ 750mA |
| Functions | Low Beam, High Beam, DRL, Turn Signal, Parking Light, Welcome Sequence |
| DRL Color | White or Amber (configurable via mode selector) |
| Turn Signal Modes | Sequential or Fade-Off (configurable via mode selector) |
| Internal Bezel | Black and Titanium finish |
| Lens Material | Polycarbonate with UV-Shield Hard Coating |

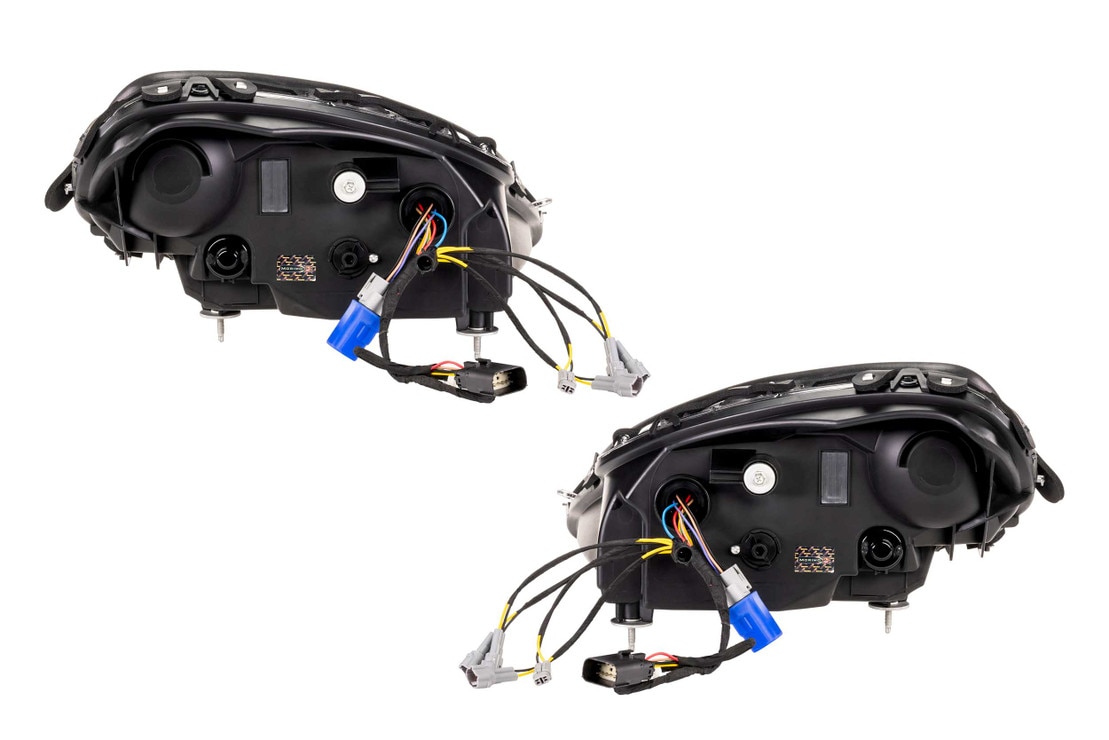

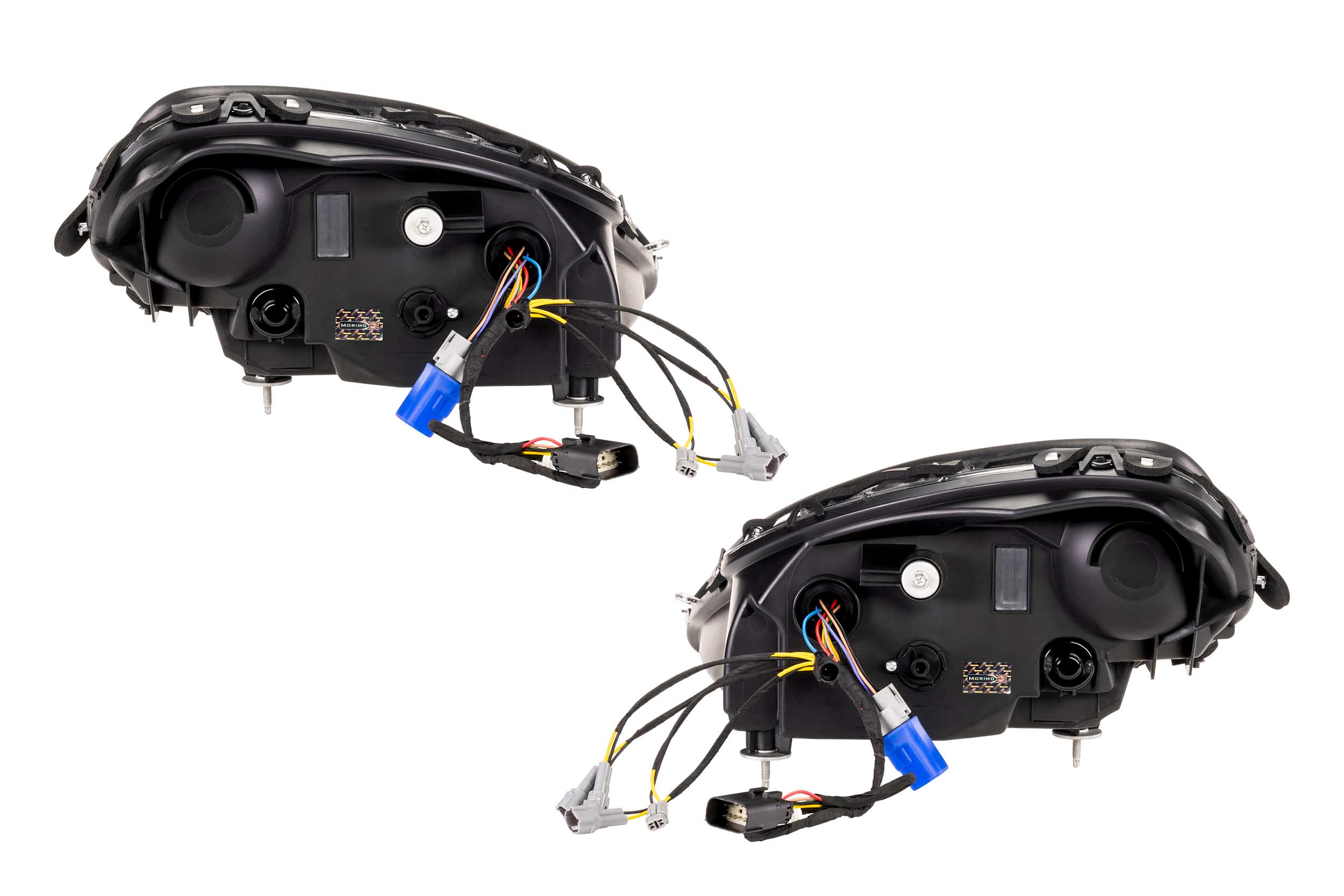

| Wiring | Plug and Play — all C6 trim levels |
| Vertical Aim | +/- 6 degrees (fully adjustable) |
| Compliance | DOT, SAE, FMVSS108 — Exceeds IIHS standards |
| Warranty | 5-Year Limited Warranty (serviced in Atlanta, GA) |
| Part Number | LF2-460 |
| Made In | Designed & Engineered in USA |
Vehicle Fitment
2005-2013 Chevrolet Corvette C6 — All Trims
2LT
3LT
4LT
Grand Sport
Z06
ZR1
Replaces GM Part Numbers
20789679, 20789680, 25867785, 25867786, 20936420, 20789706, 15849088, 15875917, 15237568, 15237578, 20832116, 20832118, 20909411, 20909412, 19371153, 19371151

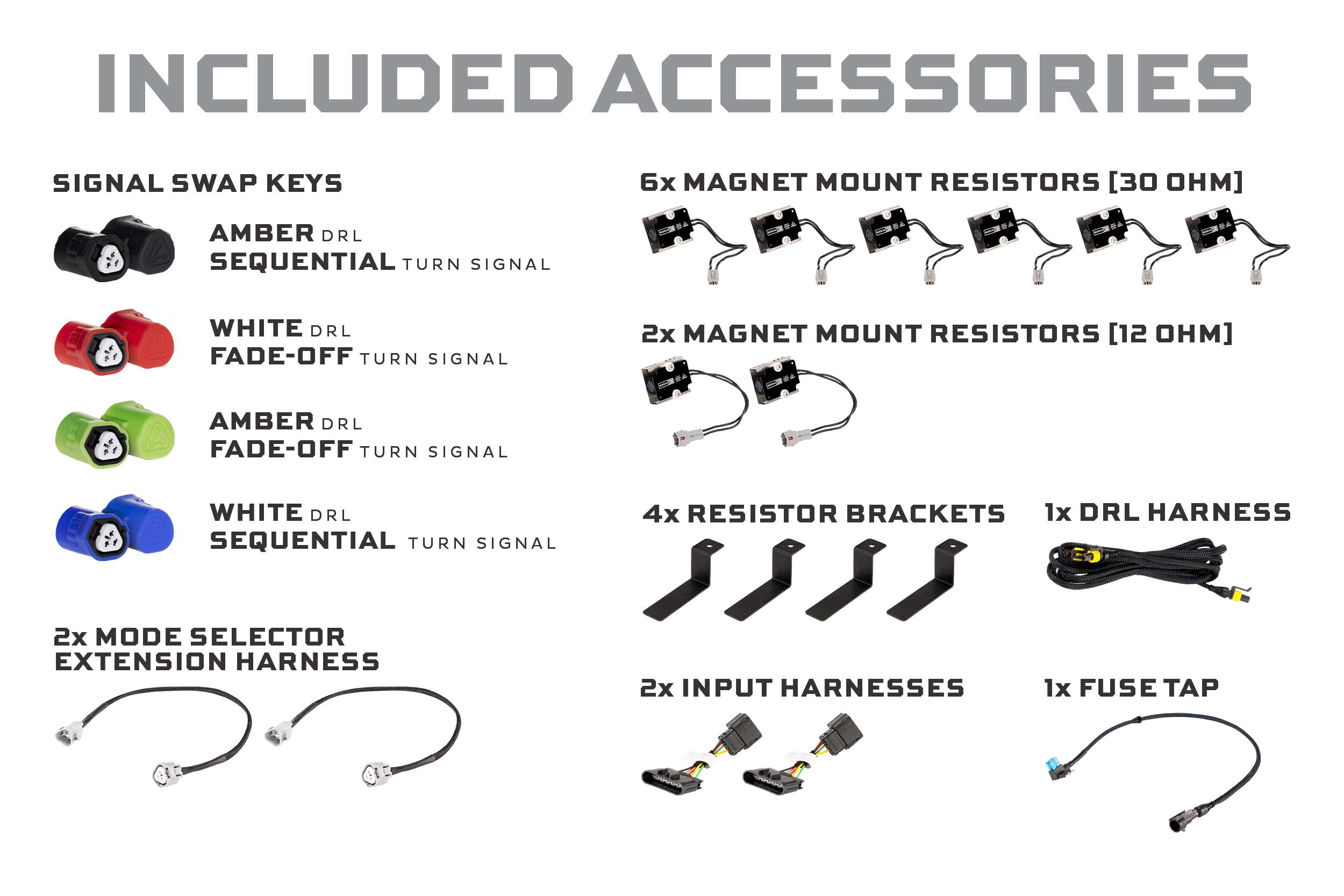

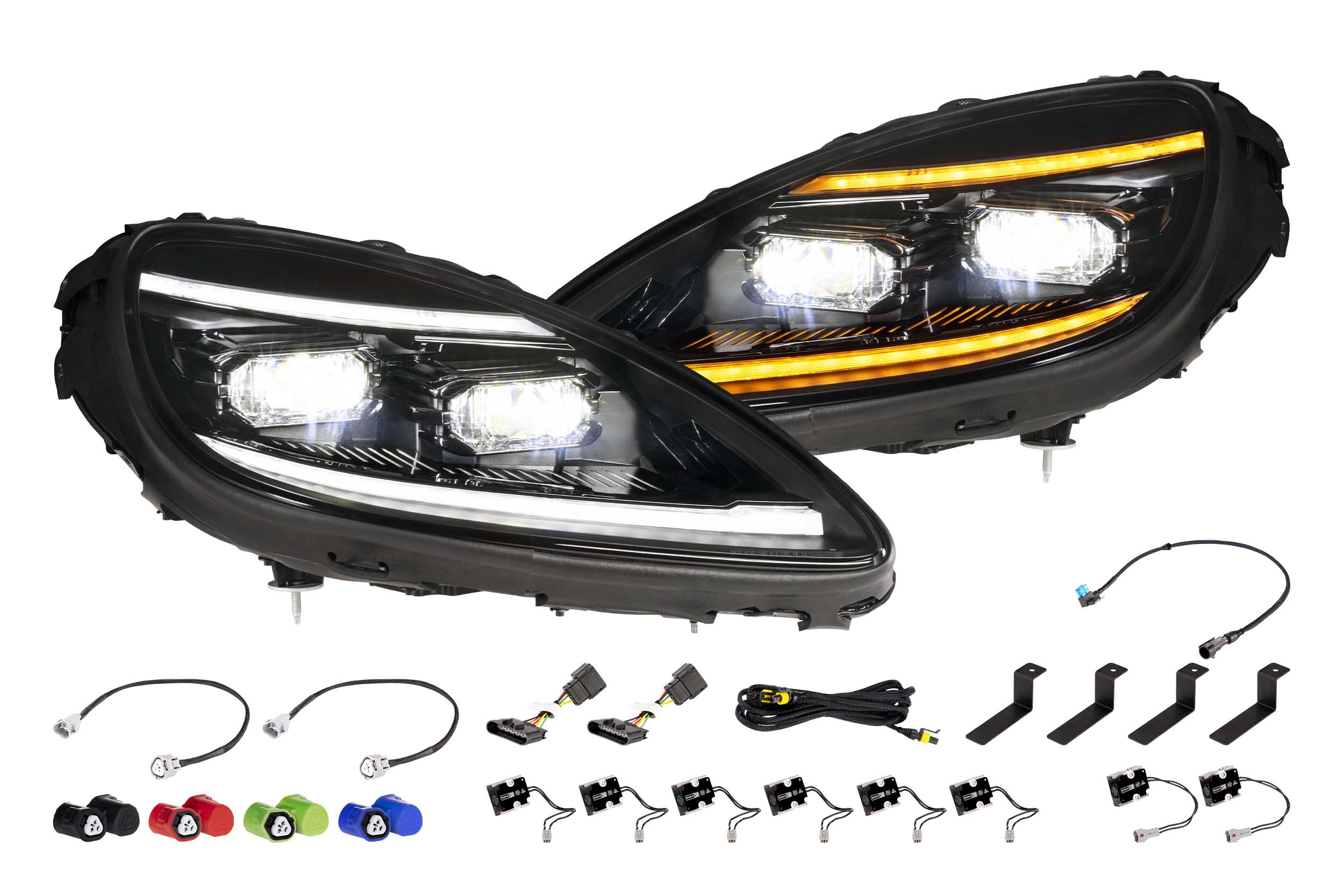

What’s in the Box
- ☑ 1x Right (Passenger) Headlight
- ☑ 1x Left (Driver) Headlight
- ☑ 8x Mode Selectors (4 pairs)
- ☑ 8x Magnet-Mount Resistors
- ☑ 4x Resistor Brackets
- ☑ 2x Mode Selector Extensions
- ☑ 2x Input Harnesses
- ☑ 1x DRL Harness
- ☑ 1x Fuse Tap
Installation
Plug & Play
Direct fit to factory wire harness — no splicing, no cutting, no modifications required
OE Fitment
Bolts to factory mounting points — aligns flush with surrounding sheet metal
Zero Issues
No dash errors, no flickering, no flashing, no radio interference
Important Notes
- Sold as a complete pair (driver + passenger)
- LHD / Right Hand Traffic only (North American vehicles)
- Vertical aim adjustable +/- 6 degrees with built-in adjusters
- LaminX clear protective film available as optional add-on
- Does not void factory vehicle warranty
