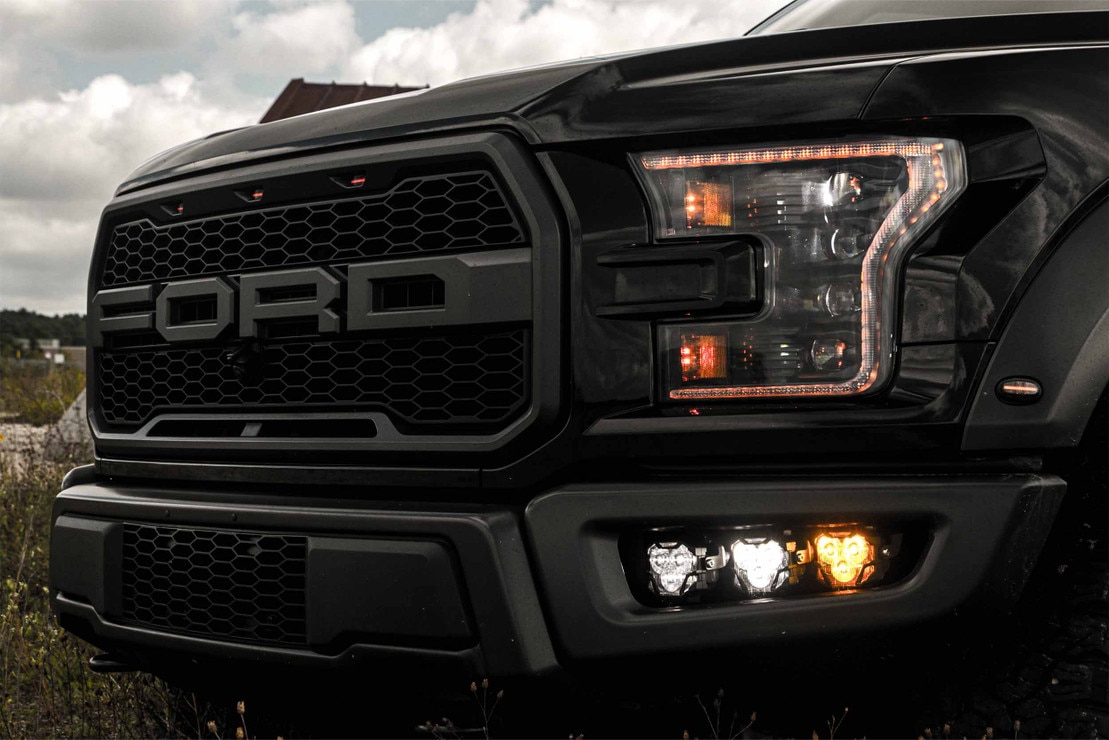

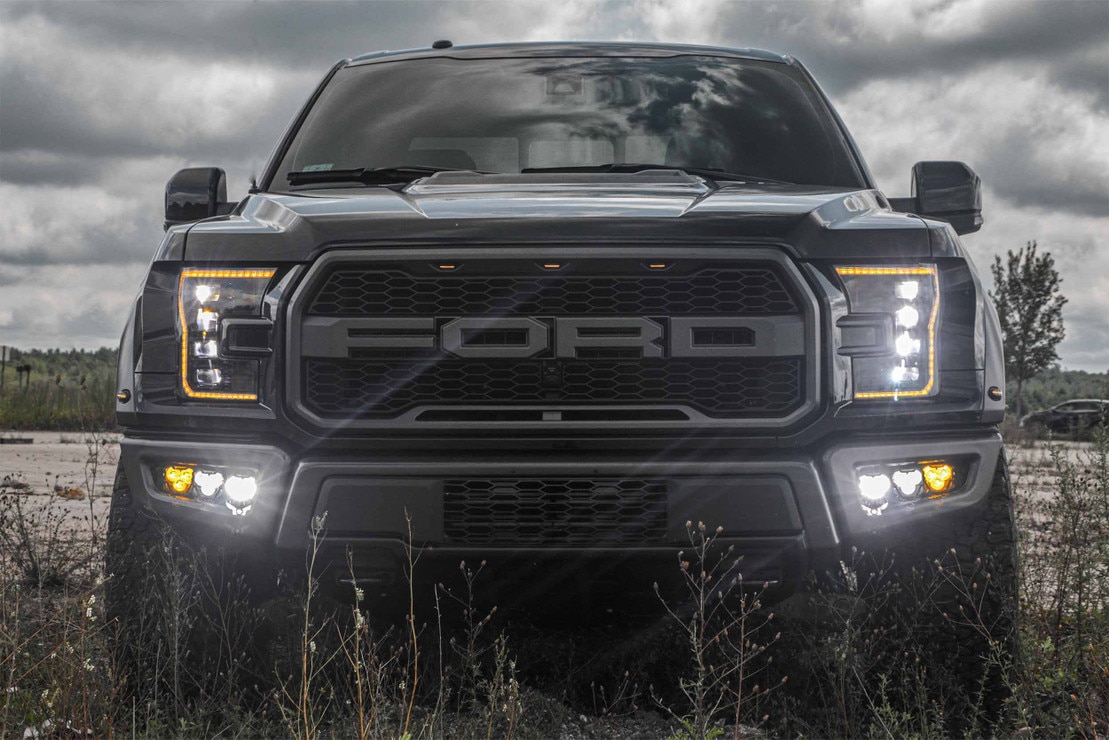

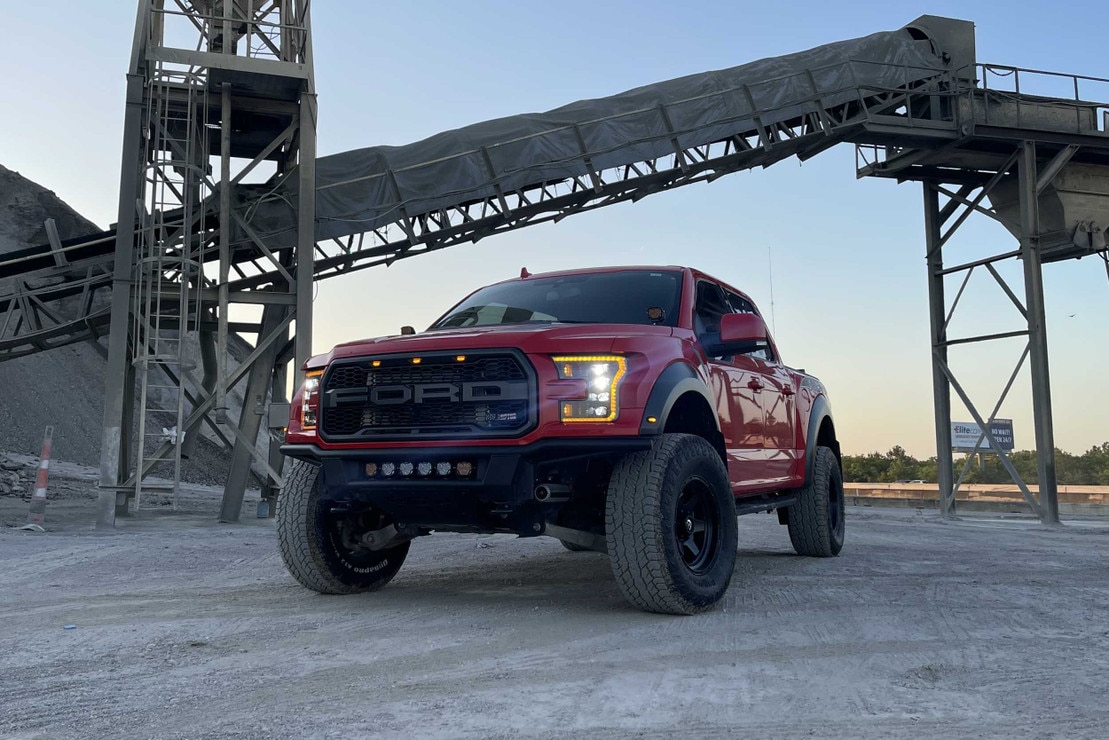

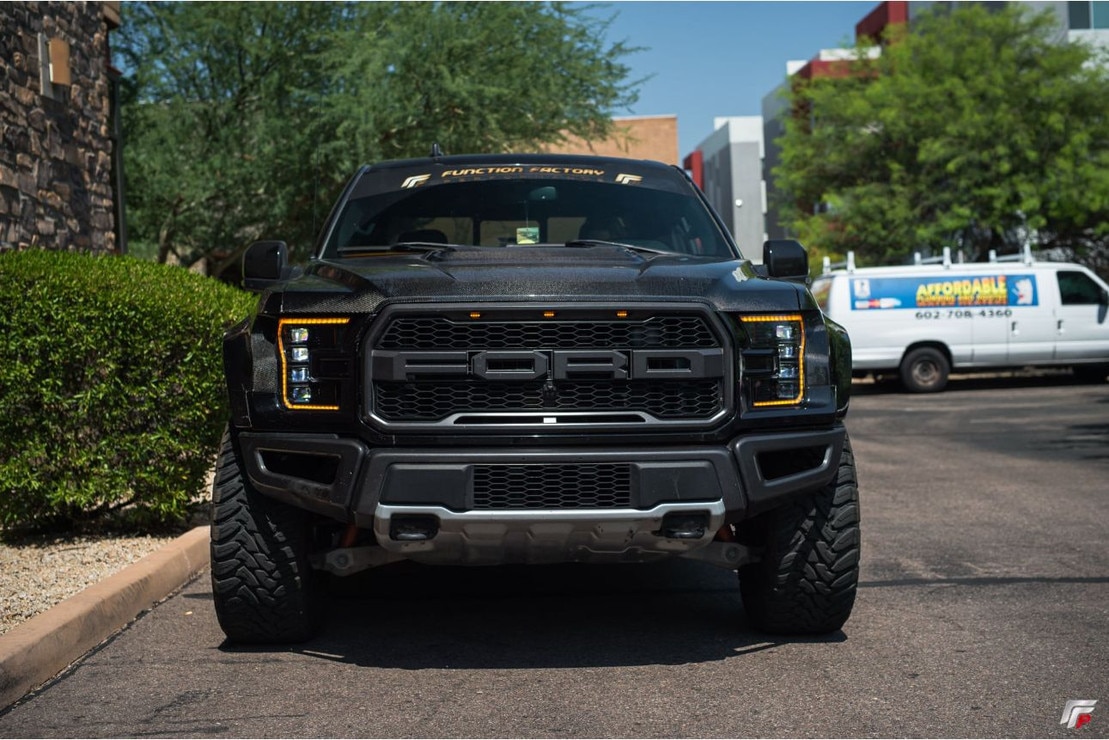

Morimoto 2017-2020 Ford F150 Raptor XB LED Headlights – Amber DRL

$1,942.00

Available

$
Add to Wishlist
Add to Wishlist
SKU: LF502-A.2-ASM, 1 x LF501T Category: Tag:

No Substitutes: If you don’t have LED powered headlights on your Ford Raptor, then you’re just behind the times! Thankfully the new Morimoto XB LED headlights: Look great. Are well-built. Have a virtually infinite life span. An unbeatable warranty, and out-perform the alternatives. Easily making them the best Raptor LED headlights on the market today.

Second Gen Update: The 17-20 Raptor XB headlights broke the internet when they came out… and while they were the undisputed king for quite a while, other options from brands like Alpharex came out that offered a little more light. In true Morimoto fashion, nothing gets left alone for long and now there is no question: The XB LED Heads for the Raptor are back on top, and will be hard to top, period!

More Light Output: The original Raptor XB heads used two projectors on top for the low beam, and two on the bottom as a dedicated high beam. The new setup utilizes all four projectors for the low beam and has a dual Bi-LED setup for the high beam. The results? 200% more light output and a better distribution of light for improved visibility in the distance and off to the sides of the road. Asked and answered!

Start-Up Sequence: And if the optical upgrades weren’t enough, the badass start up sequence has been added too. When the Daytime Running light kicks on, the projectors illuminate in a two-stage sequence before turning back off. A video is worth a thousand words here… so make sure to watch the one embedded in the listing to see that in action! While it does absolutely nothing for performance, you can’t deny the cool-factor!

OEM Plus: We live, eat, and sleep headlights. While the Raptor LEDs from Morimoto cost a bit more relative to other options in the aftermarket; as the saying goes “you pay for what you get”. We’ve seen it all, and their fit and finish is far superior to everything else out there. Guaranteed.

Performance: We’ve always been blown away by the fact that the other brands don’t even consider how well their headlights perform on the road at night. Most often, they’re a downgrade compared to even the standard halogen setup, and that’s a shame. The good news is that Morimoto’s XB LED headlights produce a well defined beam pattern with a great amount of width, intensity, and a proper distribution of light. In our DEMO VIDEO, they even out-performed the expensive OEM LED headlights!

OEM+ Make no mistake, these will produce a much different [better] result than slapping some LED replacement bulbs into your stock housings. Their quad-projector optics meet & exceed all SAE, DOT, and FMVSS108 regulations when aimed properly…and that’s easy to do with their integrated adjusters. PLEASE NOTE: On the Amber/Raptor edition, the LED DRL is extremely bright and DOES NOT DIM (just like the OE LED headlights)

Plug-n-Play: Wiring is easy too! The XB Raptor LED headlights are designed to work without any modifications. They will plug into the factory connectors for the stock headlights and each assembly includes all necessary connectors, rubber seals, and pigtails for a plug n play install. No error codes, no flickering, hyper-flashing, or radio interference. They can easily be removed, and will not void your factory warranty.

Sequential LED DRL: Game Changer! Their LED daytime running light is powered by Osram LEDs and is insanely bright, easily visible during the day. At the top of the housings, a row of LED’s provides the turn signal function. You can set them up to run as sequential or solid signals according to your preference.

Well-Built: Their UV-coated polycarbonate lens will resist the test of time, ensuring your Raptor headlights will look good as new for many years to come. The PPS plastic housing is light-weight and much stronger than comparable alternatives. The die-cast aluminum heat-sinks inside the housings provide more than an adequate amount of cooling for the OEM grade Osram LED chips that produce the light. These complete headlights may be new to the market, but Morimoto’s XB LED fog lights have proven themselves perfect after 5+ years out now, which is confidence inspiring.

They Look: Amazing. At least in our opinion! The subtle elements incorporated in their design are more than enough to make them stand out, but they’re clean enough to be considered original equipment to those who don’t know any better. The piano black trim and smoked gray reflectors keep the color scheme neutral, and the quad kuria-optic projectors are as modern as it gets.

Customizable: Thinking about paint-matching some OEM LED headlights from Ford? Forget it man. Those things are nearly impossible to open up and then reliably re-seal. Going that route, You’ll be facing hours and hours of labor and a high probability for “hack job” status in the end. With Morimoto’s Raptor LED headlights, that job is painless! Since they’re sealed with Butyl Rubber, they are much easier to open, customize/paint and then reseal!


WHAT’S INCLUDED

  • Headlights: 2x (One Pair) 17-20 Raptor XB LED Headlights
  • Wiring: Plug and Play Harness, Fuse Tap

WARRANTY INFORMATION

This Morimoto product includes a 5 Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse. For additional information, Click Here. In the event of any issues upon installation, please document it via photo/video and contact us prior to removing the light(s).
This warranty is only valid if the item is purchased from an Authorized Dealer, Click HERE for a list of unauthorized dealers.

COMPATIBILITY

  • Ford F-150 Raptor: 2017-2020*
  • *NOTE: The Micro Fuse Tap Harness (LF501T) is required for proper installation.
  • Replaces Ford Part #: FL3Z-13008B, FL3Z-13008A, HL3Z-13008-A, HL3Z-13008-A, FL3Z13008B, FL3Z13008A, GL3Z13008B, GL3Z13008A, FO2502344, FO2503344, FO2502335, FO2503335, FL3Z3008M, FL3Z13008K, FL3Z13008K, FL3413006BV, FL3413006BV, FL3Z13008M, HL3V13006VC, FL3Z13008L
  • NOTE: These housings have been designed for, and tested on, US-Spec vehicles. Other countries’ compatibility may vary and is not guaranteed nor always known.

COMPLIANCE

Brand

Morimoto
