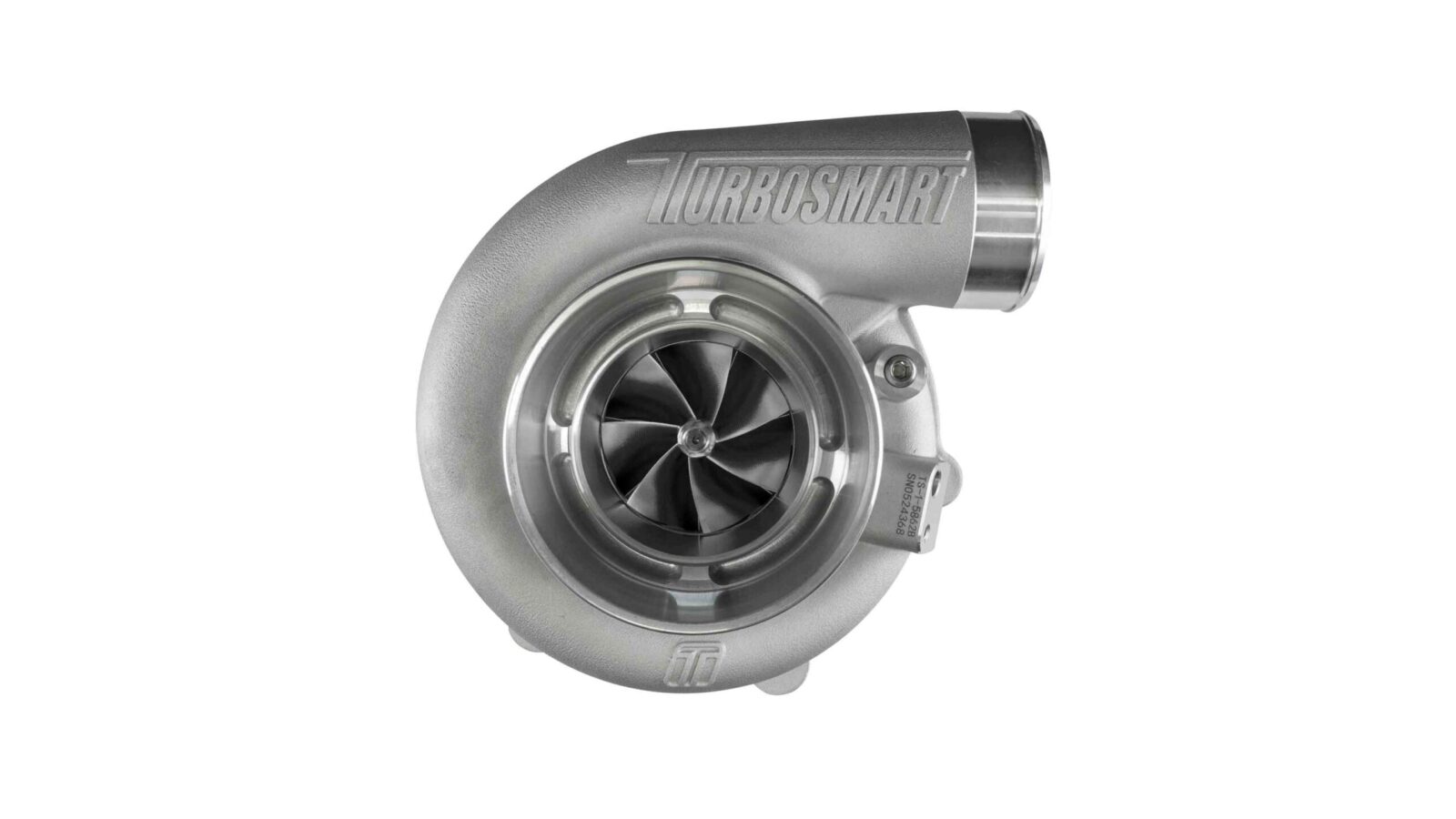

Turbosmart TS-1 Performance Turbocharger 5862 T4 0.82AR Externally Wastegated

Turbosmart’s turbocharger series has been developed using modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation — including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.

The TS-1 series consists of oil-cooled turbochargers featuring lightweight investment cast turbine housings, along with a proprietary bearing and main shaft combination. This design provides transient response you never knew possible, paired with the performance, quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics, ensuring high performance at lower shaft speeds. This is combined with a unique turbine wheel to maintain power at high loads and optimize flow.

All Turbosmart turbochargers are engineered with an engine end-to-end approach, aiming to maximize power through reduced back pressure and high-performance turbines — all while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegated options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/Rs and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: T4 flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
