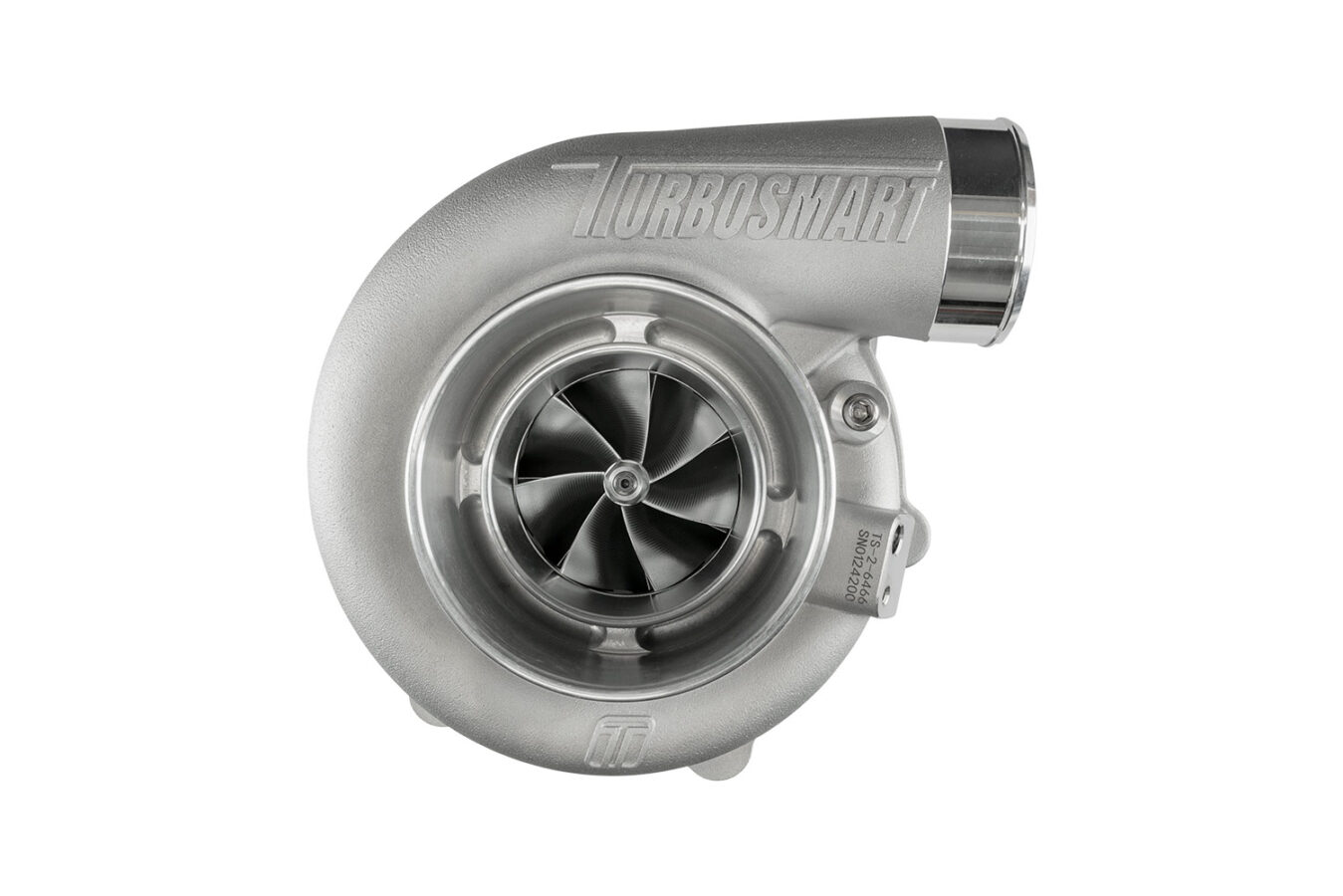

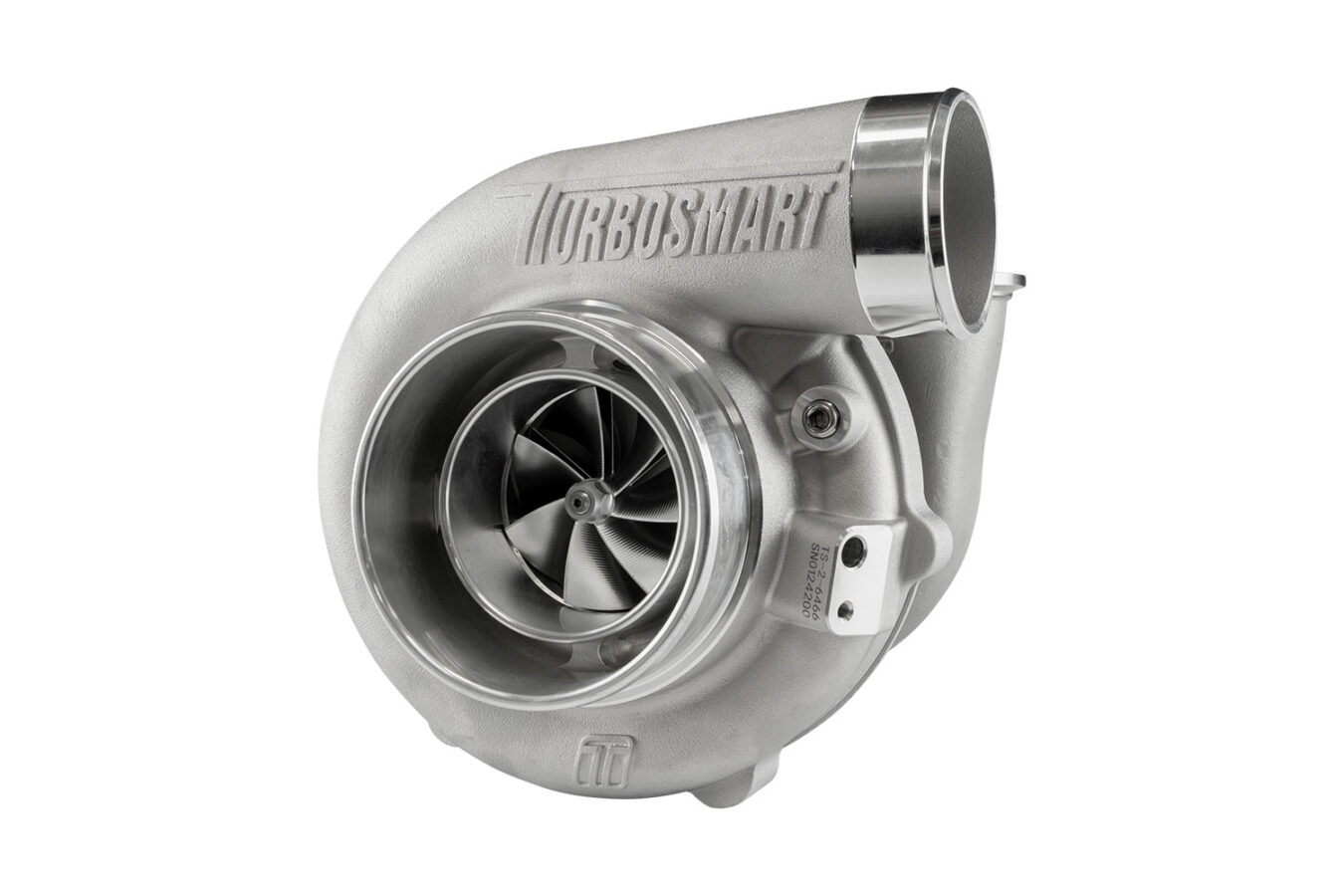

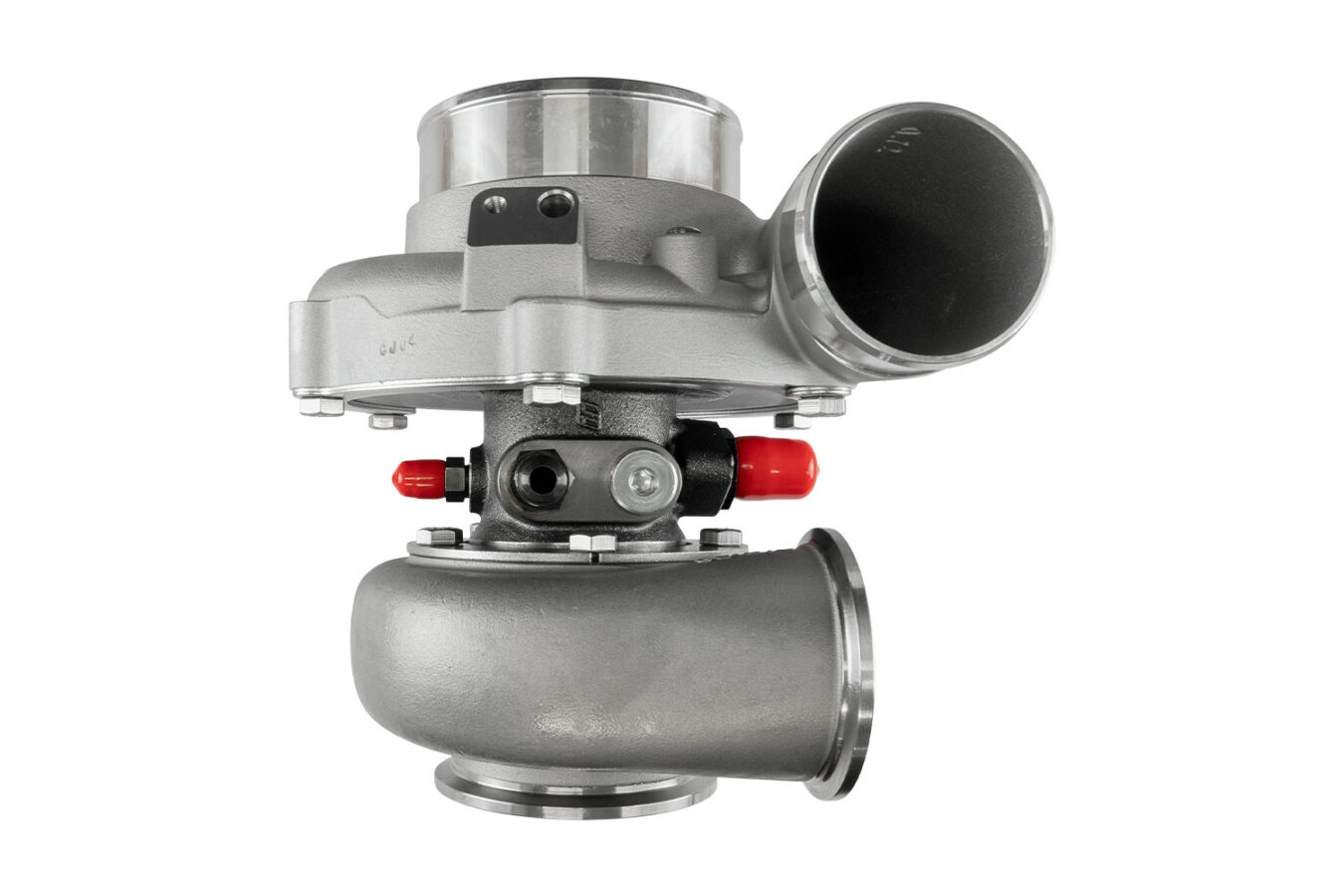

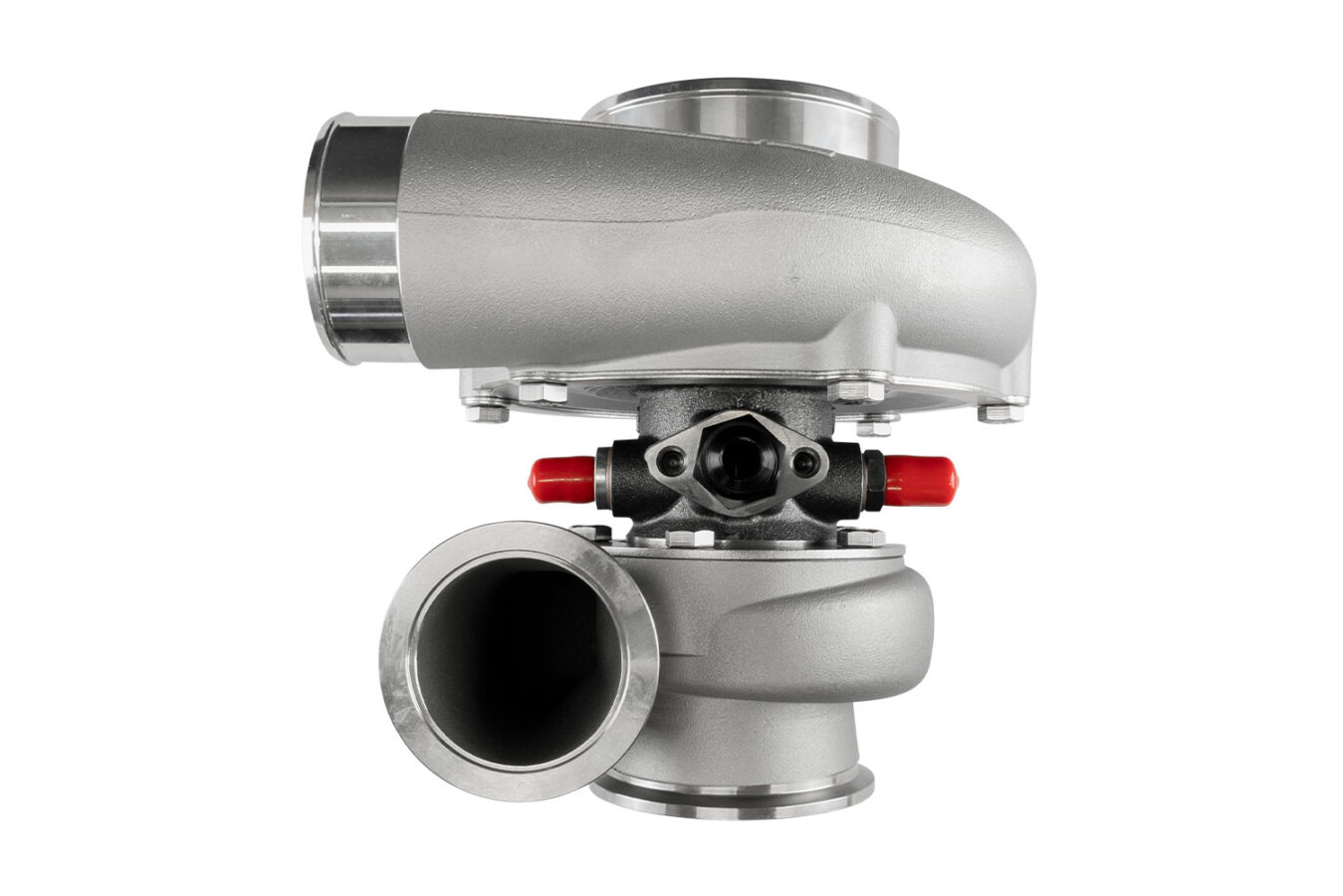

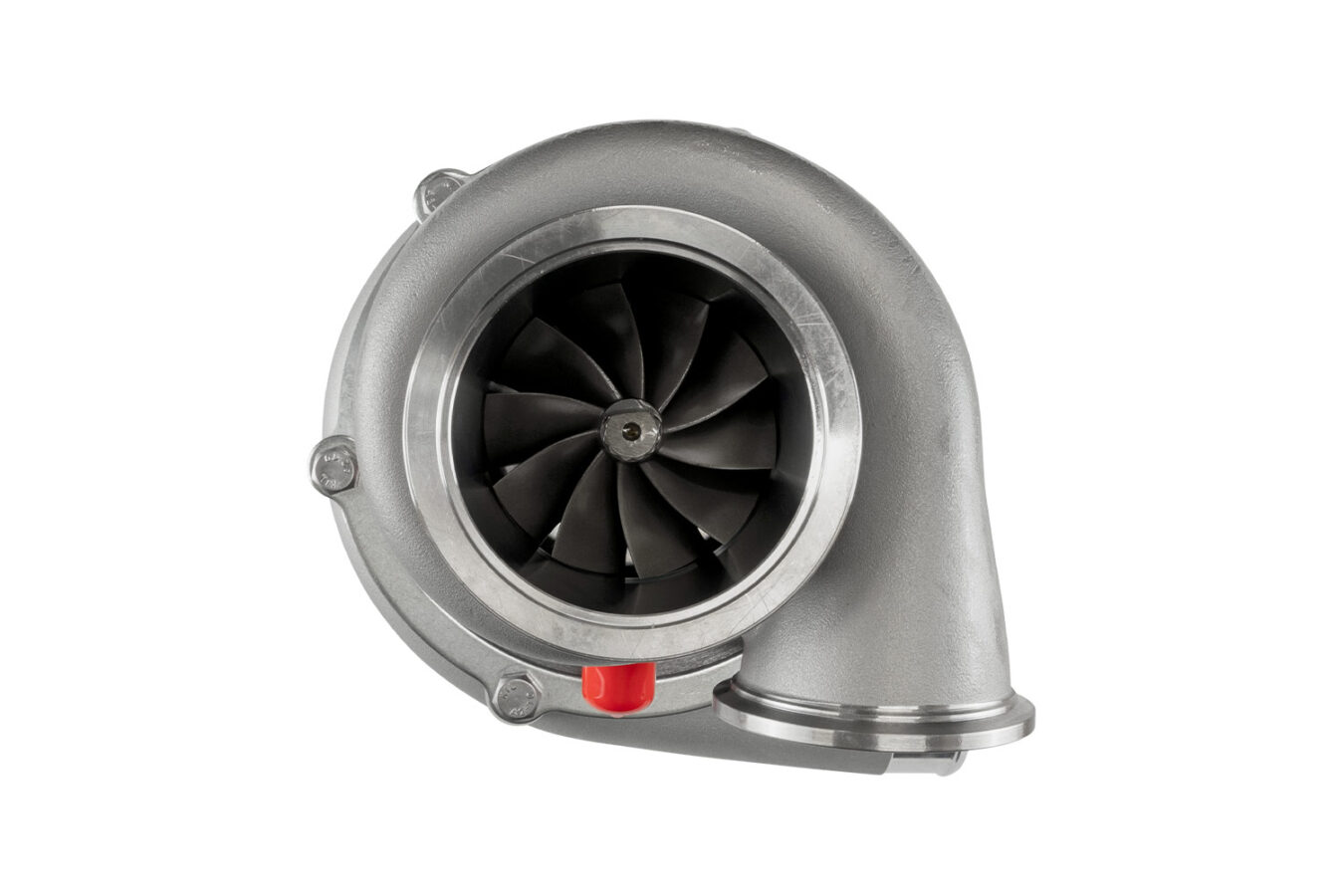

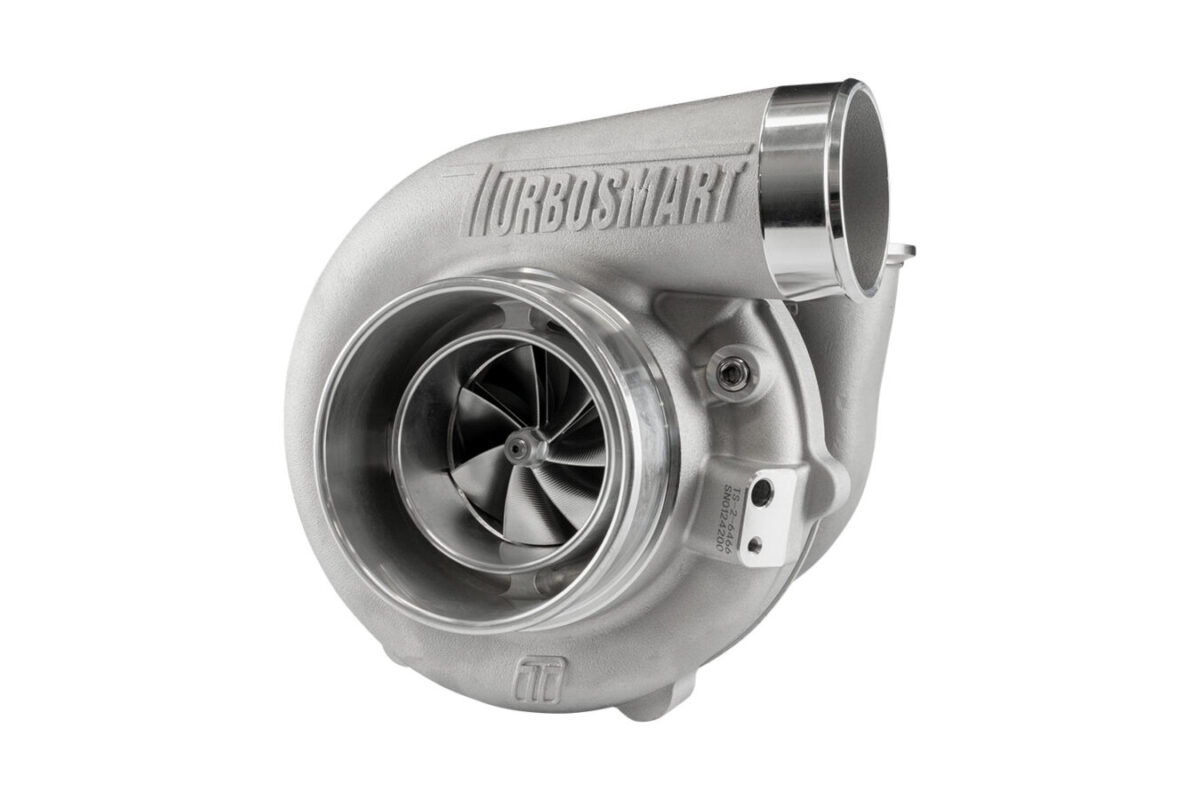

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 V-Band 1.07AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series is built using advanced materials, cutting-edge design, and precision manufacturing to meet the extreme demands of motorsport and high-performance street applications.

Each turbocharger includes everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings.

The TS-2 series is both oil and water cooled, featuring lightweight investment-cast turbine housings, a proprietary bearing and main shaft assembly, and unmatched transient response. With ultra-low rotating mass and aggressive compressor aerodynamics, the TS-2 delivers rapid spool and reliable power at high loads.

Engineered from end to end, the TS-2 is designed to reduce back pressure and maximize performance—offering a smaller, lighter, and faster solution compared to traditional turbos.

Available In:

• TS-1 (oil-cooled turbochargers)

• TS-2 (oil and water-cooled turbochargers)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Internal and external wastegate options

• Various A/R configurations

Features:

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Aluminum compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 825–955 HP
