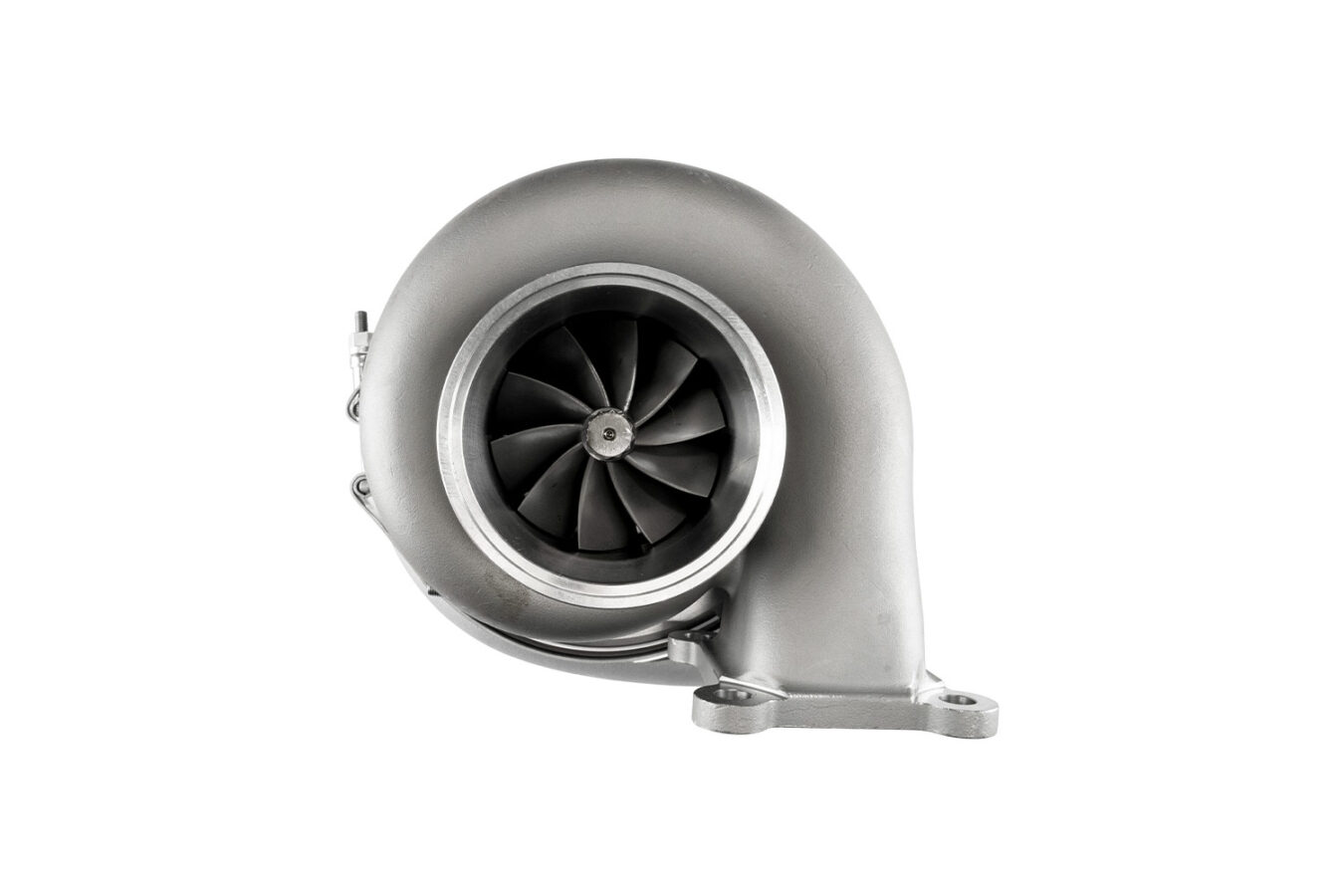

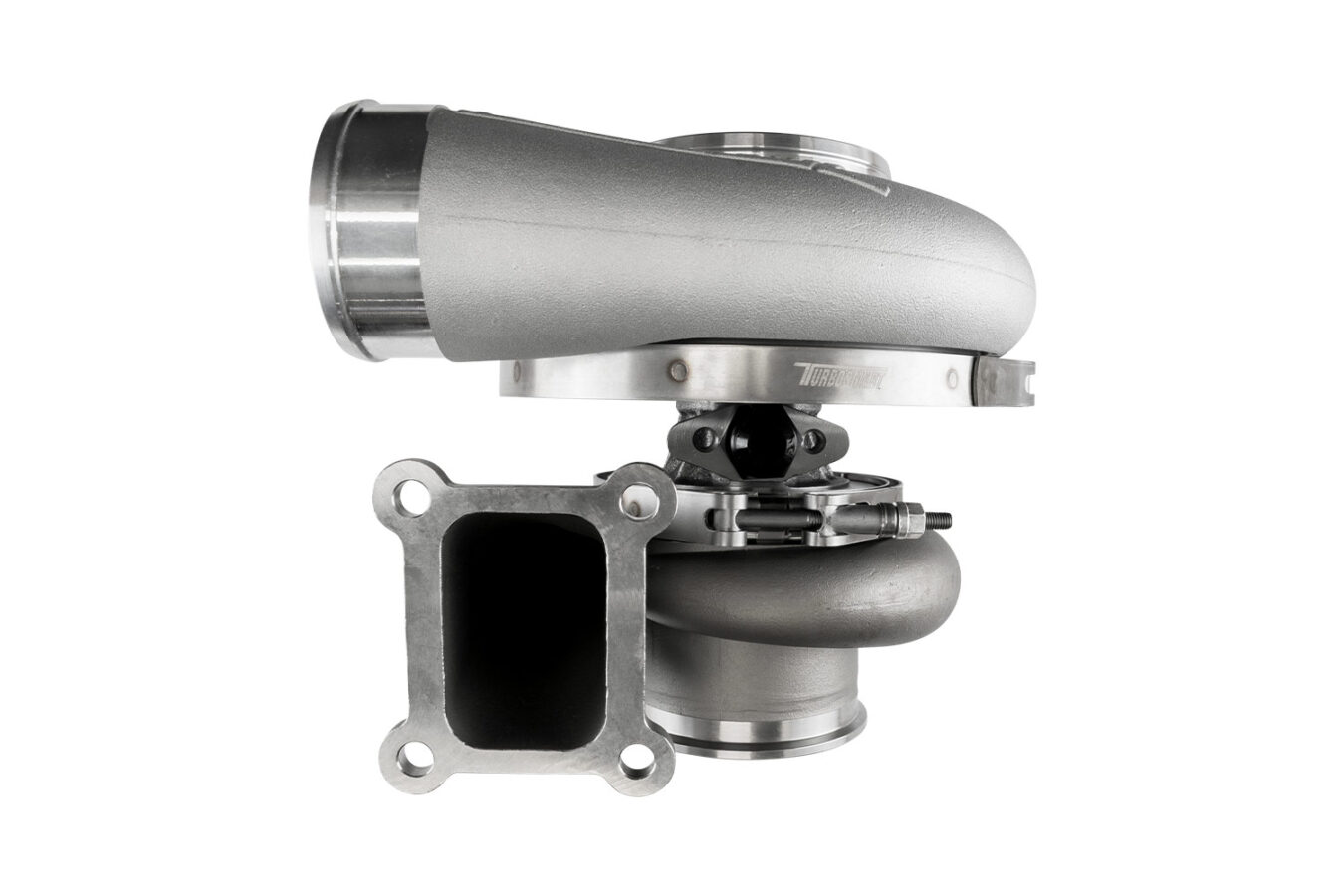

Turbosmart TS-1 Performance Turbocharger 6262 T3 0.63AR Externally Wastegated

Smaller. Lighter. Faster.
Turbosmart’s TS-1 turbocharger series is engineered using advanced materials, cutting-edge design, and precision manufacturing to meet the high demands of motorsport and performance enthusiasts alike.

Each turbocharger includes everything needed for installation:
• Weld flanges
• V-band clamps
• Gaskets
• Oil feed and drain fittings

TS-1 Series Overview

• Oil-cooled with lightweight investment-cast turbine housings
• Proprietary bearing and shaft combo for unmatched transient response
• Ultra-low rotating mass matched with aggressive compressor aerodynamics
• Maintains high performance and flow at both low and high shaft speeds
• Designed for reduced backpressure and maximum power in a smaller, lighter, faster package

Available Configurations

• TS-1 (Oil-cooled)
• TS-2 (Oil & water-cooled)
• V-Band, T3, and T4 flange options
• Reverse rotation (select sizes)
• Multiple A/R options
• Internal or external wastegate options

Key Features

• Unmatched transient response
• 7+7 2618 aluminum splitter wheels
• Lightweight 310S stainless steel turbine housings
• Aluminum compressor covers
• CFD-optimized housings for ideal A/R and flow
• 713C Inconel turbine wheel for extreme EGT durability
• VSR speed balanced
• Proprietary dual ceramic bearing system
• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm
• Compressor Inducer: 62mm
• Turbine Inlet: T3 Flange
• Turbine Exducer: 62mm
• Turbine A/R: 0.63
• Turbine Outlet: V-Band (3.00″)
• Weight: 6.06kg / 13.3lbs
• Horsepower Rating: 760–880 HP
