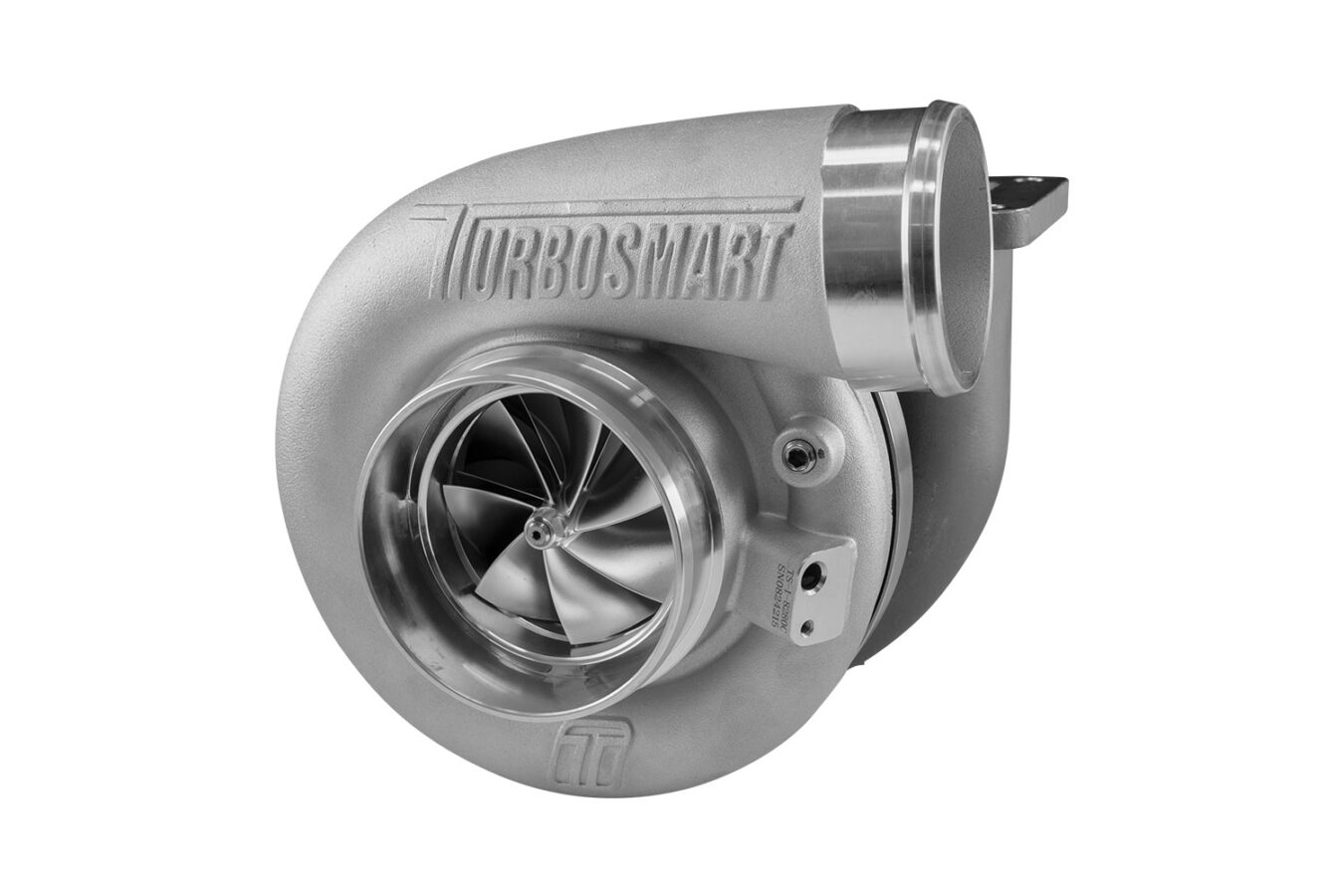

Turbosmart TS-1 Performance Turbocharger 8280 T4 1.24AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and manufacturing techniques to deliver a range that meets the demands of both motorsport and performance enthusiasts alike.

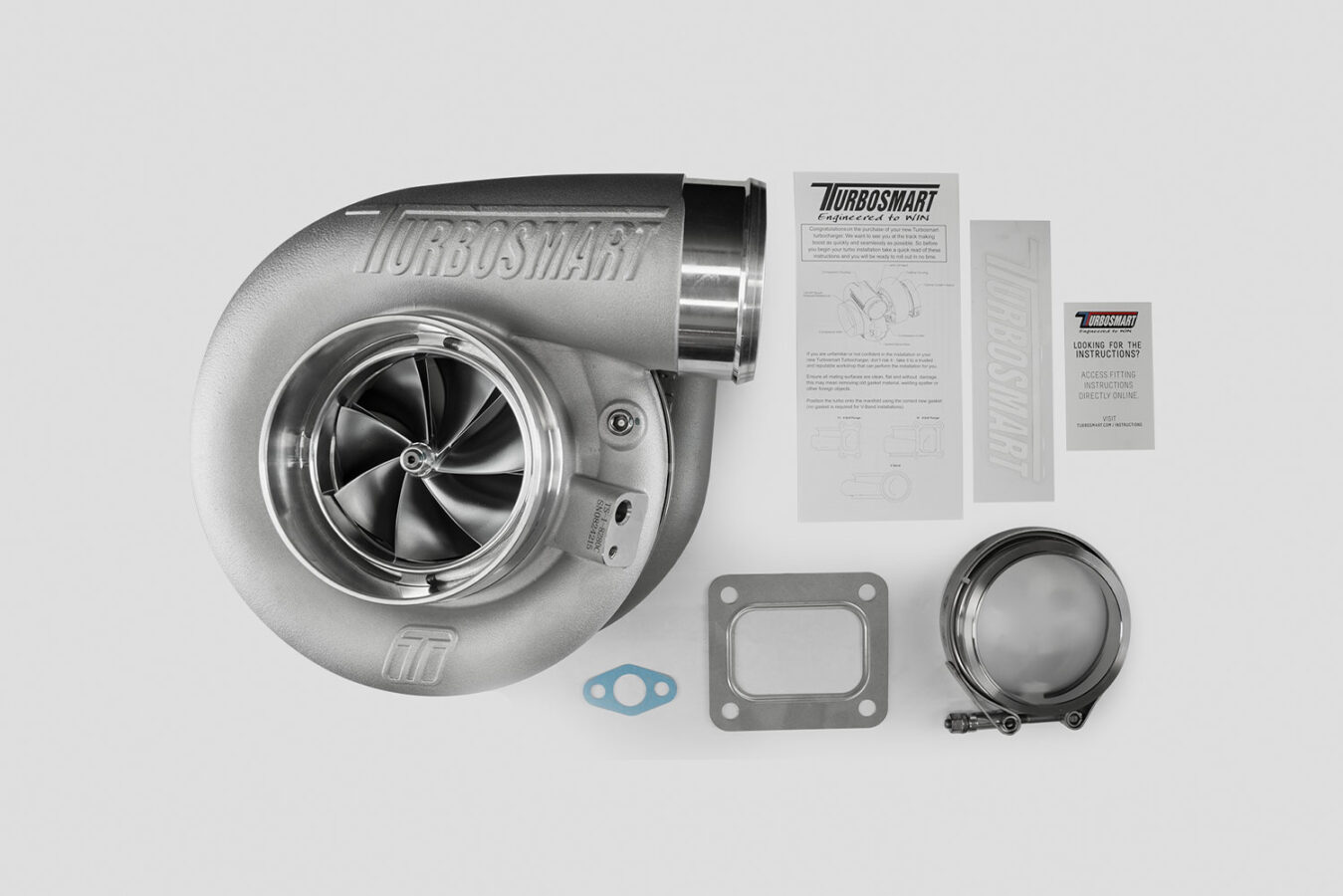

Every Turbosmart turbocharger comes standard with everything needed for installation, including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination that provides unprecedented transient response, along with the performance, quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass of the unique bearing and shaft assembly is matched to aggressive compressor aerodynamics, ensuring high performance at lower shaft speeds. It is paired with a unique turbine wheel designed to maintain power at high loads and optimize flow.

All Turbosmart turbochargers are designed with an engine end-to-end approach, aiming to maximize power through reduced backpressure and high-performance turbines—while remaining smaller, lighter, and faster in response than other solutions on the market.

Available In:

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate options available

Features:

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 82mm

• Turbine Inlet: T4

• Turbine Exducer: 80mm

• Turbine A/R: 1.24

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 21.23lbs

• Horsepower Rating: 1225–1445 HP
