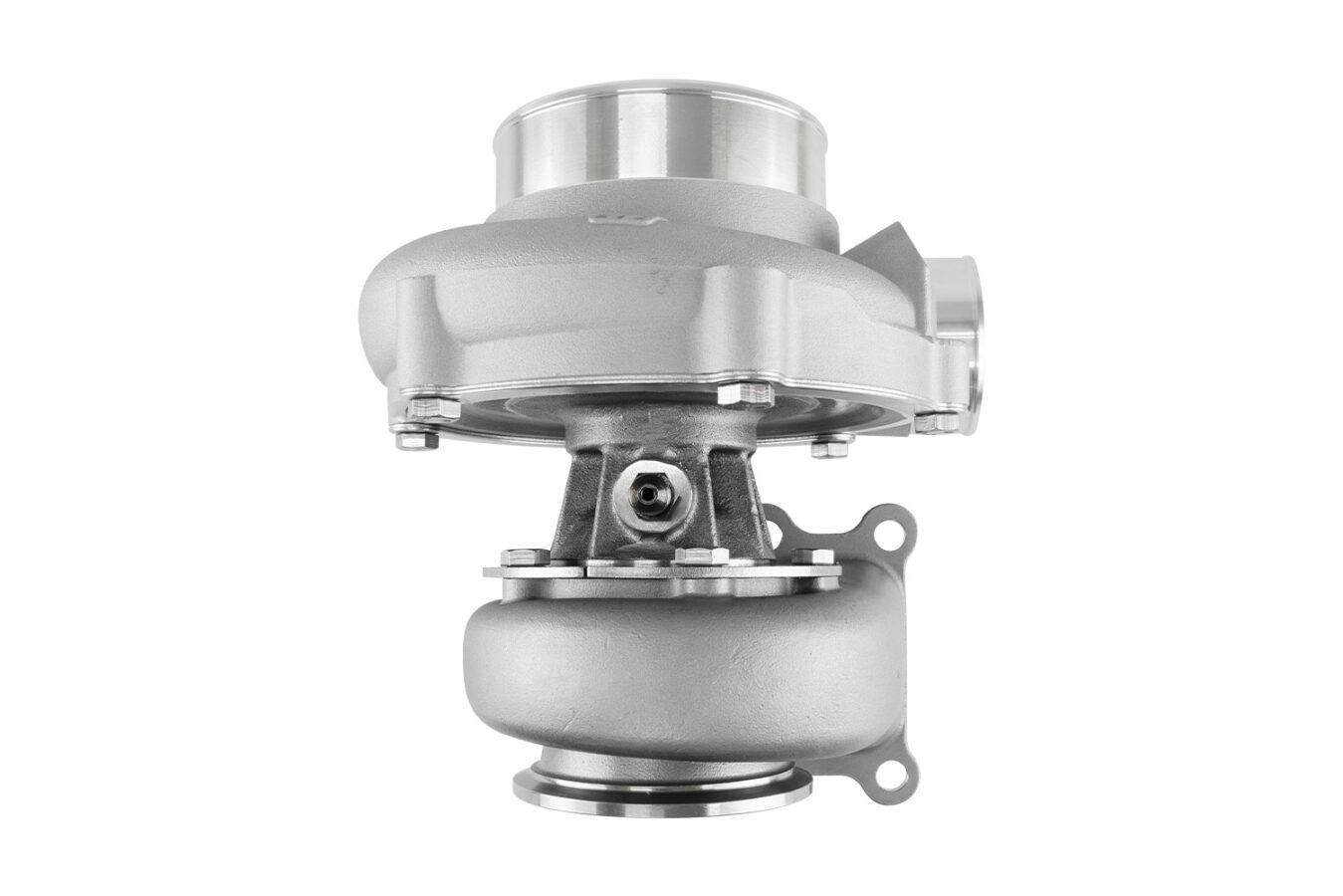

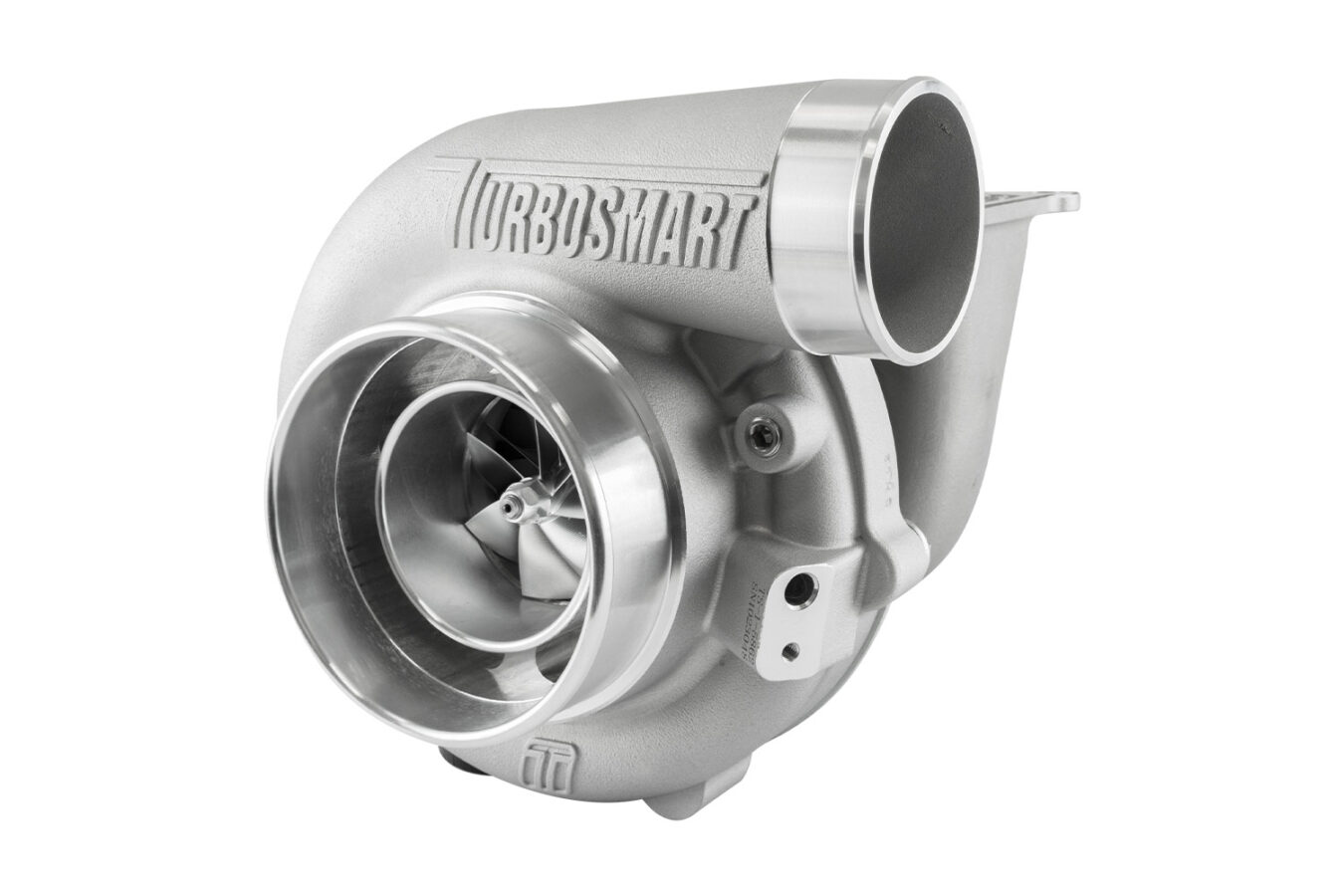

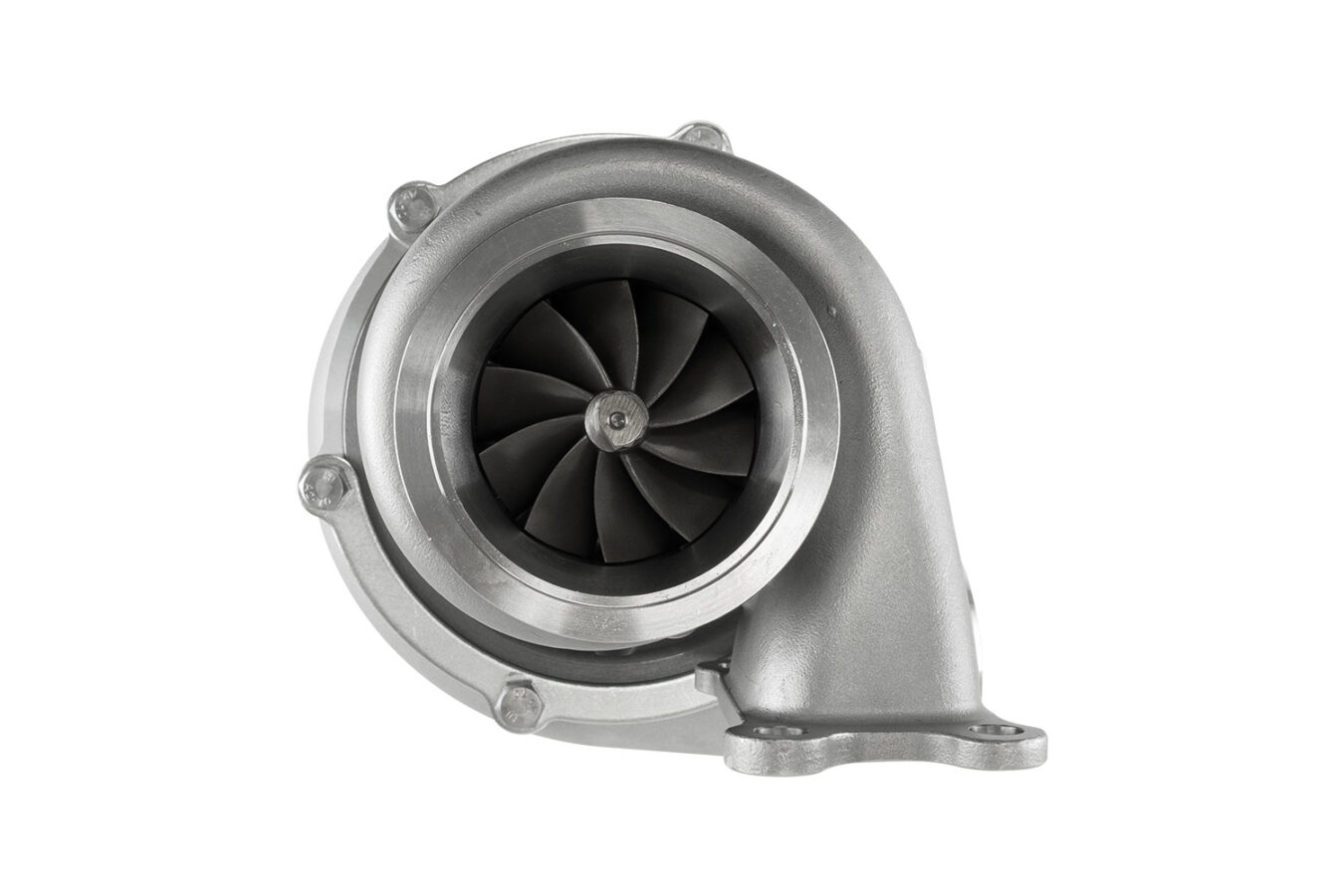

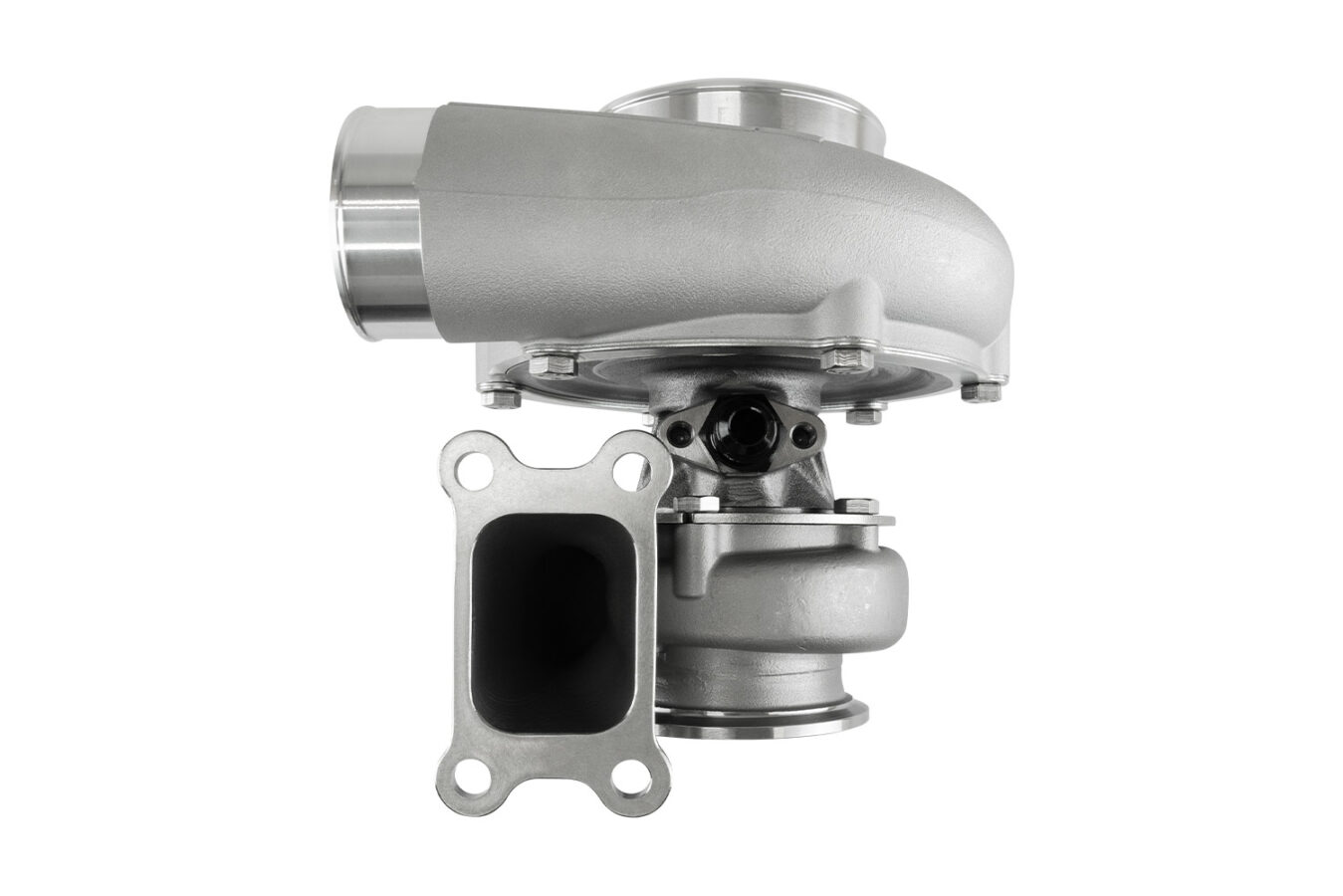

Turbosmart TS-1 Performance Turbocharger 5862 T3 0.63AR Externally Wastegated
Smaller, Lighter, Faster – Turbosmart TS-1 Turbocharger
The Turbosmart TS-1 turbocharger delivers race-ready performance with unmatched transient response, reduced back pressure, and high-flow efficiency. Featuring lightweight stainless turbine housings, dual ceramic bearings, and aggressive 7+7 aluminum compressor wheels, it’s built for serious power—725–835 HP. Includes V-band clamps, gaskets, oil lines, and all install hardware. Perfect for motorsport and high-performance builds.
Turbosmart’s turbocharger series is engineered using cutting-edge materials, advanced design, and precision manufacturing to meet the demands of motorsport and performance enthusiasts alike.

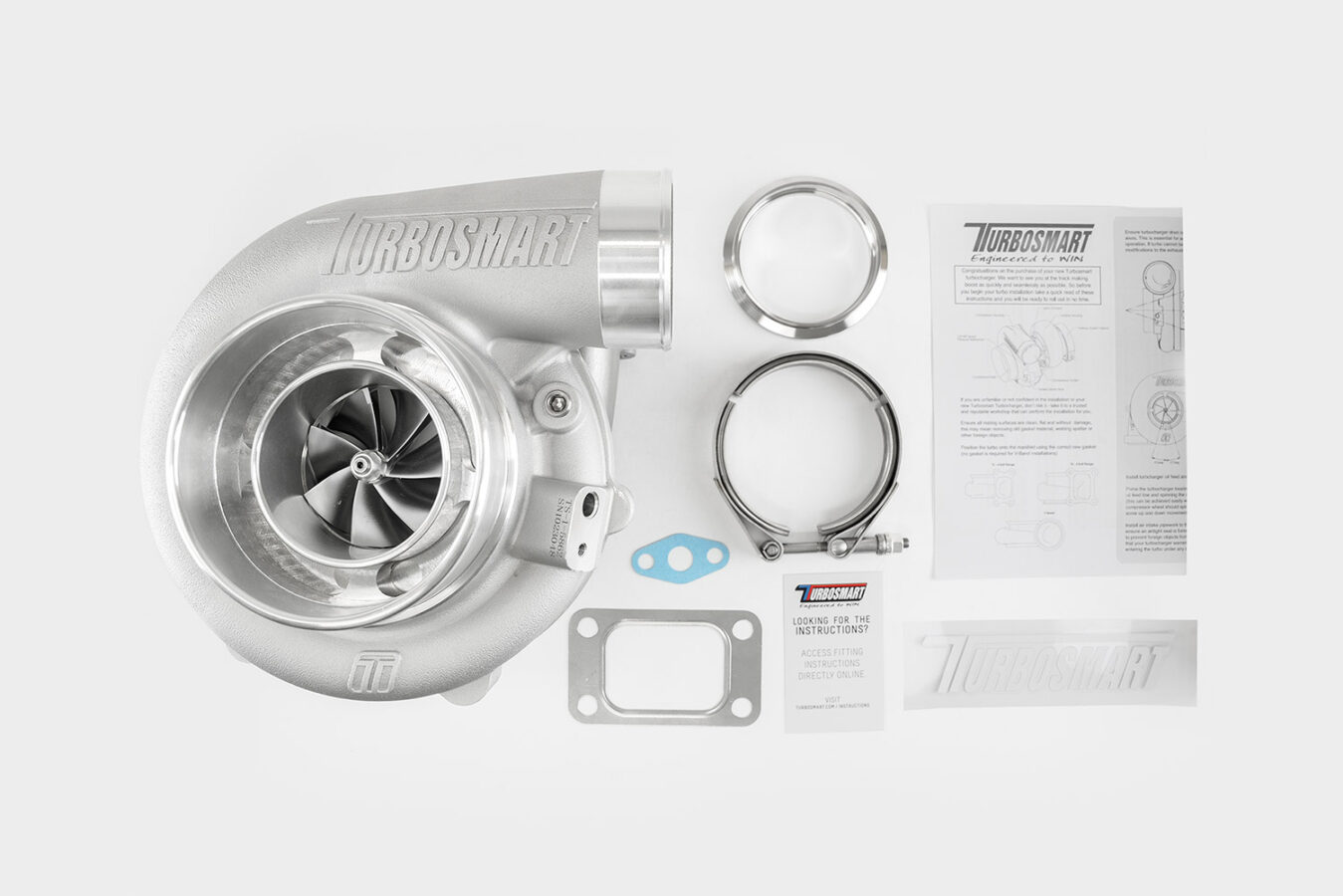

Each turbocharger includes everything needed for installation—weld flanges, V-band clamps, gaskets, oil feed and drain fittings—making setup fast and seamless.
The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft combo. This setup delivers lightning-fast transient response, high efficiency, and the quality and reliability you expect from Turbosmart.
With ultra-low rotating mass and aggressive compressor aerodynamics, the TS-1 produces outstanding performance at lower shaft speeds while maintaining power and flow at high loads. Designed with a complete engine approach, these turbos reduce back pressure and enhance output—all while staying smaller, lighter, and faster than traditional solutions.
Available Options
-
TS-1: Oil-cooled turbochargers
-
TS-2: Oil and water-cooled turbochargers
-
V-Band, T3, and T4 flange options
-
Reverse rotation (selected sizes)
-
Multiple A/R options
-
Internal and external wastegate configurations
Key Features
-
Unmatched transient response
-
7+7 2618 aluminum splitter wheels for aggressive aerodynamics
-
Lightweight 310S stainless steel investment-cast turbine housings
-
Lightweight aluminum compressor covers
-
CFD-optimized housing design for ideal A/R and flow
-
713C Inconel turbine wheel built for extreme EGTs
-
VSR speed-balanced for precision
-
Proprietary dual ceramic bearing system
-
Integrated iron backplate on center housing
Specifications
-
Compressor Inlet: 4″ / 101.6mm
-
Compressor Inducer: 58mm
-
Turbine Inlet: T3 Flange
-
Turbine Exducer: 62mm
-
Turbine A/R: 0.82
-
Turbine Outlet: V-Band (3.00″)
-
Weight: 6.06 kg / 13.3 lbs
-
Horsepower Rating: 725–835 HP
