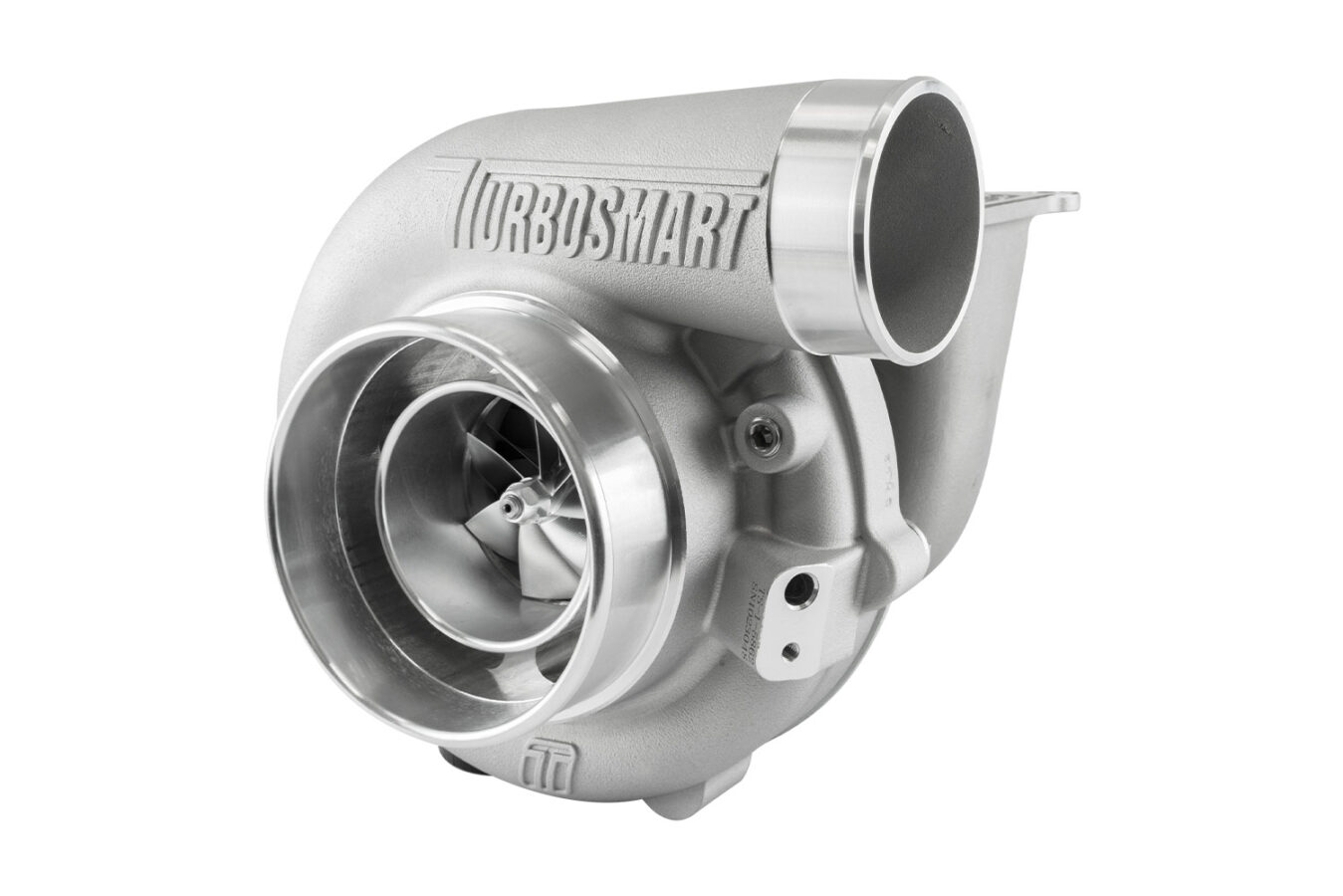

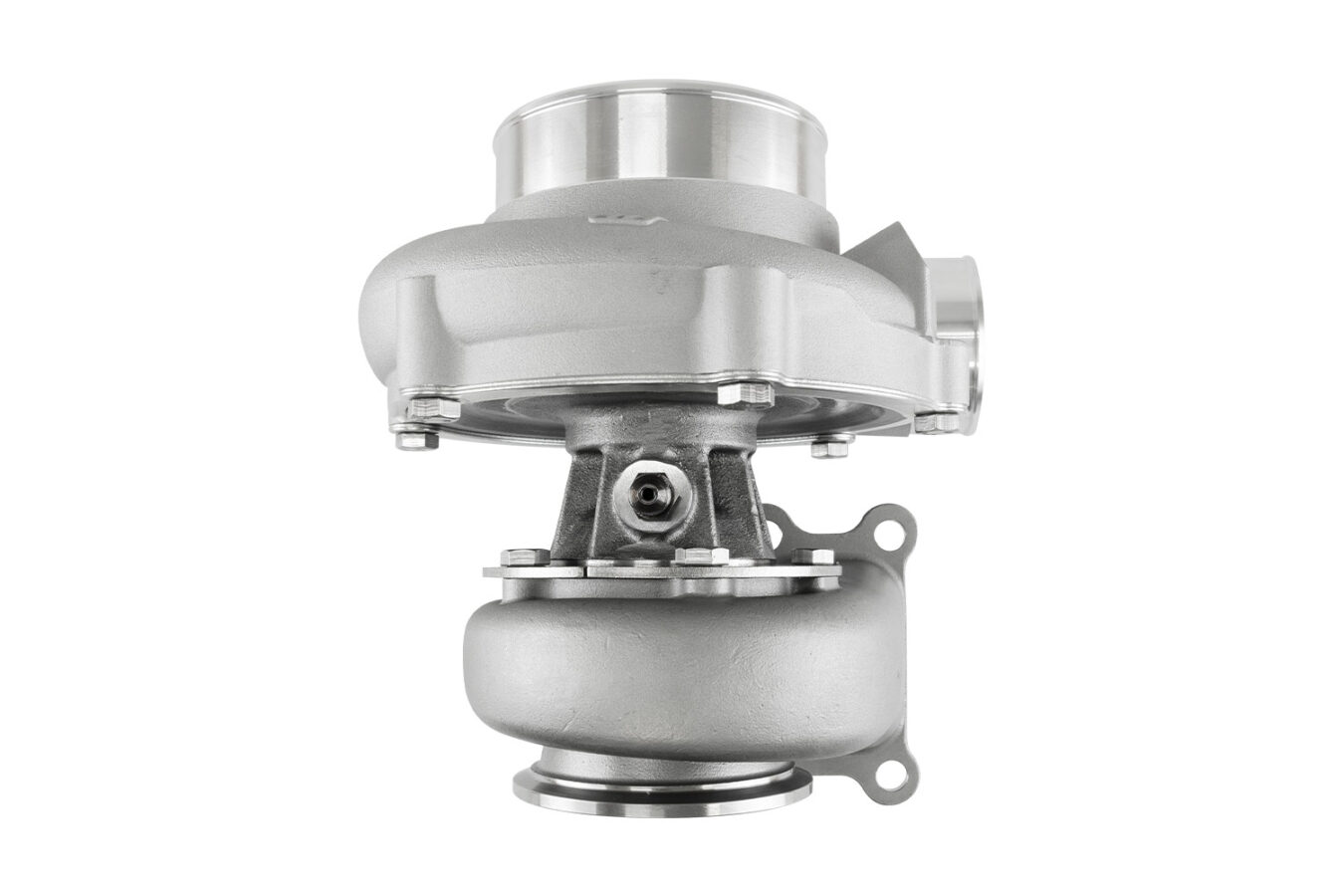

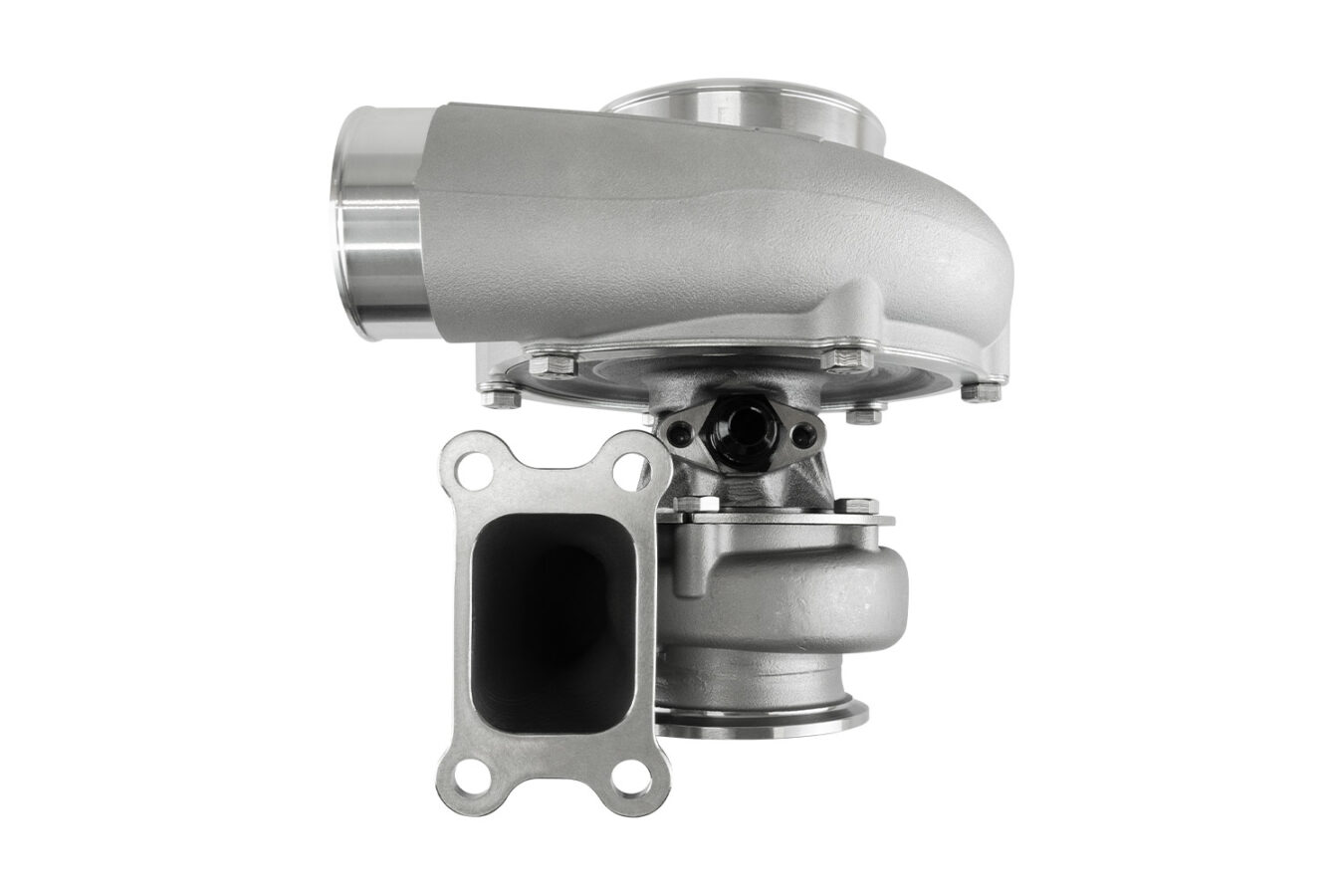

Turbosmart TS-1 Performance Turbocharger 5862 T3 0.82AR Externally Wastegated

Turbosmart’s turbocharger series has been developed using modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

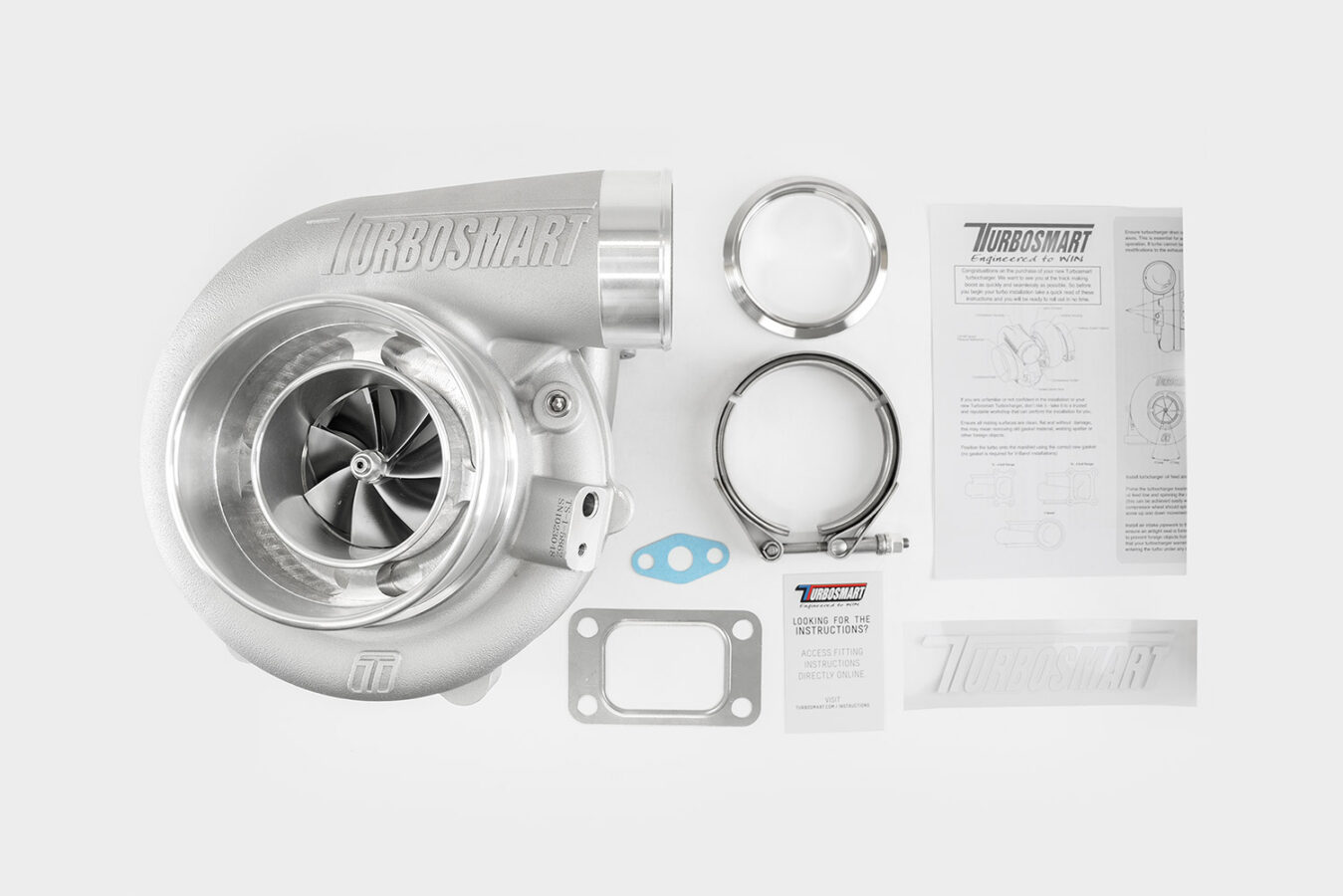

Every Turbosmart turbocharger comes standard with everything needed for installation — including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 series are oil-cooled turbochargers featuring lightweight investment cast turbine housings and a proprietary bearing and main shaft combination. This design delivers transient response you never knew possible, along with the performance, quality, reliability, and support you’ve come to expect from Turbosmart.

The ultra-low rotating mass of the unique bearing and shaft assembly is matched with aggressive compressor aerodynamics, ensuring high levels of performance at lower shaft speeds. This is paired with a unique turbine wheel to maintain power at high loads and sustain optimal flow.

All Turbosmart turbochargers are designed with an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines — while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil cooled turbochargers

• TS-2 oil and water cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegated options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/R’s and flow

• 713C Inconel turbine wheel for extreme EGT’s

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: T3 flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
