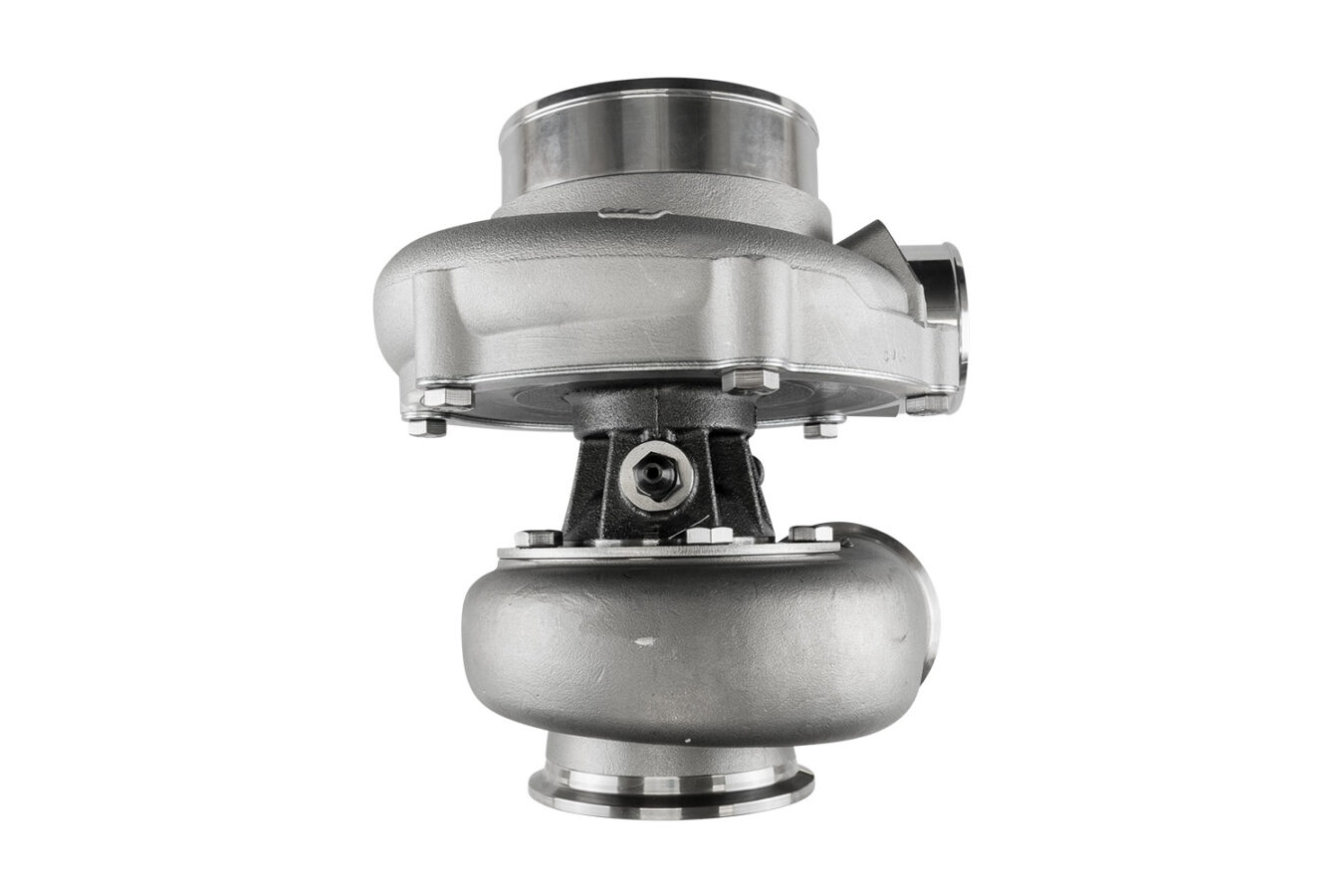

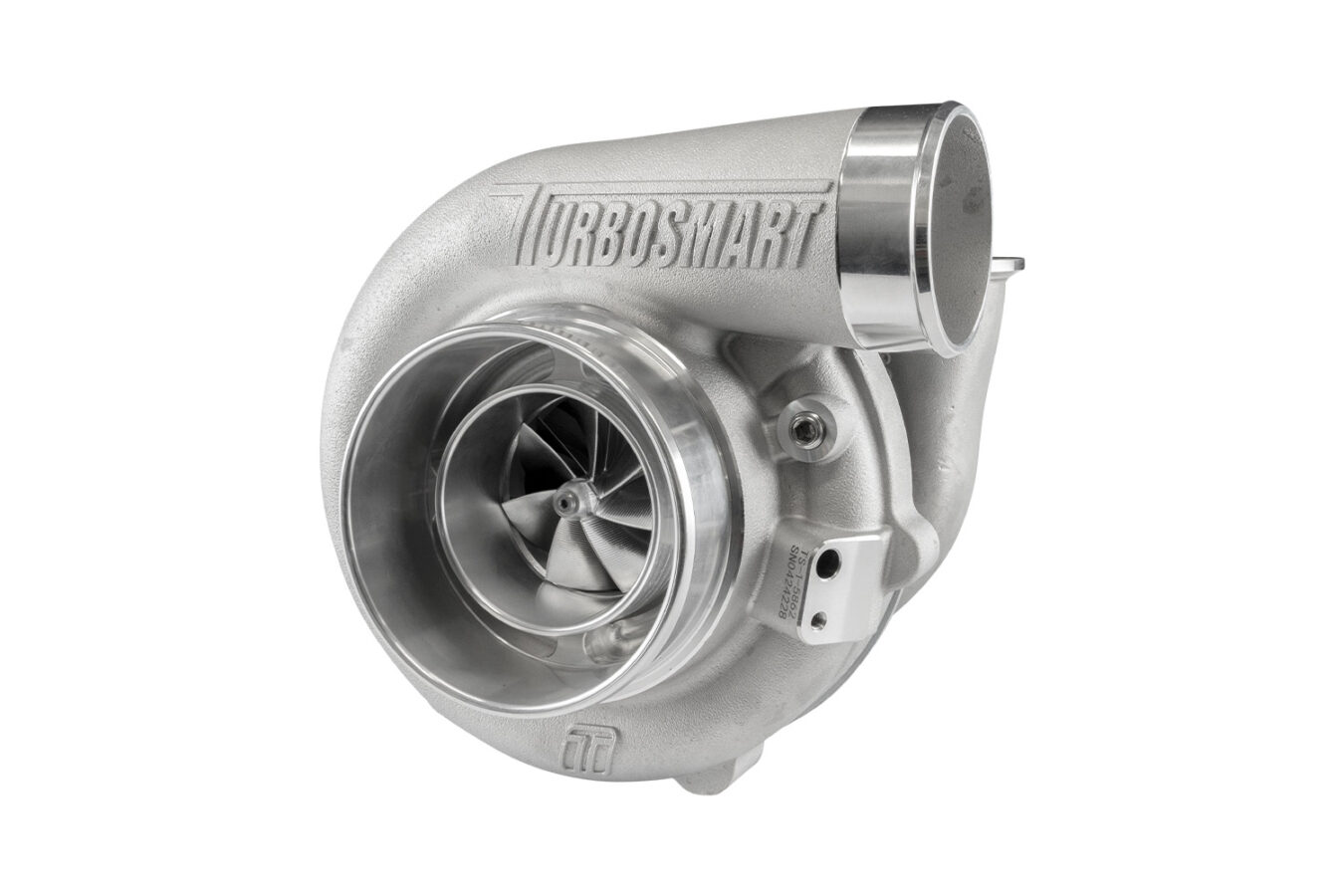

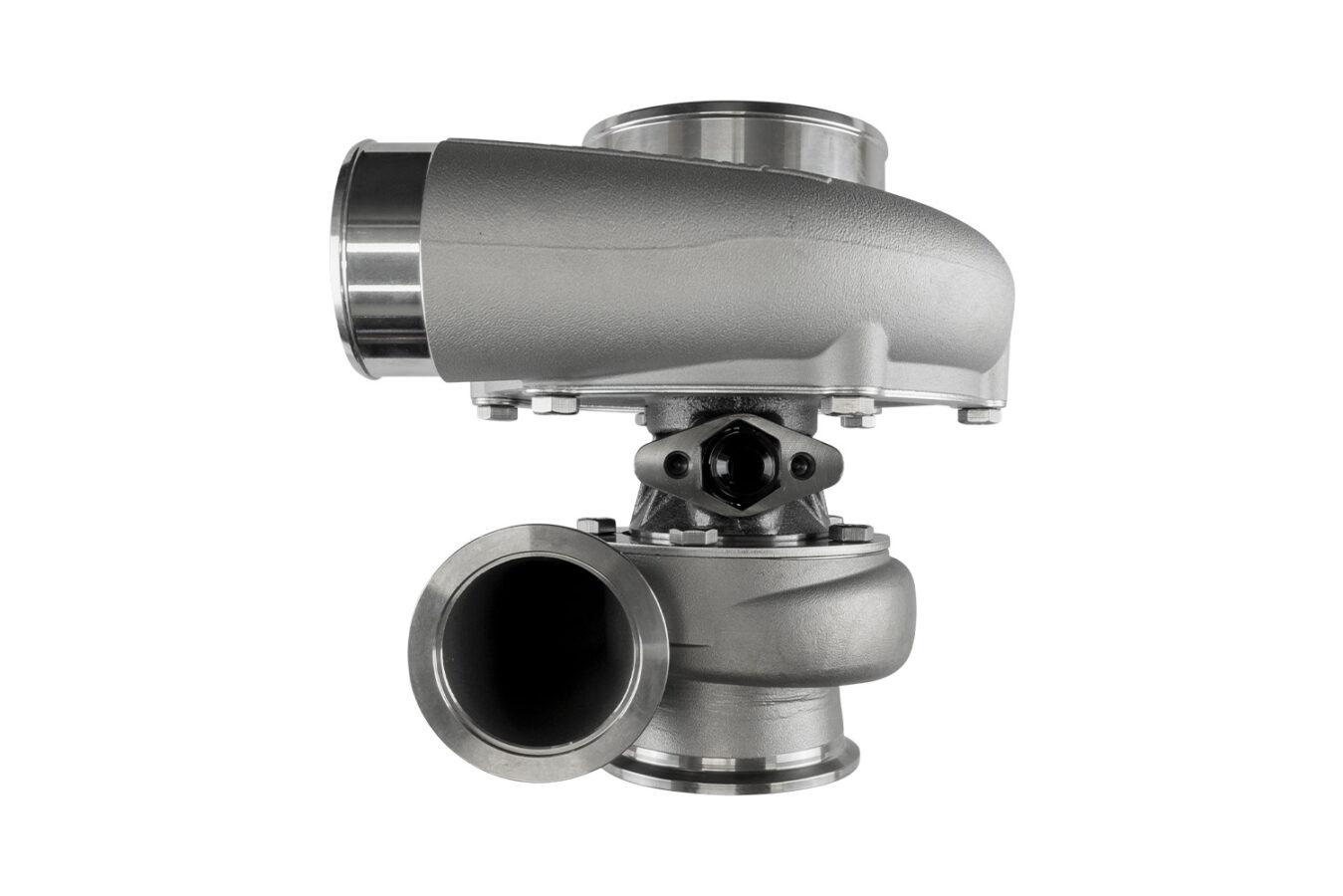

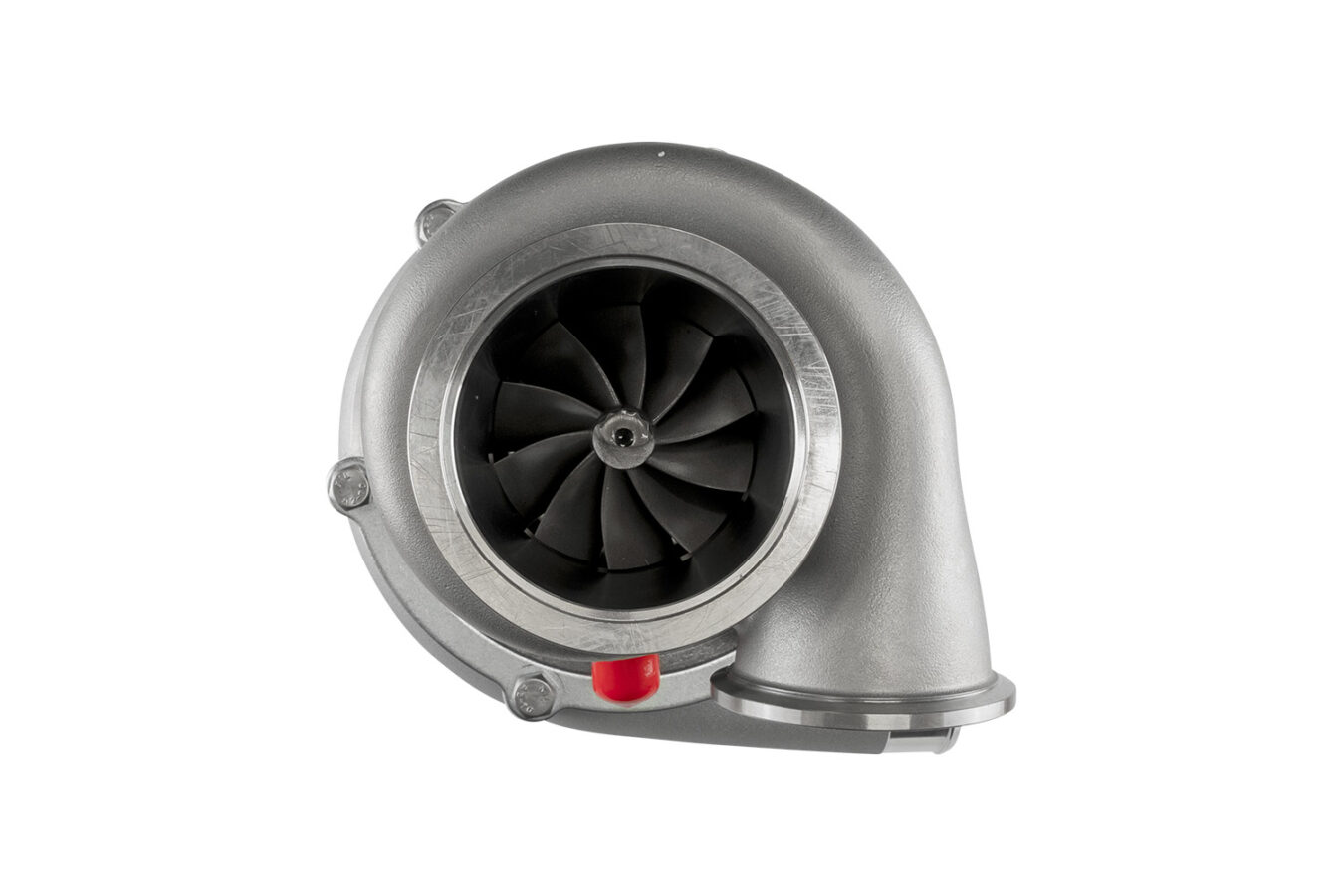

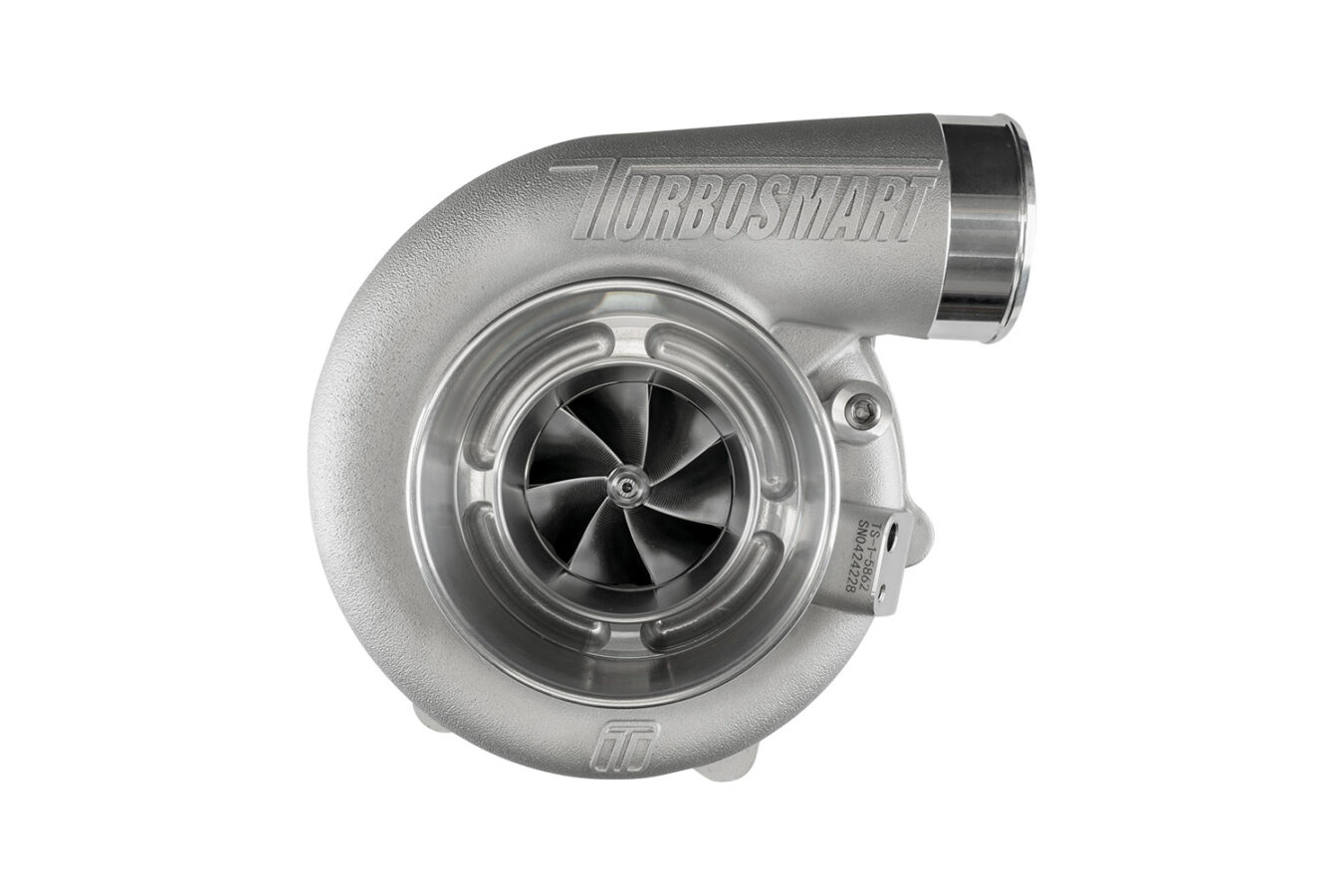

Turbosmart TS-1 Performance Turbocharger 5862 V-Band 0.82AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series is developed using modern materials, cutting-edge design, and precision manufacturing to meet the high-performance demands of motorsport and enthusiast applications.

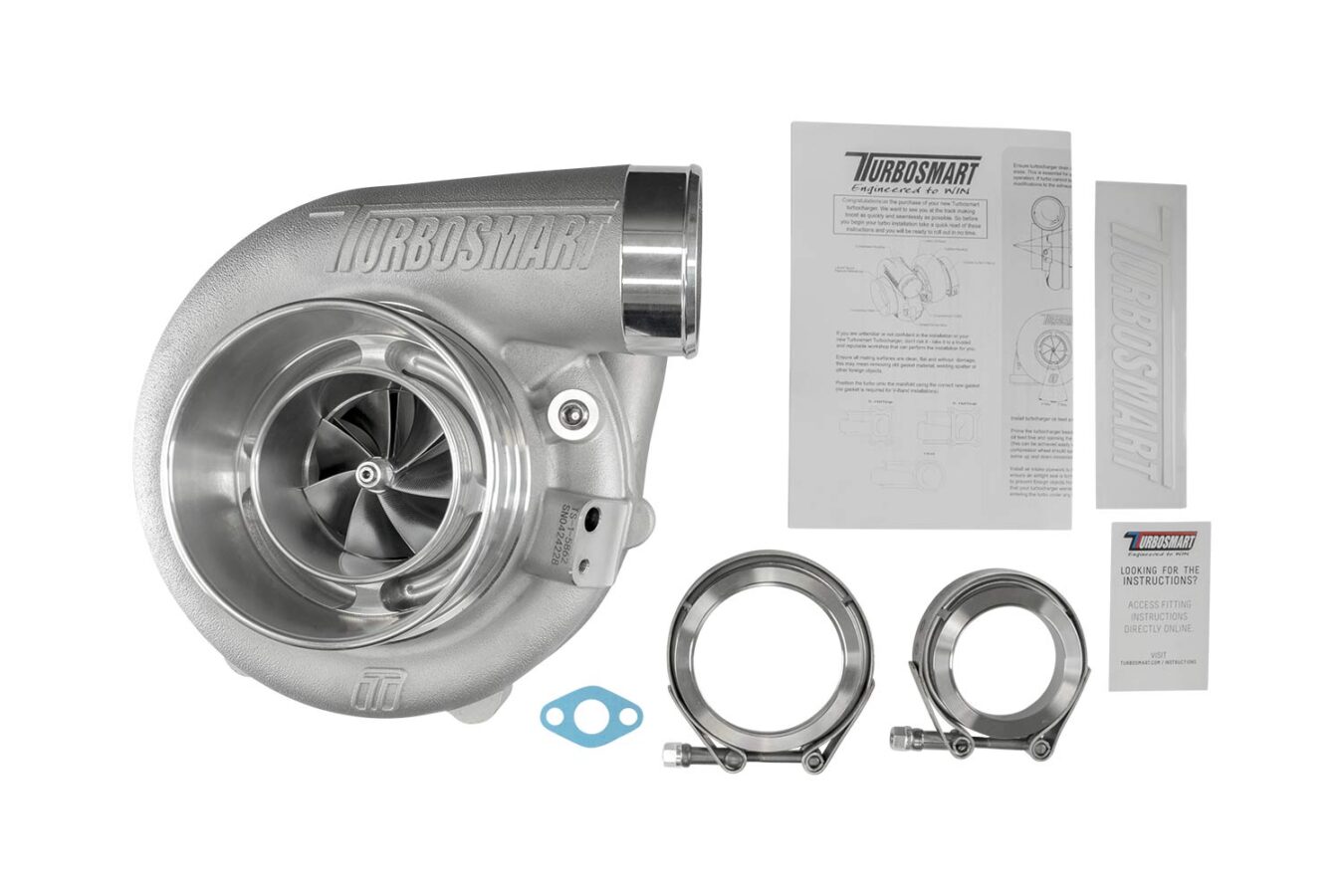

Every Turbosmart turbocharger comes complete with everything required for installation—including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination that delivers unparalleled transient response, along with the quality, reliability, and support Turbosmart is known for.

With an ultra-low rotating mass, aggressive compressor aerodynamics, and a performance-matched turbine wheel, the TS-1 provides maximum efficiency at lower shaft speeds and maintains flow under high load.

Designed with an engine end-to-end approach, Turbosmart turbos reduce back pressure while boosting efficiency—making them smaller, lighter, and quicker in response than most other turbos on the market.

Available In:

• TS-1 (oil-cooled)

• TS-2 (oil & water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal & external wastegate configurations

Features:

• Unparalleled transient response

• 7+7 2618 aluminium splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminium compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 58mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 725–835 HP
