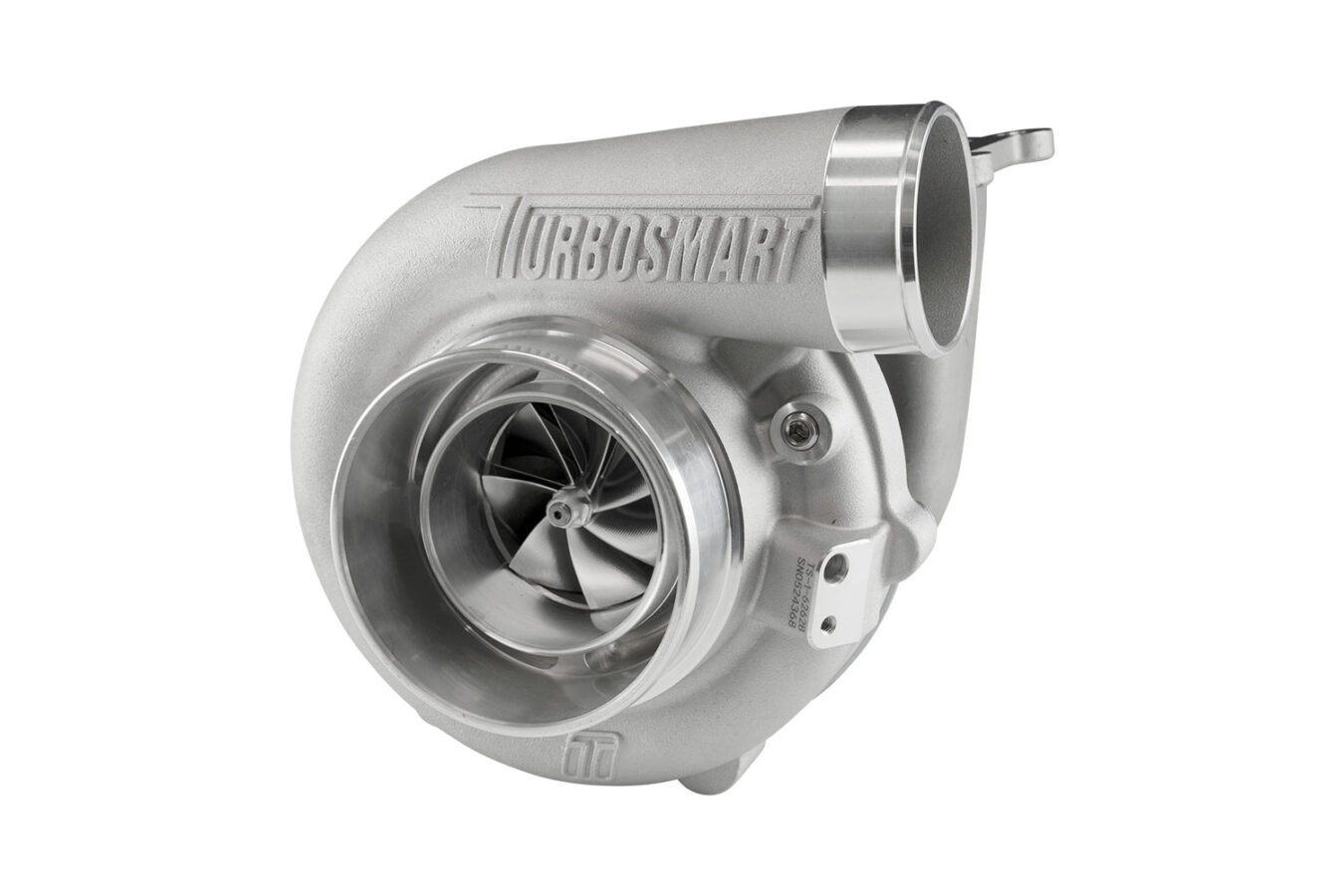

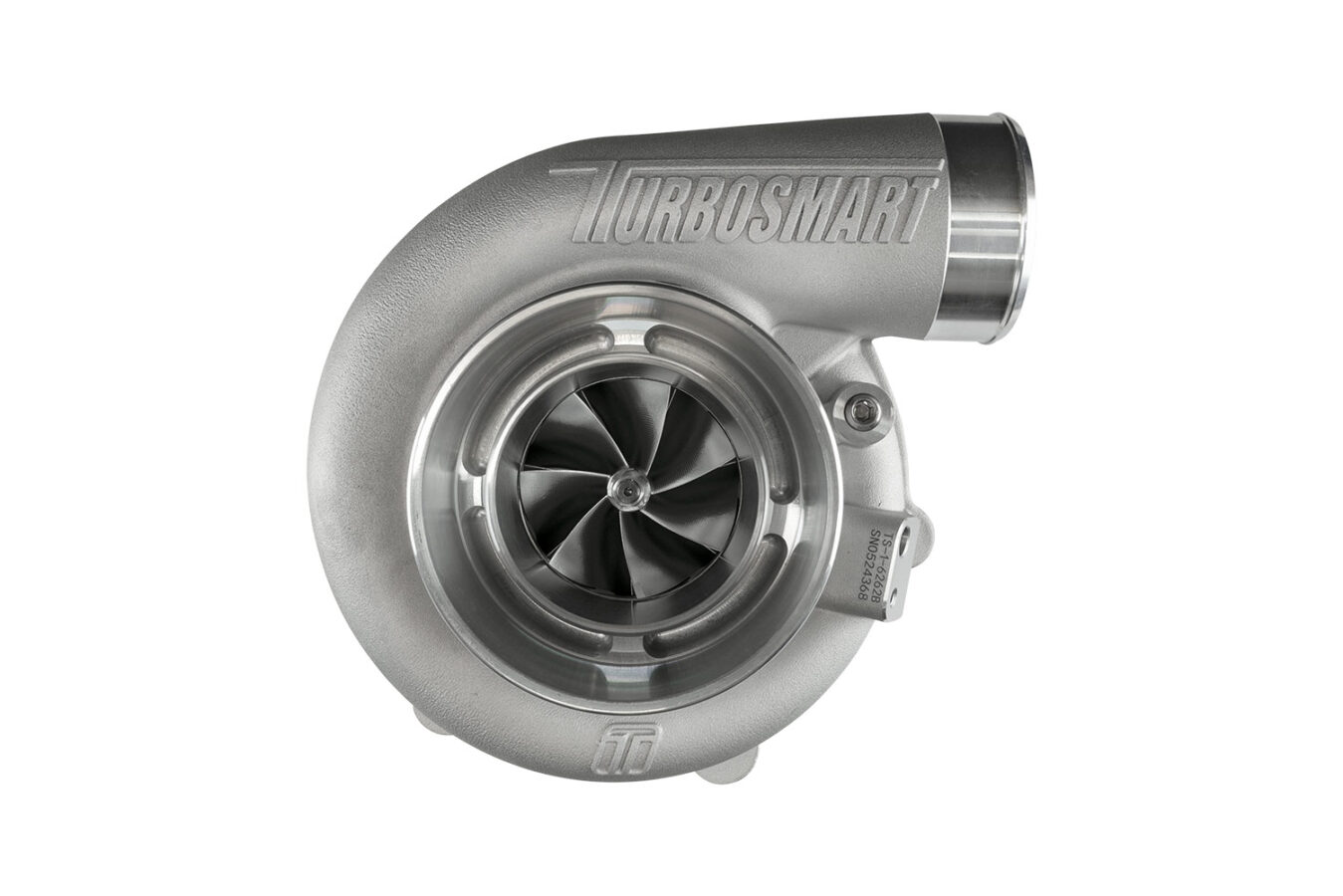

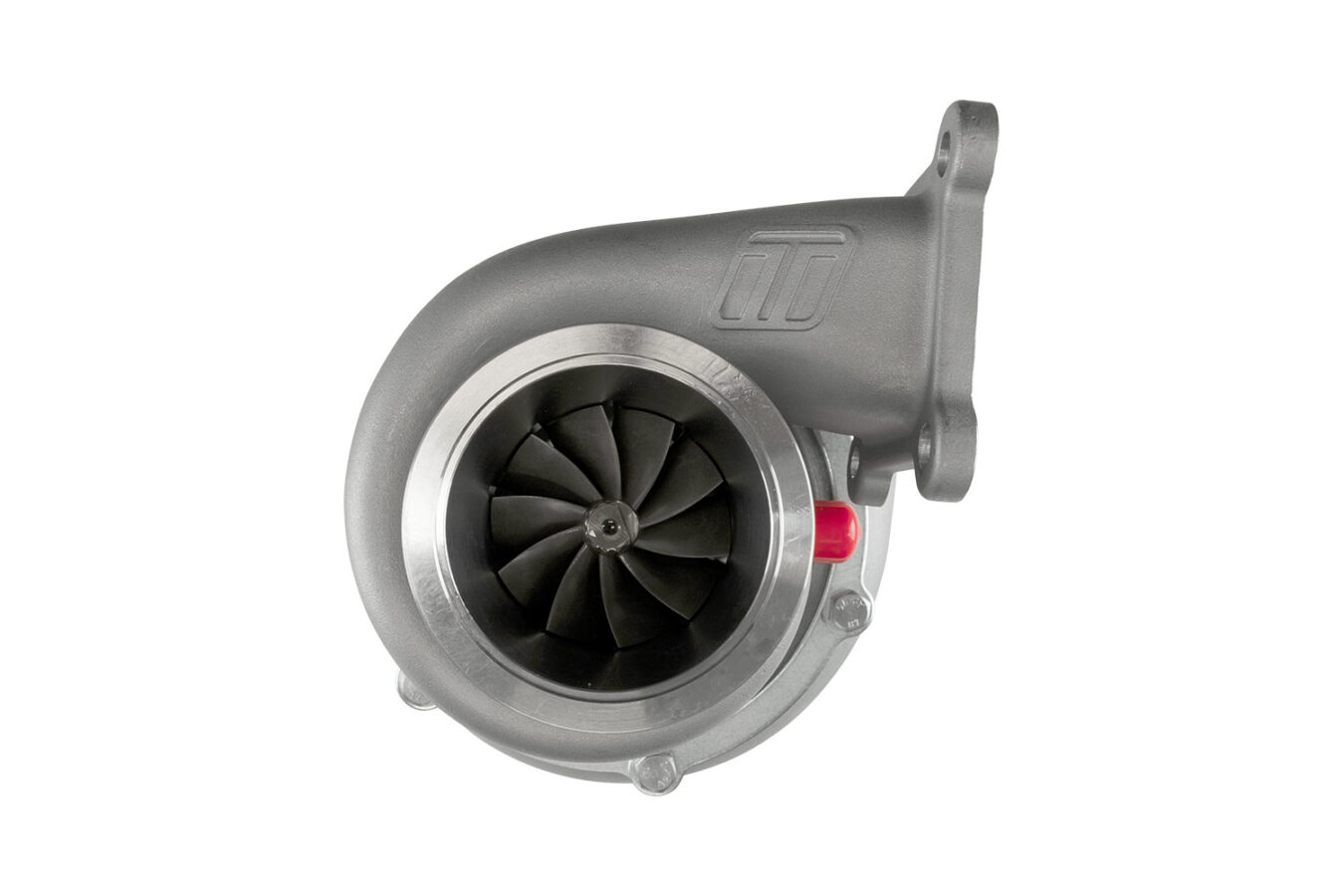

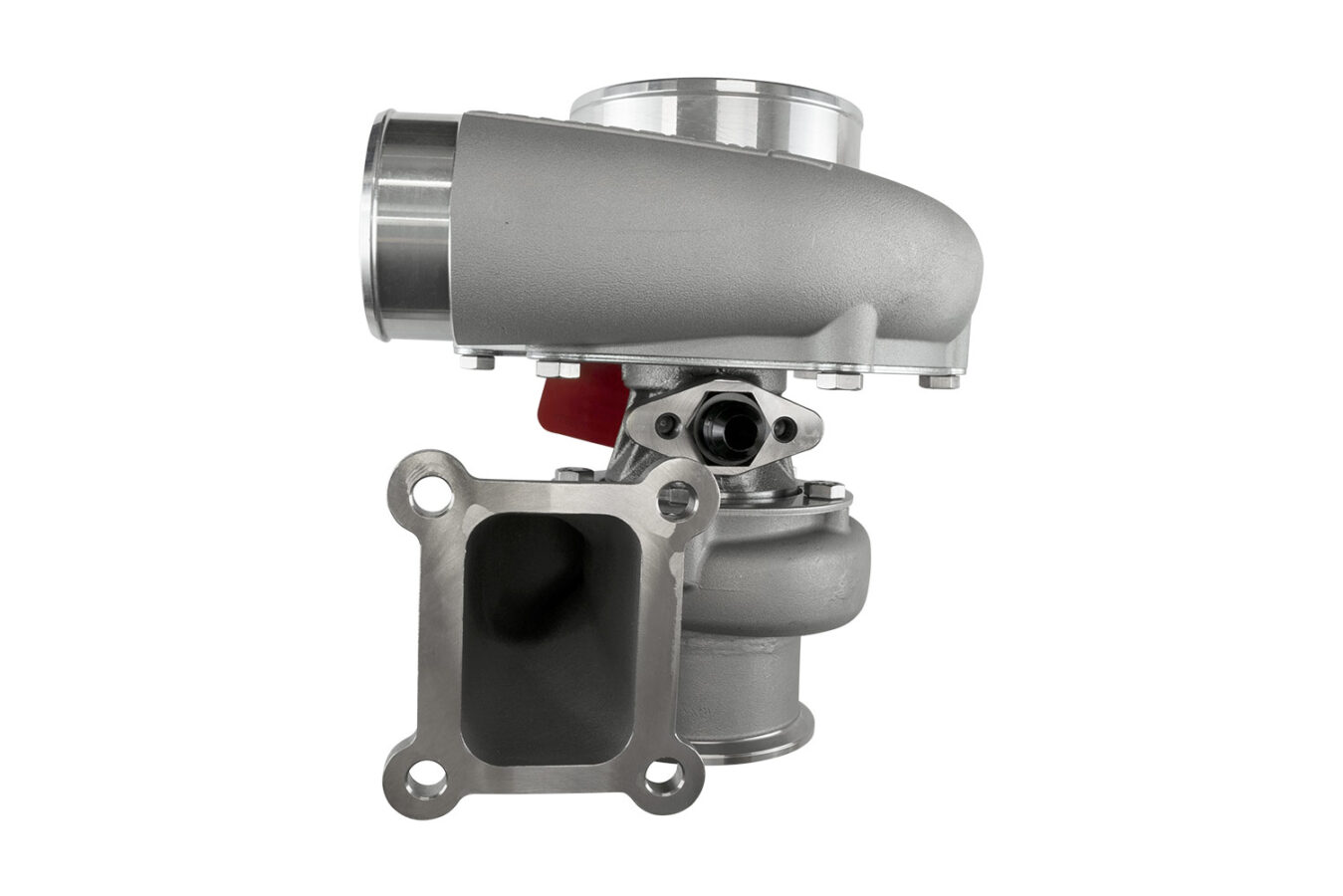

Turbosmart TS-1 Performance Turbocharger 6262 T4 0.82AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger lineup is engineered to push boundaries—using advanced materials, modern manufacturing, and cutting-edge design to meet the demands of both motorsport professionals and performance enthusiasts.

Product Overview

The TS-1 series features oil-cooled turbochargers with lightweight investment cast turbine housings and a proprietary dual ceramic bearing and main shaft assembly, delivering lightning-fast transient response and exceptional durability.

Matched with aggressive compressor aerodynamics and a high-flow turbine wheel, the TS-1 offers outstanding performance at both low and high shaft speeds. Designed with an engine end-to-end philosophy, Turbosmart turbos reduce backpressure while maximizing flow and response—outperforming larger, heavier alternatives on the market.

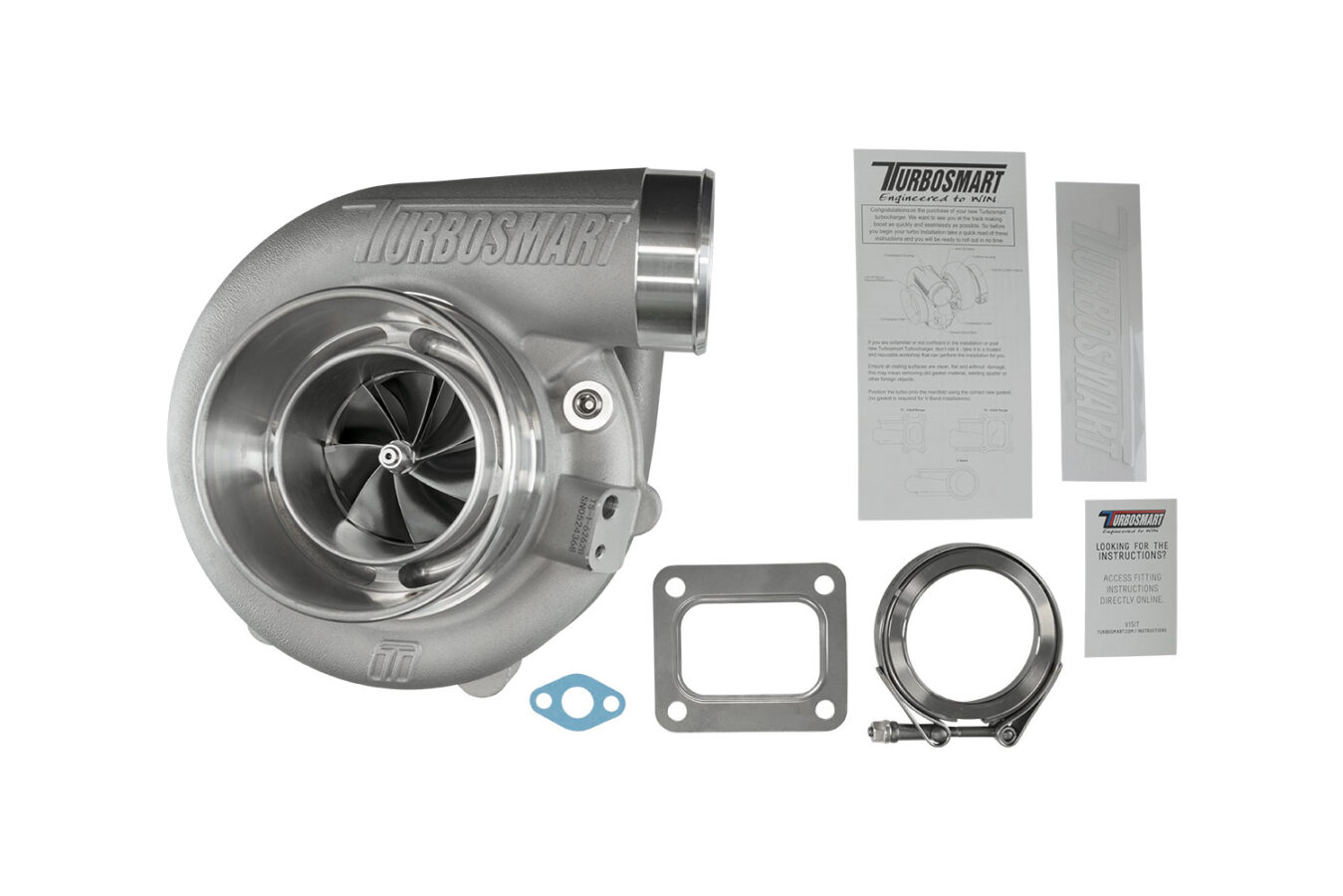

What’s Included

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

Available Variants

• TS-1 (Oil-cooled)

• TS-2 (Oil + Water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal and external wastegate configurations

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheel built for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate for added strength

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 62mm

• Turbine Inlet: T4 Flange

• Turbine Exducer: 62mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
