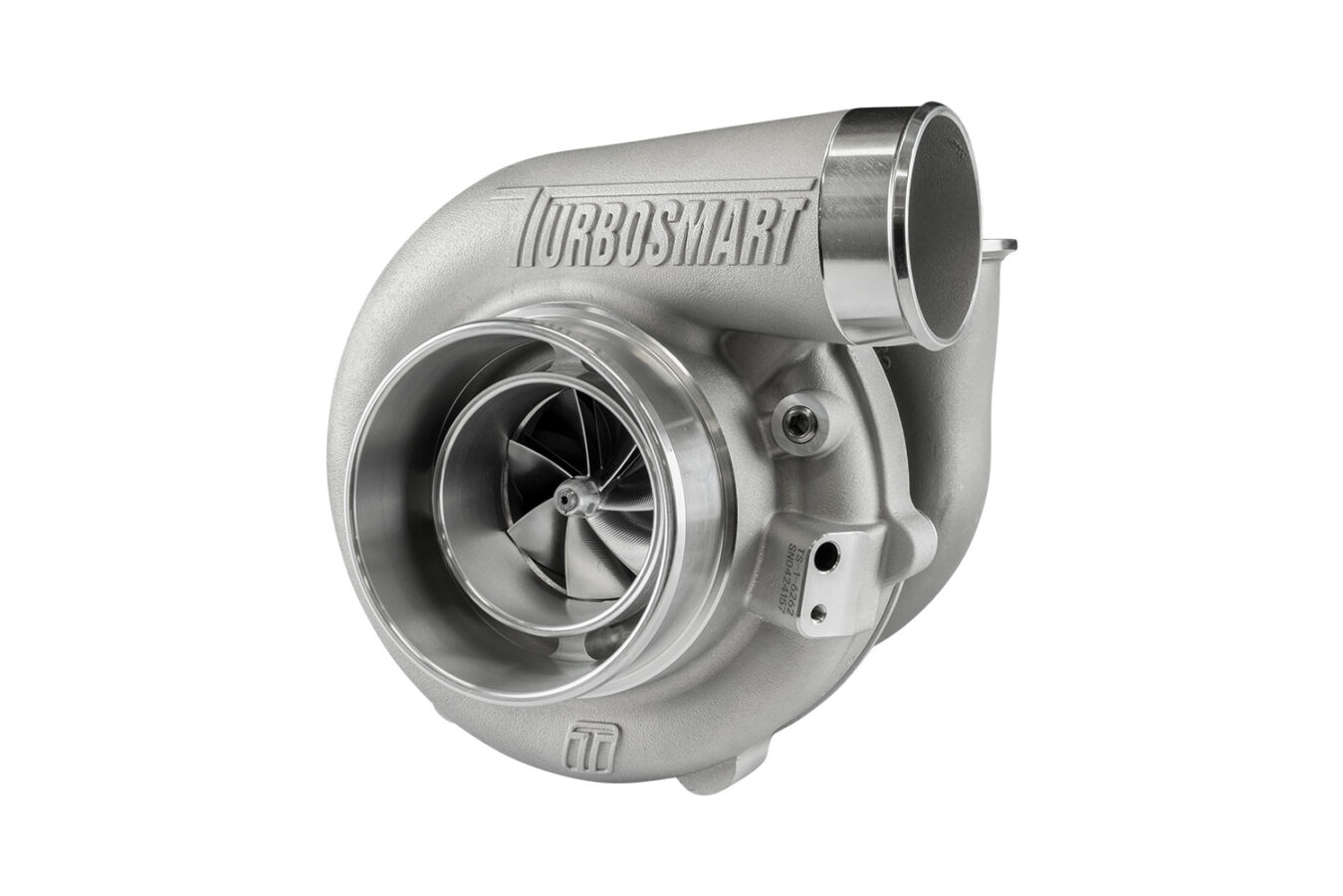

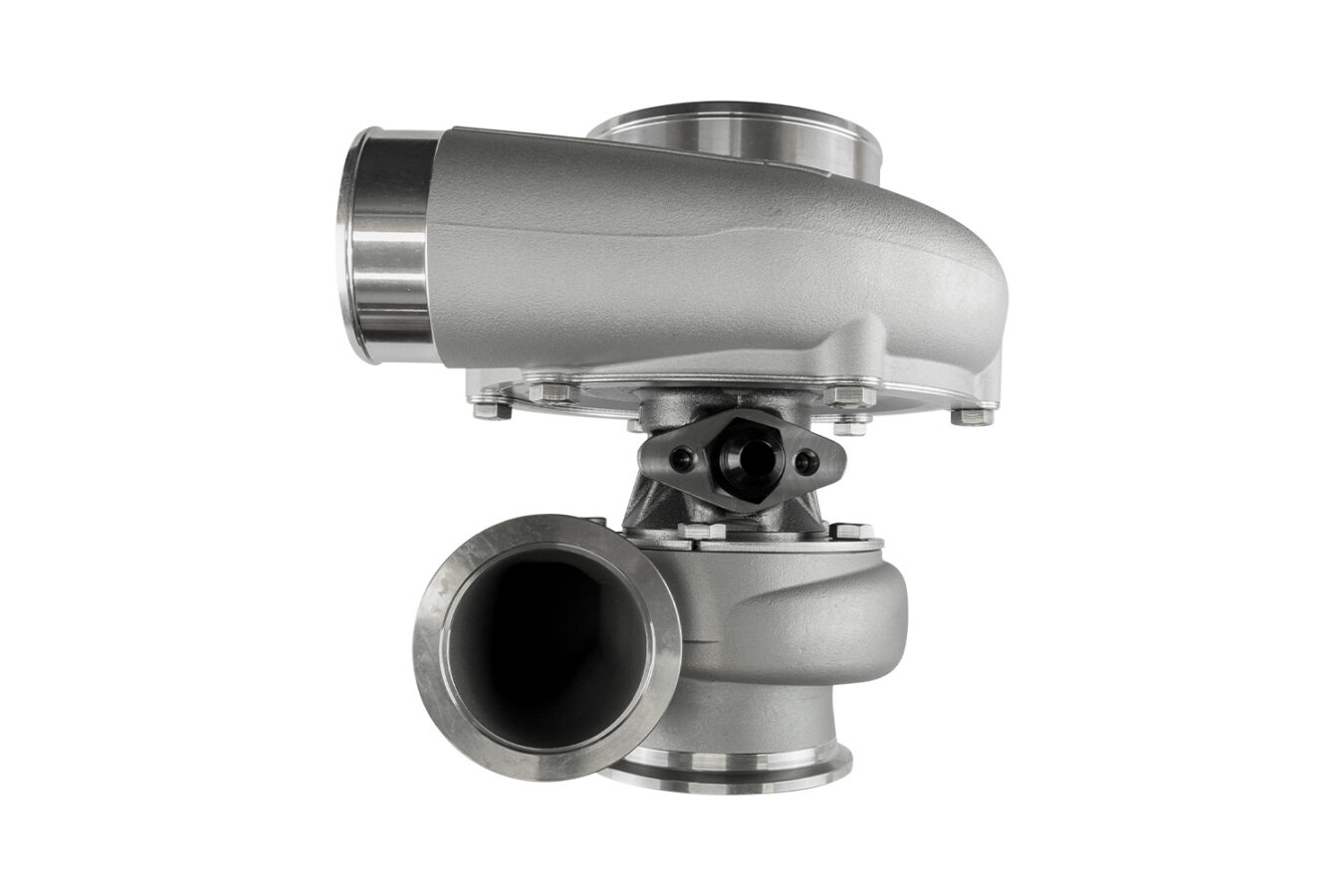

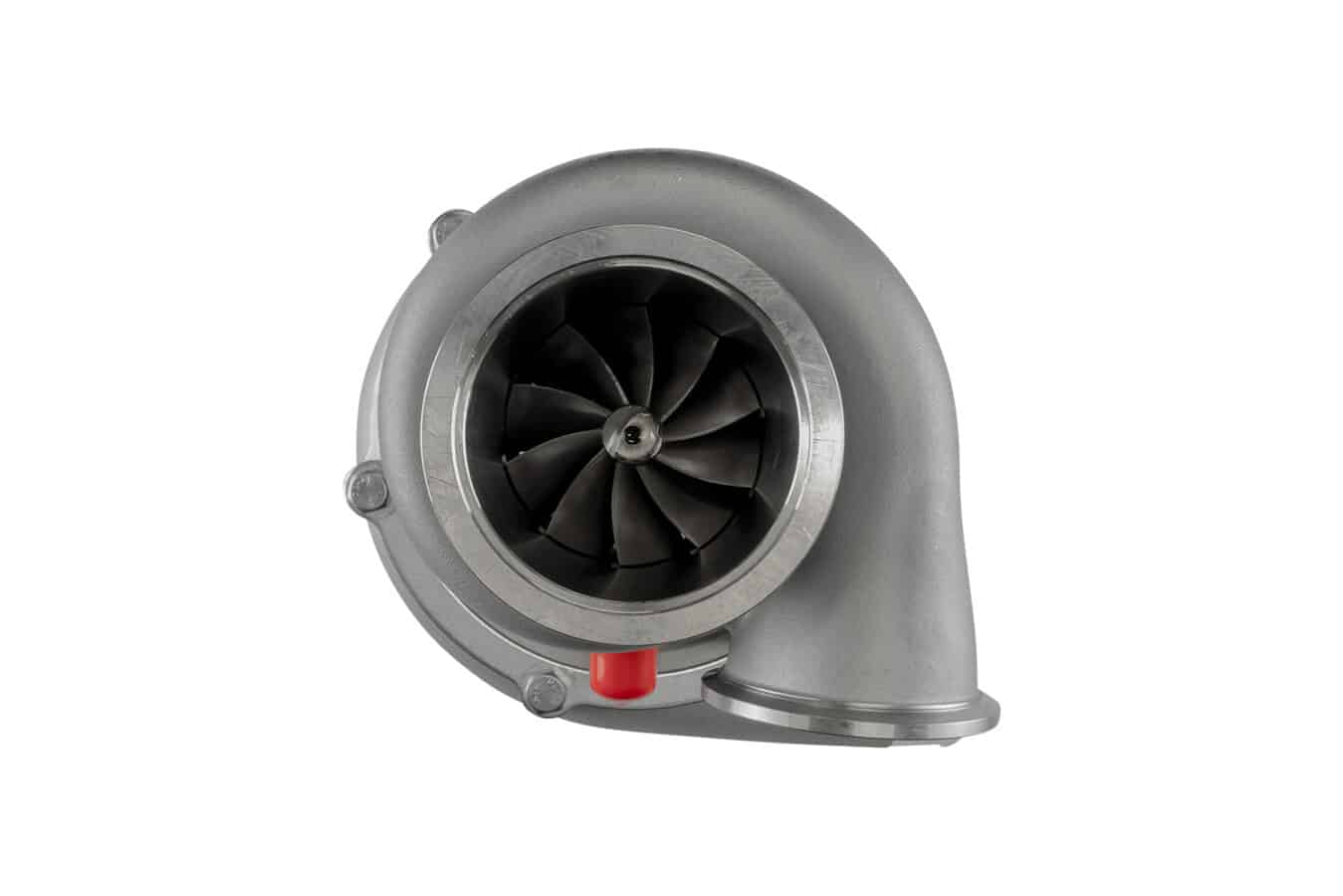

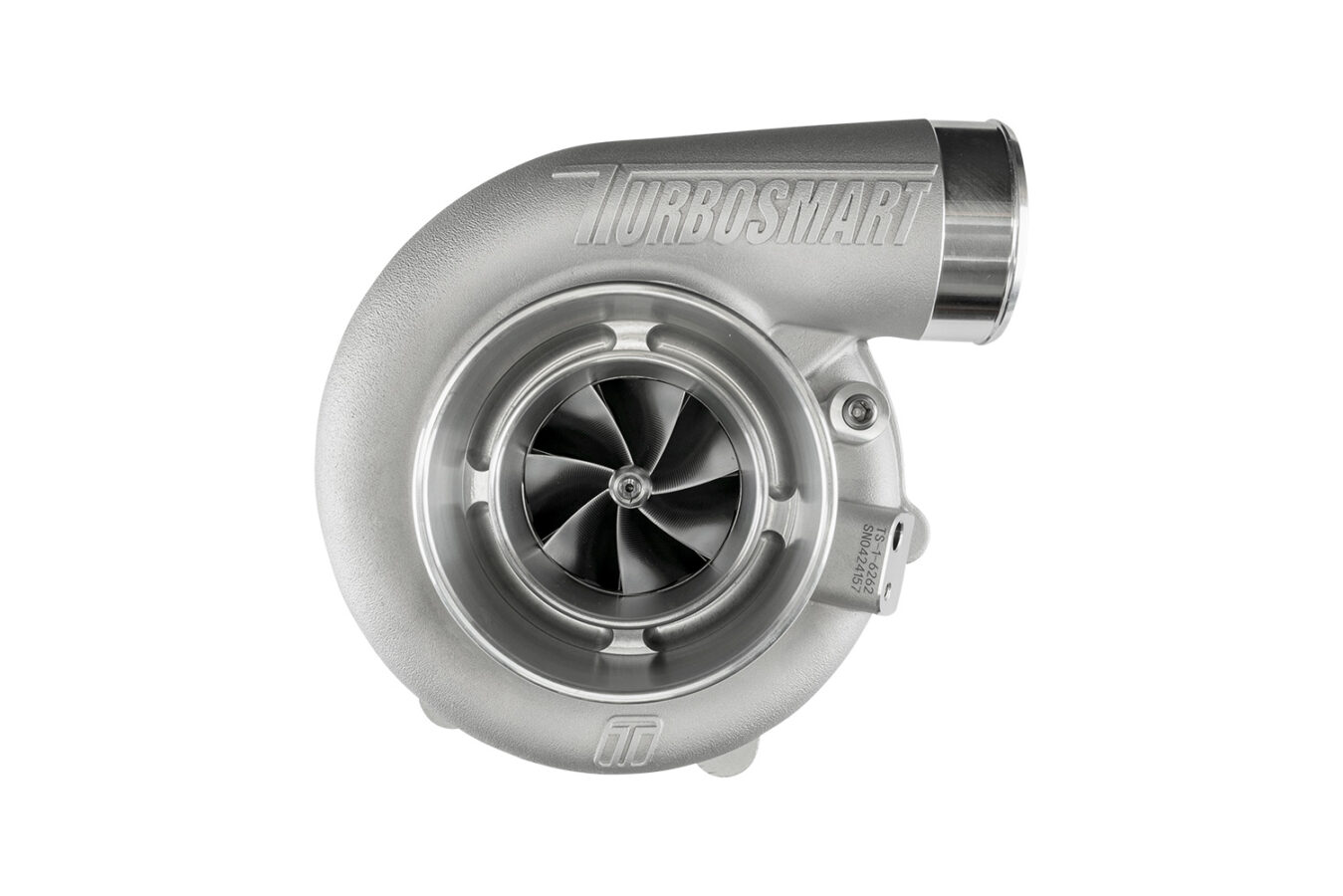

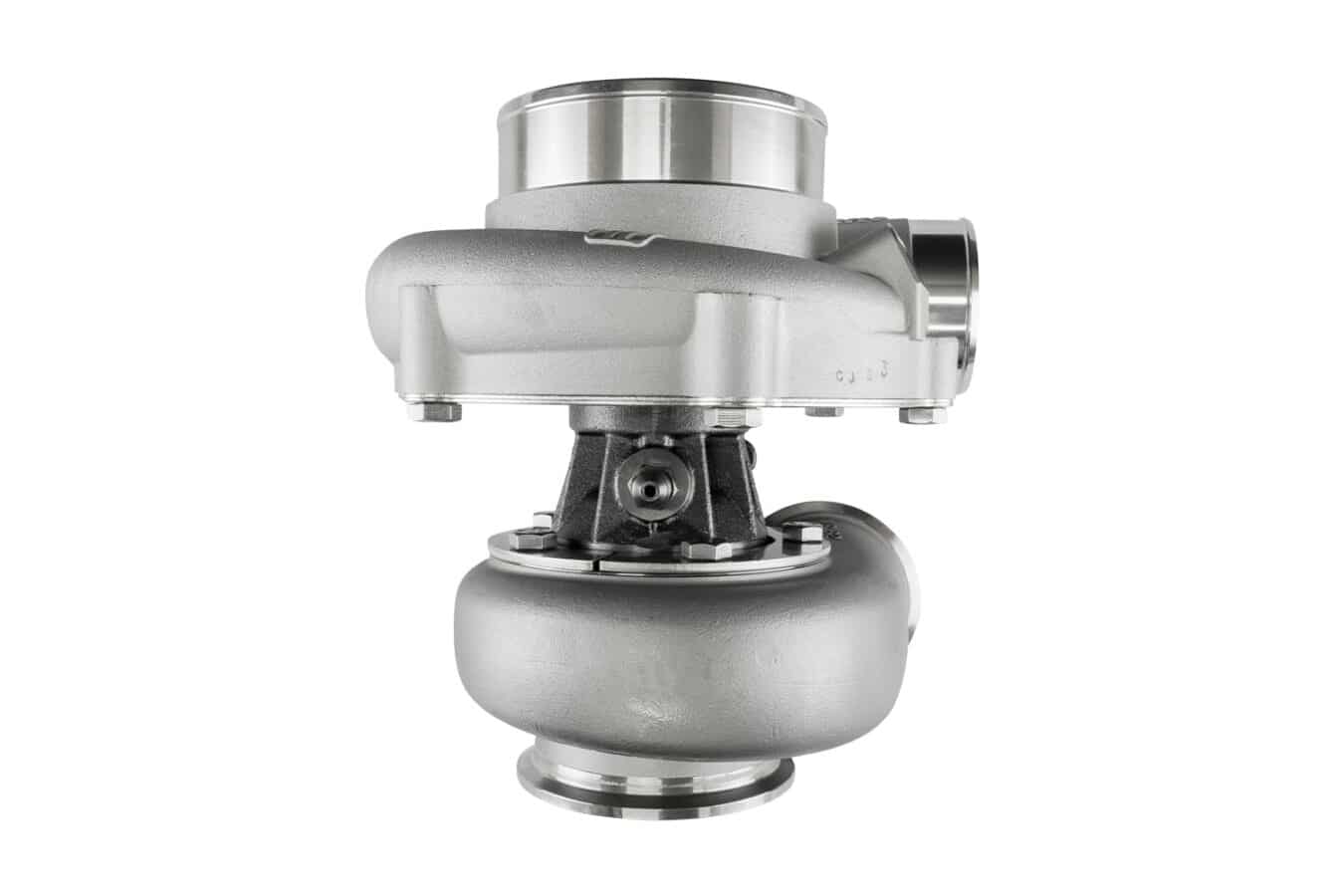

Turbosmart TS-1 Performance Turbocharger 6262 V-Band 0.82AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger lineup is engineered using modern materials, advanced design, and cutting-edge manufacturing techniques to deliver a product that meets the needs of motorsport professionals and performance enthusiasts alike.

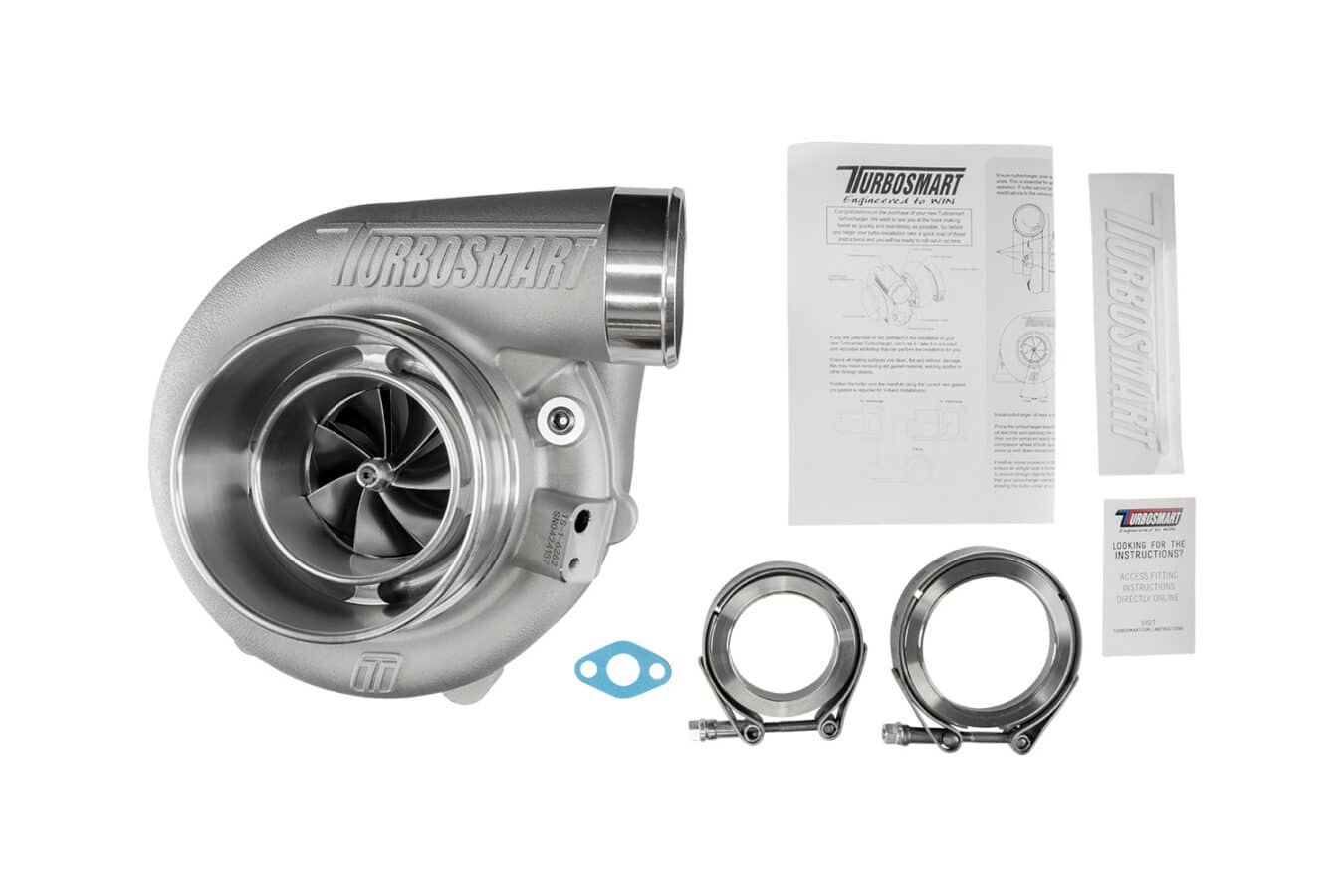

Each turbocharger includes everything needed for installation:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Overview

The TS-1 series features oil-cooled turbochargers with lightweight investment cast turbine housings, combined with a proprietary bearing and main shaft assembly. This design delivers rapid transient response and the reliable, high-performance operation Turbosmart is known for.

A low-mass rotating assembly, matched with aggressive compressor aerodynamics and a uniquely engineered turbine wheel, ensures powerful output even under high loads—while maintaining excellent flow and response at lower shaft speeds.

Turbosmart turbochargers are designed holistically, reducing back pressure while improving performance across the entire engine system—all in a more compact, lighter, and faster-responding package than other market options.

Available Options

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• V-Band, T3, and T4 flange configurations

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal or external wastegate options

Key Features

• Exceptional transient response

• Aggressive 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheels for extreme EGT durability

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 62mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
