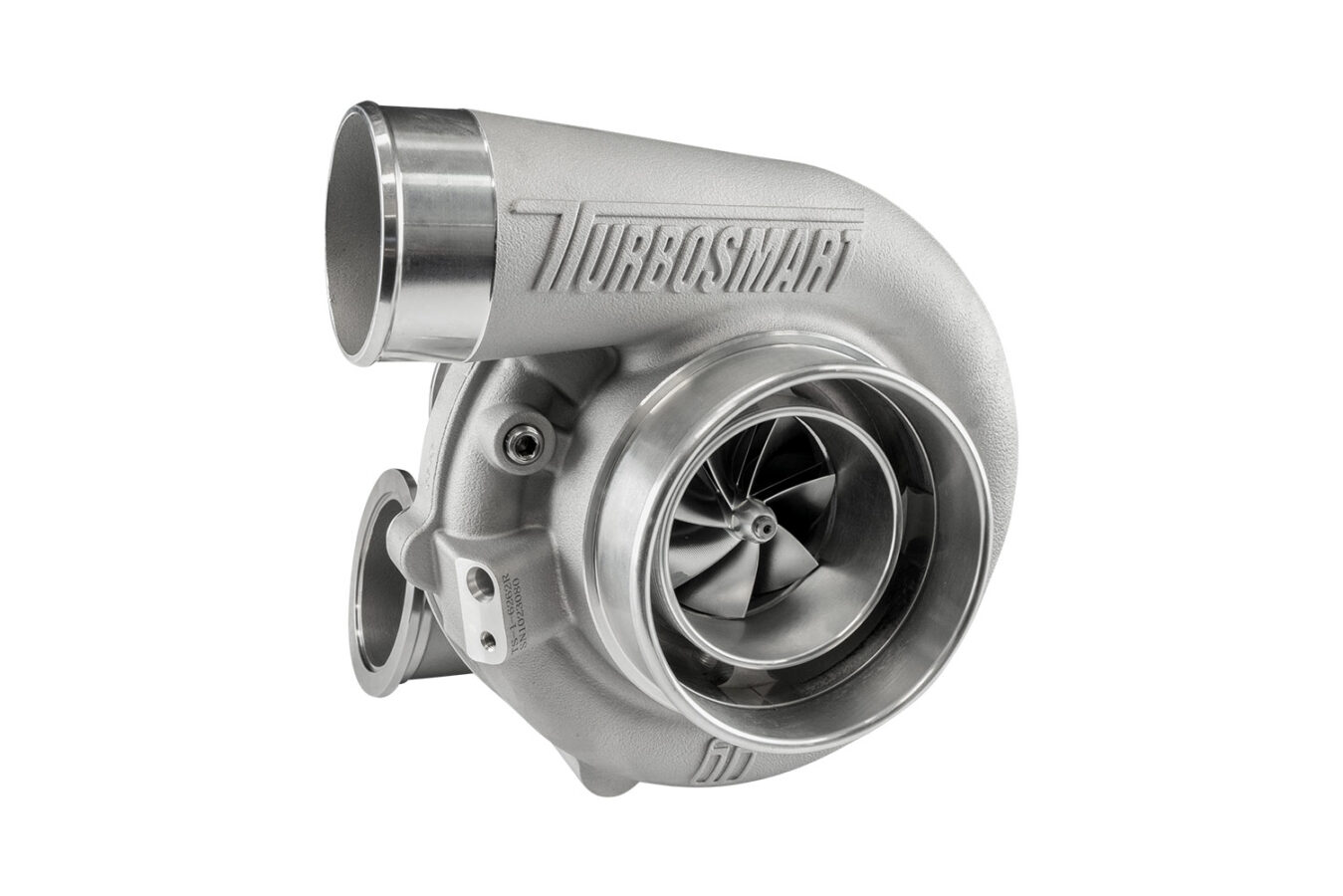

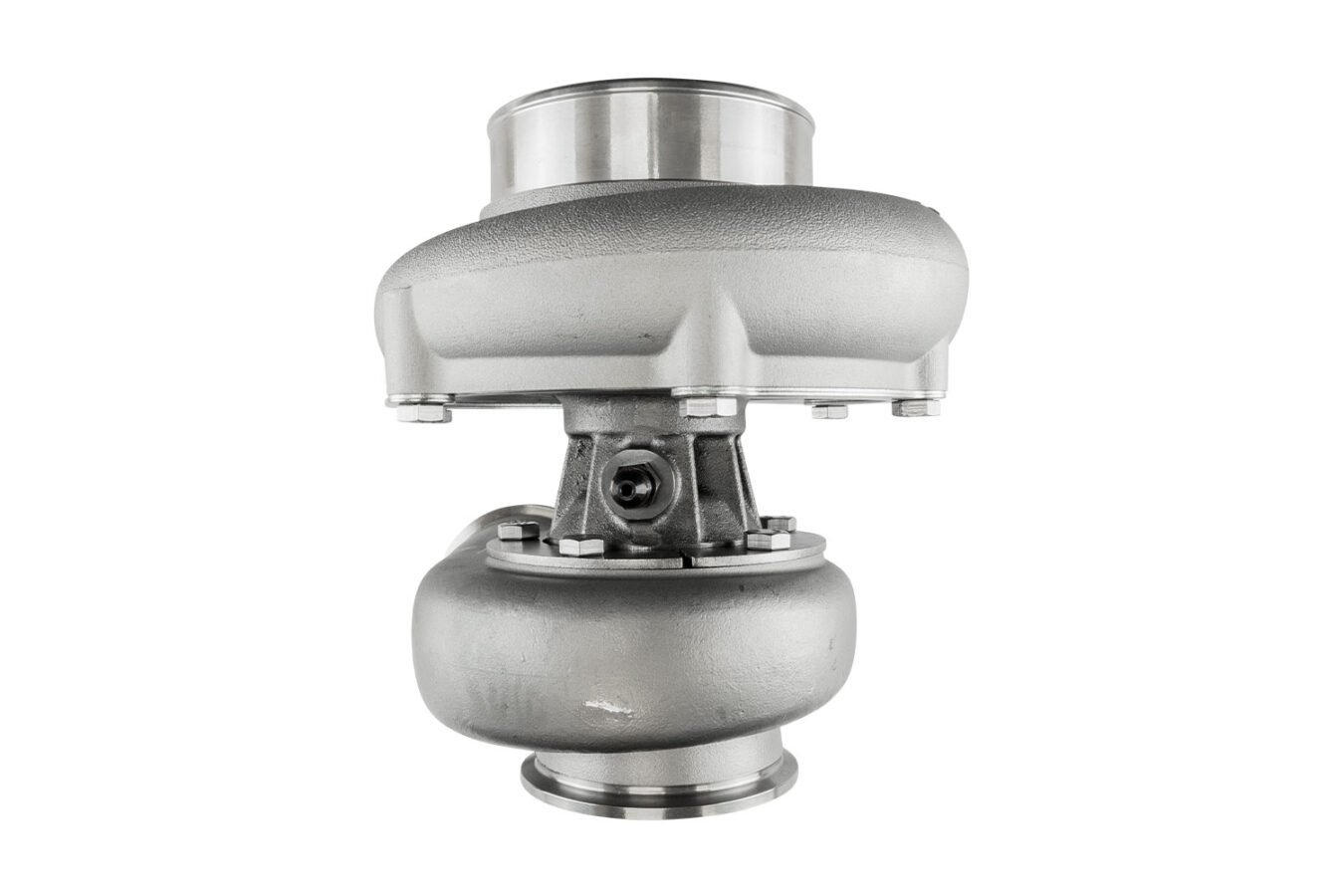

Turbosmart TS-1 Performance Turbocharger 6262 V-Band 0.82AR Externally Wastegated (Reversed Rotation)

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using cutting-edge materials, modern design, and advanced manufacturing techniques to meet the high-performance demands of motorsport and automotive enthusiasts alike.

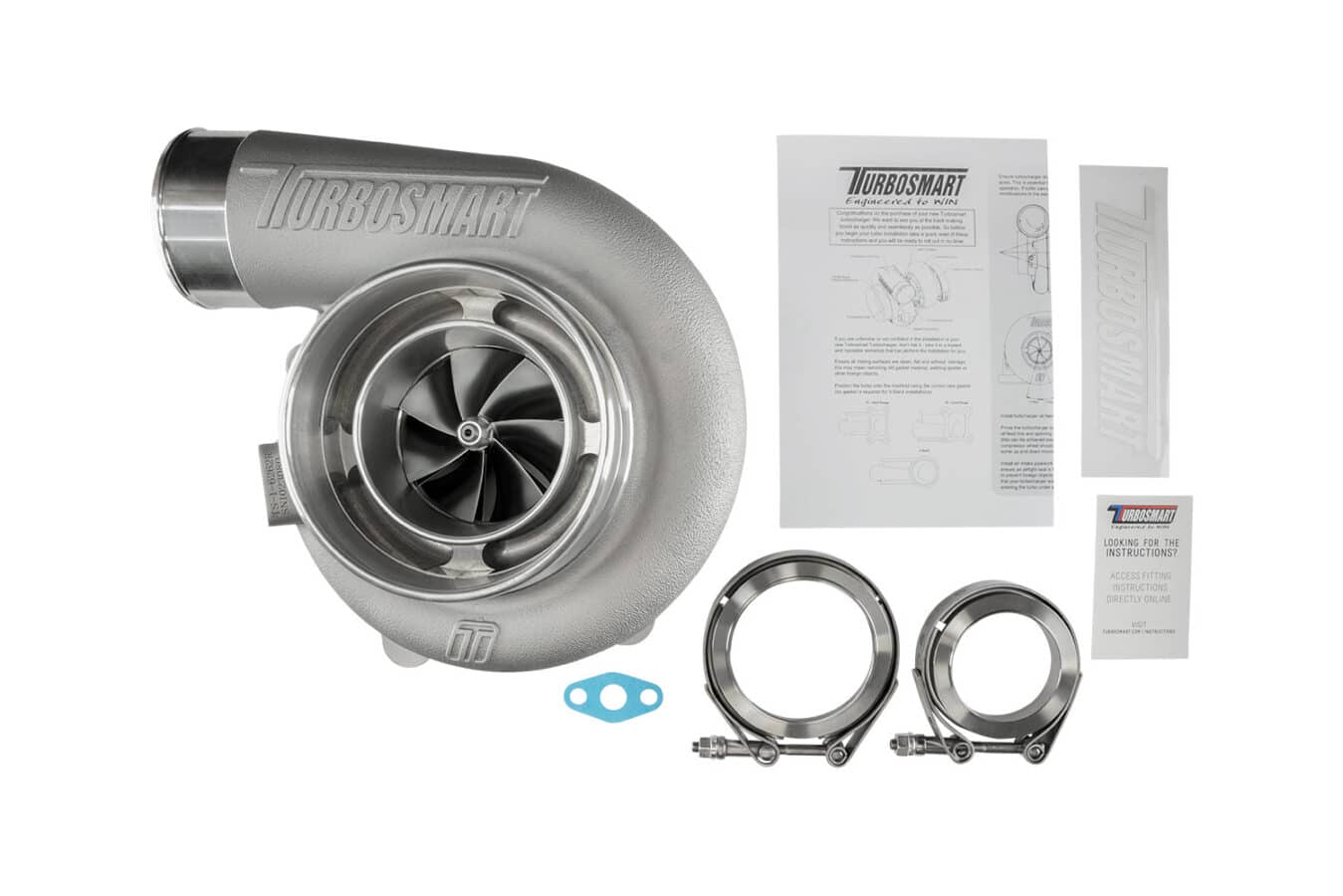

Every Turbosmart turbocharger comes standard with everything needed for installation, including:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Overview

The TS-1 Series features oil-cooled turbochargers with lightweight investment cast turbine housings and a proprietary bearing and main shaft combination. This setup delivers ultra-fast transient response and the quality, performance, and reliability that Turbosmart is known for.

With an ultra-low rotating mass, aggressive compressor aerodynamics, and a specially engineered turbine wheel, TS-1 ensures strong power output across the rev range—even under high load conditions.

Turbosmart turbochargers are designed from an engine-wide perspective, maximizing power through reduced backpressure and efficient turbine flow, all while being more compact, responsive, and lighter than the competition.

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil + Water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal or external wastegate compatibility

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for best A/R and flow

• 713C Inconel turbine wheel (for extreme EGTs)

• VSR speed-balanced for precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Technical Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 62 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
