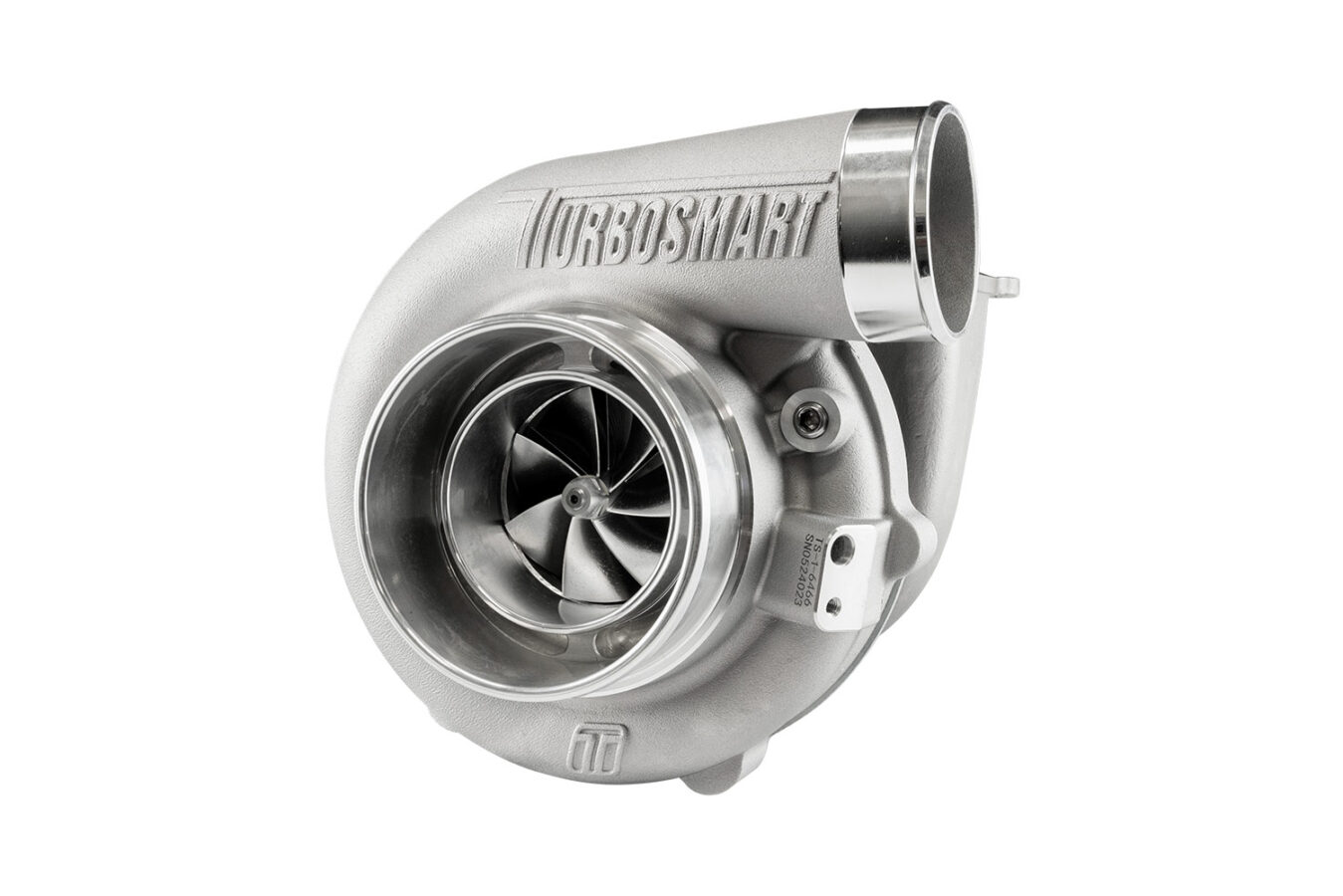

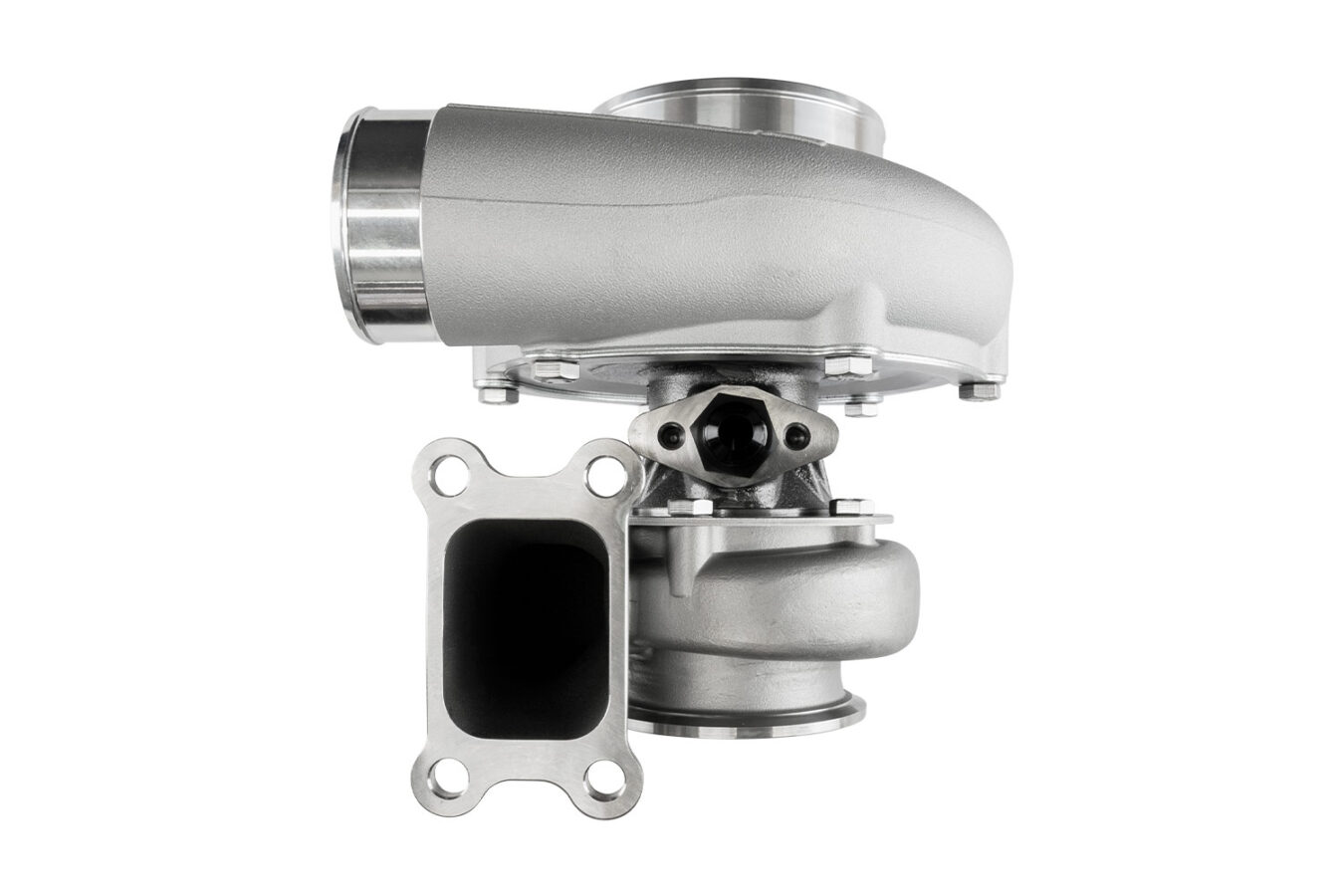

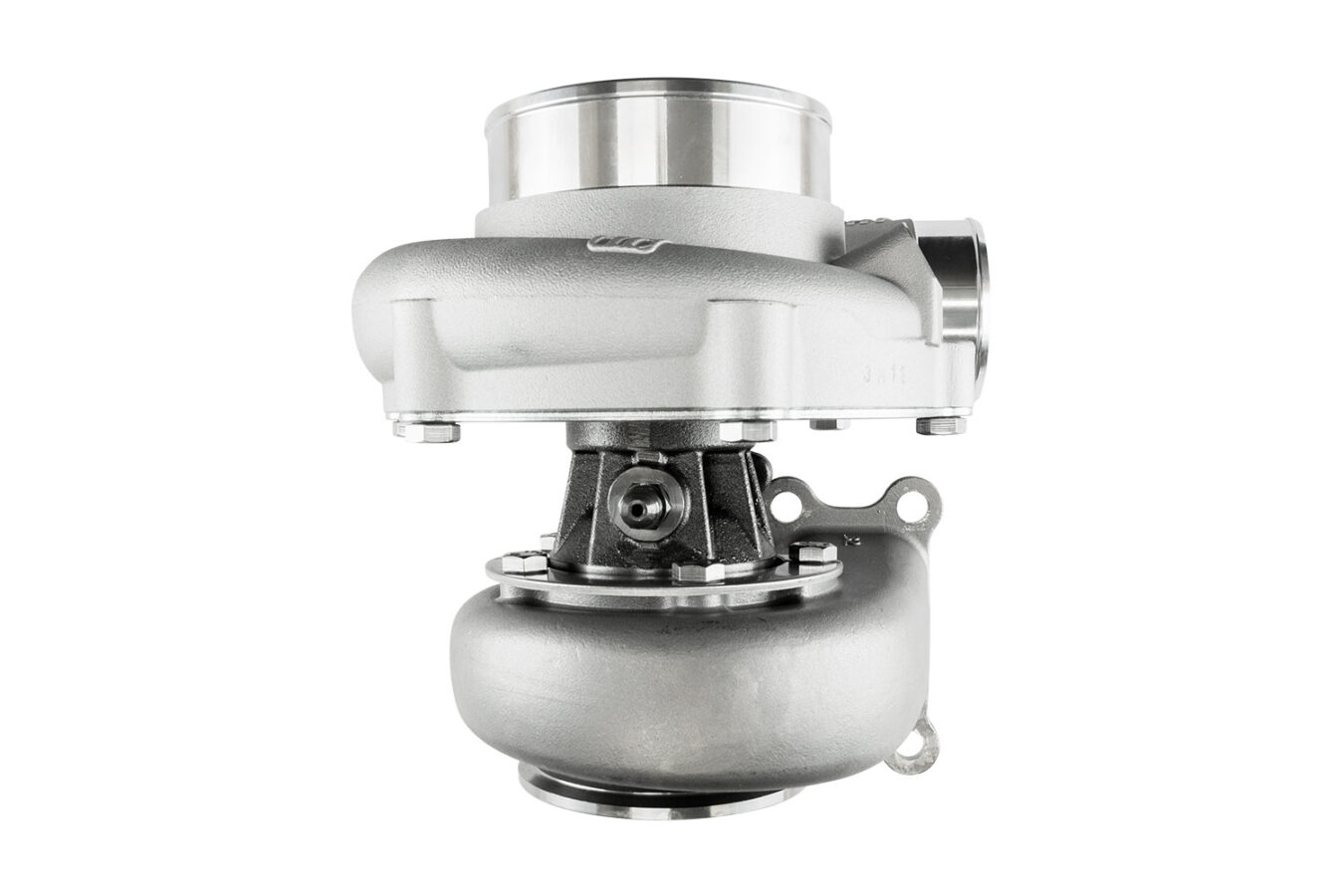

Turbosmart TS-1 Performance Turbocharger 6466 T3 0.63AR Externally Wastegated

Smaller, lighter, and faster – Turbosmart’s turbocharger series is engineered using advanced materials, innovative design, and modern manufacturing to meet the performance needs of motorsport and enthusiast applications alike.

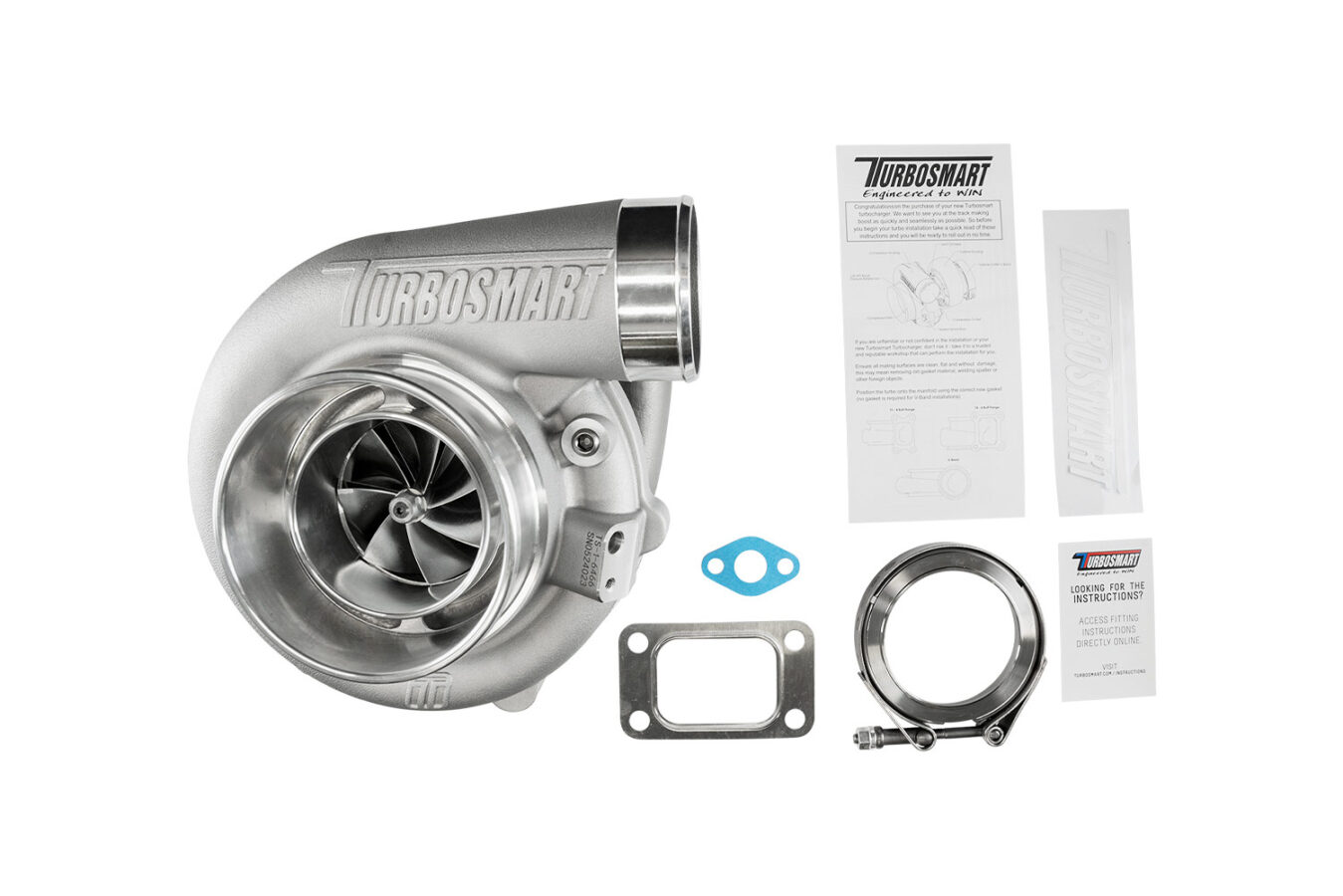

Every Turbosmart turbo includes all installation essentials: weld flanges, V-band clamps, gaskets, and oil feed/drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings, paired with a proprietary bearing and main shaft system. This design provides unmatched transient response, power, and the reliability you expect from Turbosmart.

A unique low-mass bearing and shaft assembly, combined with aggressive compressor aerodynamics, delivers impressive performance at low shaft speeds while maintaining power and flow under heavy load.

Each Turbosmart turbocharger is built with an end-to-end engine approach—prioritizing reduced backpressure, high-flow turbine performance, and quick response—all in a compact and lightweight package.

Available Configurations

• TS-1: Oil-cooled

• TS-2: Oil + water-cooled

• Flange Options: V-Band, T3, T4

• Reverse rotation available (select sizes)

• Various A/R options

• Internal or external wastegated options

Key Features

• Outstanding transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housing design for peak A/Rs and flow

• 713C Inconel turbine wheel – ideal for extreme EGTs

• VSR speed-balanced

• Dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 66mm

• Turbine A/R: 0.63

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
