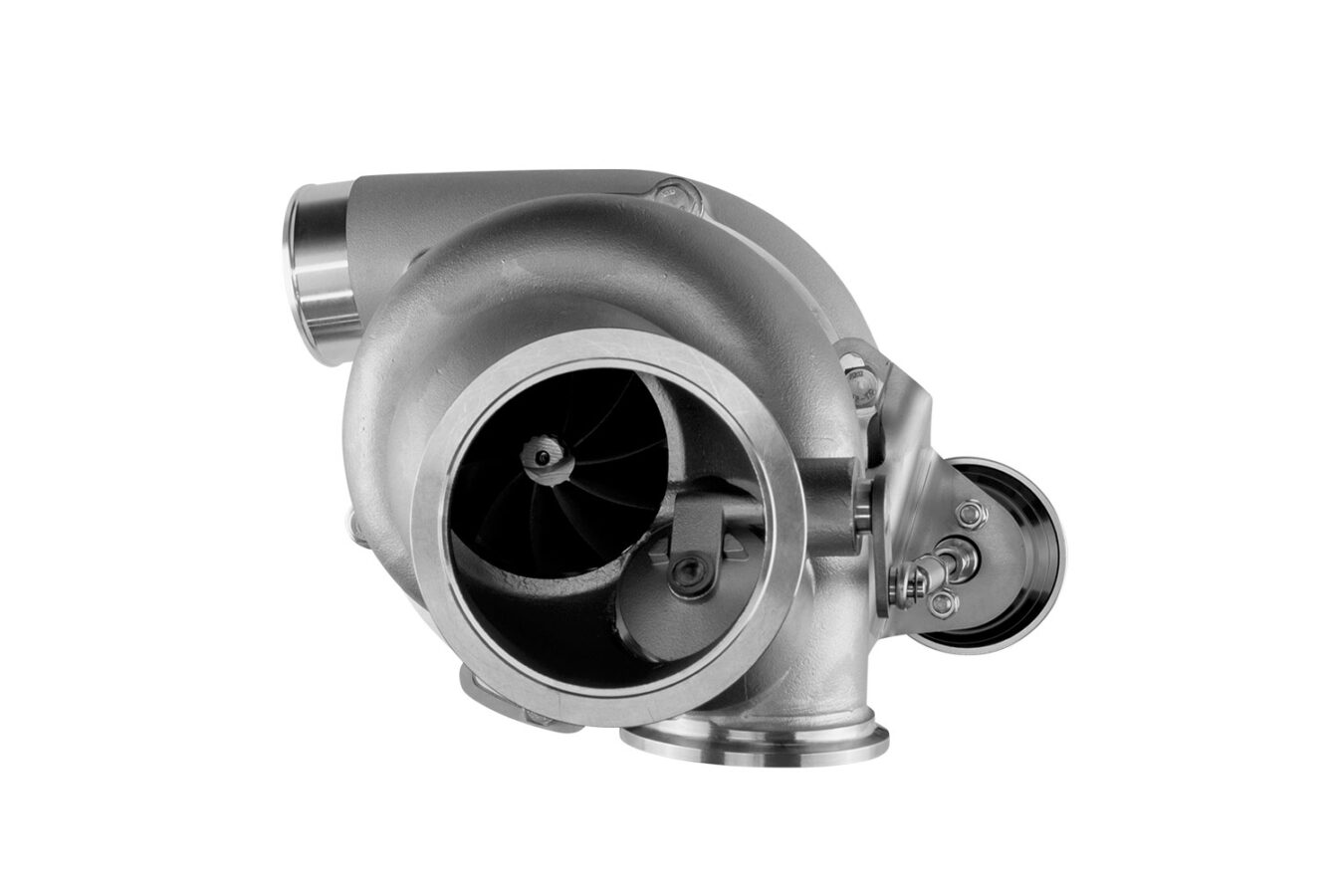

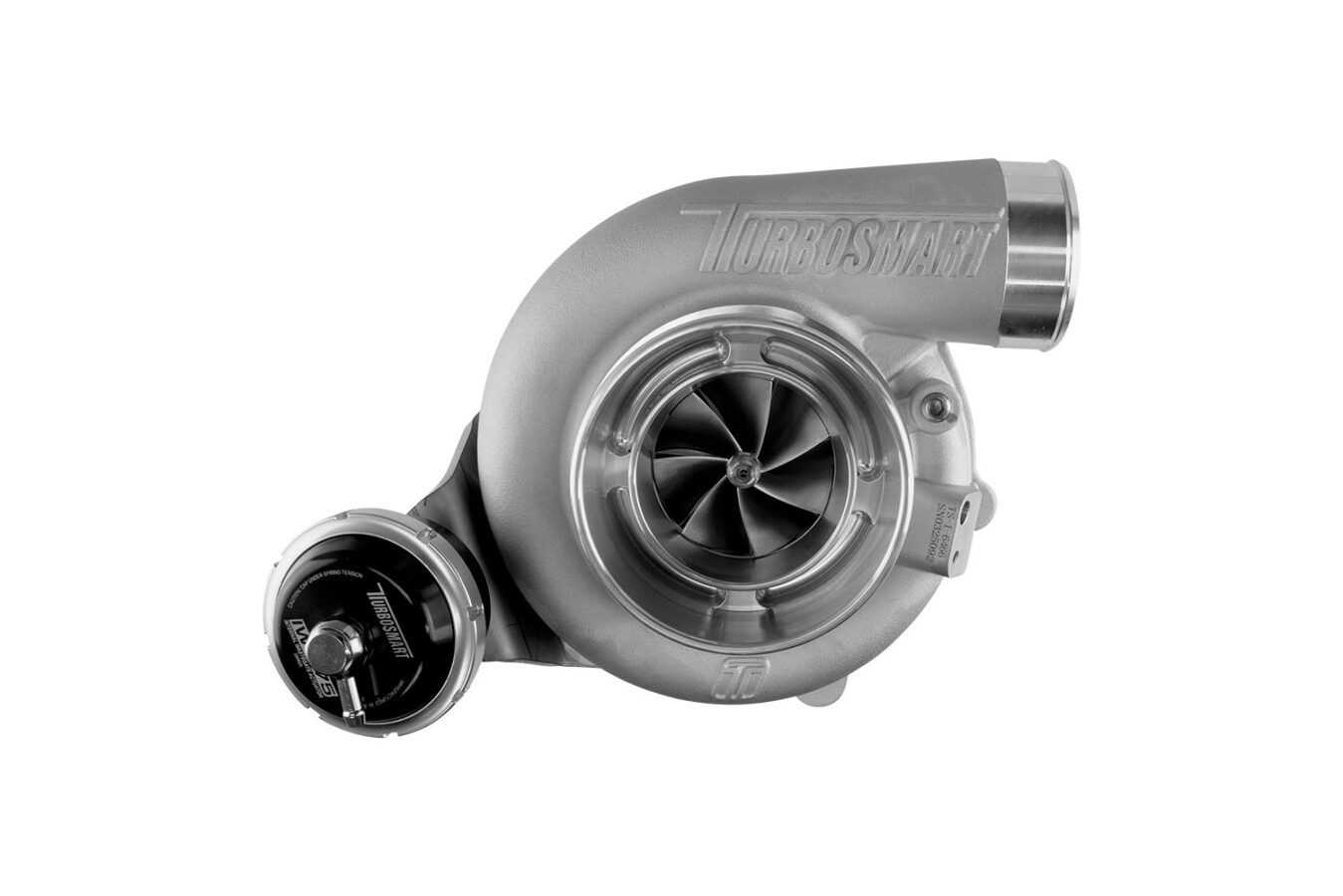

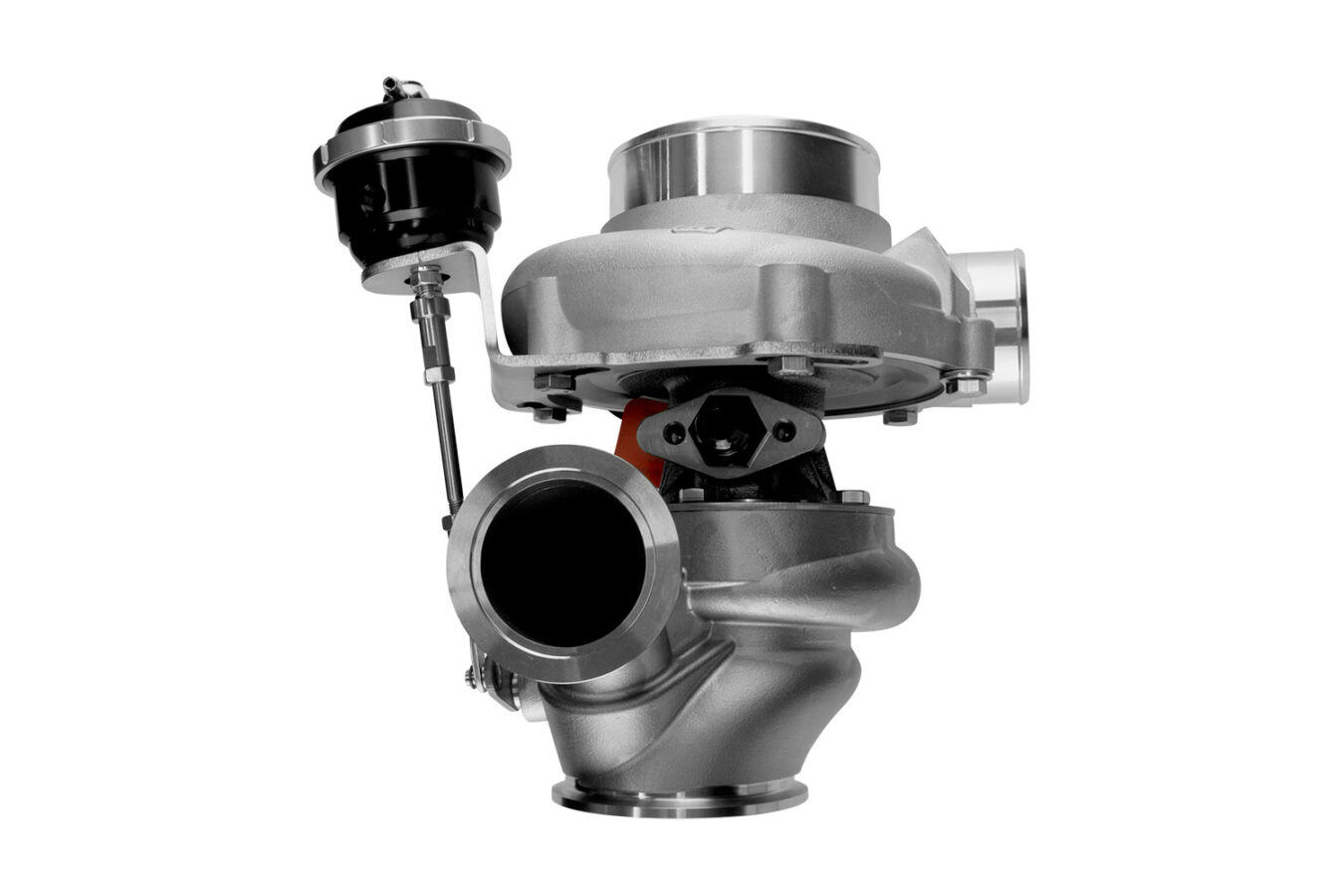

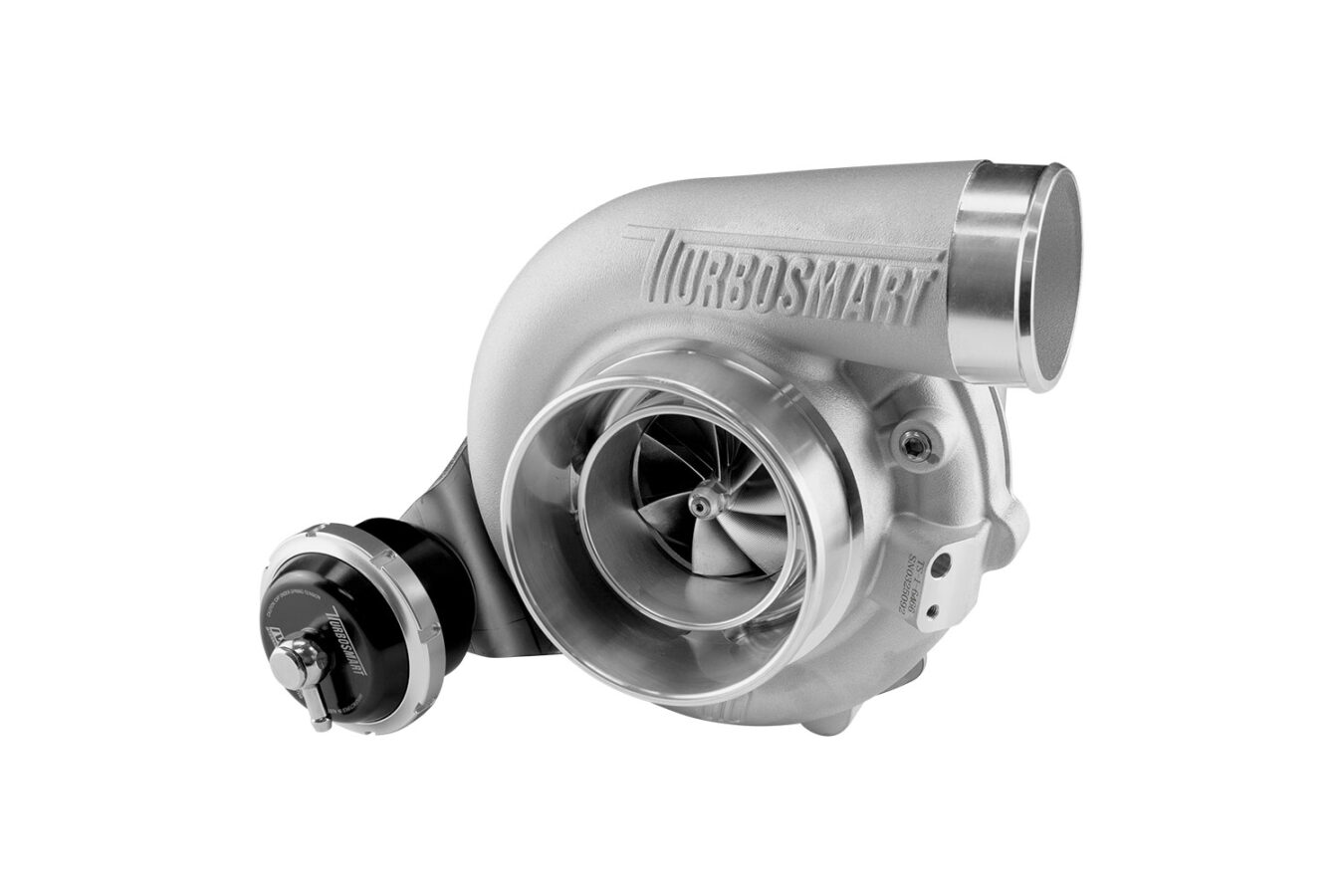

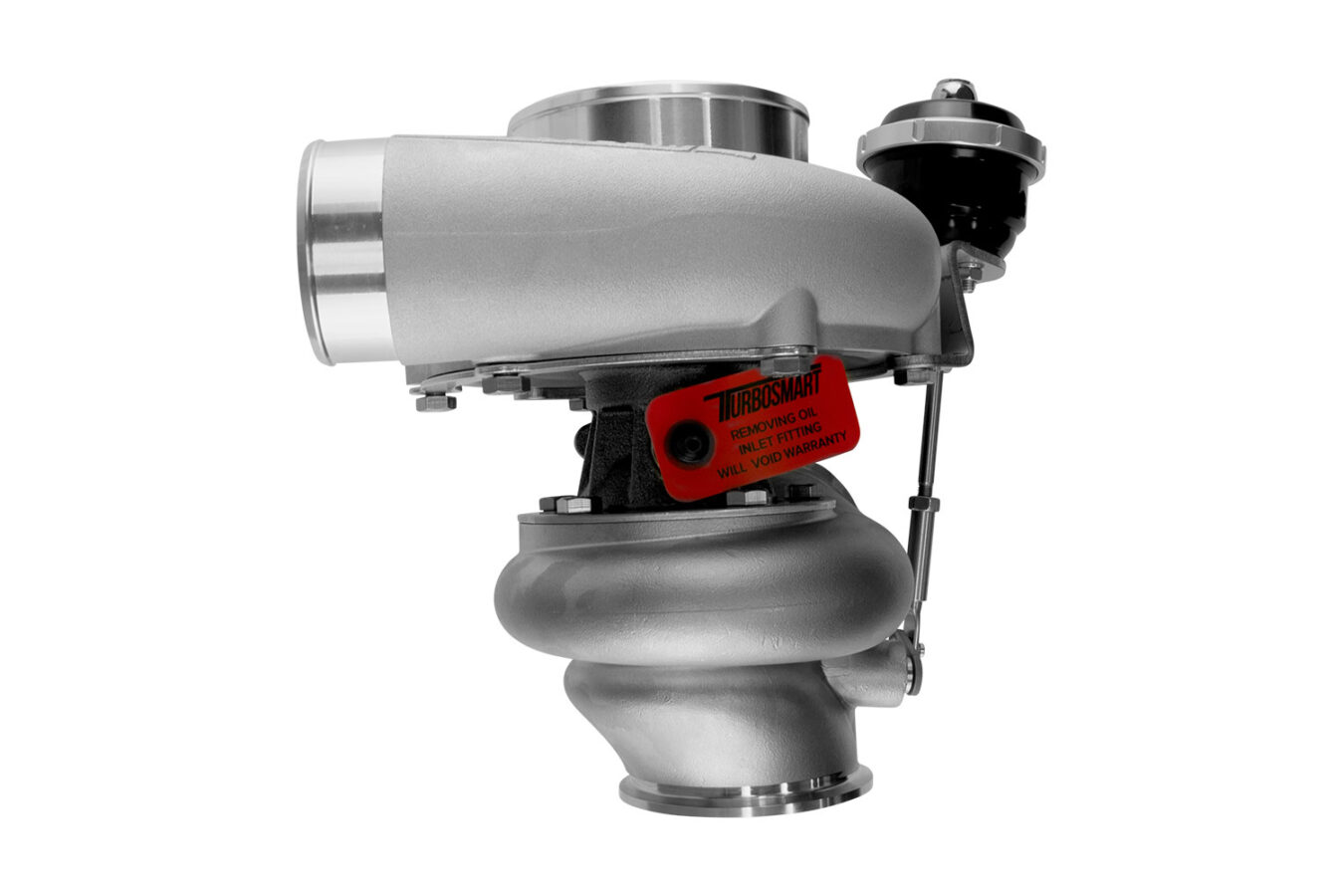

Turbosmart TS-1 Performance Turbocharger 6466 V-Band 0.82AR Internally Wastegated

Smaller, Lighter, Faster – Turbosmart’s turbocharger series is designed using cutting-edge materials, engineering, and manufacturing techniques to meet the needs of motorsport and performance enthusiasts.

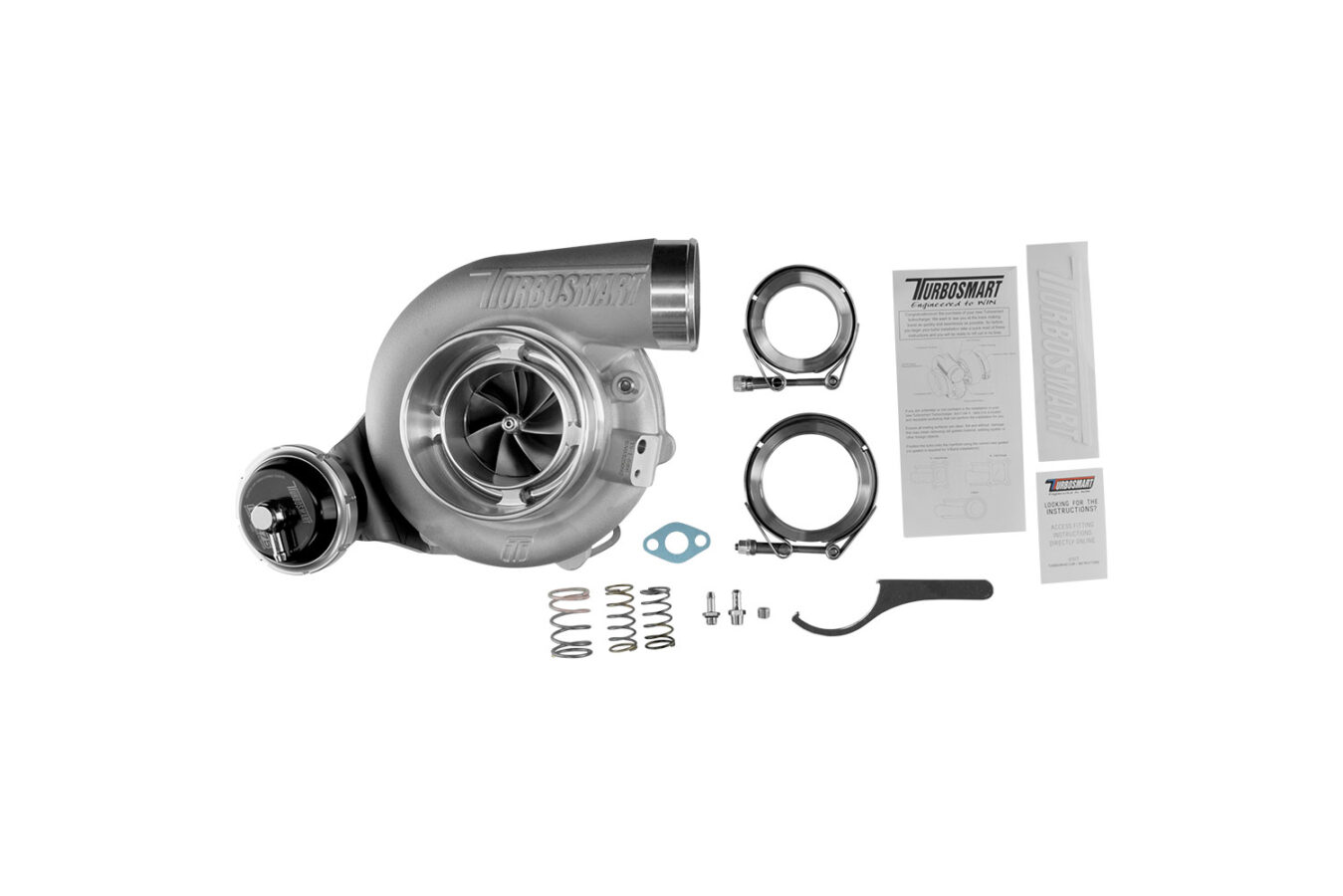

Each turbocharger comes with all necessary installation components, including weld flanges, V-band clamps, gaskets, and oil feed/drain fittings.

The TS-1 Series is oil-cooled and features lightweight investment cast turbine housings paired with a proprietary bearing and shaft assembly. This combination delivers rapid transient response with the performance, reliability, and support Turbosmart is known for.

With ultra-low rotating mass and aggressive compressor aerodynamics, these turbos offer strong performance at low shaft speeds and high-flow capability at peak loads. All Turbosmart turbos are designed with a full engine system approach—maximizing power through reduced back pressure while remaining compact and responsive.

Available Options

• TS-1 (Oil cooled)

• TS-2 (Oil & water cooled)

• V-Band, T3, and T4 flange configurations

• Reverse rotation (selected sizes)

• Multiple A/R sizes

• Internal or external wastegate options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme exhaust temperatures

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 64mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
