Turbosmart’s turbocharger series has been developed using modern materials, advanced design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

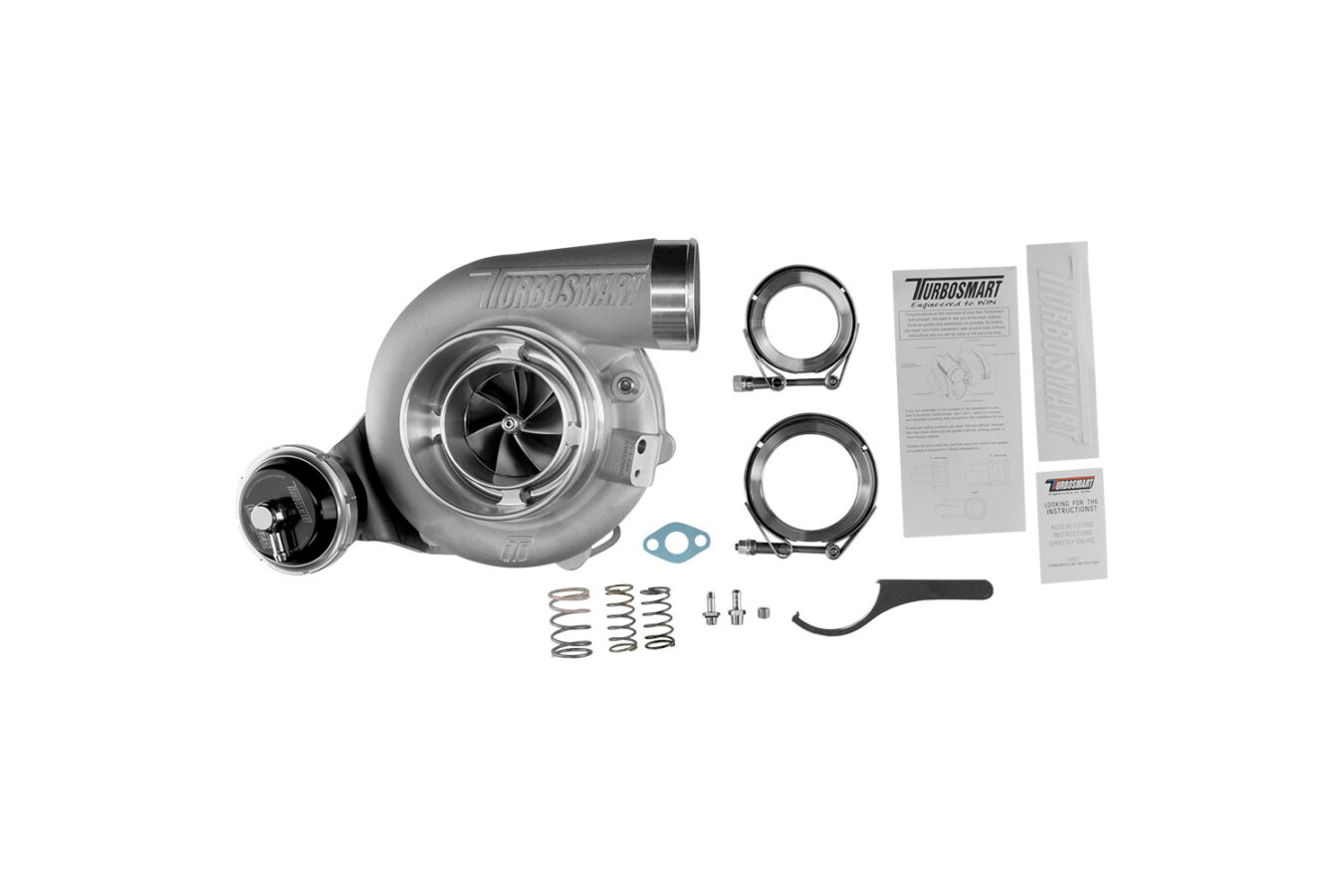

Every Turbosmart turbocharger comes standard with everything needed for installation, including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.
The TS-1 series features oil-cooled turbochargers with lightweight investment cast turbine housings and a proprietary bearing and main shaft combination that delivers transient response you never knew possible—along with the performance, quality, reliability, and support Turbosmart is known for.
The ultra-low rotating mass of the unique bearing and shaft assembly is matched with aggressive compressor aerodynamics to ensure high performance at lower shaft speeds, paired with a unique turbine wheel designed to maintain power at high loads while optimizing flow.
All Turbosmart turbochargers are engineered with an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines—while being smaller, lighter, and faster in response than other solutions on the market.
Available In
-
TS-1 oil-cooled turbochargers
-
TS-2 oil and water-cooled turbochargers
-
V-Band, various T3 flange, and T4 flange options
-
Reverse rotation (selected sizes)
-
Various A/R options
-
Internal and external wastegate options available
Features
-
Unparalleled transient response
-
Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels
-
Lightweight 310S stainless steel investment cast turbine housings
-
Lightweight aluminium compressor covers
-
CFD-driven designed housings for optimal A/Rs and flow
-
713C Inconel turbine wheel for extreme EGTs
-
VSR speed balanced
-
Proprietary dual ceramic bearing system
-
Integrated iron backplate on center housing
Specifications
-
Compressor Inlet: 4″ / 101.6 mm
-
Compressor Inducer: 62 mm
-
Turbine Inlet: V-Band (2.25″)
-
Turbine Exducer: 62 mm
-
Turbine A/R: 0.82
-
Turbine Outlet: V-Band (3.00″)
-
Weight: 7.40 kg / 16.3 lbs
-
Horsepower Rating: 660–800 HP
