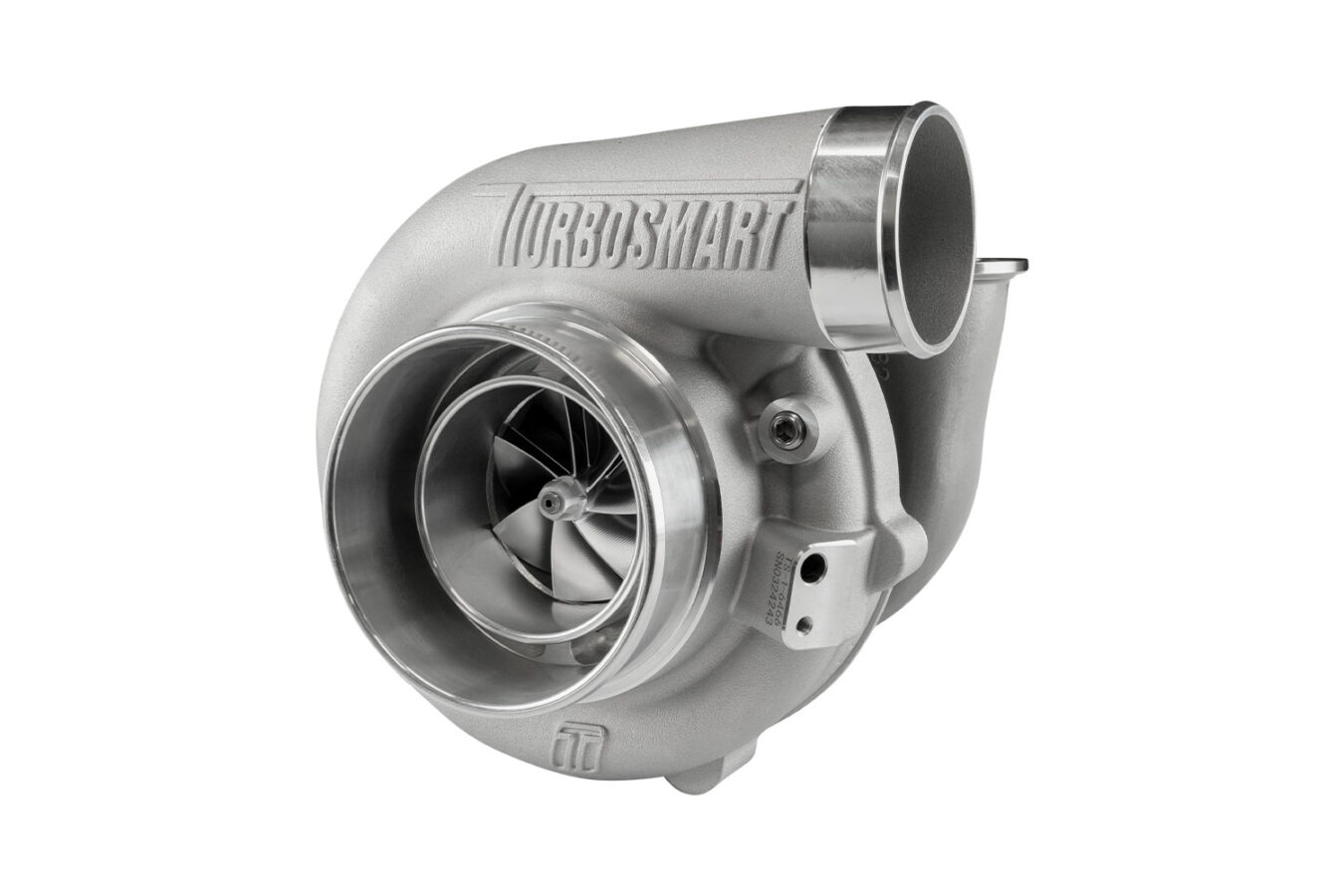

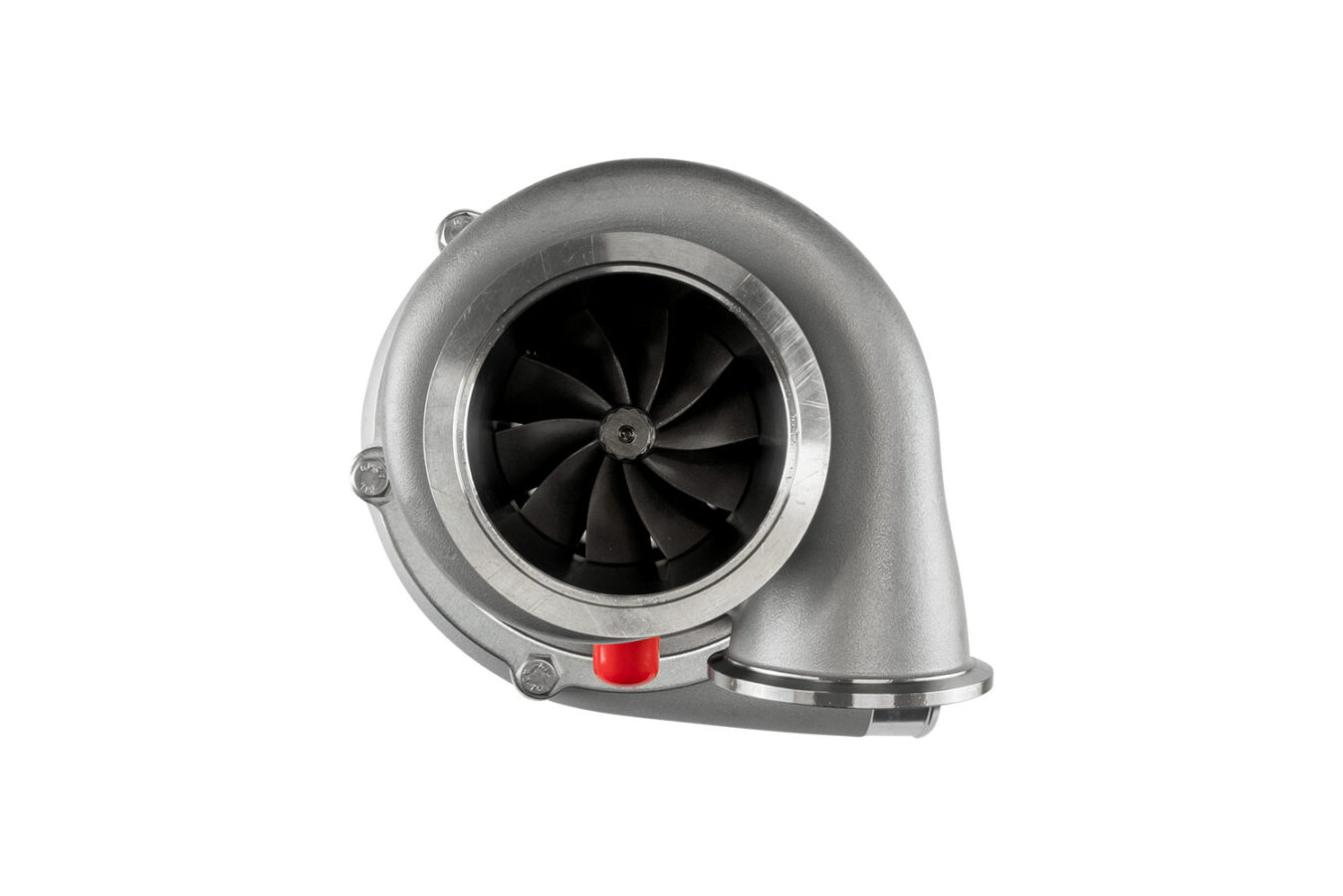

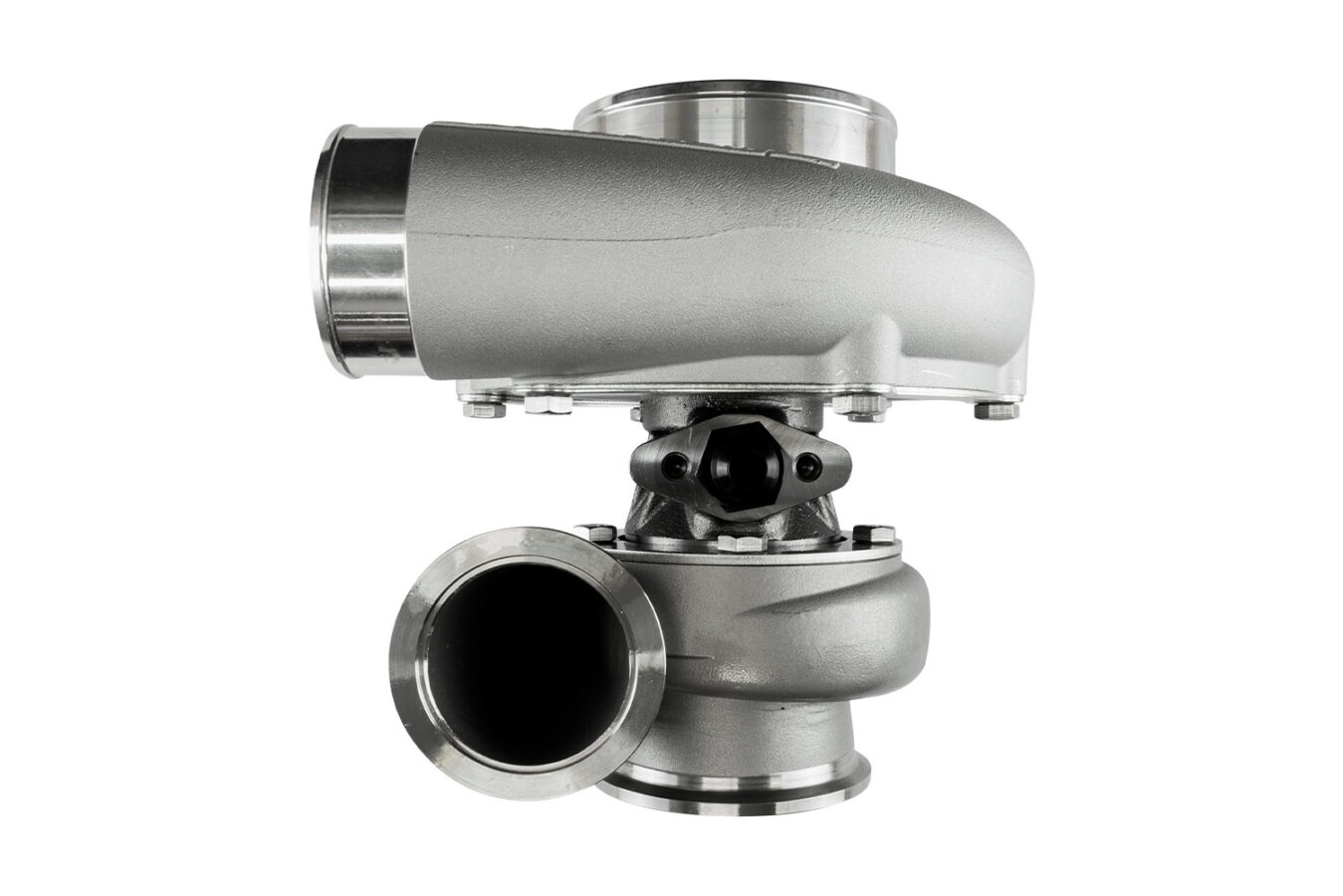

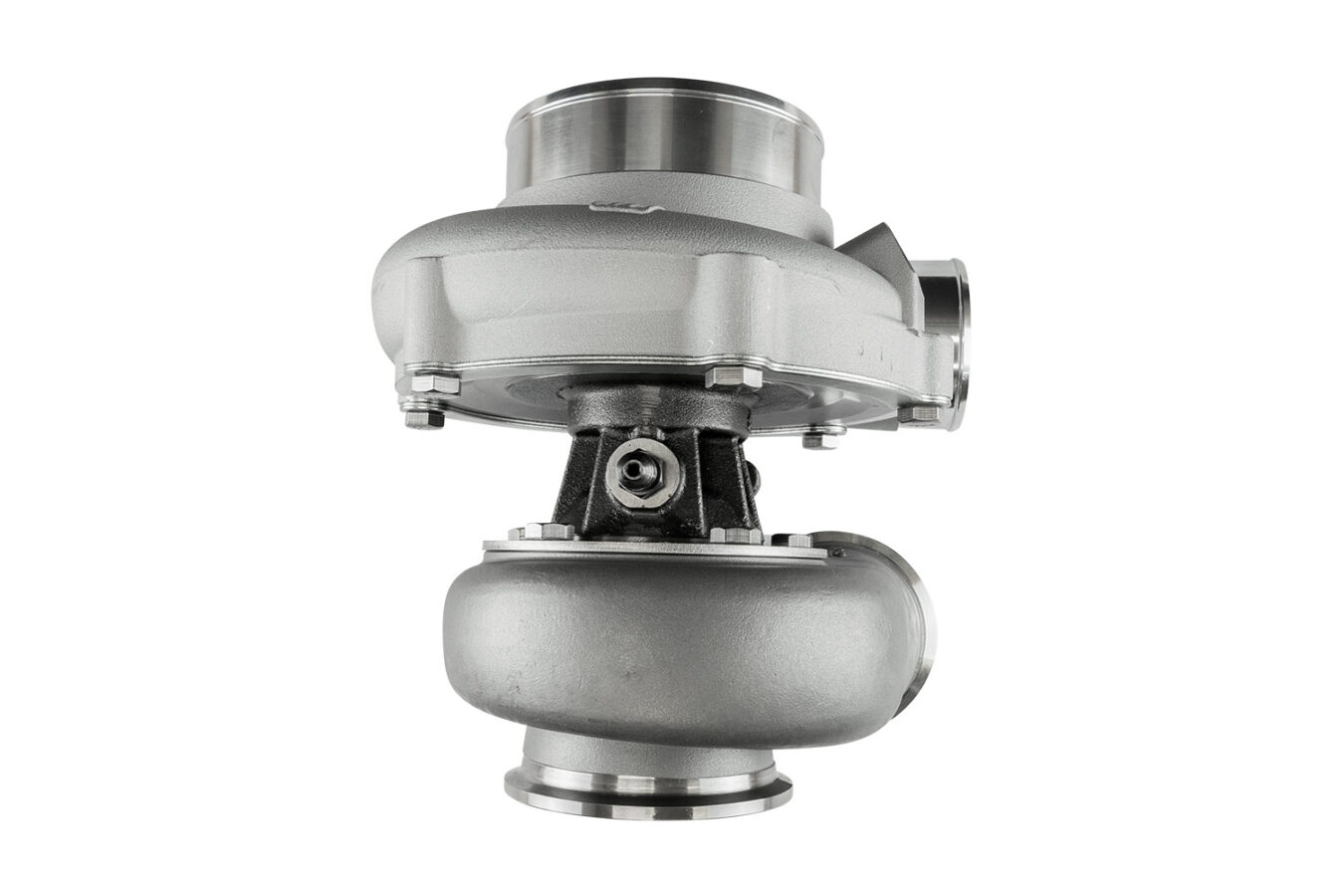

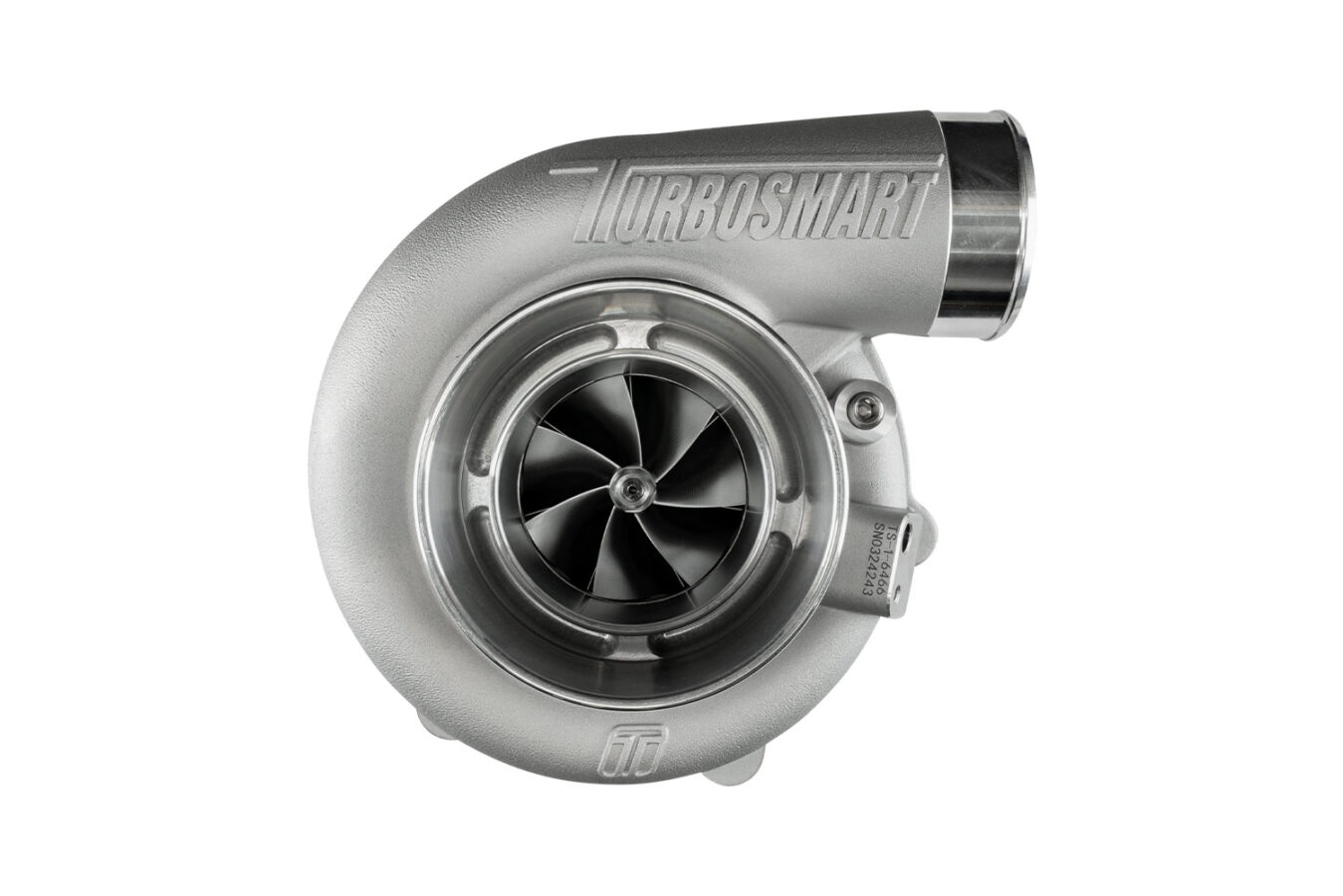

Turbosmart TS-1 Performance Turbocharger 6466 V-Band 1.07AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger lineup is engineered using cutting-edge materials, modern design, and precision manufacturing to meet the high-performance demands of motorsport and enthusiasts alike.

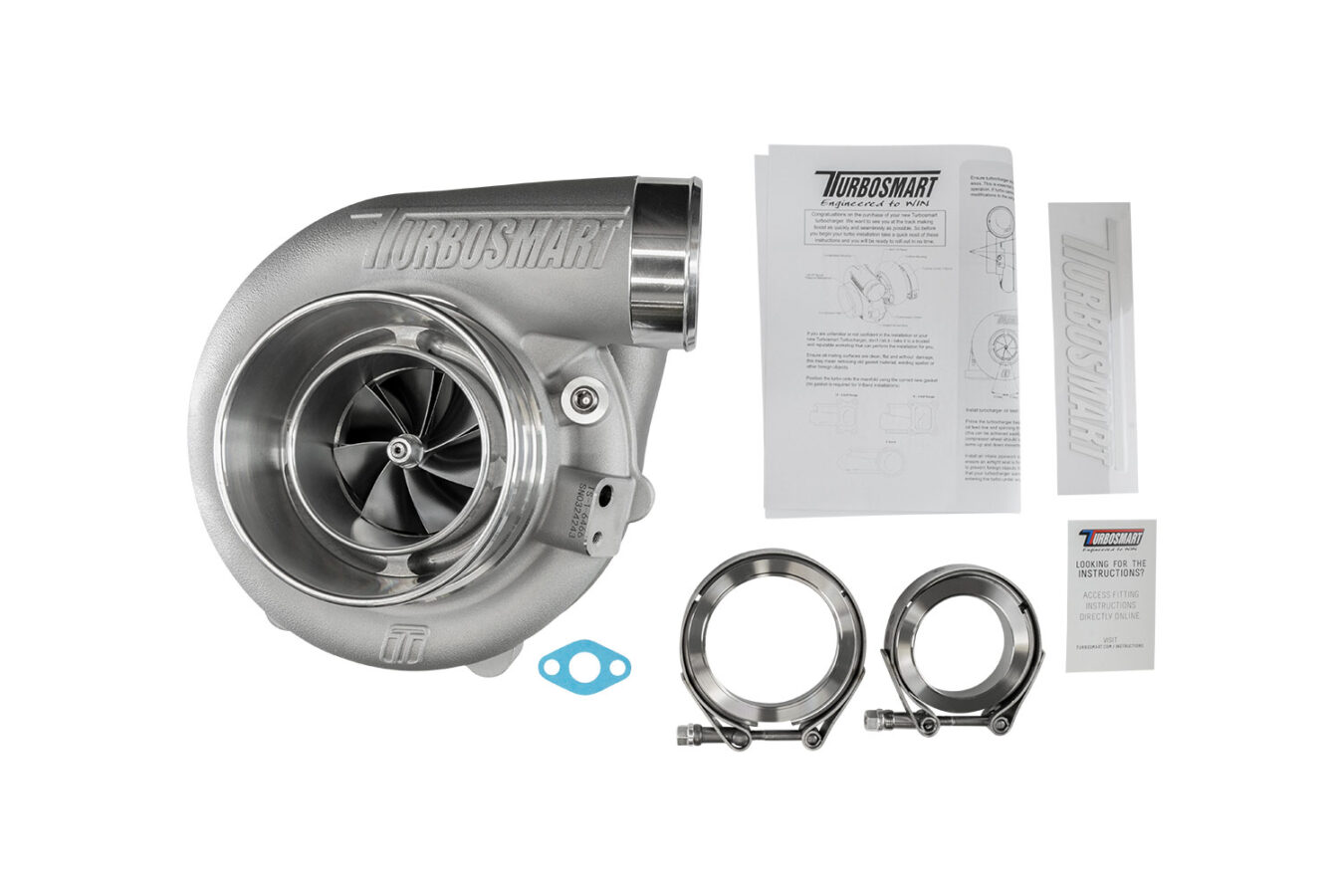

Each turbo comes standard with everything needed for installation, including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft combination that delivers lightning-fast transient response and unmatched performance, reliability, and support.

An ultra-low rotating mass bearing assembly, combined with aggressive compressor aerodynamics and a unique turbine wheel, ensures exceptional performance across the powerband—especially under heavy loads.

Turbosmart turbos are built with a complete engine systems approach—delivering more power through reduced back pressure and fast spooling, all in a smaller, lighter package than traditional alternatives.

Available Options

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R configurations

• Internal and external wastegated versions

Features

• Unparalleled transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 66 mm

• Turbine A/R: 1.07

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
