Turbosmart’s turbocharger series has been developed using modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

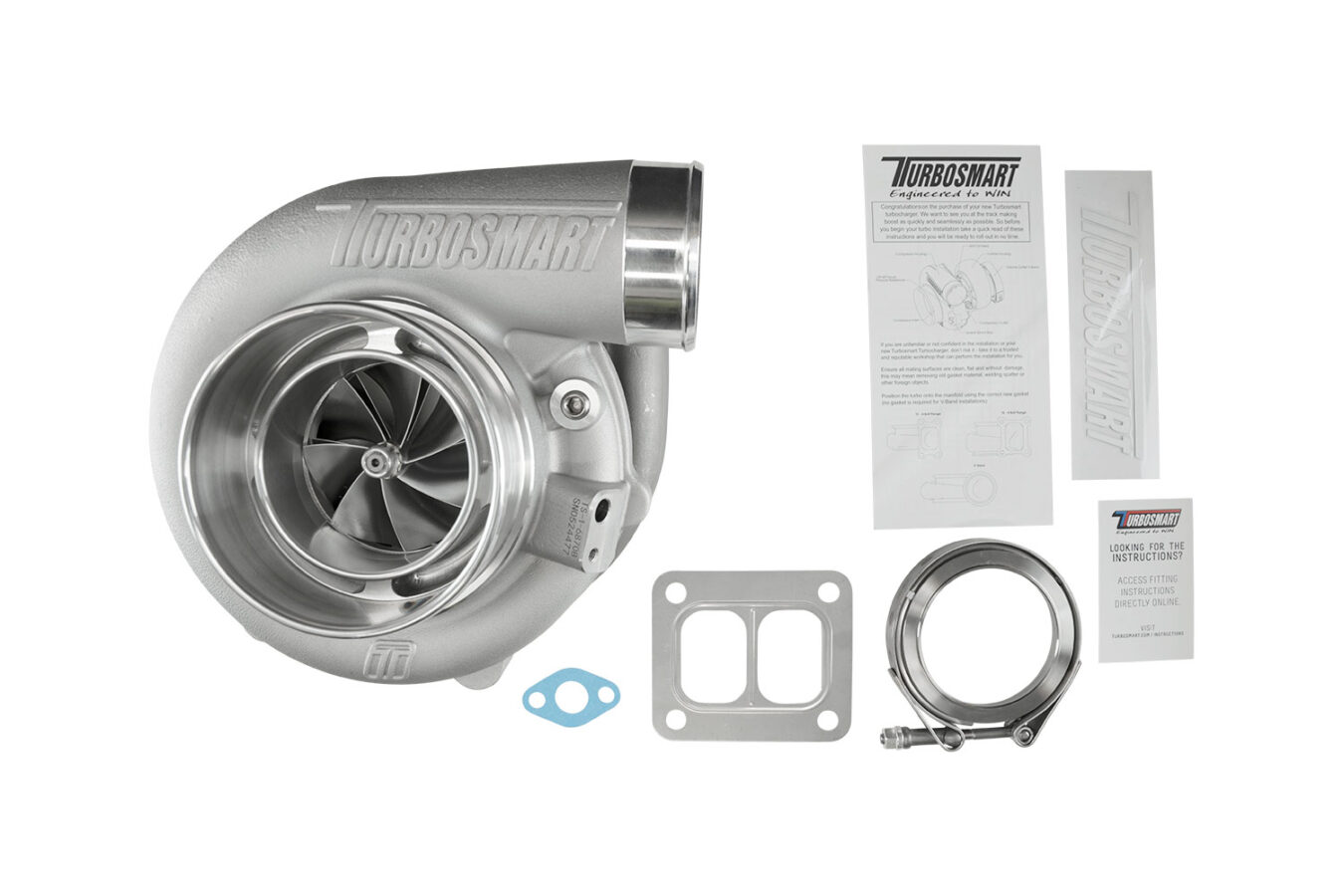

Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed, and drain fittings are included.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination, providing transient response you never knew possible — along with the performance, quality, reliability, and support Turbosmart is known for.

The ultra-low rotating mass of the unique bearing and shaft assembly is matched with aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds. This is paired with a unique turbine wheel to ensure power at high loads while maintaining optimal flow.

All Turbosmart turbochargers are designed with an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines — while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/Rs and flow

• 713C Inconel turbine wheel for extreme EGT’s

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 68 mm

• Turbine Inlet: T4 Divided

• Turbine Exducer: 70 mm

• Turbine A/R: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.86 kg / 15.1 lbs

• Horsepower Rating: 850–990 HP
