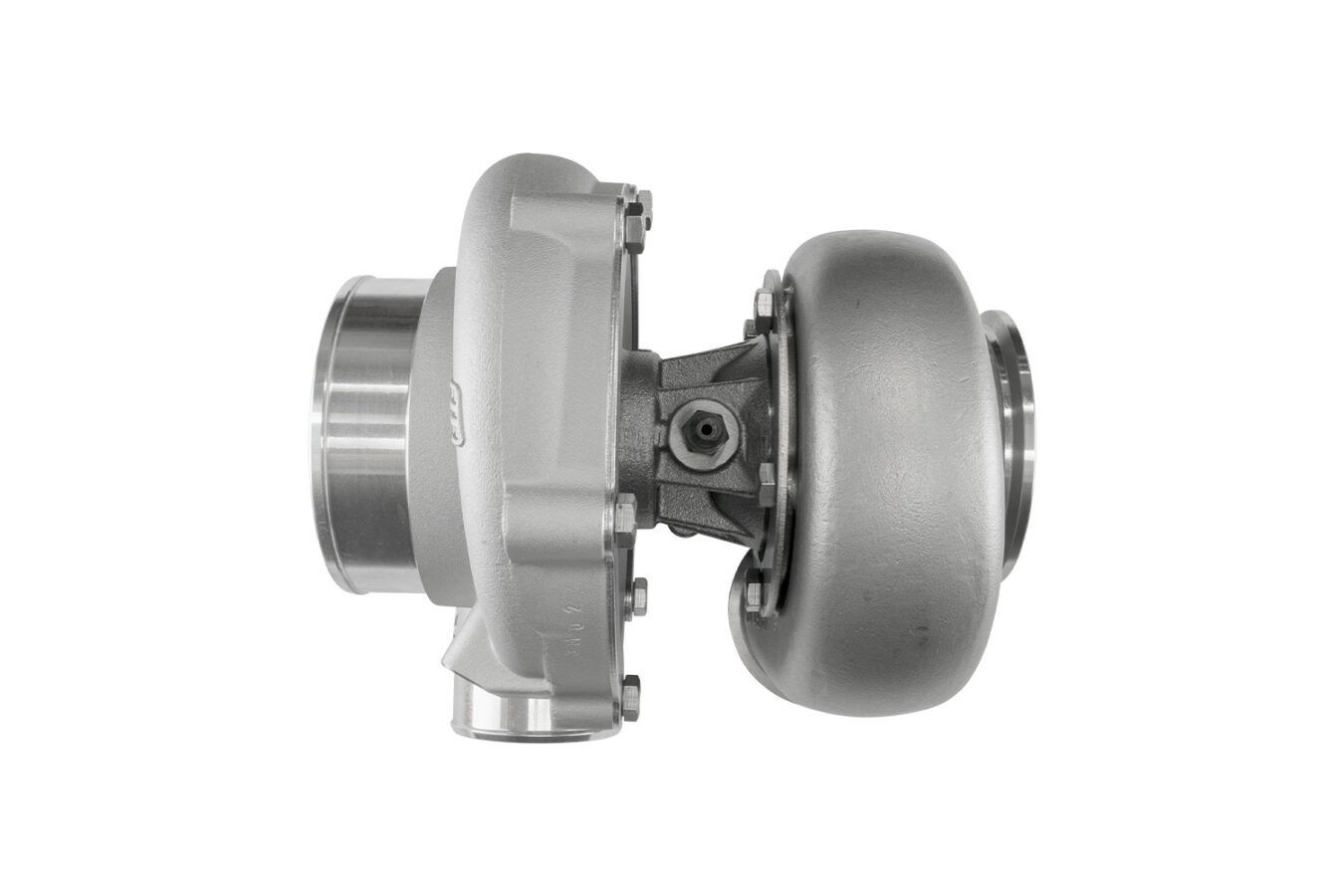

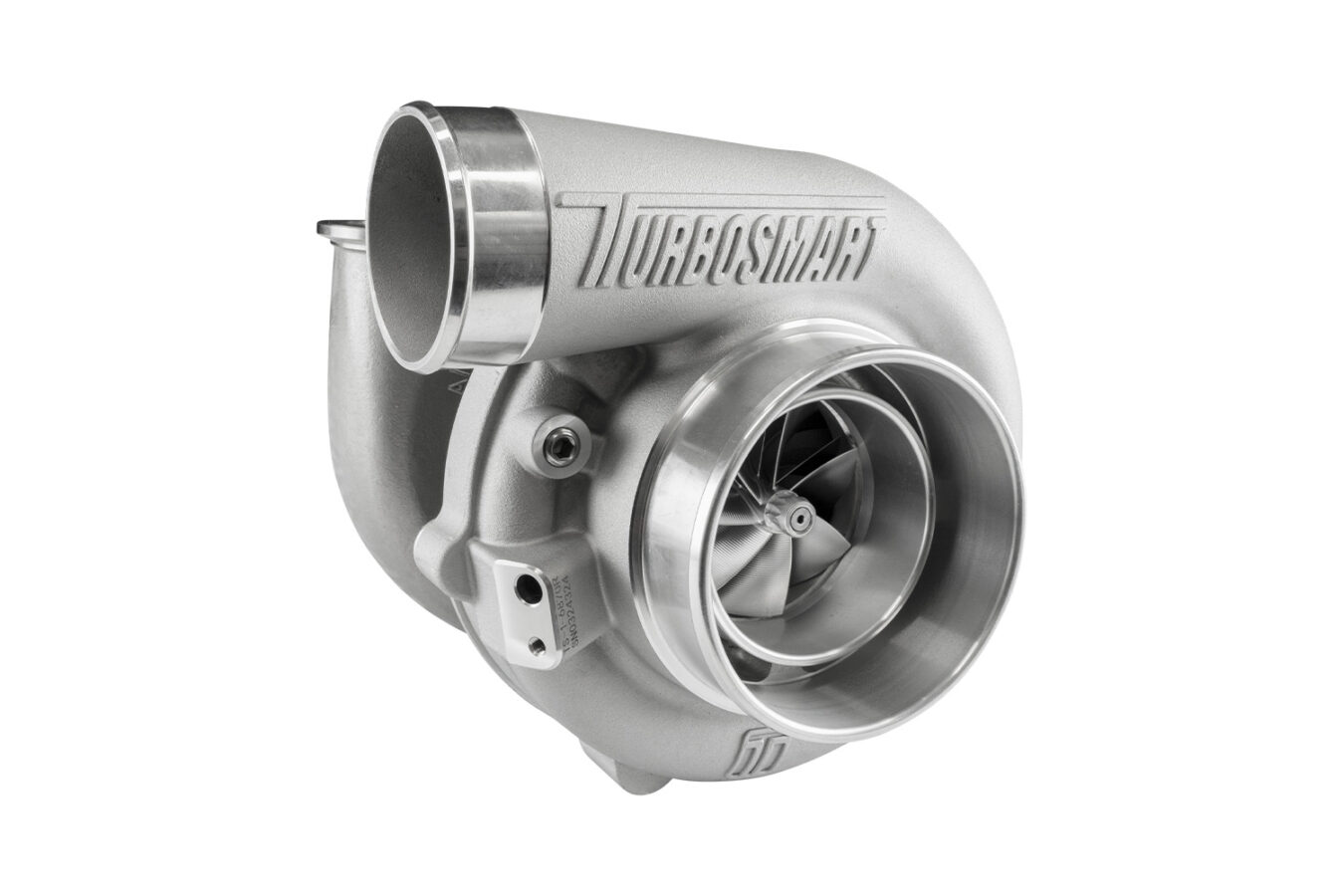

Turbosmart TS-1 Performance Turbocharger 6870 (Kompact) V-Band Reverse Rotation 0.96AR Externally Wastegated

Smaller, Lighter and Faster
Turbosmart’s turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

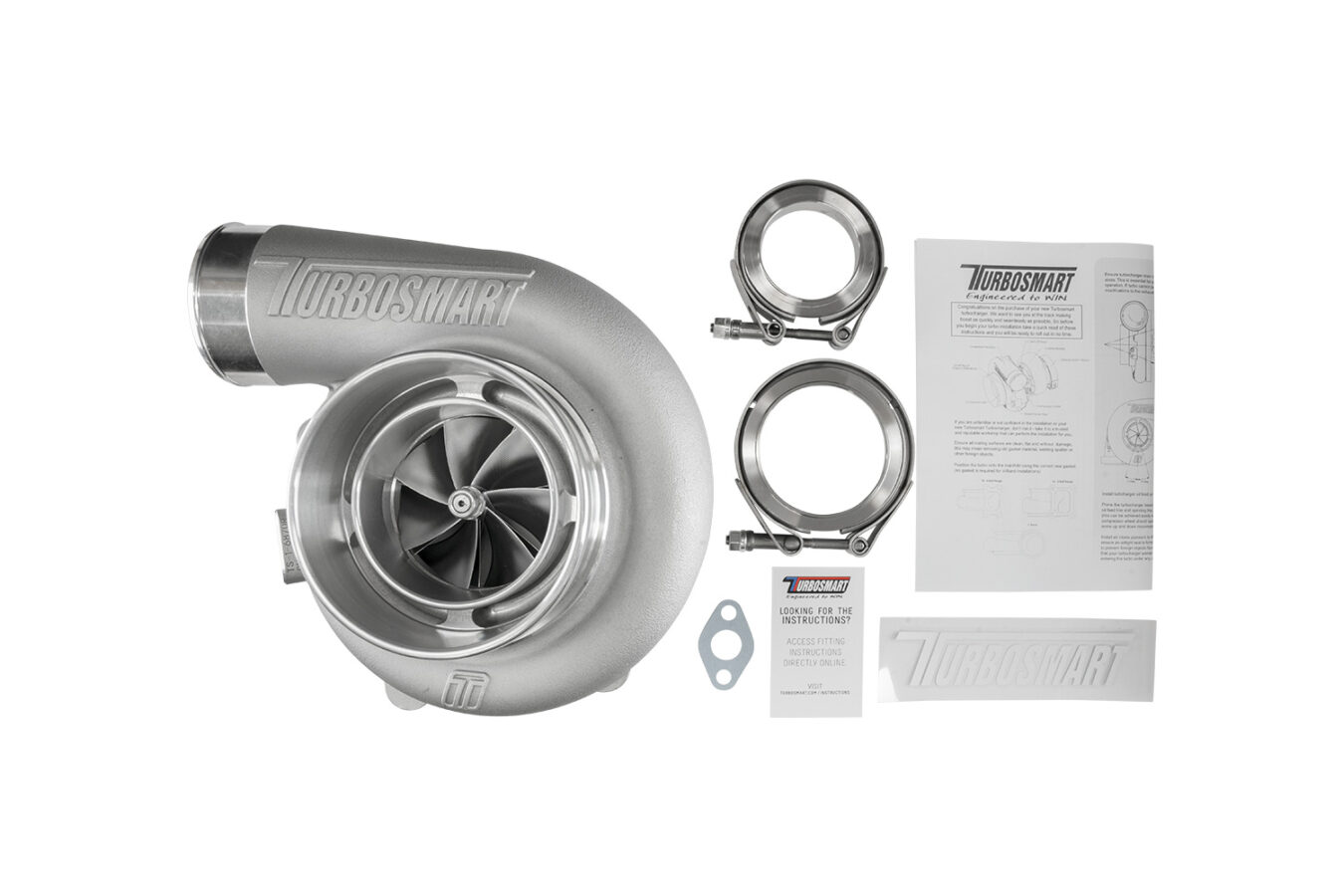

Every Turbosmart turbocharger comes standard with everything you need for installation—weld flanges, V-band clamps, gaskets, oil feed, and drain fittings are included.

The TS-1 series are oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination. This setup provides transient response you never knew possible, along with the performance, quality, reliability, and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high performance at lower shaft speeds. It is mated with a unique turbine wheel to maintain power and flow at high loads.

All Turbosmart turbochargers are designed with an engine end-to-end approach, aiming to achieve power through reduced back pressure and high-performance turbines—while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/Rs and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 68mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.43kg / 14.17lbs

• Horsepower Rating: 850–990 HP
