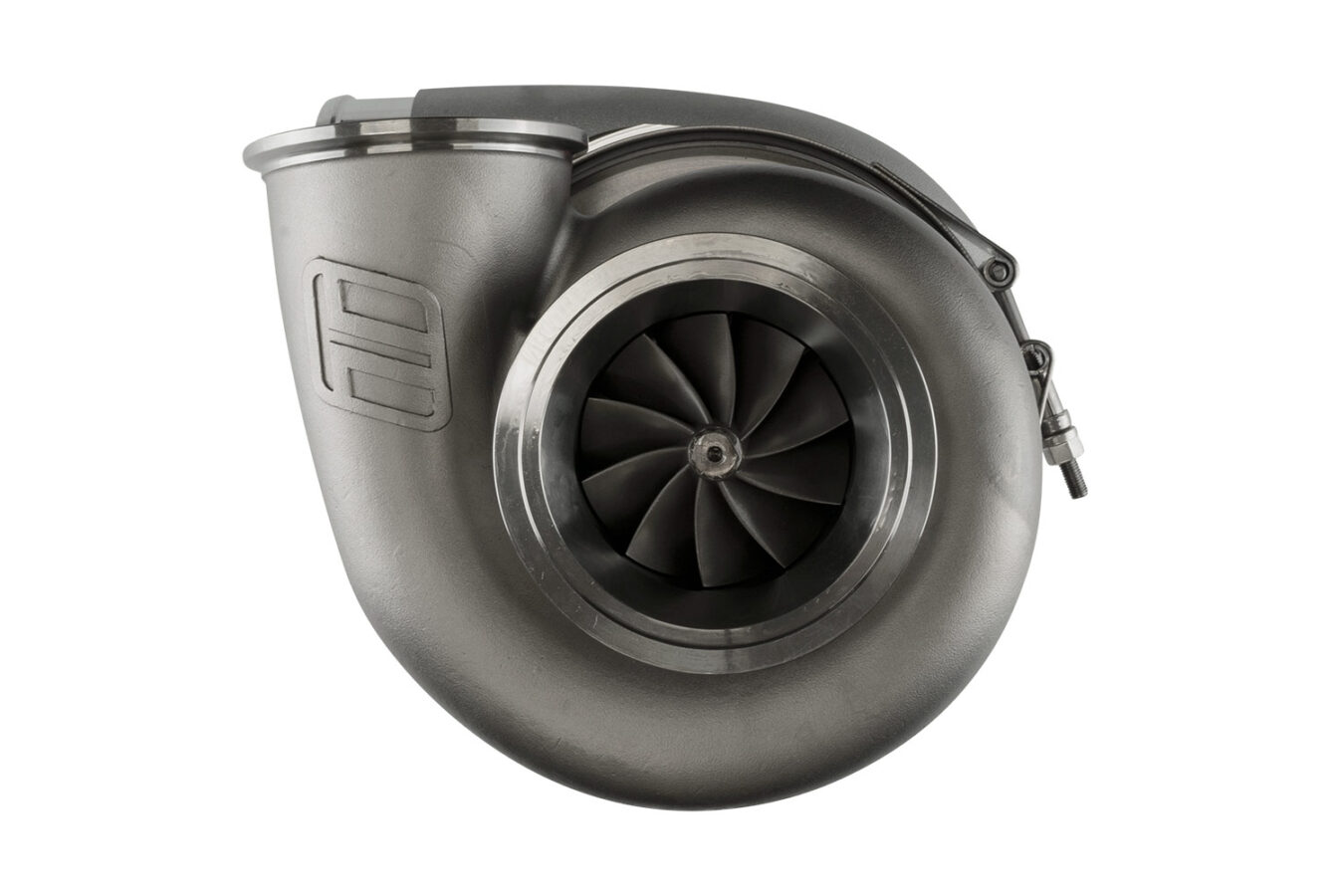

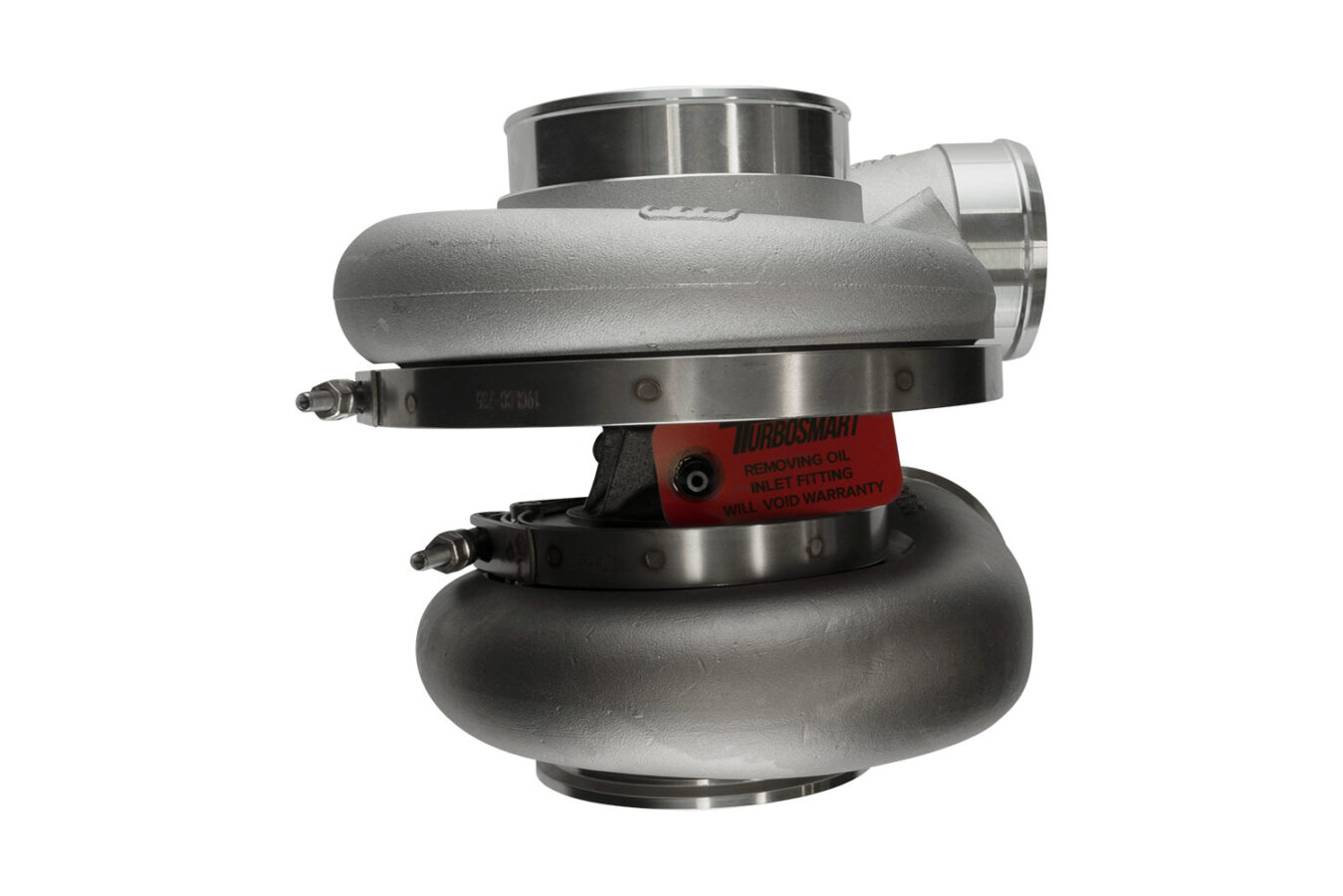

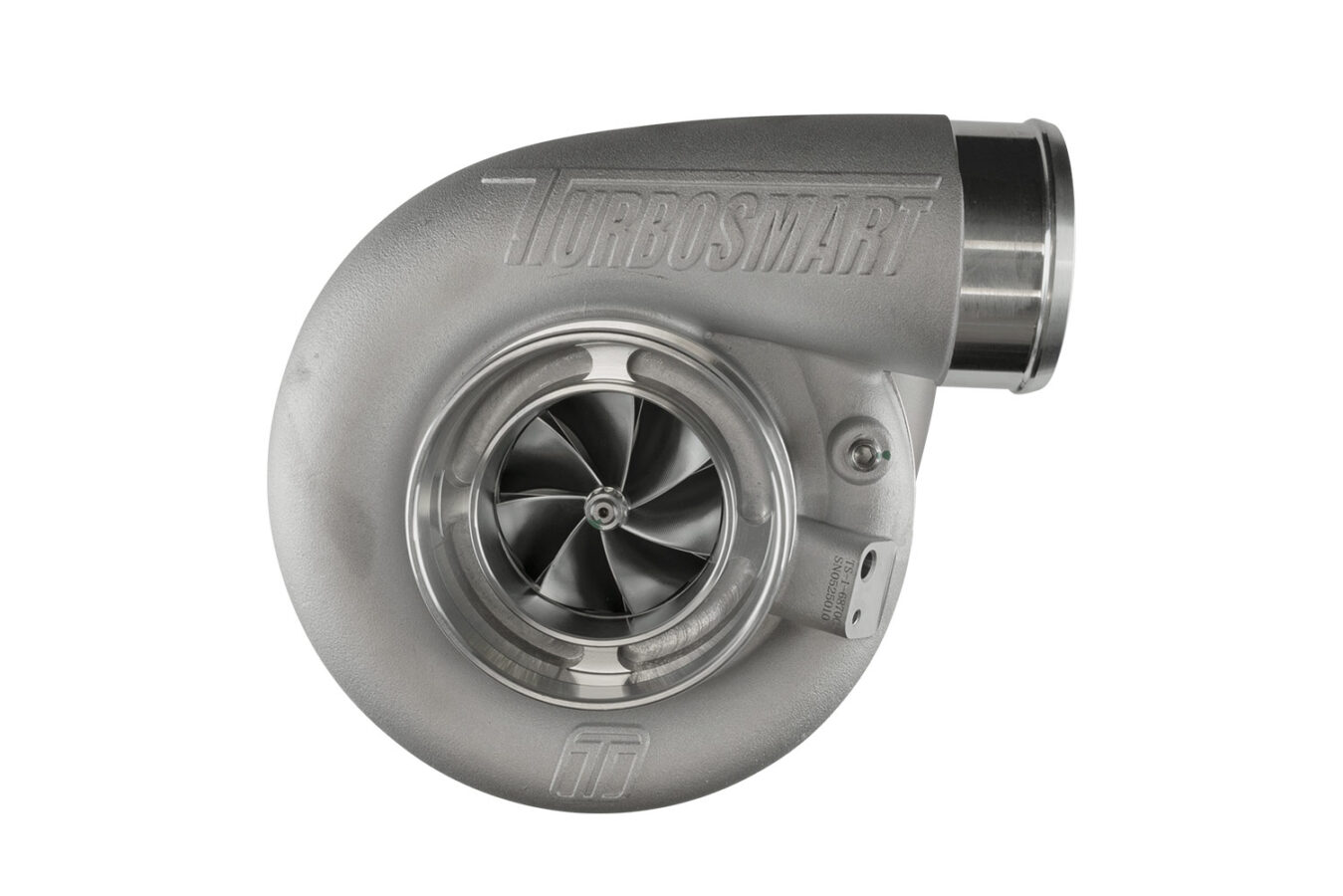

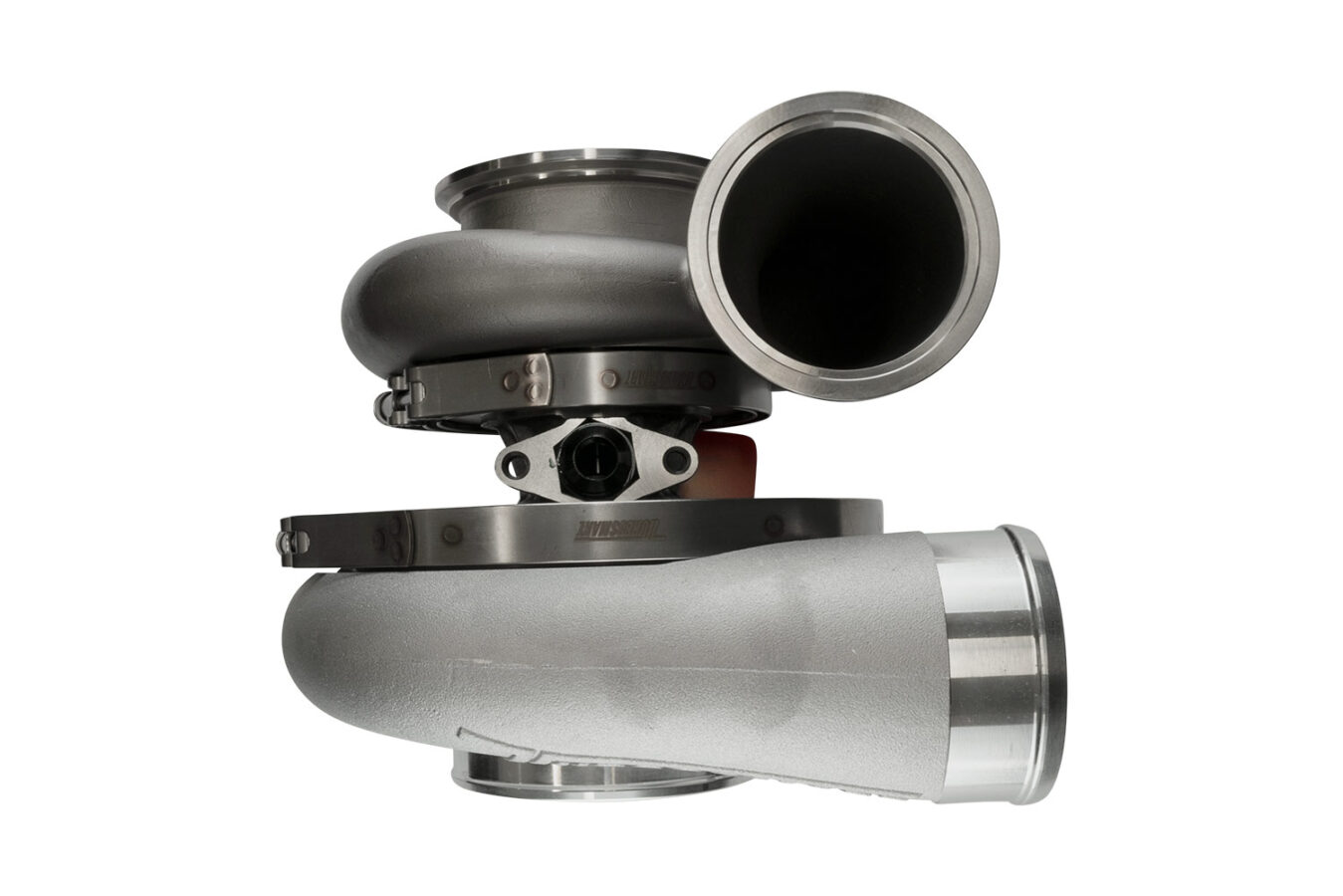

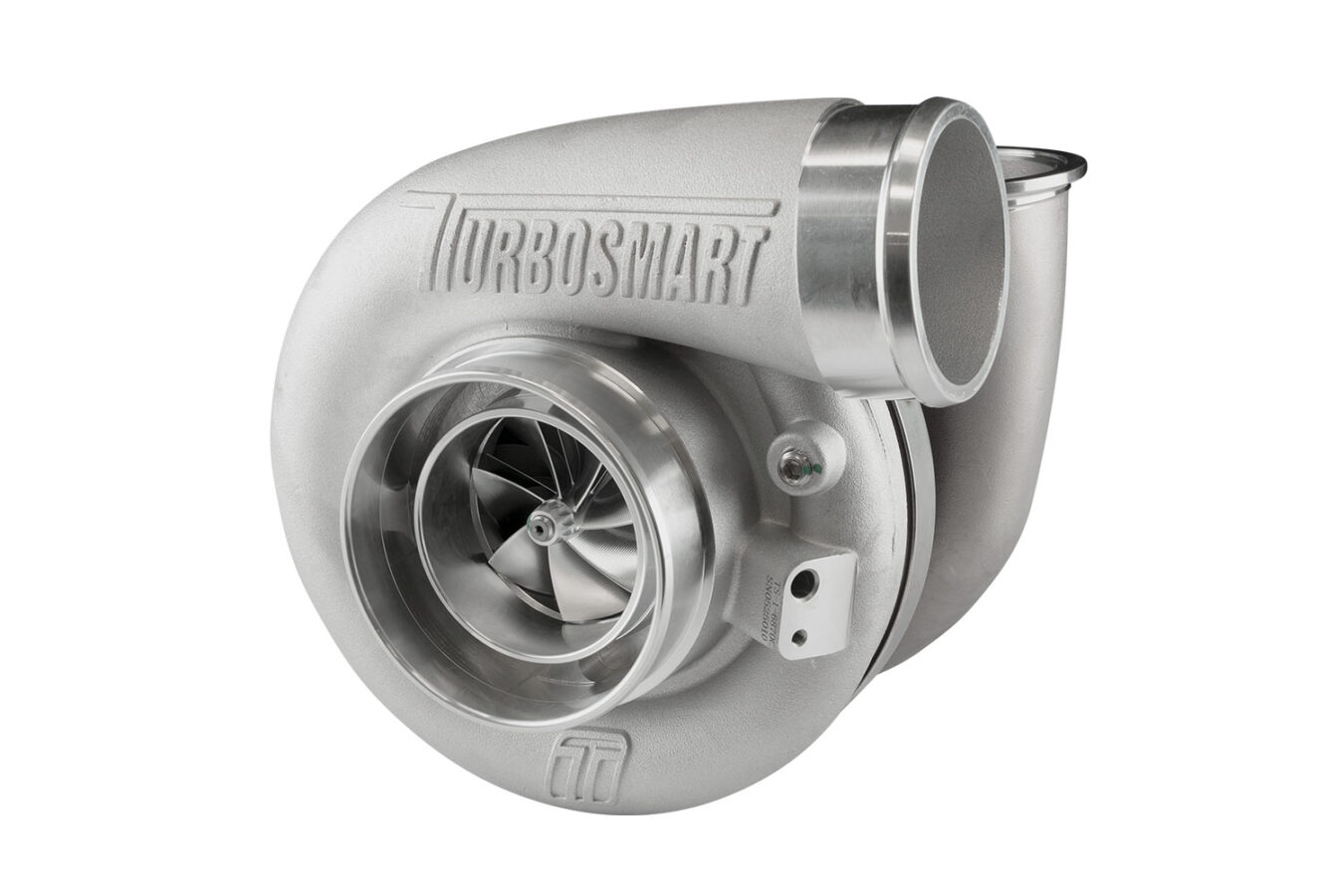

Turbosmart TS-1 Performance Turbocharger 6870 V-Band 0.96AR Externally Wastegated

Smaller, Lighter, and Faster – The Turbosmart turbocharger series is built to push the boundaries of modern performance. By utilizing advanced materials, cutting-edge design, and high-precision manufacturing, the TS-1 range is engineered to meet the demanding needs of motorsport and high-performance enthusiasts.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft assembly, delivering exceptional transient response, unmatched performance, and the rock-solid reliability you expect from Turbosmart.

Our unique low-mass rotating assembly is paired with aggressive compressor aerodynamics and a high-flow turbine wheel, ensuring both rapid spool and strong top-end power. With a full engine-system design approach, Turbosmart turbos are optimized to reduce backpressure and increase flow—while remaining smaller, lighter, and faster than competing solutions.

What’s Included

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

Available Configurations

• TS-1 (Oil Cooled)

• TS-2 (Oil & Water Cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal & external wastegate options

Key Features

• Exceptional transient response

• 7+7 2618 aluminium splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel turbine housing

• Lightweight aluminum compressor cover

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel – handles extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate for durability

Specifications

• Compressor Inlet: 4″ (101.6mm)

• Compressor Inducer: 68mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 20.23 lbs

• Horsepower Rating: 875–1035 HP
