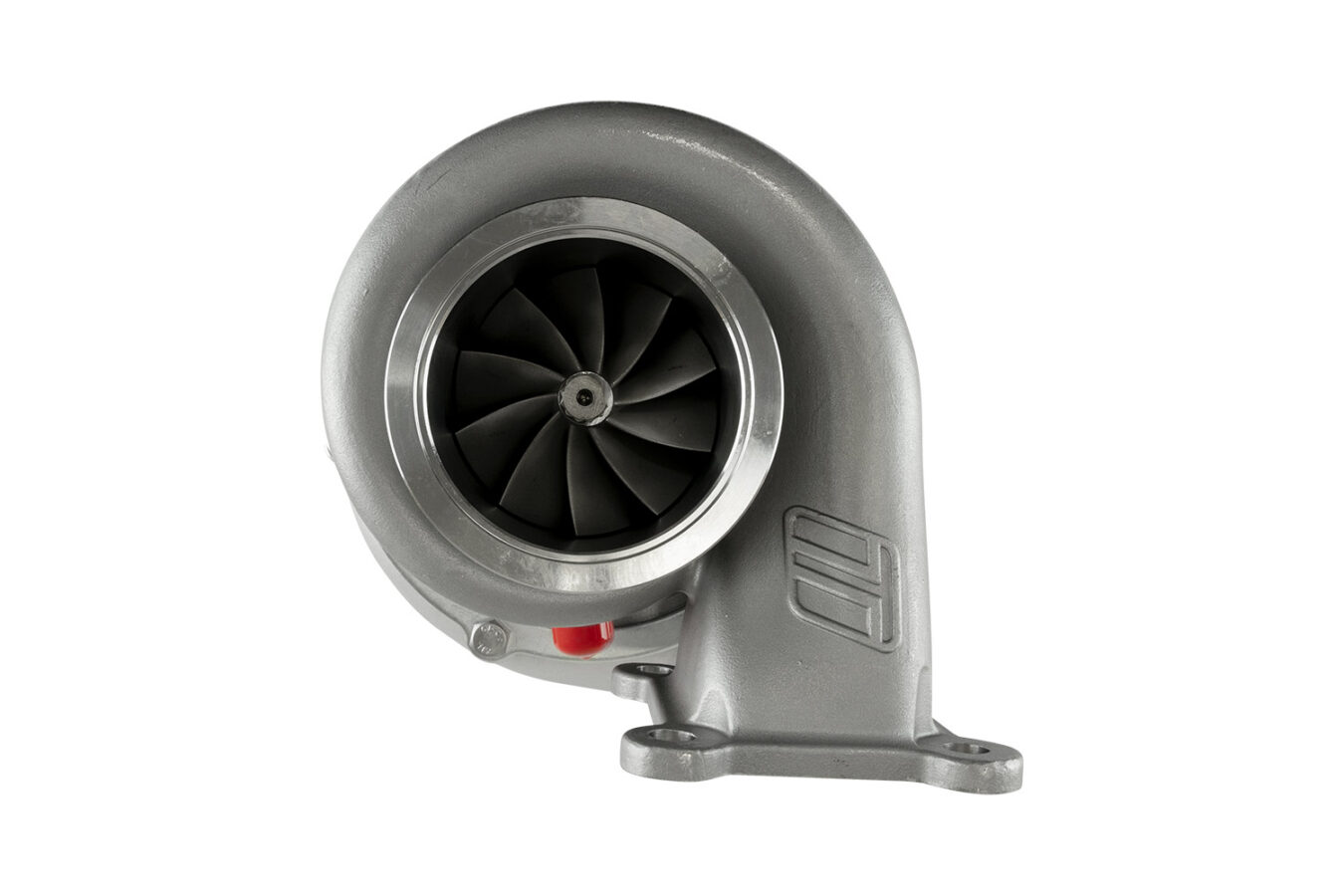

Turbosmart TS-1 Performance Turbocharger 7170 (Kompact) T4 0.96AR Externally Wastegated

Engineered with modern materials, advanced design, and precision manufacturing, the Turbosmart turbocharger series delivers unmatched performance for motorsport and high-performance enthusiasts alike. These turbos are designed to be smaller, lighter, and faster, setting a new benchmark in transient response and overall efficiency.

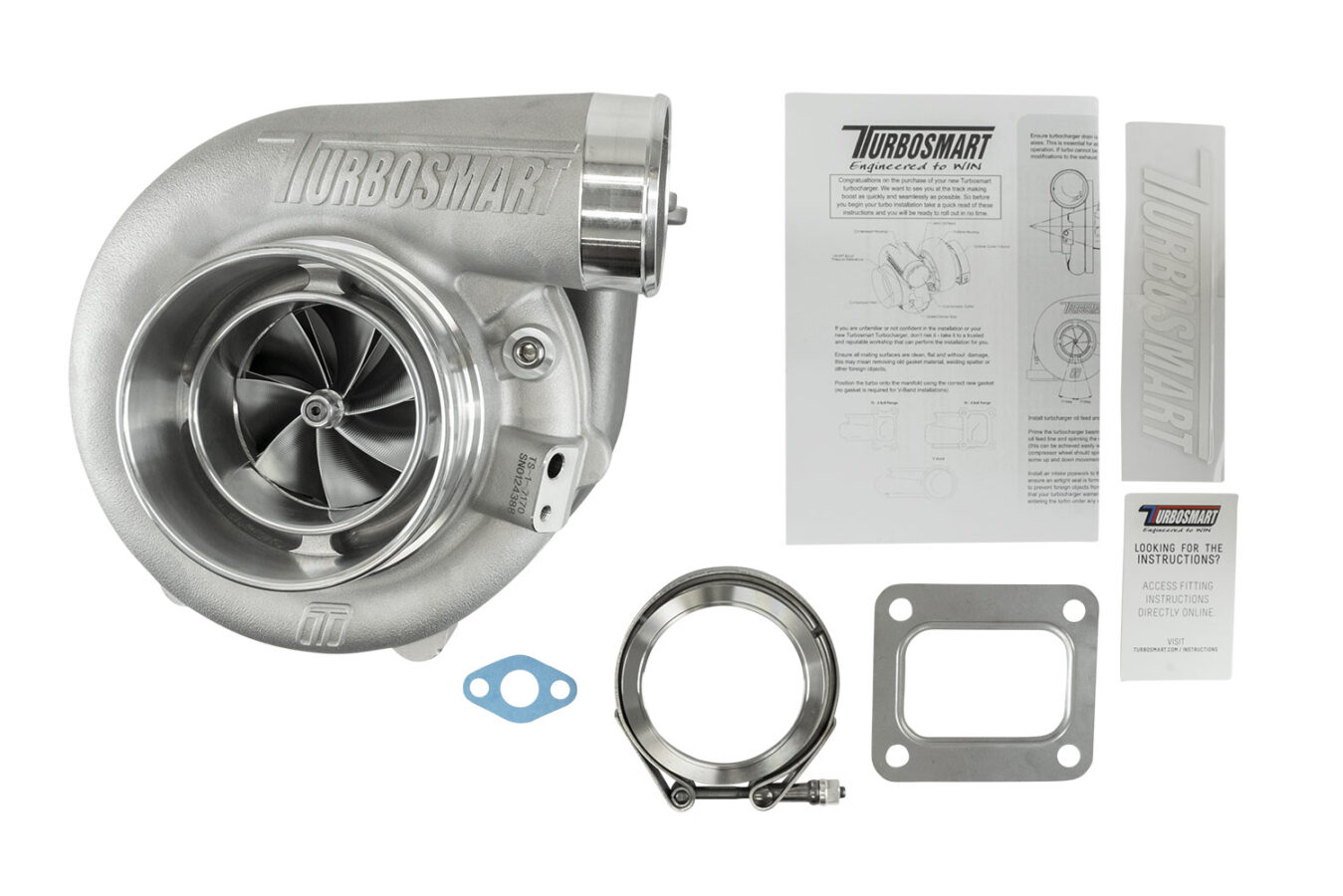

What’s Included

Every Turbosmart turbocharger comes with:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed & drain fittings

Everything needed for a seamless installation is included in the box.

TS-1 Series Overview

• Cooling: Oil-cooled

• Housing: Lightweight, investment-cast turbine housing

• Core: Proprietary bearing and main shaft combo for superior transient response

• Performance: High power at low shaft speeds, excellent under heavy load

Built from the ground up with a system-level approach, Turbosmart turbos reduce backpressure and increase flow, delivering power with better response than conventional units.

Available Configurations

• TS-1: Oil-cooled

• TS-2: Oil & water-cooled

• Mounting Options: V-Band, T3, and T4 flange

• Rotation: Reverse rotation (selected sizes)

• Wastegate: Internal or external

• A/R Options: Multiple available

Key Features

• Unrivaled transient response

• Aggressive 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for perfect flow and A/R

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: T4

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.86kg / 15.1 lbs

• Horsepower Rating: 875–1010 HP
