Turbosmart TS-1 Performance Turbocharger 7170 (Kompact) V-Band 0.96AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using cutting-edge materials, precision design, and modern manufacturing to meet the demands of both motorsport professionals and performance enthusiasts.

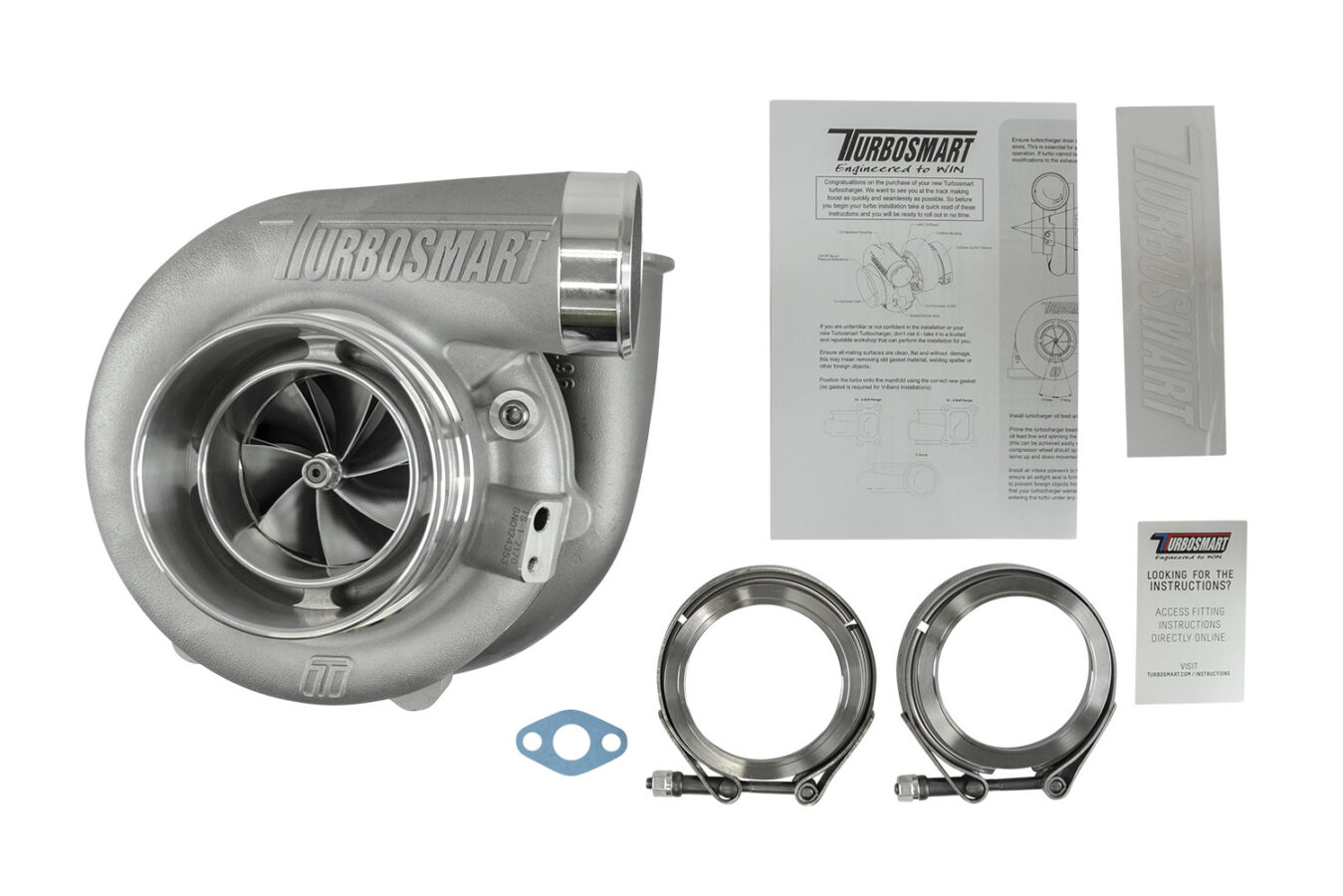

Every Turbosmart turbocharger comes complete with everything you need for installation:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed & drain fittings

TS-1 Series Highlights

• Cooling: Oil-cooled

• Construction: Lightweight, investment-cast turbine housings

• Core: Proprietary bearing & shaft combo for unmatched transient response

• Performance: High power delivery at low shaft speeds with excellent flow at high loads

Engineered Advantages

All Turbosmart turbos are designed with an engine-wide performance approach—delivering maximum power through reduced back pressure and high-flow turbines, while remaining smaller, lighter, and faster responding than traditional options.

Available Configurations

• TS-1: Oil-cooled

• TS-2: Oil & water-cooled

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Internal or external wastegate options

• Multiple A/R sizes available

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Dual ceramic bearing system (proprietary)

• Integrated iron backplate for added strength

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.43 kg / 14.17 lbs

• Horsepower Rating: 875–1010 HP
