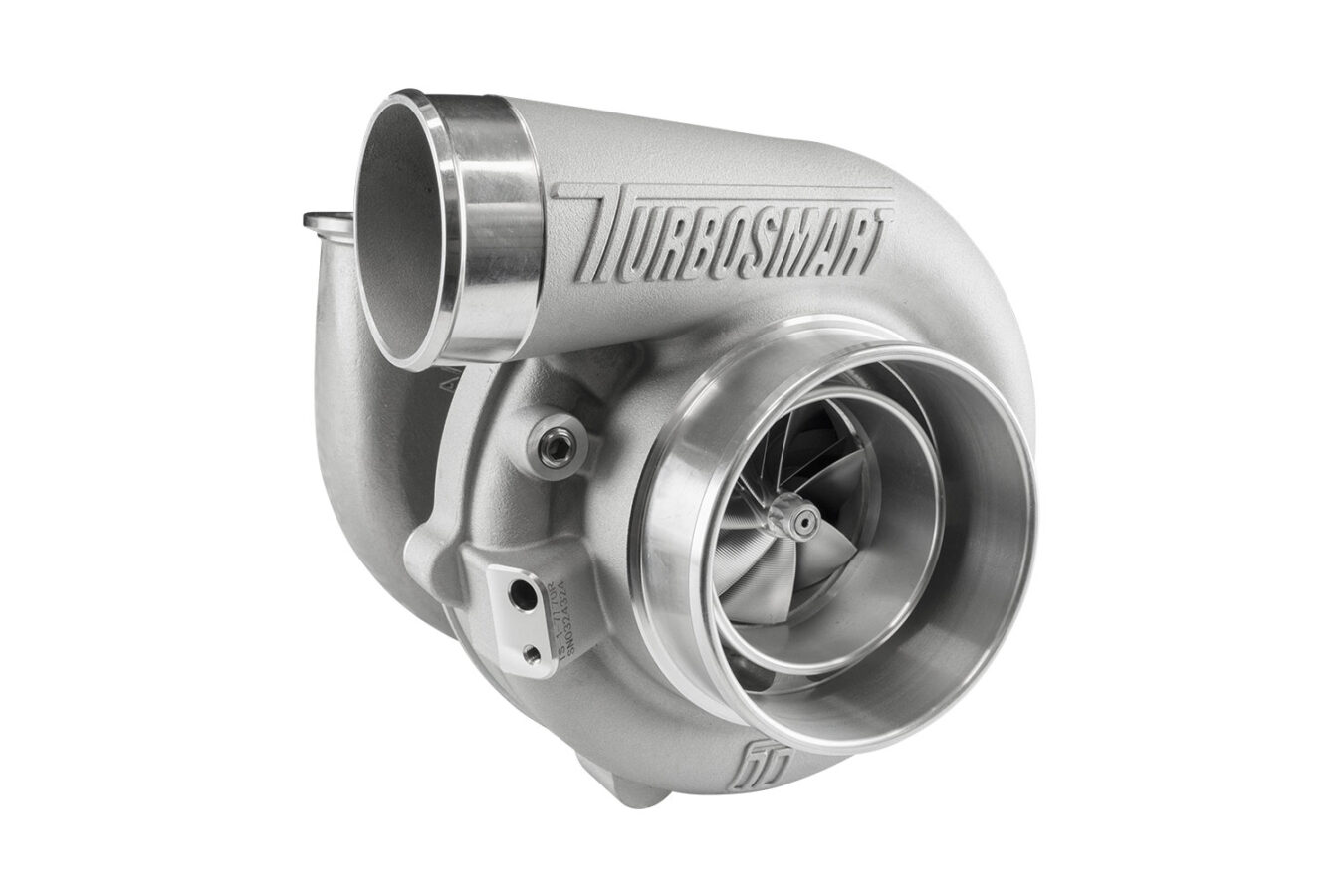

Turbosmart TS-1 Performance Turbocharger 7170 (Kompact) V-Band 0.96AR Externally Wastegated (Reverse Rotation)

Smaller, Lighter and Faster
Turbosmart’s turbocharger series has been developed to leverage modern materials, design, and manufacturing techniques to create a turbocharger range that meets the demands of both motorsport and performance enthusiasts alike.

Every Turbosmart turbocharger comes standard with everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings are included.

The TS-1 series are oil-cooled turbochargers with lightweight investment cast turbine housings, and a proprietary bearing and main shaft combination which provides transient response you never knew possible, along with the performance, quality, reliability, and support you’ve come to know Turbosmart for.

The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds. It is mated with a unique turbine wheel to ensure power at high loads while maintaining flow.

All Turbosmart turbochargers have been designed with an engine end-to-end approach aiming to achieve power through reduced back pressure and high-performance turbines—while being smaller, lighter, and faster in response than other solutions on the market.

Available In

• TS-1 oil cooled turbochargers

• TS-2 oil and water cooled turbochargers

• V-Band, various T3 Flange and T4 Flange options

• Reverse rotation (Selected Sizes)

• Various A/R options

• Internal and external wastegated options available

Features

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 Aluminium splitter wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/Rs and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 70mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.43kg / 14.17lbs

• Horsepower Rating: 875–1010 HP
