Turbosmart TS-1 Performance Turbocharger 7170 (Kompact) V-Band 1.07AR Externally Wastegated

Smaller, Lighter, and Faster – Turbosmart Turbocharger Series

Turbosmart’s turbocharger lineup is engineered using modern materials, advanced design, and cutting-edge manufacturing to meet the demands of motorsport and performance enthusiasts alike.

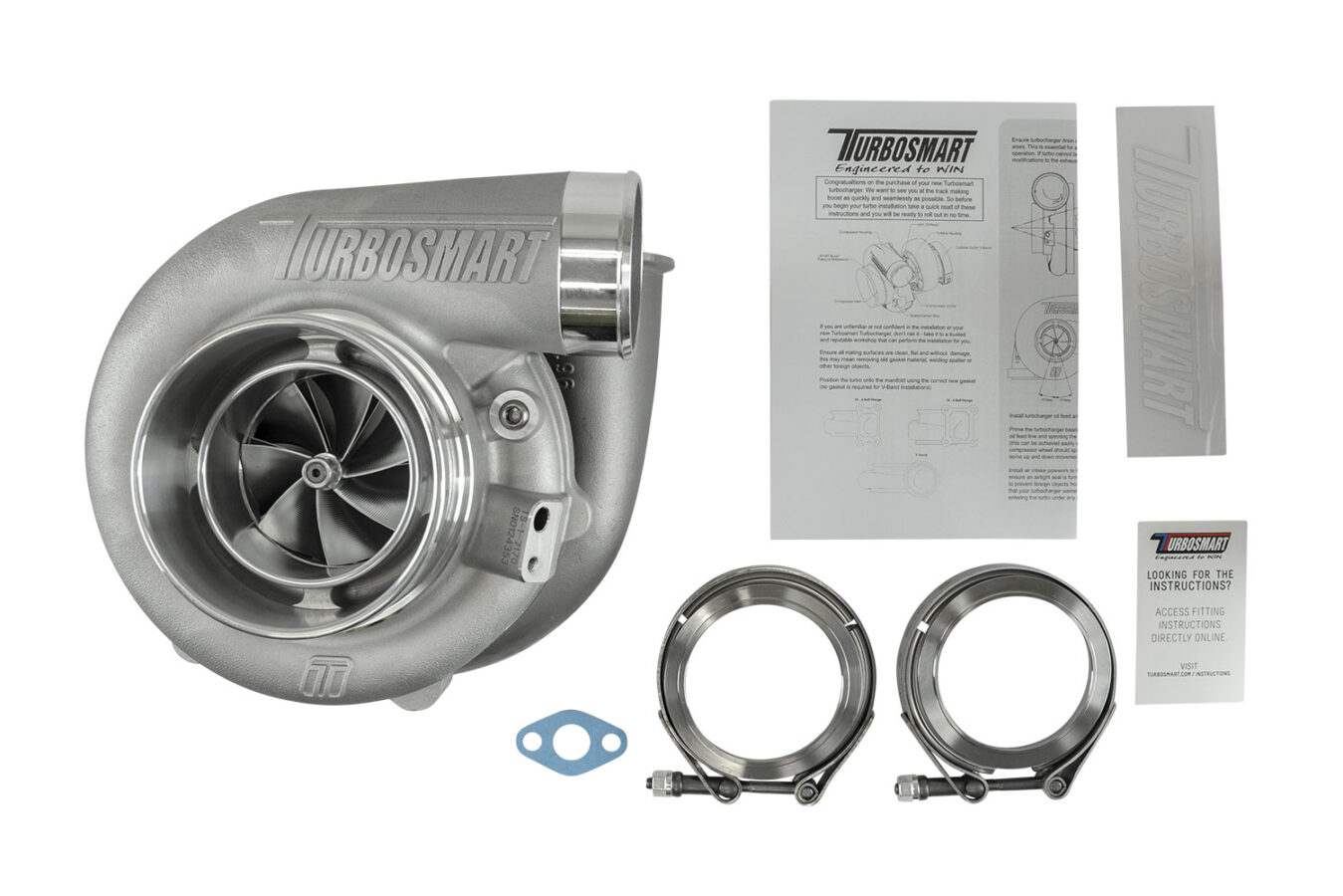

Every Turbosmart turbocharger includes everything needed for installation—weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination, delivering incredible transient response with the quality, performance, and reliability Turbosmart is known for.

Its ultra-low rotating mass, combined with aggressive compressor aerodynamics, ensures high performance at low shaft speeds. A unique turbine wheel design maintains power and flow even under high loads.

Turbosmart turbochargers are built with an engine-end-to-end approach—designed to reduce back pressure, improve flow, and outperform the competition with smaller, lighter, and faster-responding turbos.

Available In

• TS-1 oil-cooled turbochargers

• TS-2 oil- and water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegated models

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.43 kg / 14.17 lbs

• Horsepower Rating: 875–1010 HP
