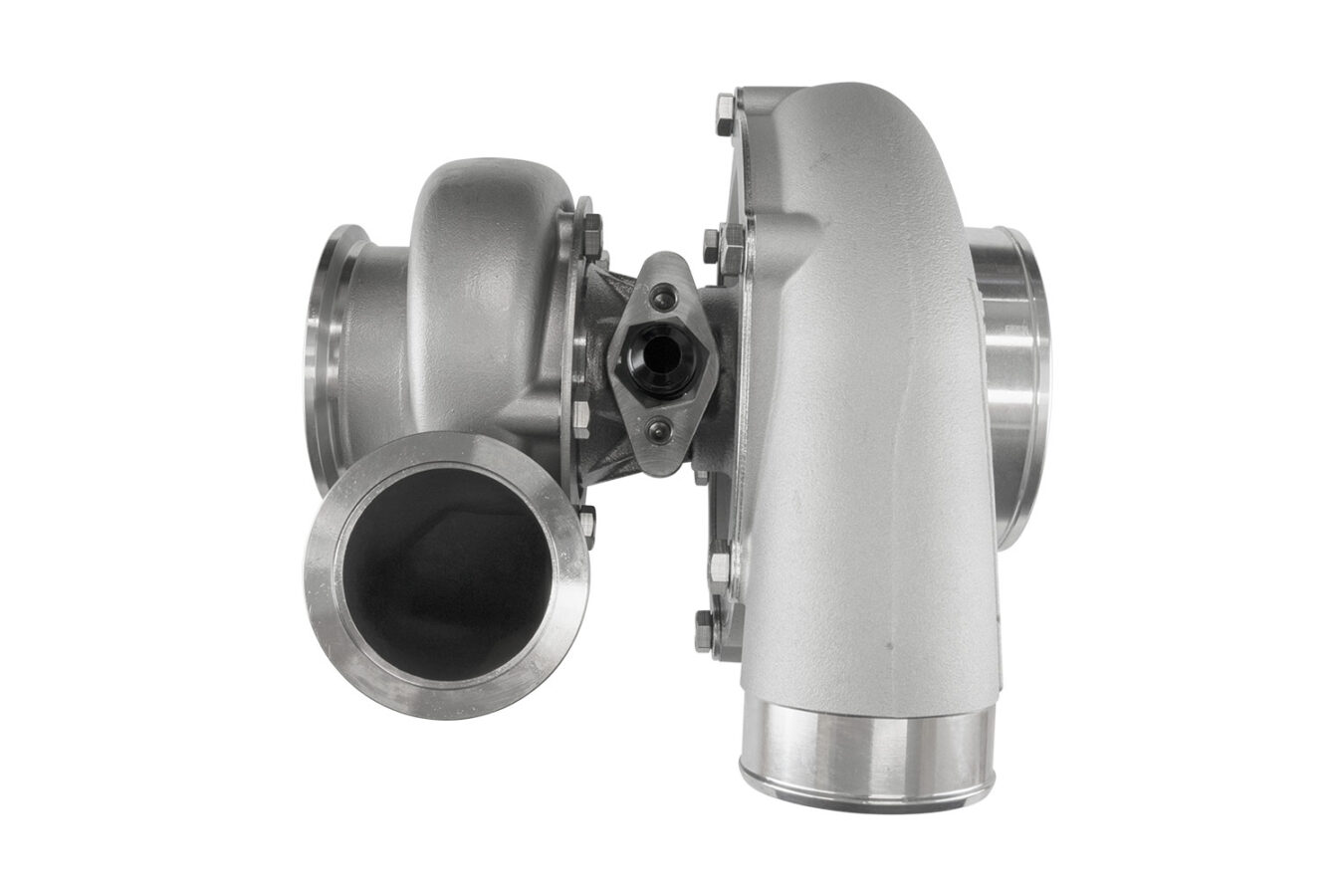

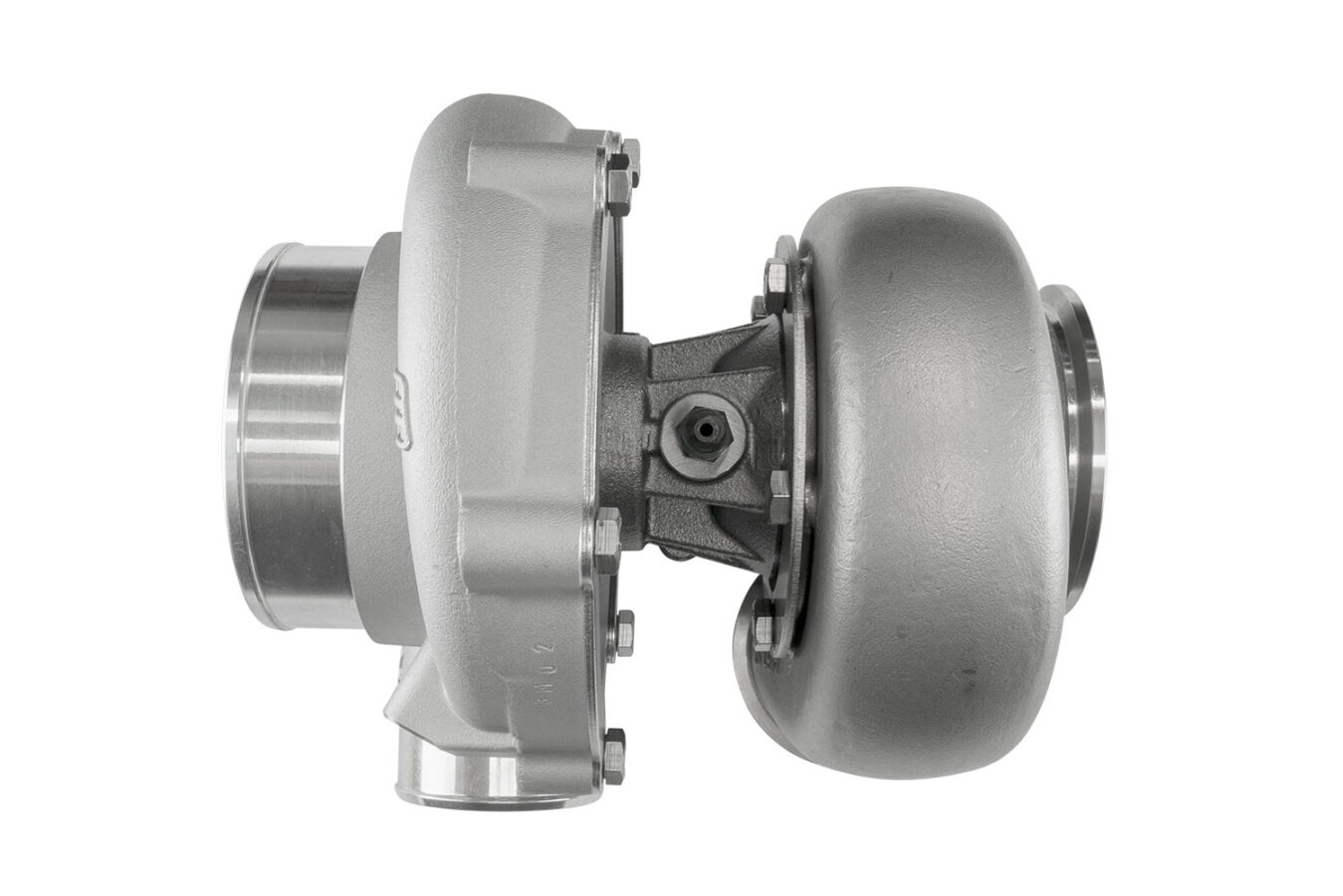

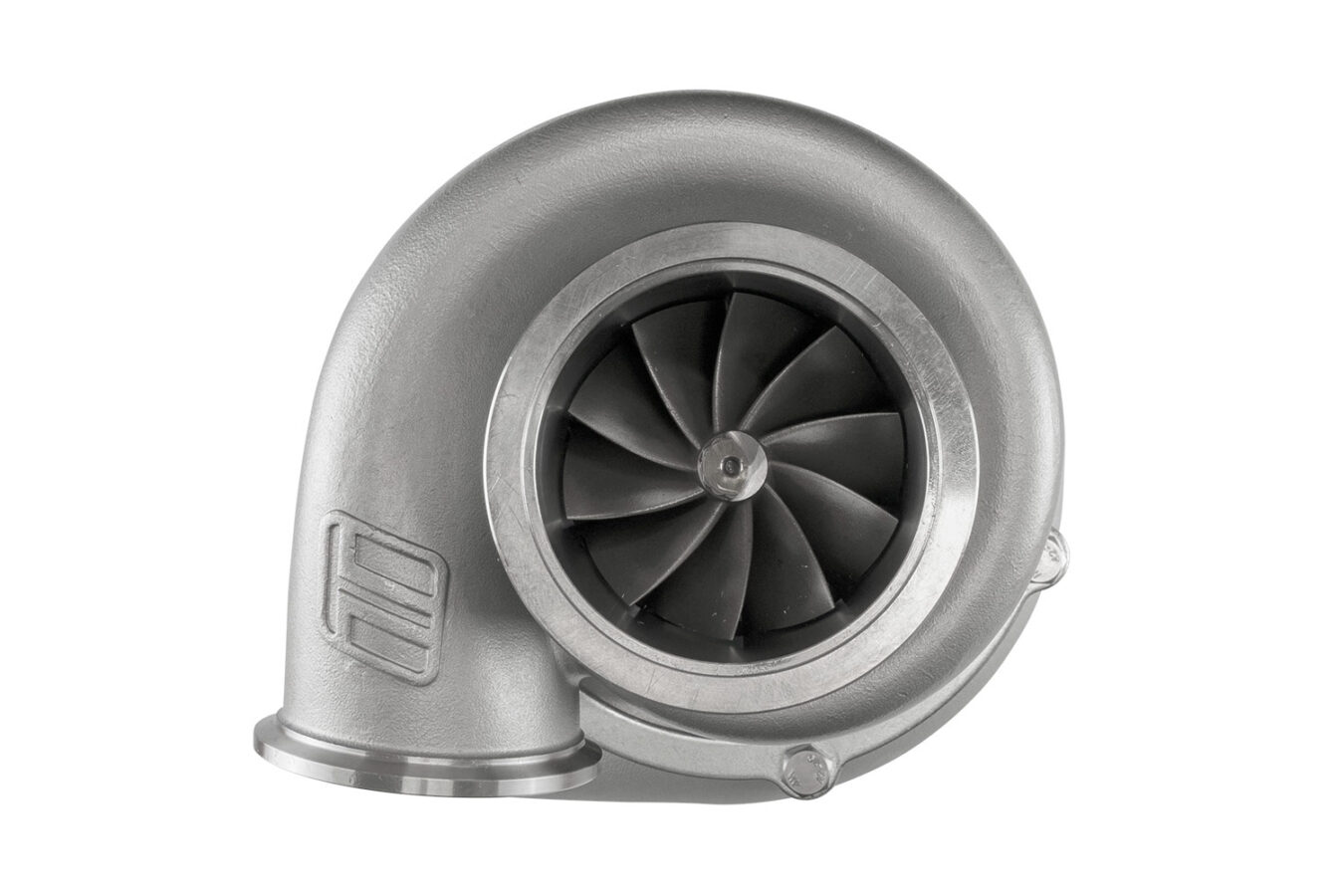

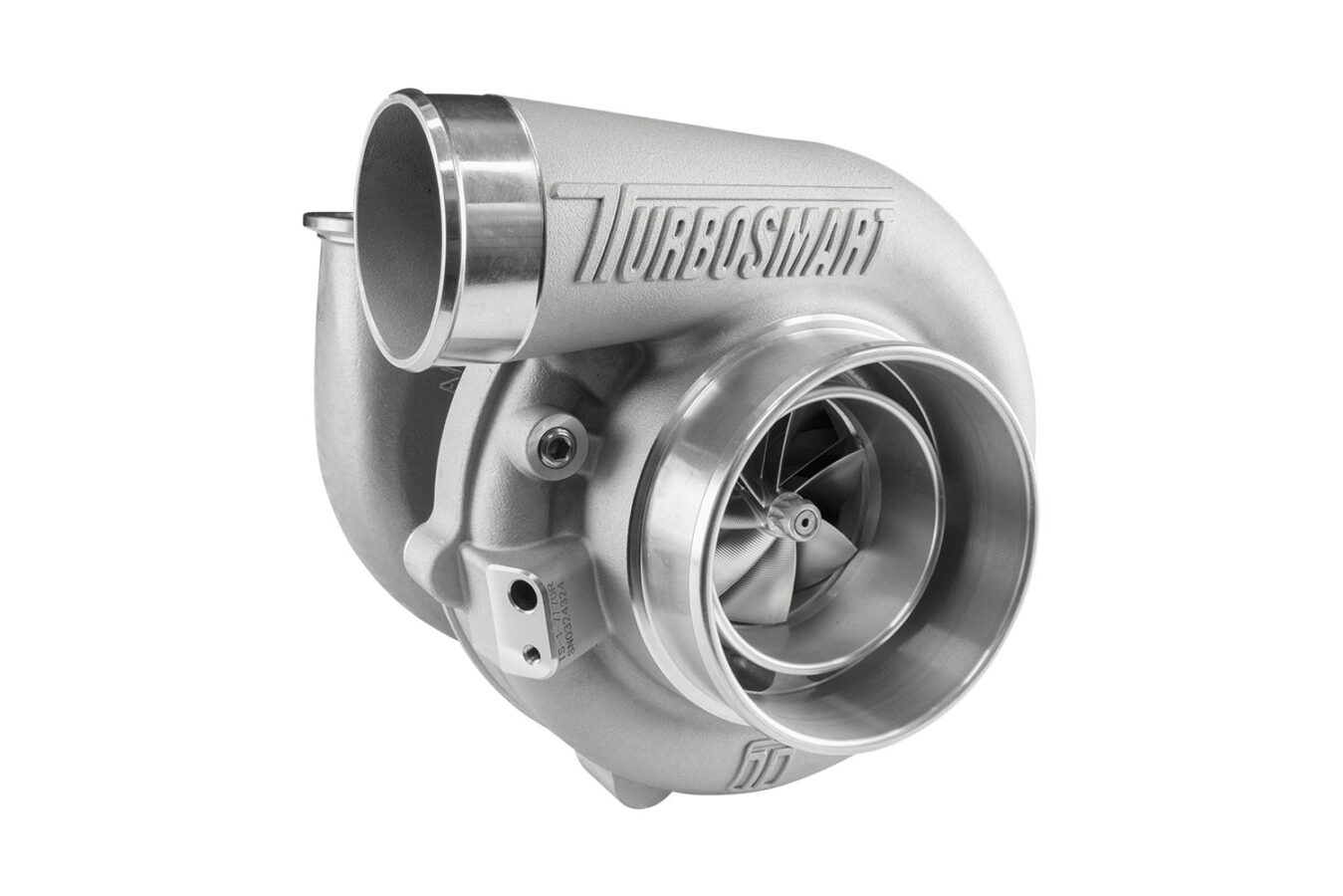

Turbosmart TS-1 Performance Turbocharger 7170 (Kompact) V-Band 1.07AR Externally Wastegated (Reverse Rotation)

Turbosmart’s turbochargers are engineered using modern materials, cutting-edge design, and precision manufacturing to meet the demands of both motorsport and performance enthusiasts.

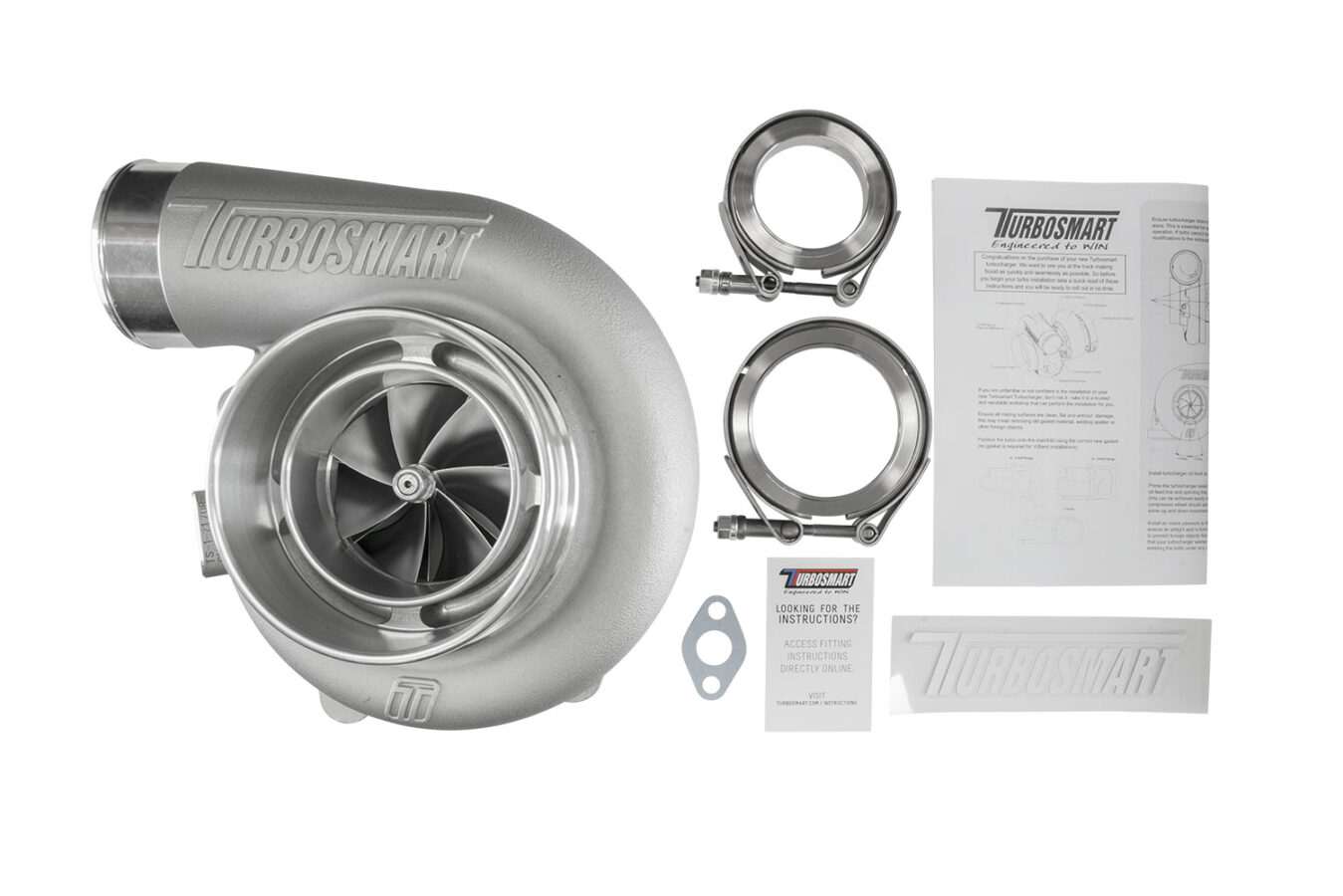

What’s Included

Each turbocharger comes with:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed & drain fittings

Everything you need for a complete and seamless installation.

TS-1 Series Overview

• Cooling: Oil-cooled

• Housing: Lightweight, investment-cast turbine housings

• Core: Proprietary bearing and shaft combination for superior transient response

• Performance: Delivers high power at low shaft speeds and maintains flow under heavy loads

The ultra-low rotating mass, paired with aggressive compressor aerodynamics and a unique turbine wheel, ensures fast spool and top-end performance.

System-Level Engineering

Designed with an end-to-end engine performance approach, Turbosmart turbos reduce backpressure and increase flow — all while staying smaller, lighter, and quicker to respond than traditional options.

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• Mounting: V-Band, T3, and T4 flanges

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal or external wastegate options

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for perfect flow and A/R

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate for durability

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 71mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 70mm

• Turbine A/R: 1.07

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.43 kg / 14.17 lbs

• Horsepower Rating: 875–1010 HP
