Turbosmart TS-1 Performance Turbocharger 7275 V-Band 1.24AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series is engineered using modern materials, precision design, and advanced manufacturing techniques to meet the demands of motorsport and high-performance enthusiasts.

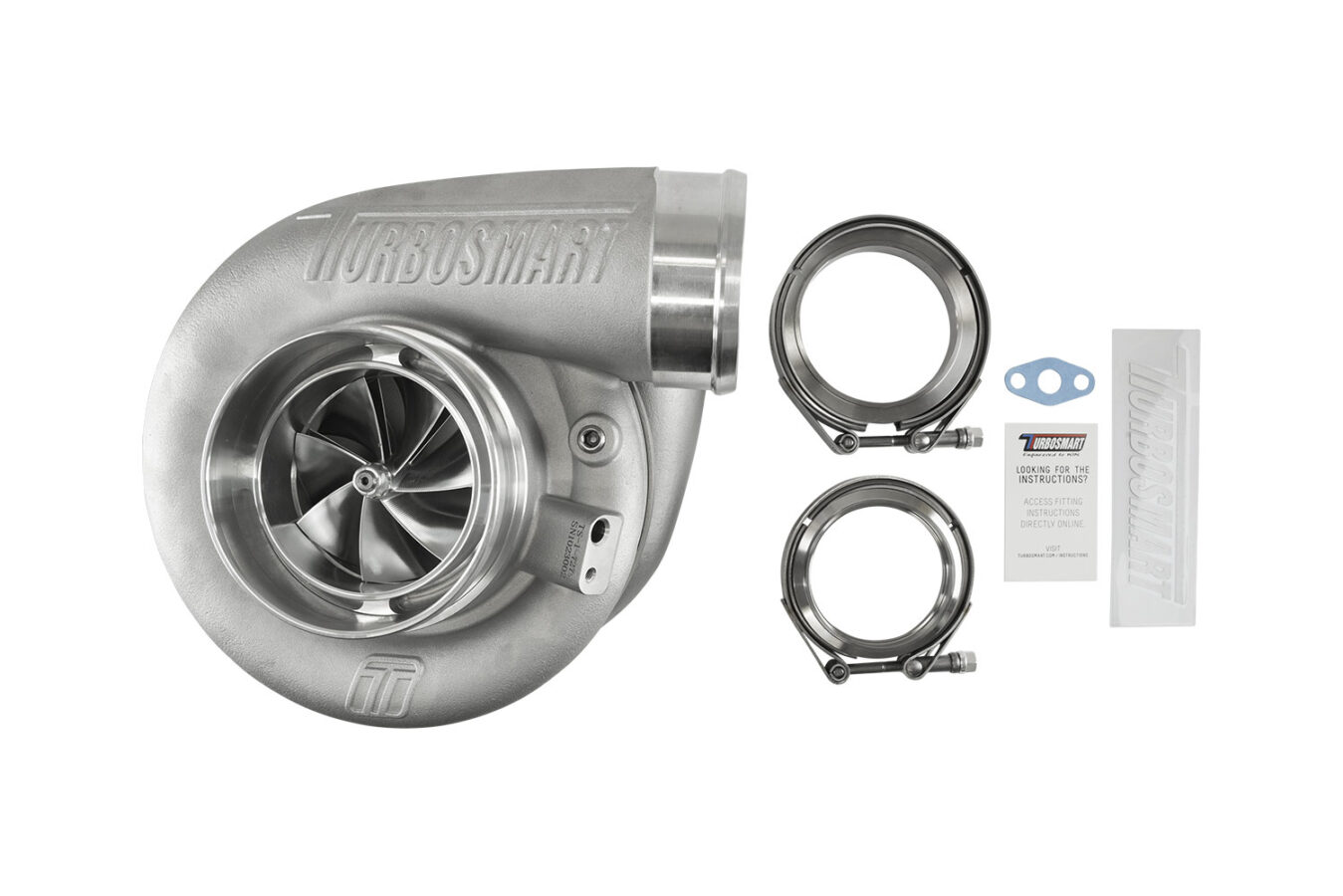

Complete Installation Kit

Every Turbosmart turbocharger includes all necessary components:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Highlights

The TS-1 is an oil-cooled turbocharger featuring:

• Lightweight investment-cast turbine housings

• Proprietary bearing and main shaft assembly for unmatched transient response

• Aggressive compressor aerodynamics for high performance at lower shaft speeds

• High-efficiency turbine wheel that maintains power and flow under heavy load

Turbosmart turbos are designed with a full engine system approach—reducing back pressure, increasing flow, and delivering faster response than conventional turbos.

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil + water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegated models

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 72mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 75mm

• Turbine A/R: 1.24

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 20.23lbs

• Horsepower Rating: 1050–1240 HP
