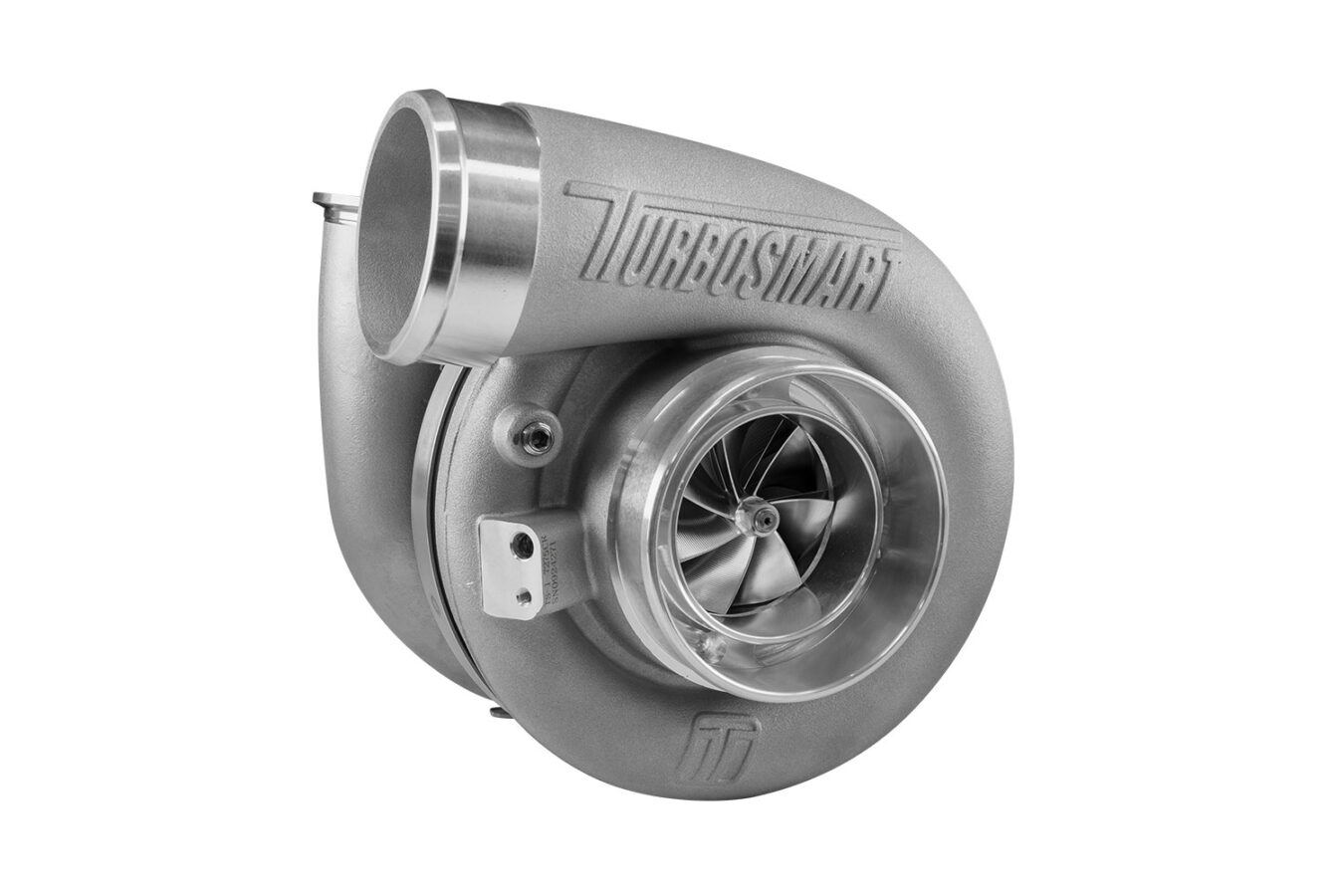

Turbosmart TS-1 Performance Turbocharger 7275 V-Band Reverse Rotation 0.96AR Externally Wastegated

Smaller, lighter, and faster – Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and precision manufacturing techniques to meet the demands of motorsport and high-performance enthusiasts alike.

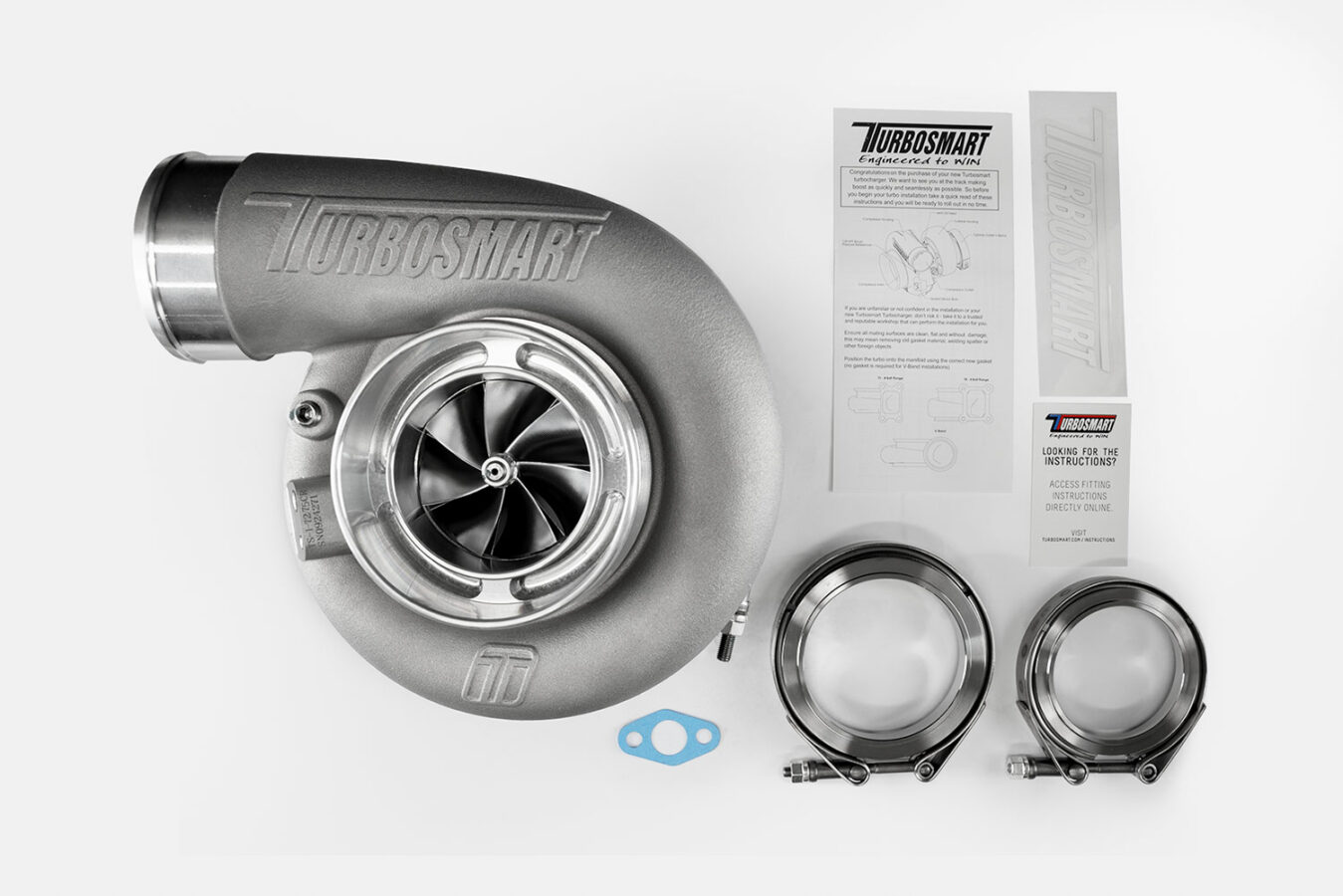

Each Turbosmart turbocharger includes everything needed for installation:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Highlights

The TS-1 is an oil-cooled turbocharger featuring:

• Lightweight, investment-cast turbine housings

• A proprietary bearing and main shaft assembly for lightning-fast transient response

• Aggressive compressor aerodynamics matched with a high-efficiency turbine wheel

• Ultra-low rotating mass for high performance at lower shaft speeds

Turbosmart turbochargers are designed with a full engine-system approach—aiming to reduce back pressure, maximize flow, and deliver faster response than traditional options on the market.

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil + water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Internal and external wastegate options

• Multiple A/R configurations

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Dual ceramic bearing system (proprietary)

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 72mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 75mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 20.23lbs

• Horsepower Rating: 1050–1240 HP
