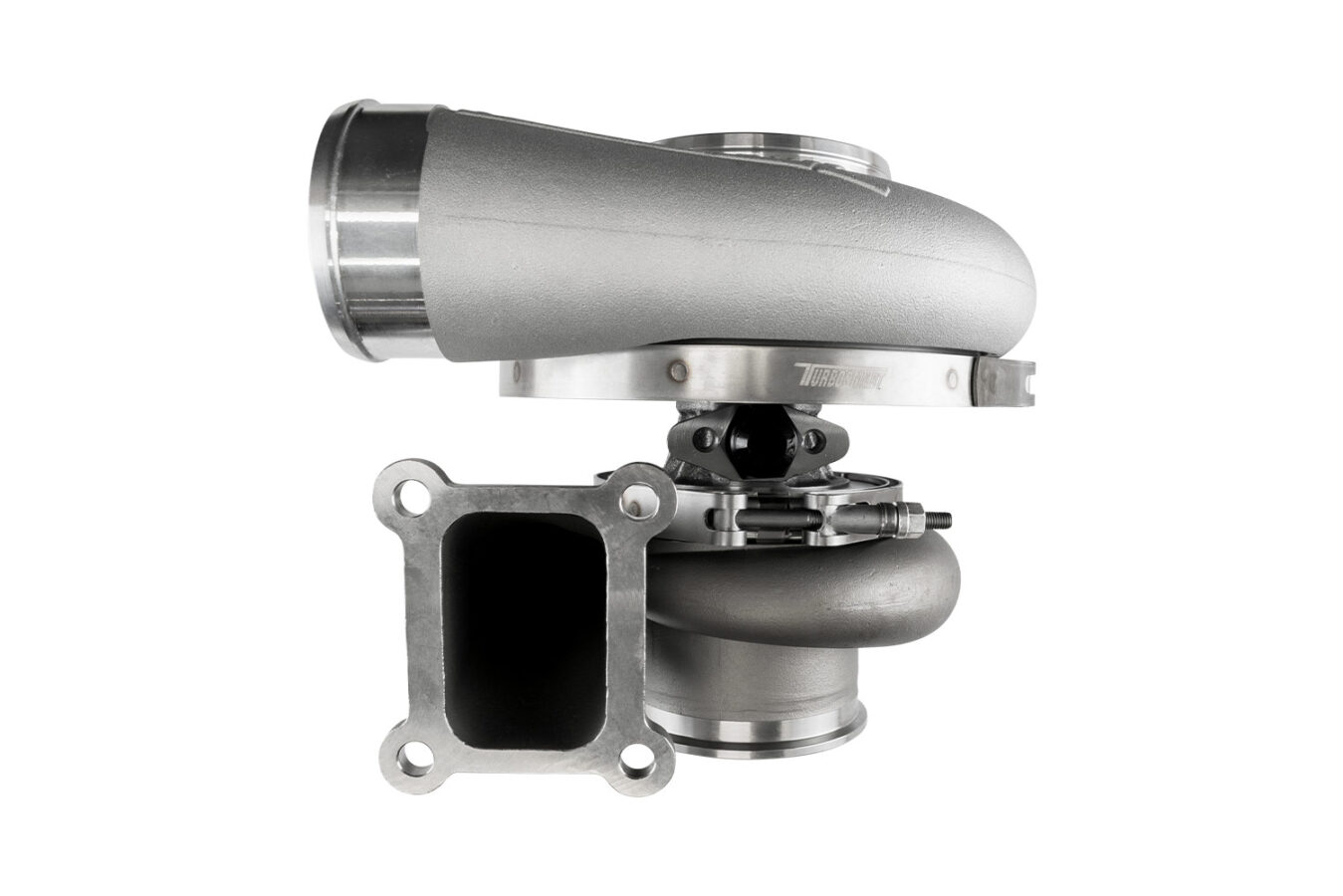

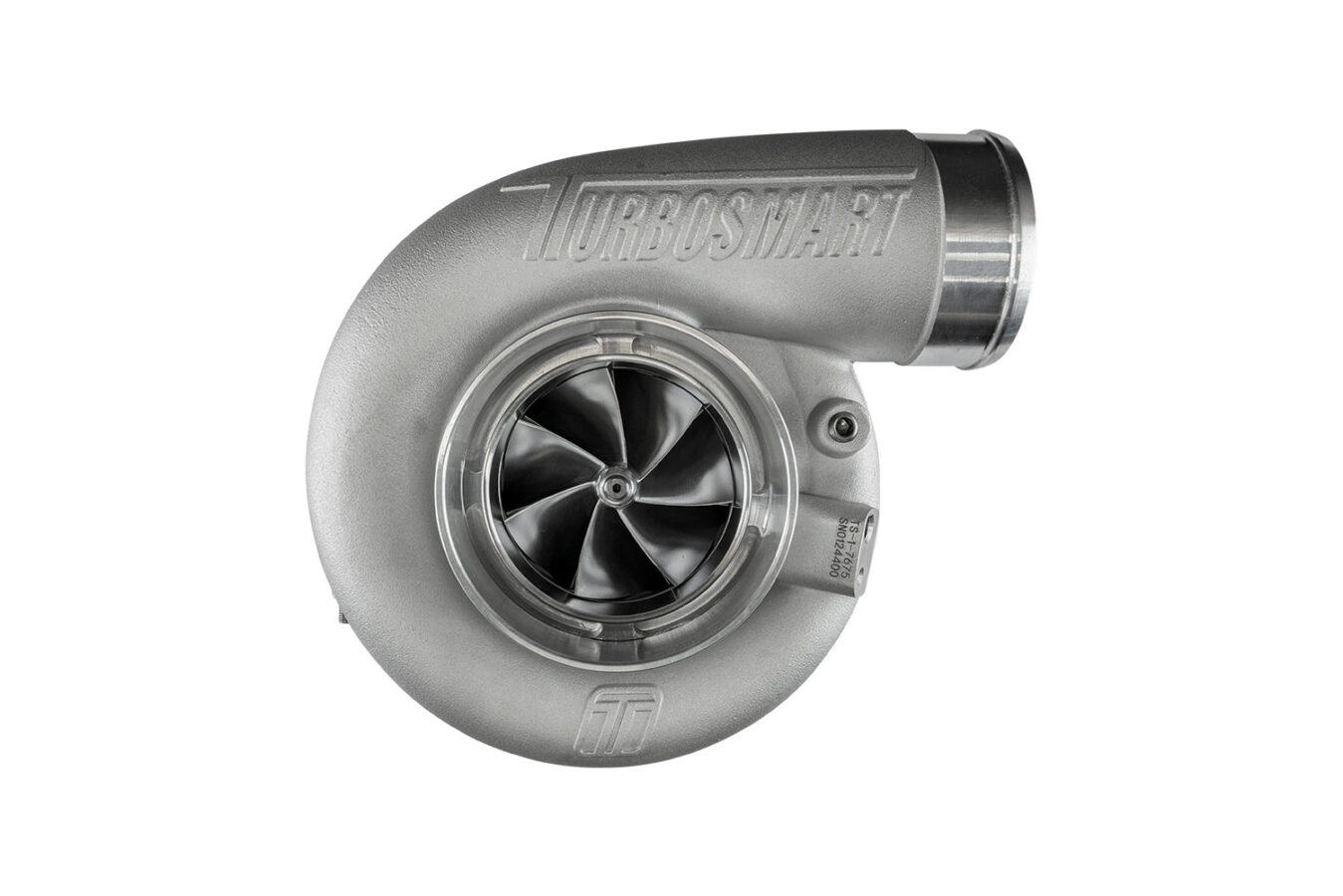

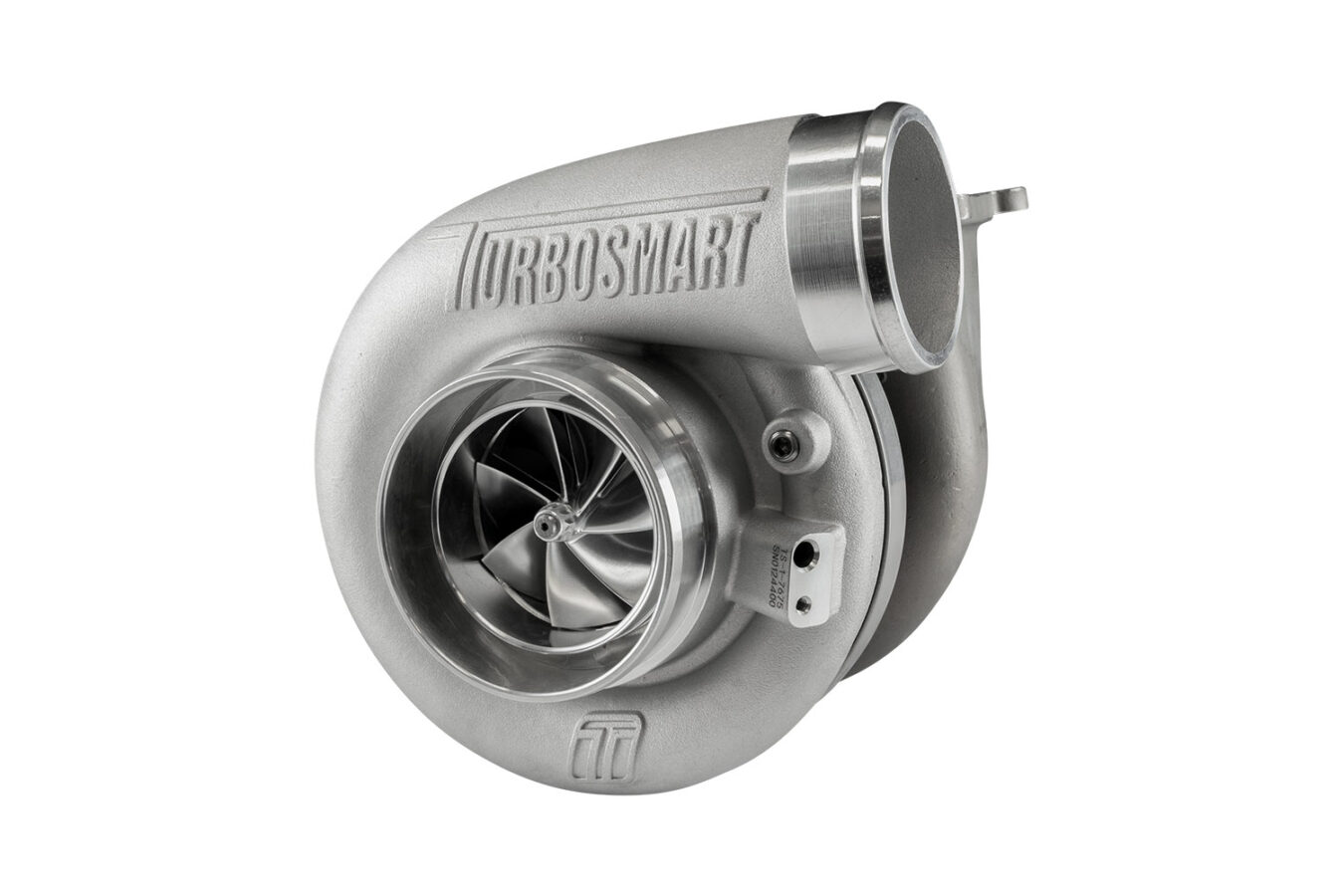

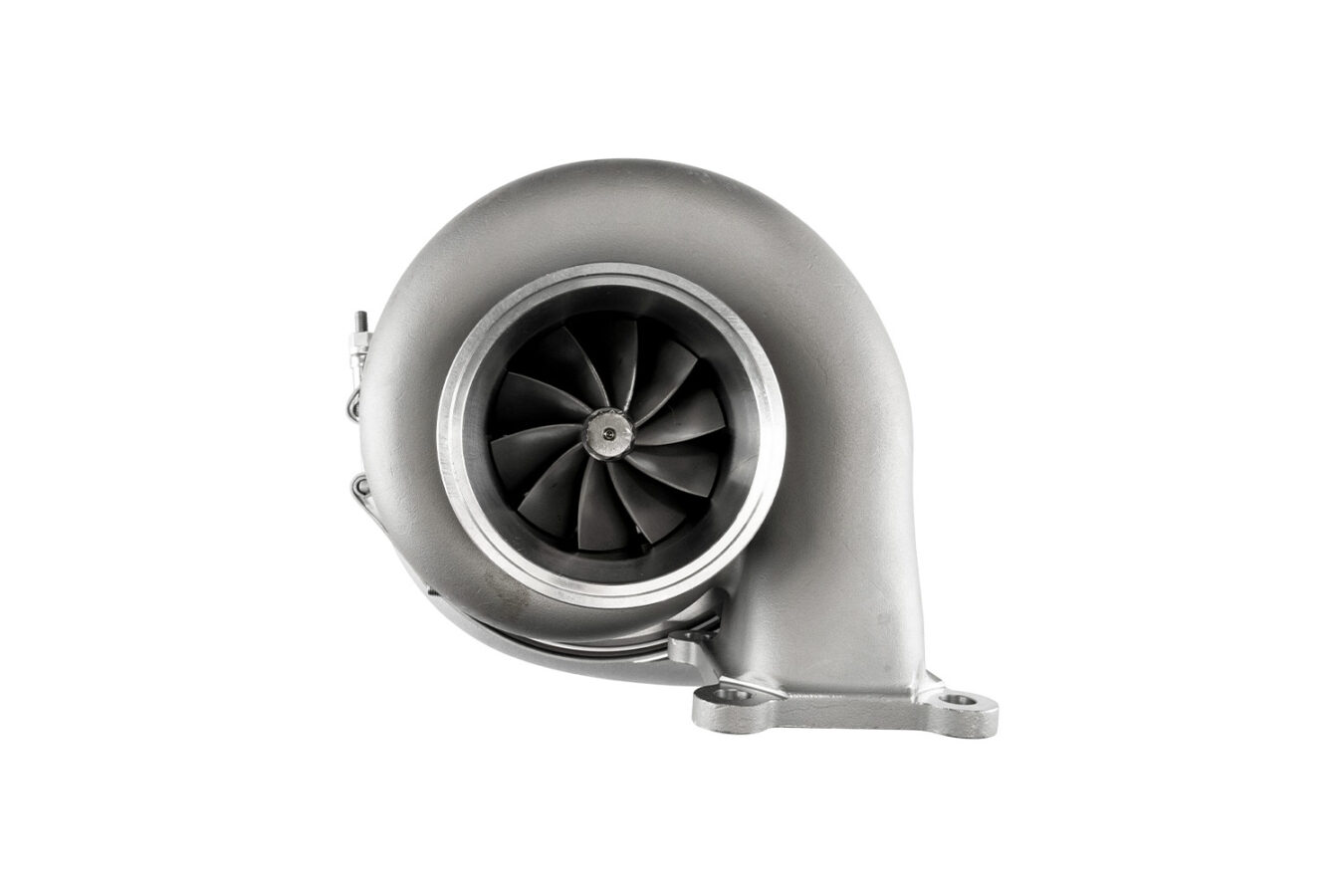

Turbosmart TS-1 Performance Turbocharger 7675 T4 0.96AR Externally Wastegated

Smaller, Lighter, and Faster

Turbosmart’s turbocharger series is engineered with modern materials, advanced design, and precision manufacturing to meet the high demands of both motorsport and performance enthusiasts.

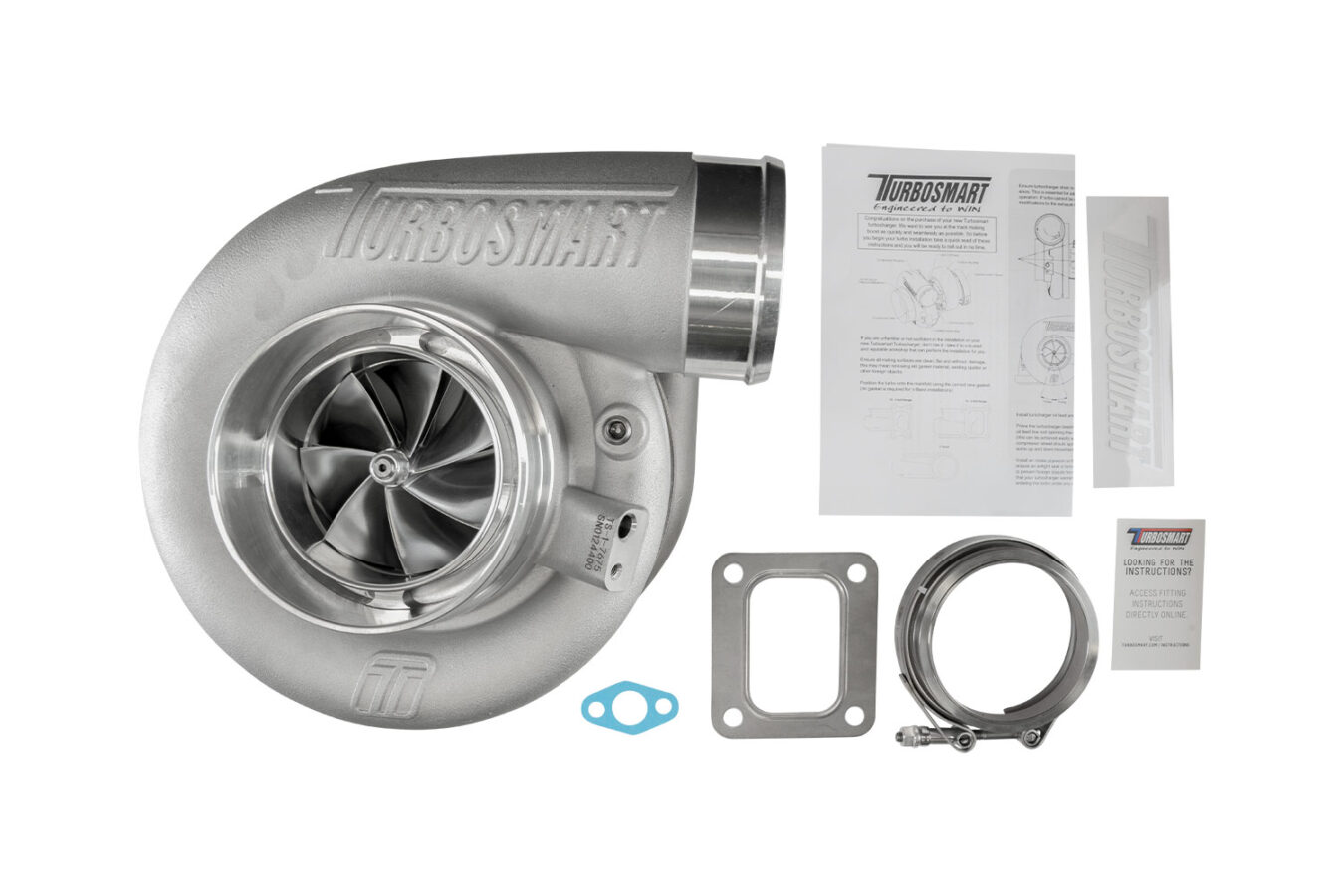

Every Turbosmart turbocharger comes complete with all necessary installation hardware, including weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combination. This design delivers transient response you didn’t know was possible, combined with the performance, quality, reliability, and support Turbosmart is known for.

Our unique bearing and shaft assembly has an ultra-low rotating mass paired with aggressive compressor aerodynamics, ensuring high performance at lower shaft speeds. It’s matched with a specialized turbine wheel to maintain power and flow at high loads.

All Turbosmart turbochargers are designed with an engine end-to-end approach, focusing on power through reduced back pressure and high-performance turbines—while being smaller, lighter, and faster in response compared to other options on the market.

Available In:

• TS-1 oil-cooled turbochargers

• TS-2 oil and water-cooled turbochargers

• V-Band, various T3 flange, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate options

Features:

• Unparalleled transient response

• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminium compressor covers

• CFD-driven designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 76mm

• Turbine Inlet: T4 flange

• Turbine Exducer: 75mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 20.23lbs

• Horsepower Rating: 1100–1290 HP
