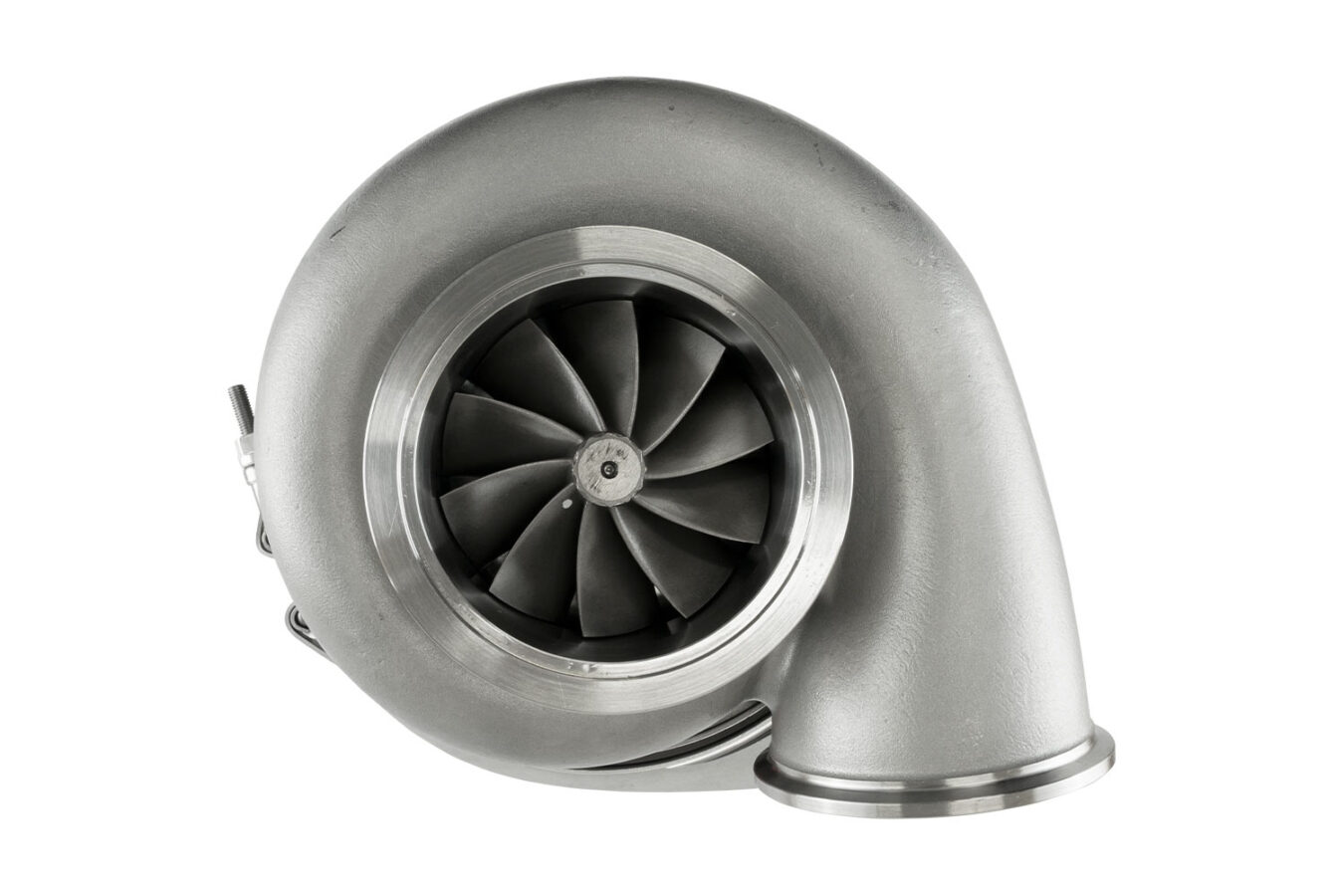

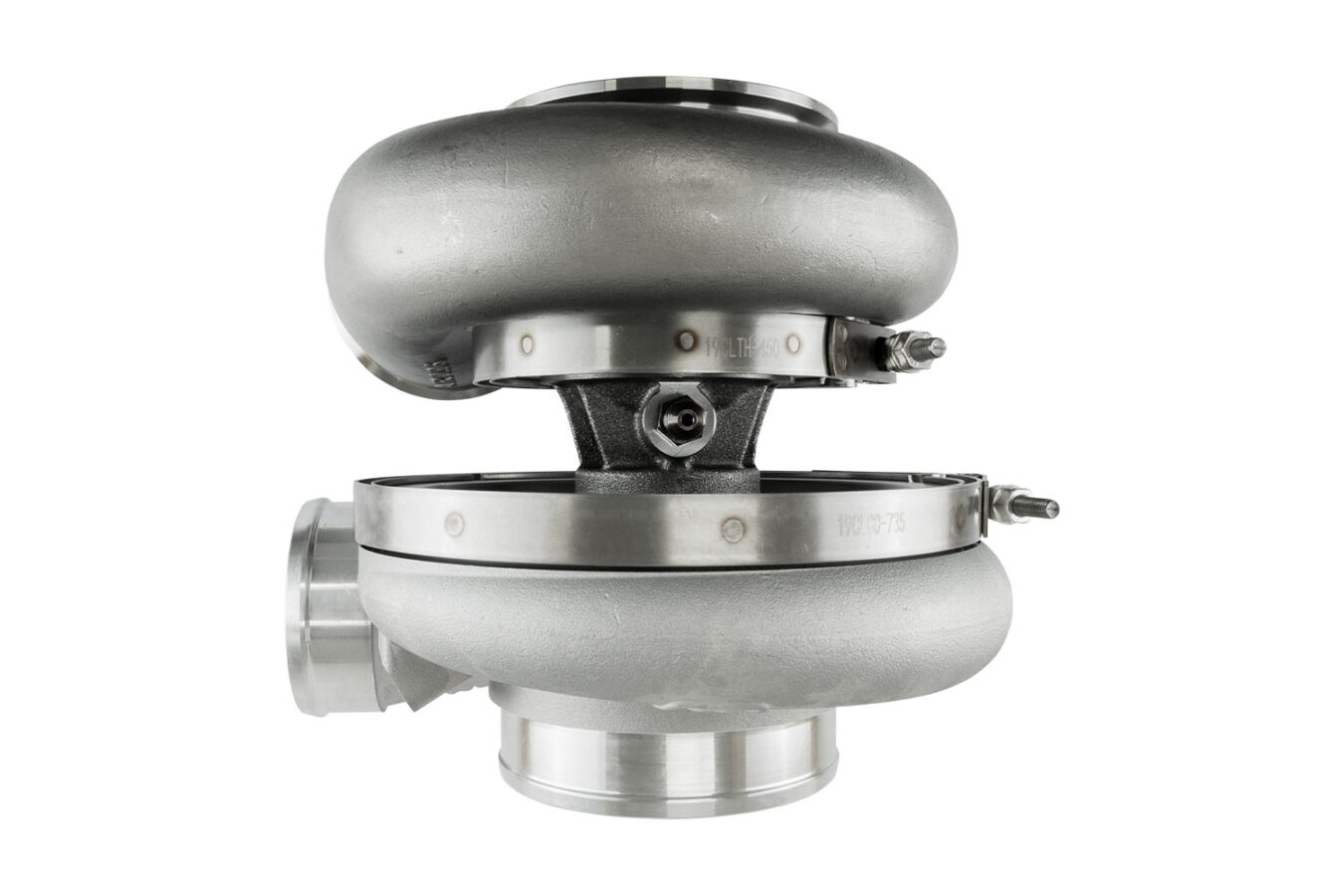

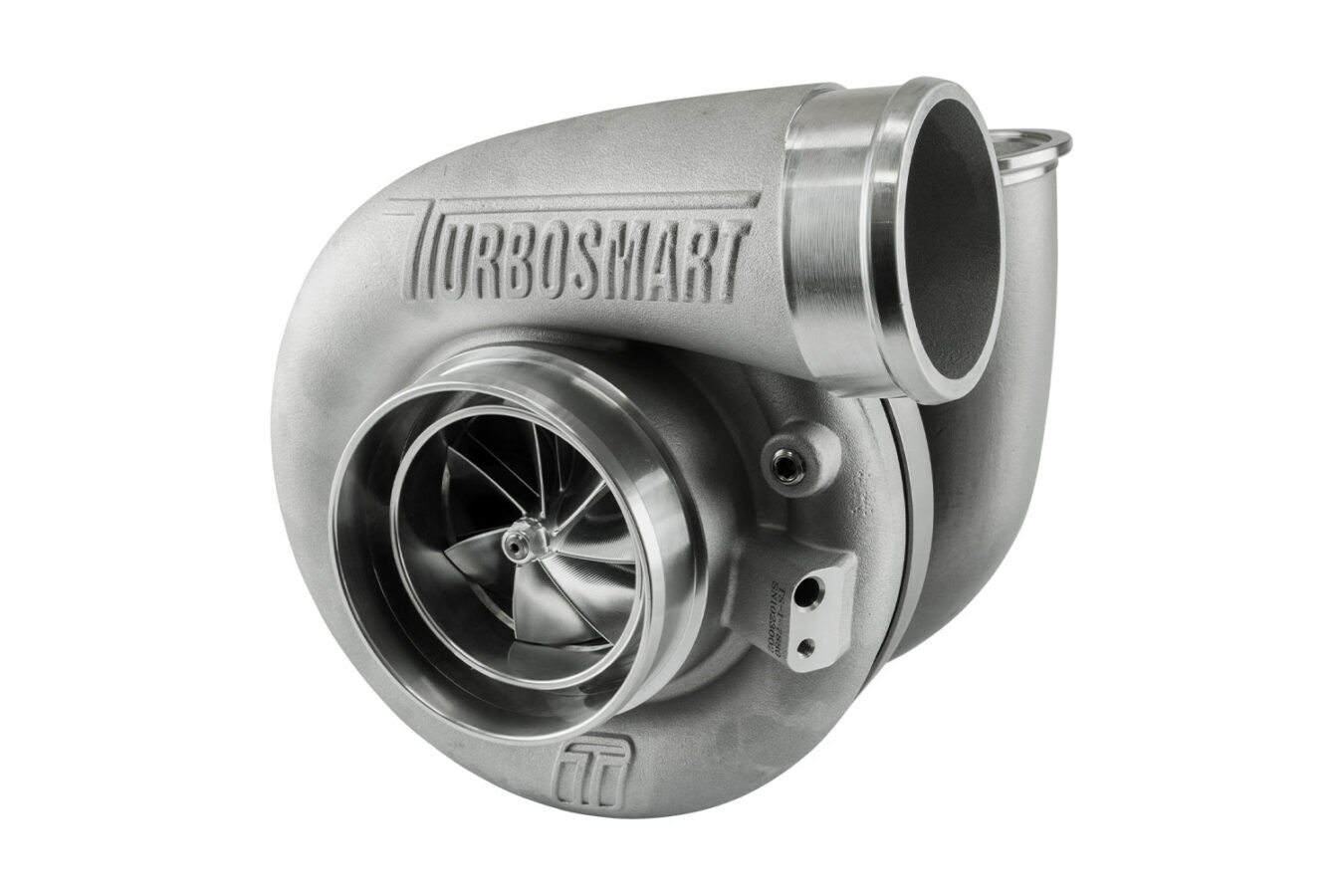

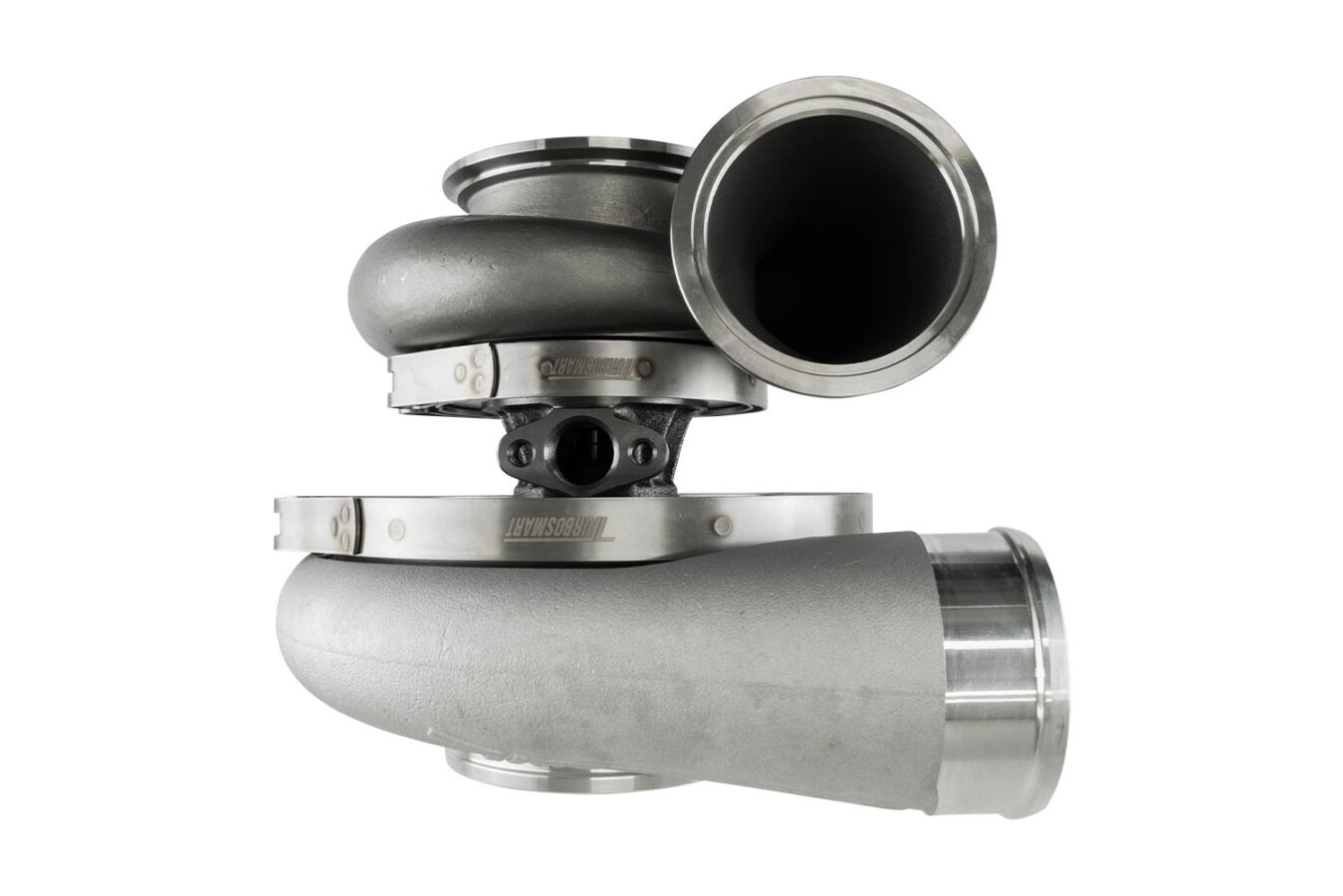

Turbosmart TS-1 Performance Turbocharger 7880 V-Band 1.24AR Externally Wastegated

Turbosmart TS-1 Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger lineup is built using cutting-edge materials, modern engineering, and precision manufacturing to meet the demands of motorsport and high-performance street applications.

Each turbocharger includes everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings.

The TS-1 Series features oil-cooled turbos with lightweight investment-cast turbine housings and a proprietary bearing and shaft system that delivers lightning-fast transient response and the legendary reliability Turbosmart is known for.

Thanks to its ultra-low rotating mass and aggressive compressor design, the TS-1 achieves high performance at lower shaft speeds while maintaining power and flow at high loads. Designed with a complete engine systems approach, it maximizes power through reduced back pressure and superior turbine efficiency—all in a smaller, lighter, and faster package than traditional options.

Available Options

• TS-1 (Oil-cooled)

• TS-2 (Oil + water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R ratios

• Internal and external wastegate options

Key Features

• Rapid transient response

• 7+7 2618 aluminum splitter wheels for high-efficiency aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed-balanced for precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 78 mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 80 mm

• Turbine A/R: 1.24

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1140–1350 HP
