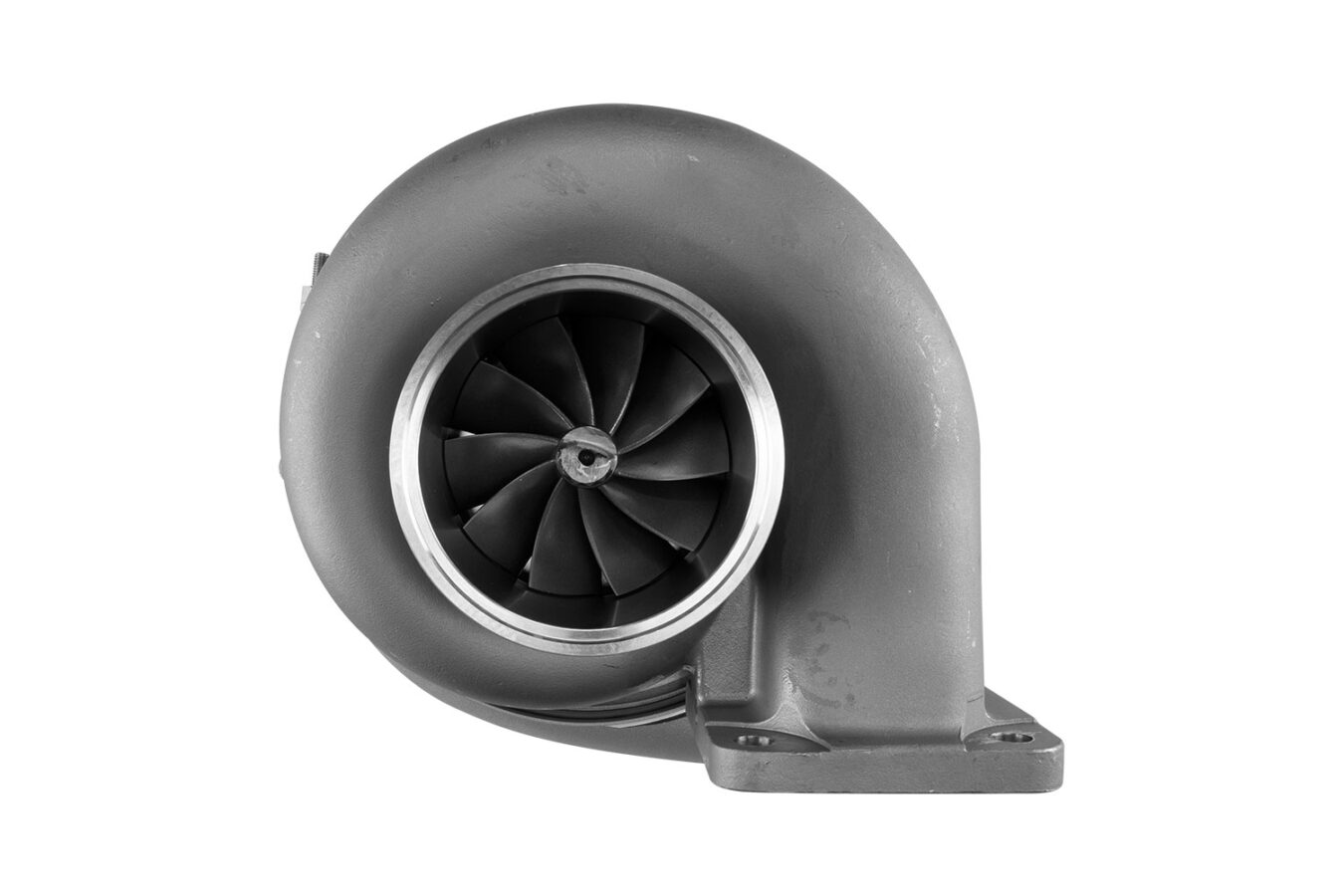

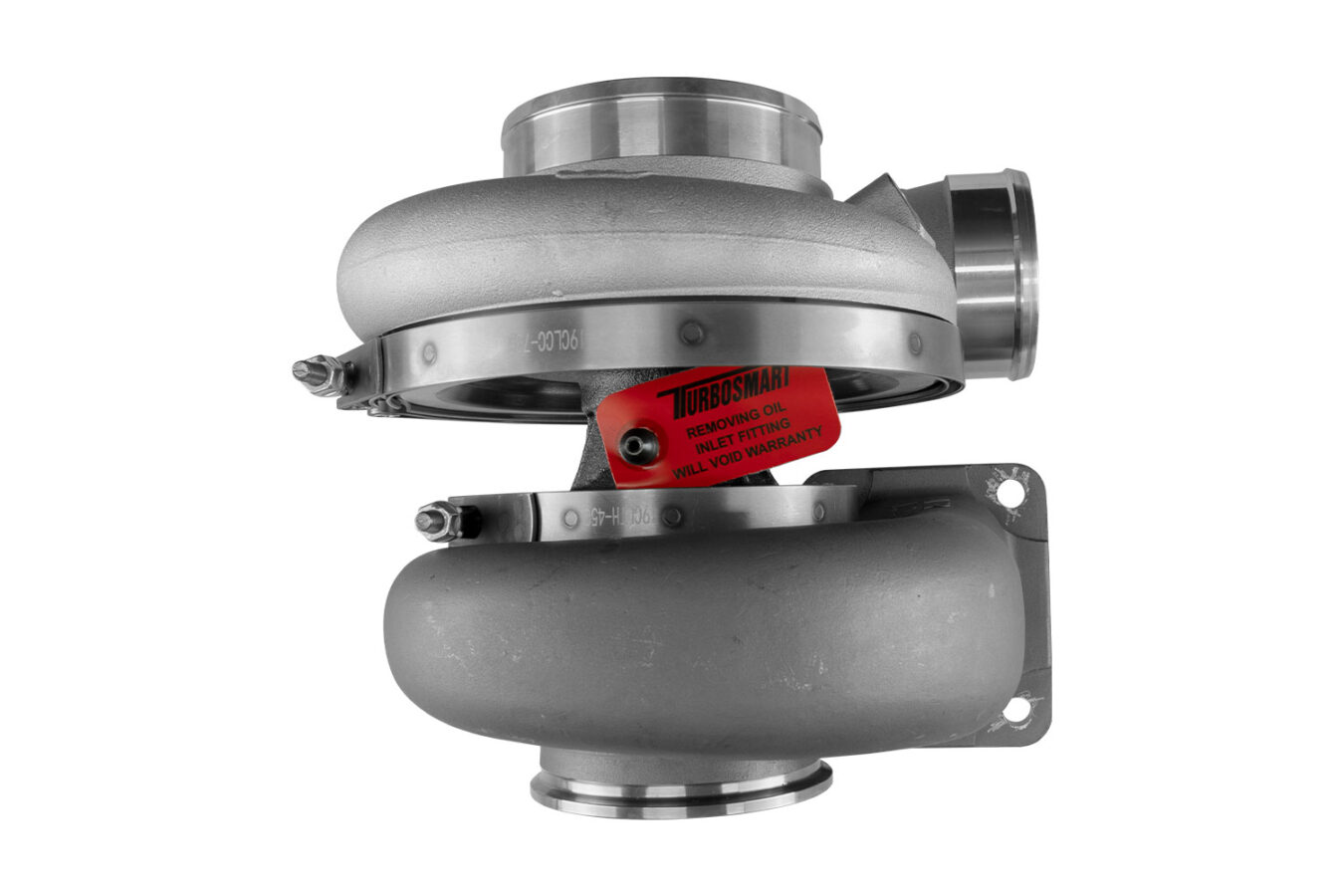

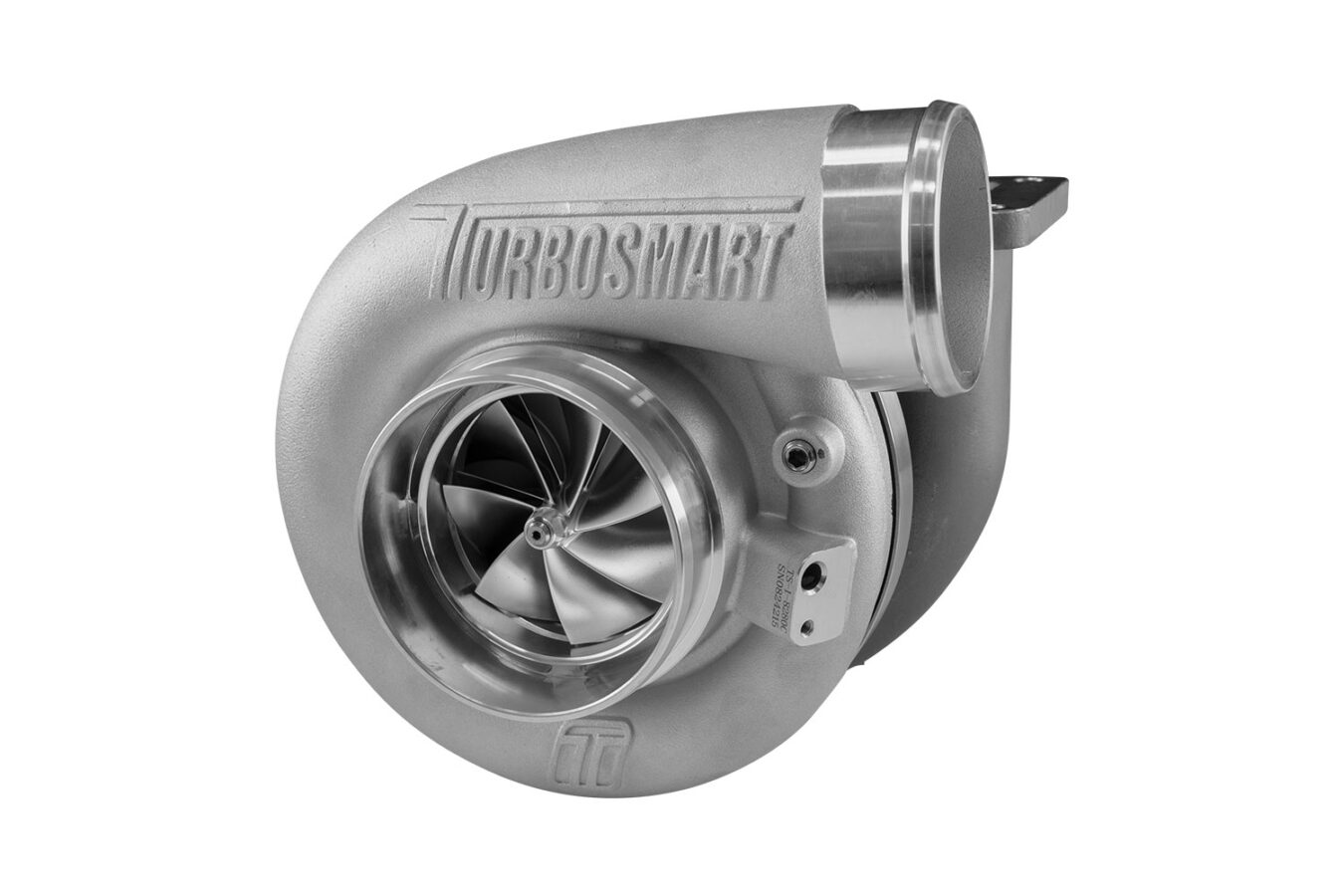

Turbosmart TS-1 Performance Turbocharger 8280 T4 0.96AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using modern materials, cutting-edge design, and advanced manufacturing techniques to meet the high demands of motorsport and performance enthusiasts.

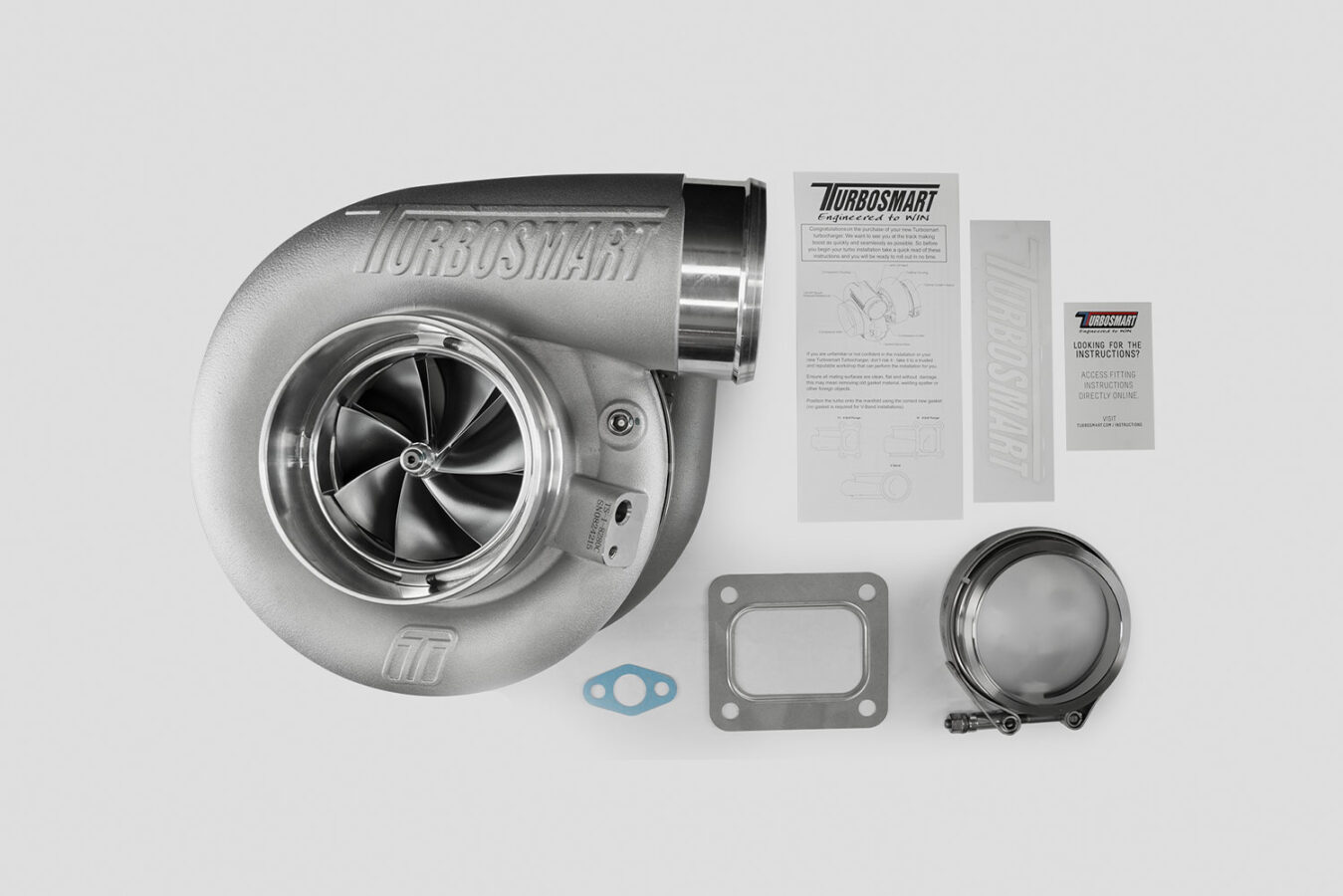

Each Turbosmart turbocharger comes standard with all necessary installation components:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Overview

• Oil-cooled turbochargers

• Lightweight investment-cast turbine housings

• Proprietary bearing and main shaft for unmatched transient response

• Ultra-low rotating mass + aggressive compressor aerodynamics

• Optimized for high-load power and continuous flow

Designed with an end-to-end engine approach, all Turbosmart turbos reduce backpressure and boost performance — while being smaller, lighter, and faster than other solutions on the market.

Available Options

• TS-1: Oil-cooled

• TS-2: Oil & water-cooled

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R configurations

• Internal or external wastegated

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housing for ideal flow and A/R

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 82 mm

• Turbine Inlet: T4

• Turbine Exducer: 80 mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1225–1445 HP
