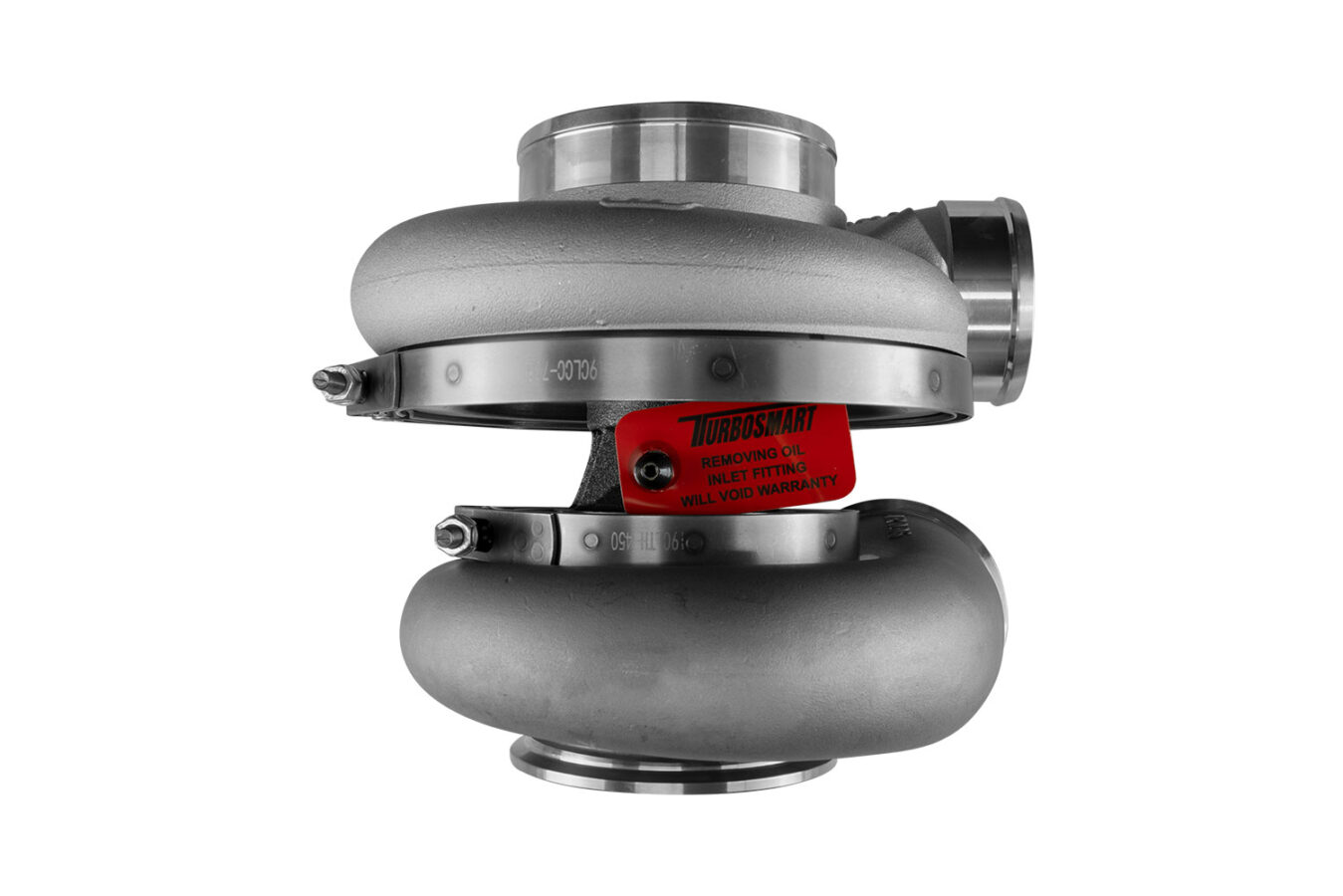

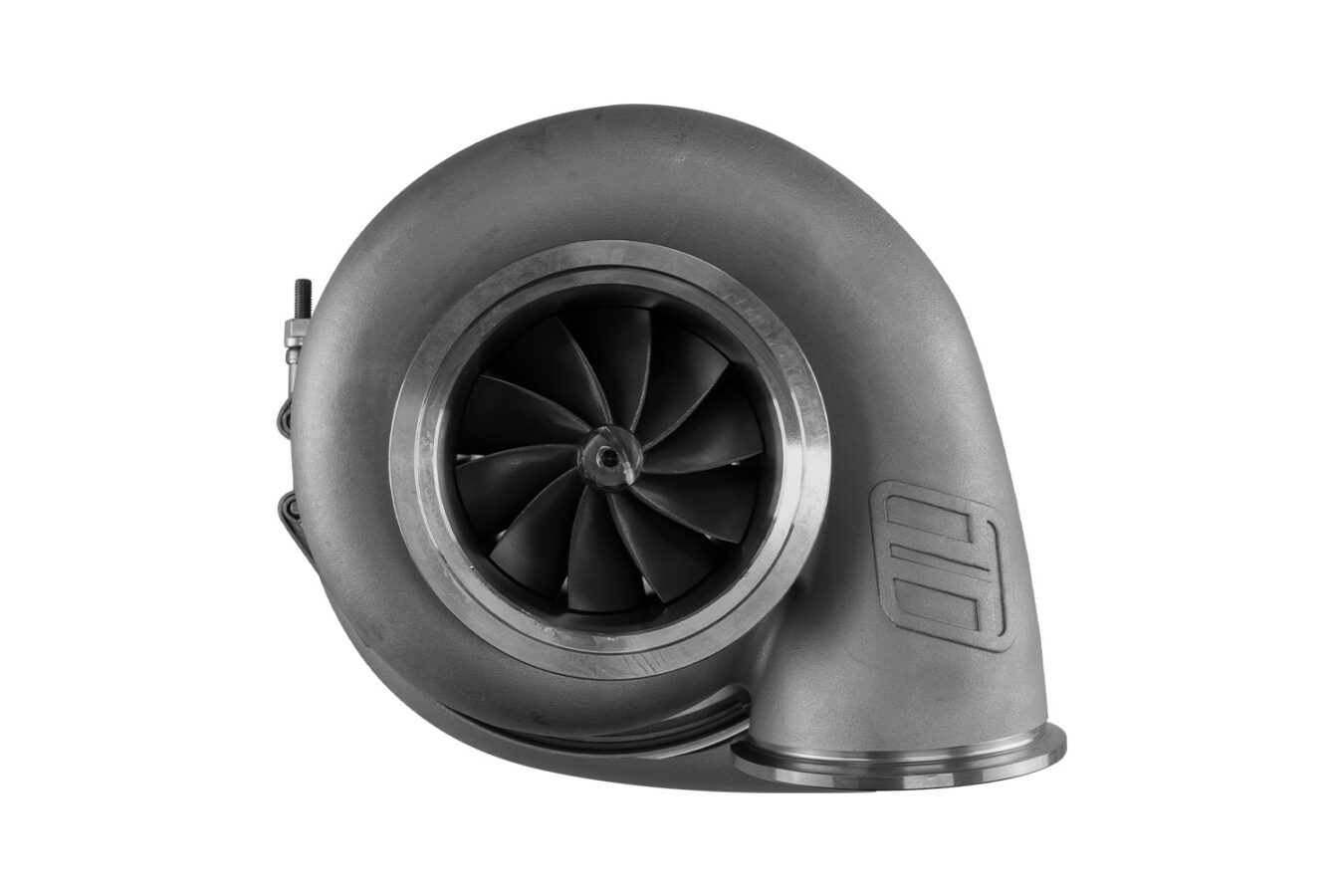

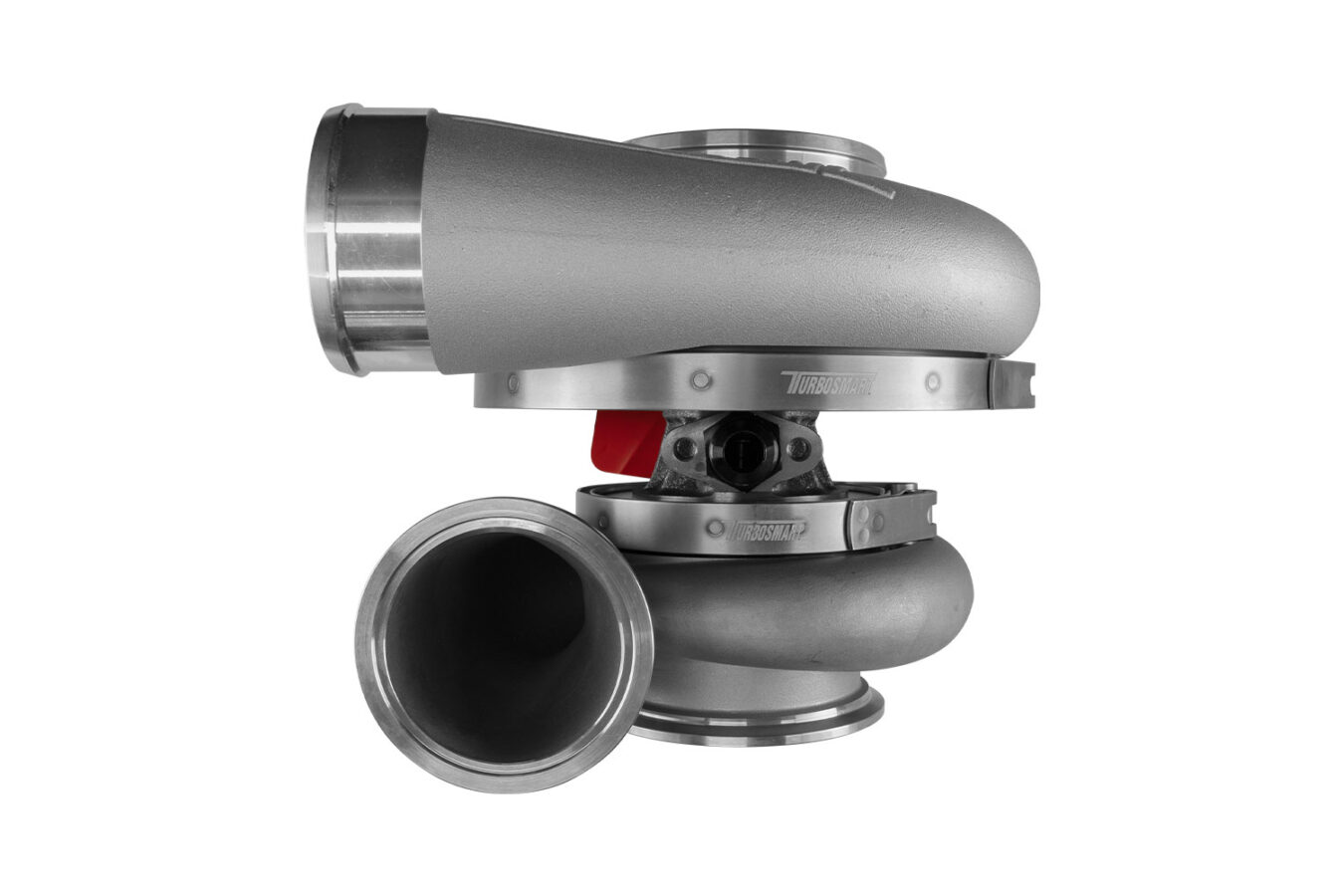

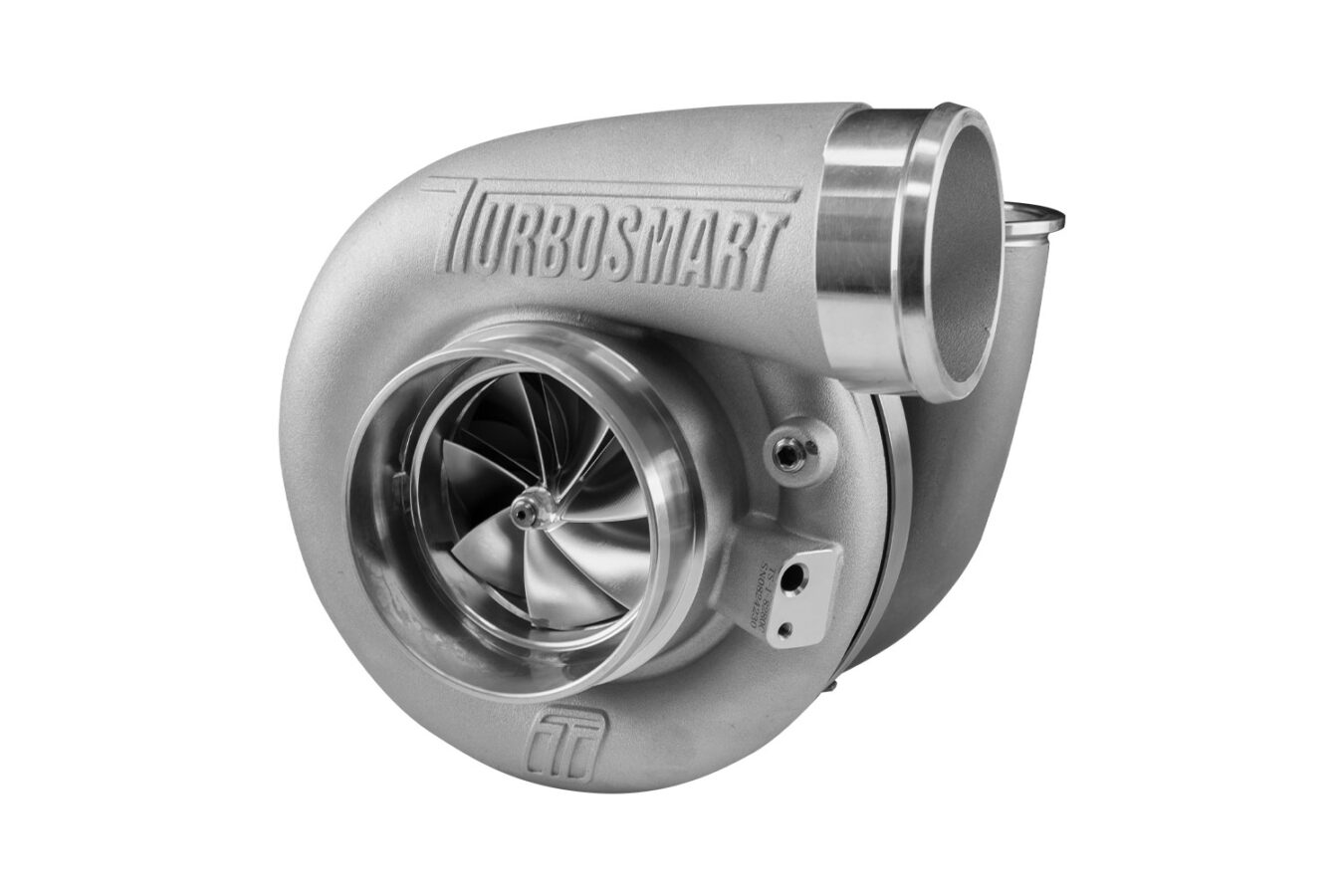

Turbosmart TS-1 Performance Turbocharger 8280 V-Band 0.96AR Externally Wastegated

Turbosmart’s TS-1 turbocharger series is built using advanced materials, precision design, and cutting-edge manufacturing to meet the demands of motorsport and performance enthusiasts alike.

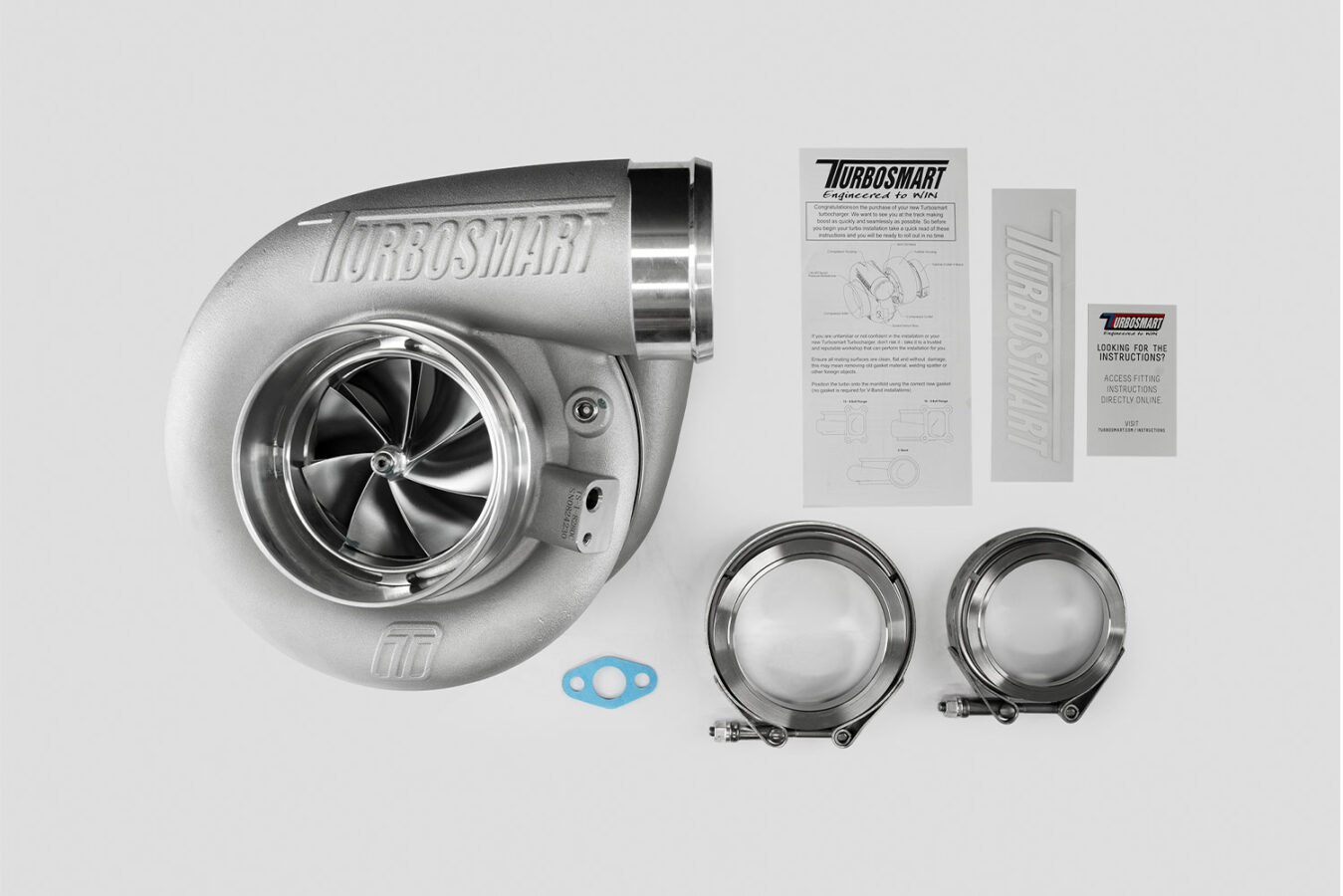

Each turbocharger includes everything needed for installation:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed & drain fittings

TS-1 Series Overview

• Cooling: Oil-cooled

• Construction: Lightweight investment-cast turbine housings

• Core: Proprietary bearing & shaft combo for unmatched transient response

• Performance: Aggressive compressor aerodynamics deliver power at lower shaft speeds and maintain flow at high loads

Designed with an end-to-end engine performance approach, Turbosmart turbos reduce backpressure and boost flow—delivering compact, responsive, and high-performance results.

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• V-Band, T3, and T4 flanges

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal or external wastegate options

Key Features

• Ultra-fast transient response

• 7+7 2618 aluminum splitter wheels

• 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 82mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 80mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1225–1445 HP
