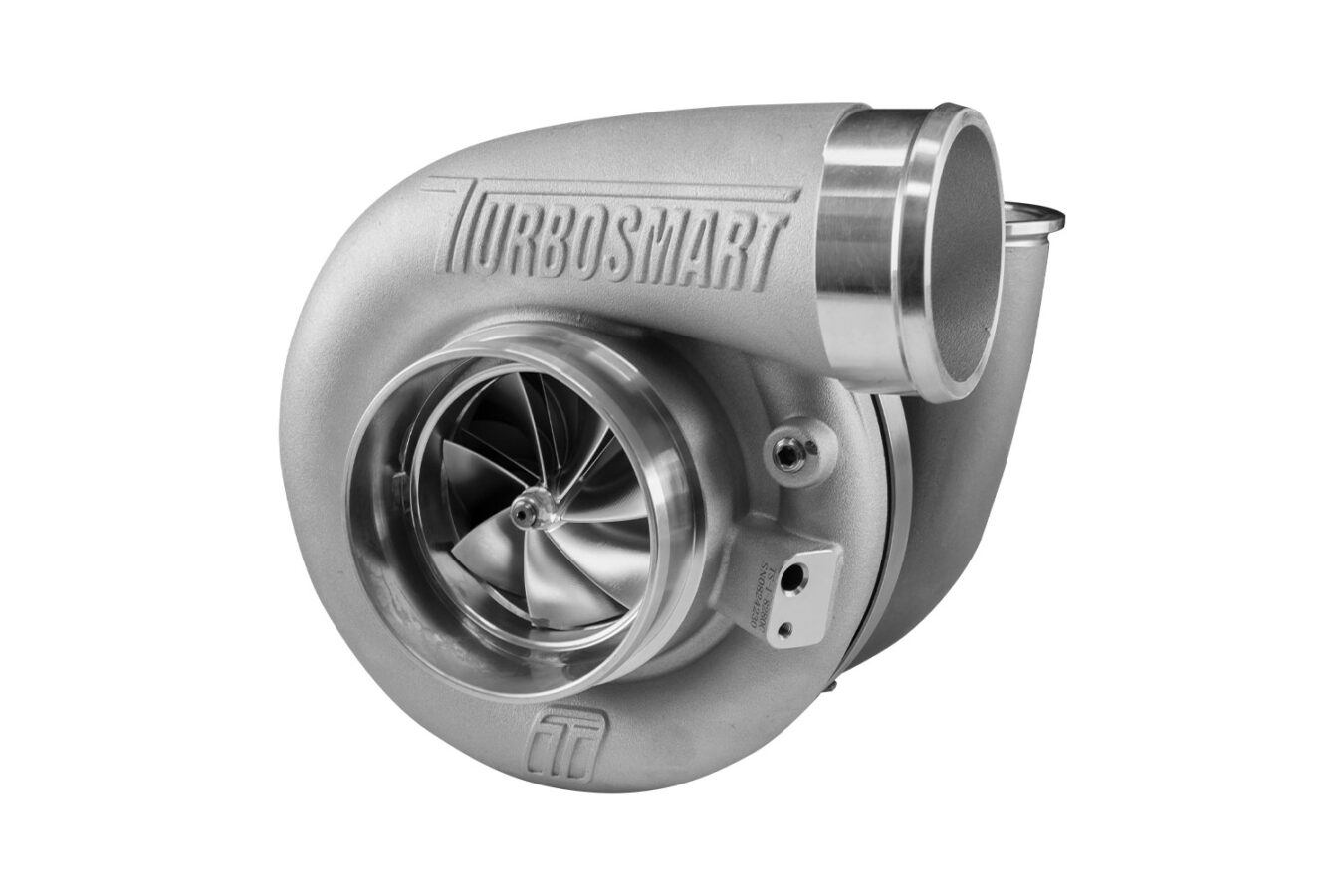

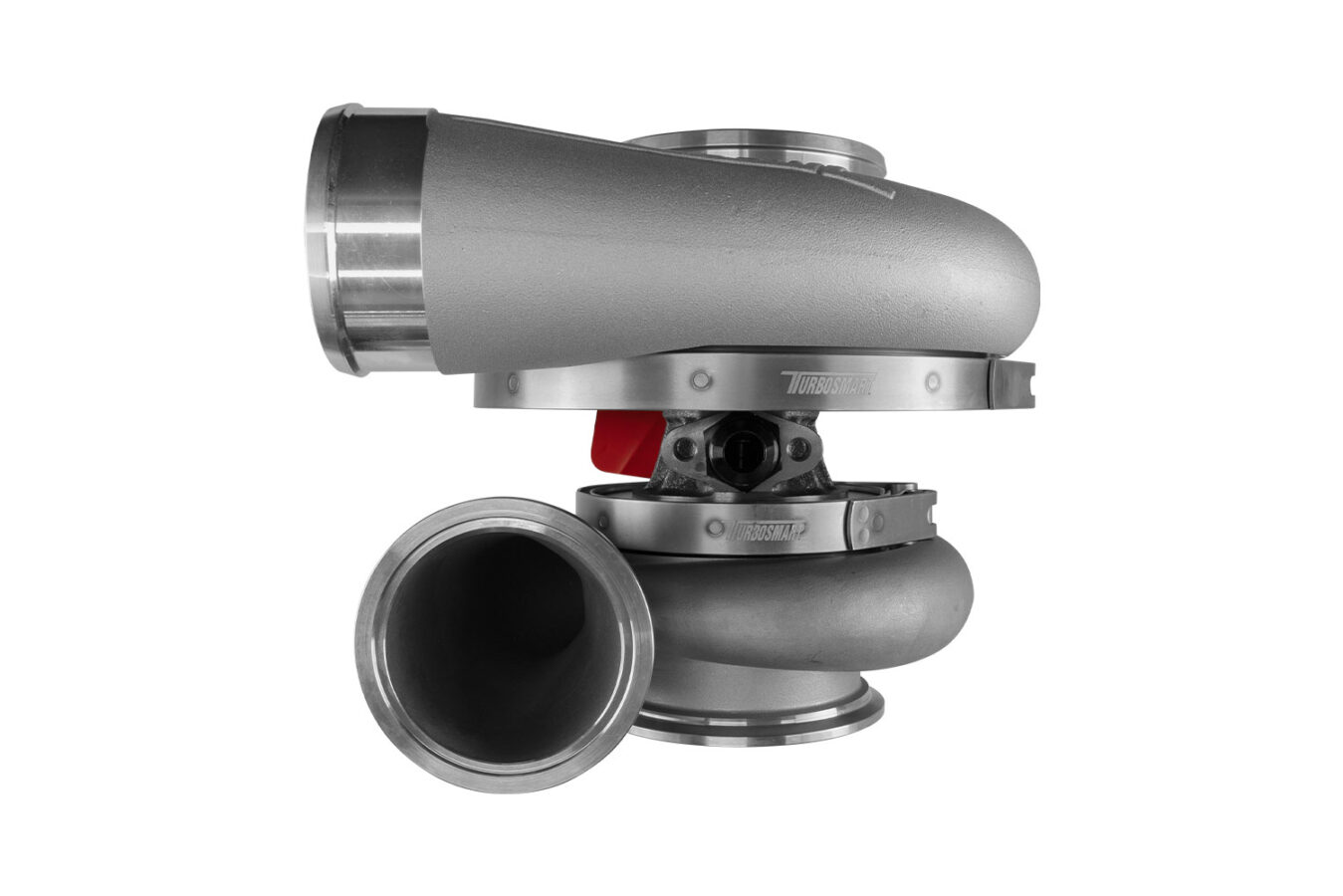

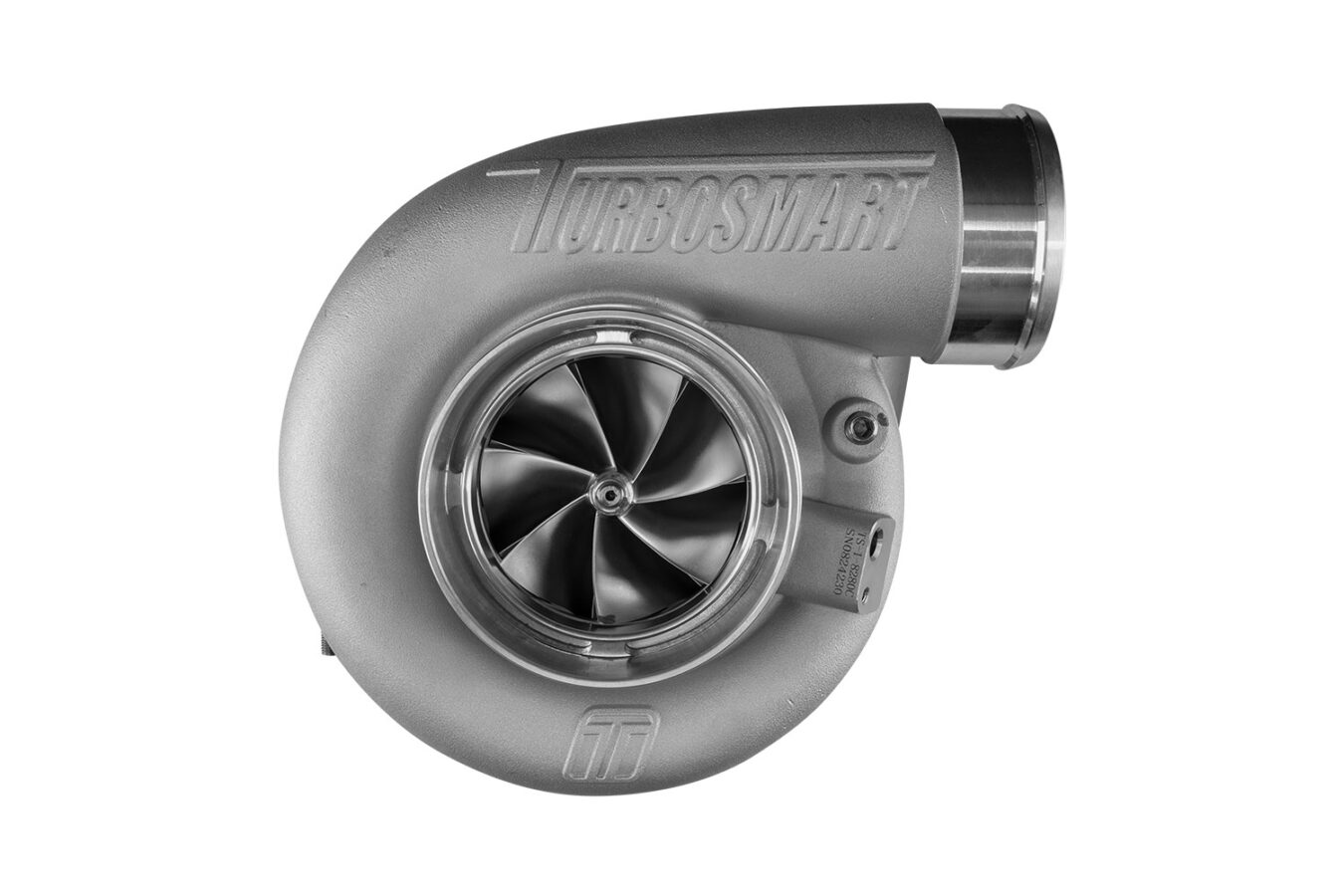

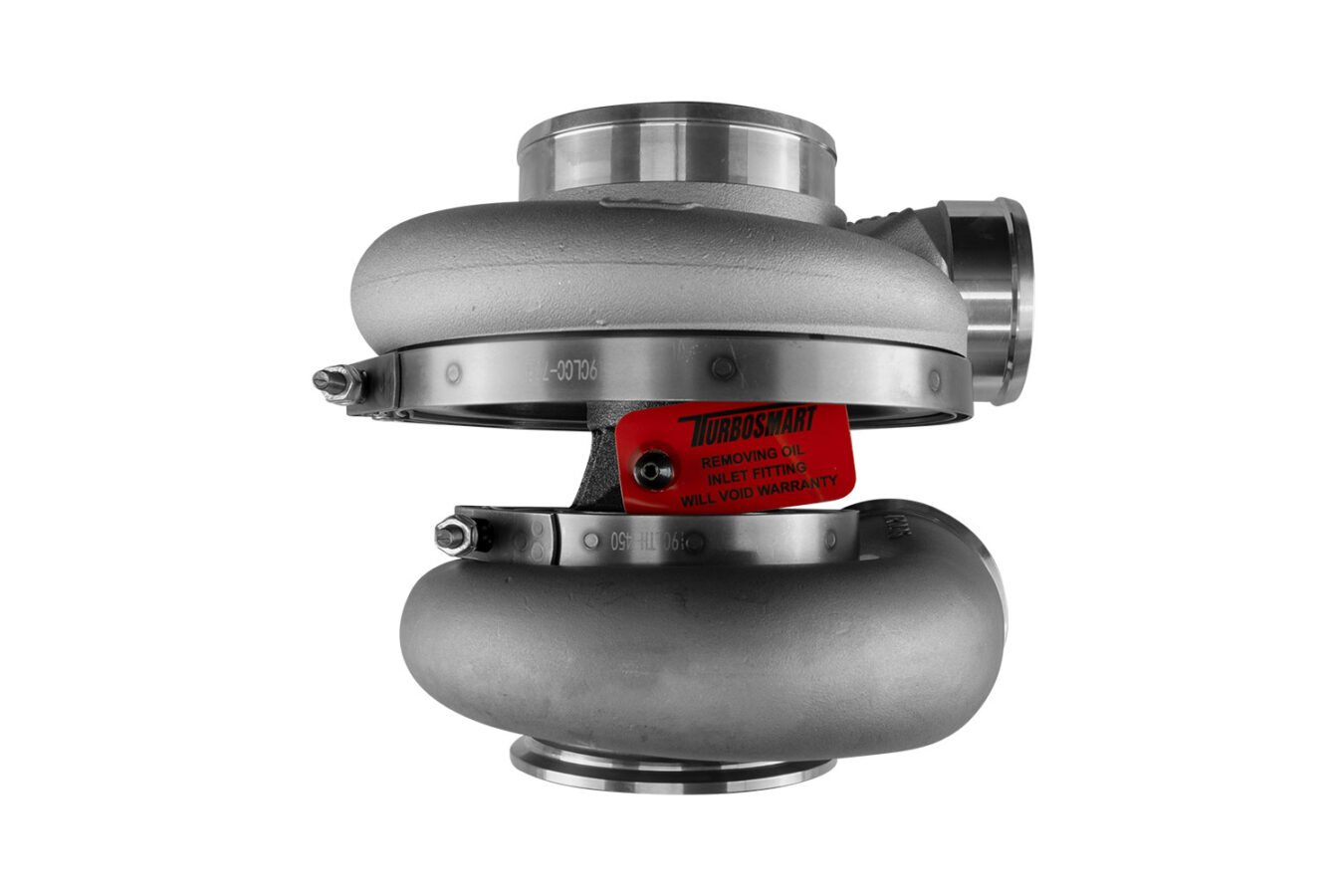

Turbosmart TS-1 Performance Turbocharger 8280 V-Band 1.24AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and cutting-edge manufacturing to meet the demands of motorsport and performance enthusiasts alike.

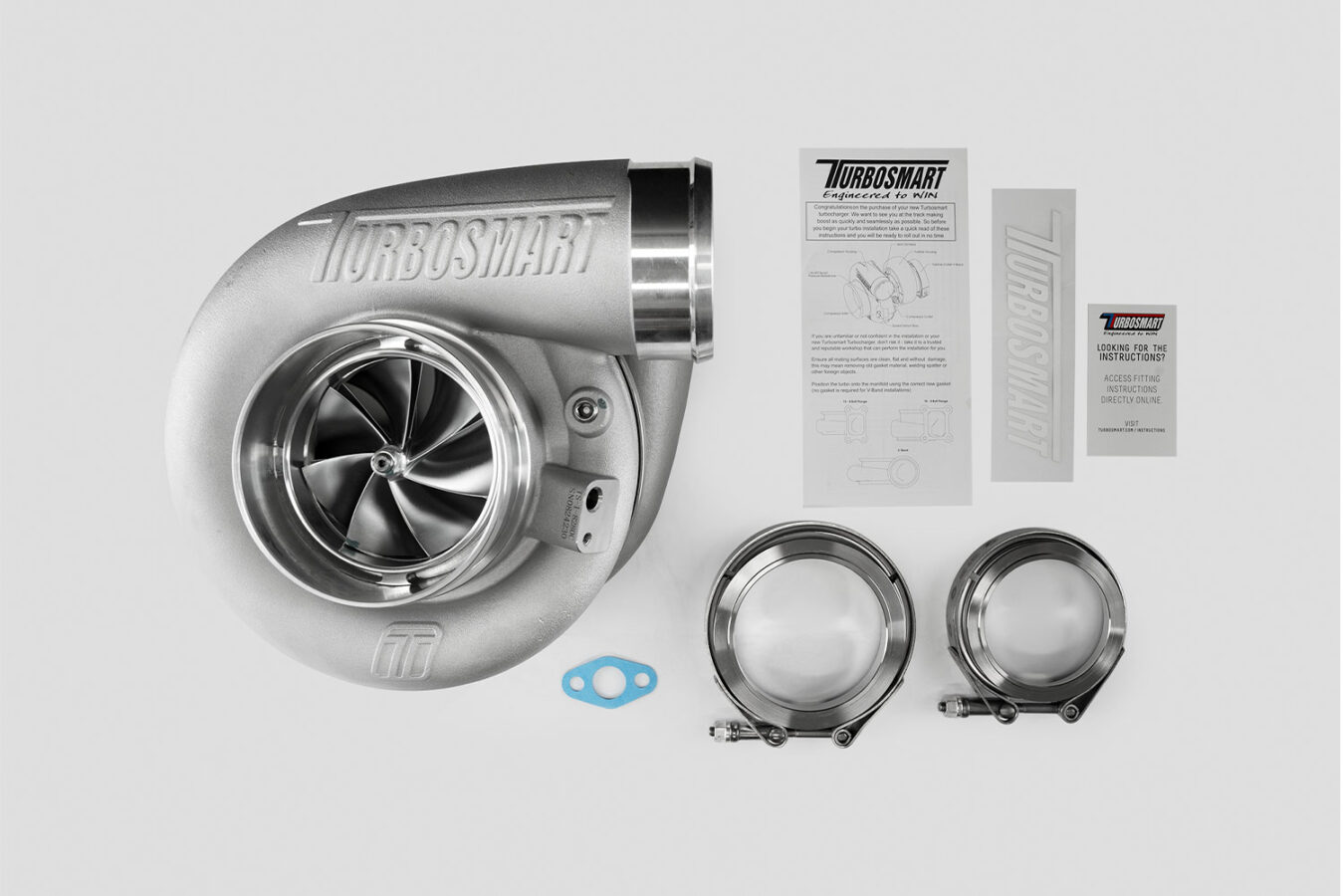

Each Turbosmart turbocharger includes everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water fittings (TS-2 only).

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft design. This combination delivers exceptional transient response, reliability, and the high-performance support Turbosmart is known for.

With ultra-low rotating mass and aggressive compressor aerodynamics, these turbos maintain strong performance even at low shaft speeds. A unique turbine wheel ensures power and flow under high loads.

All Turbosmart turbochargers are designed with an end-to-end engine approach—achieving power through reduced backpressure and efficient turbines—while remaining smaller, lighter, and faster than competitors.

Available Options

• TS-1: Oil-cooled turbochargers

• TS-2: Oil & water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R configurations

• Internal and external wastegate options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 82 mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 80 mm

• Turbine A/R: 1.24

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 21.23 lbs

• Horsepower Rating: 1225–1445 HP
