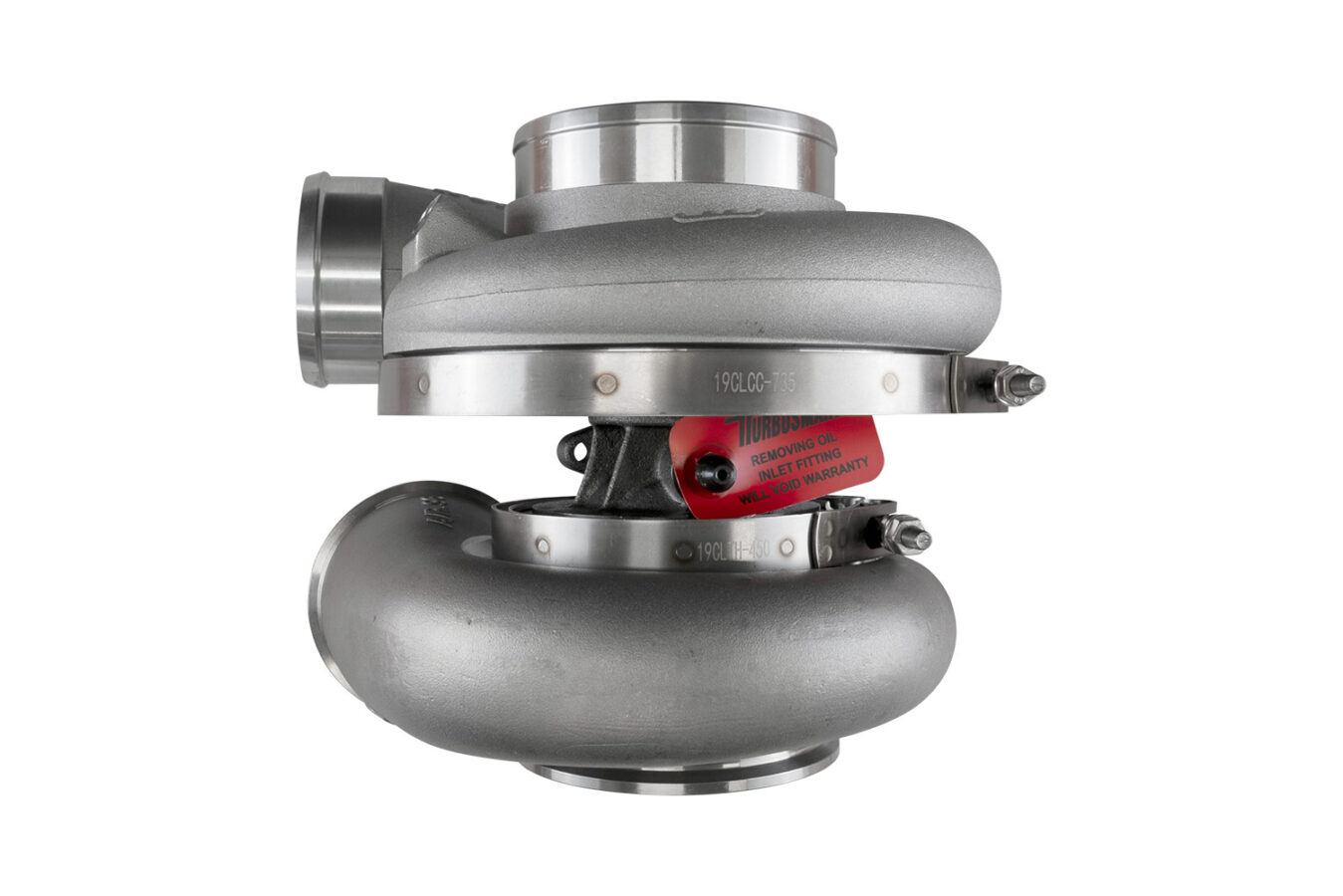

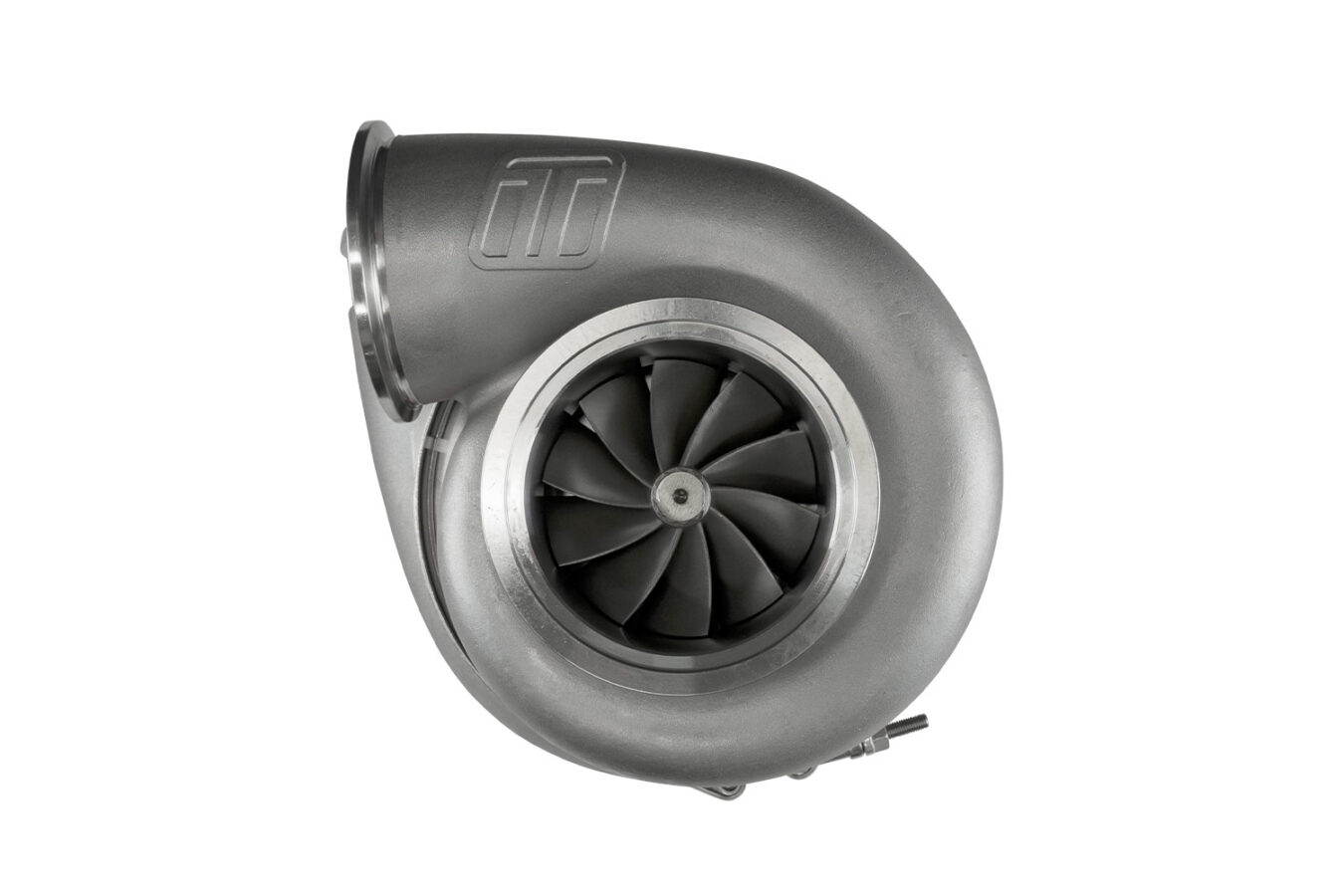

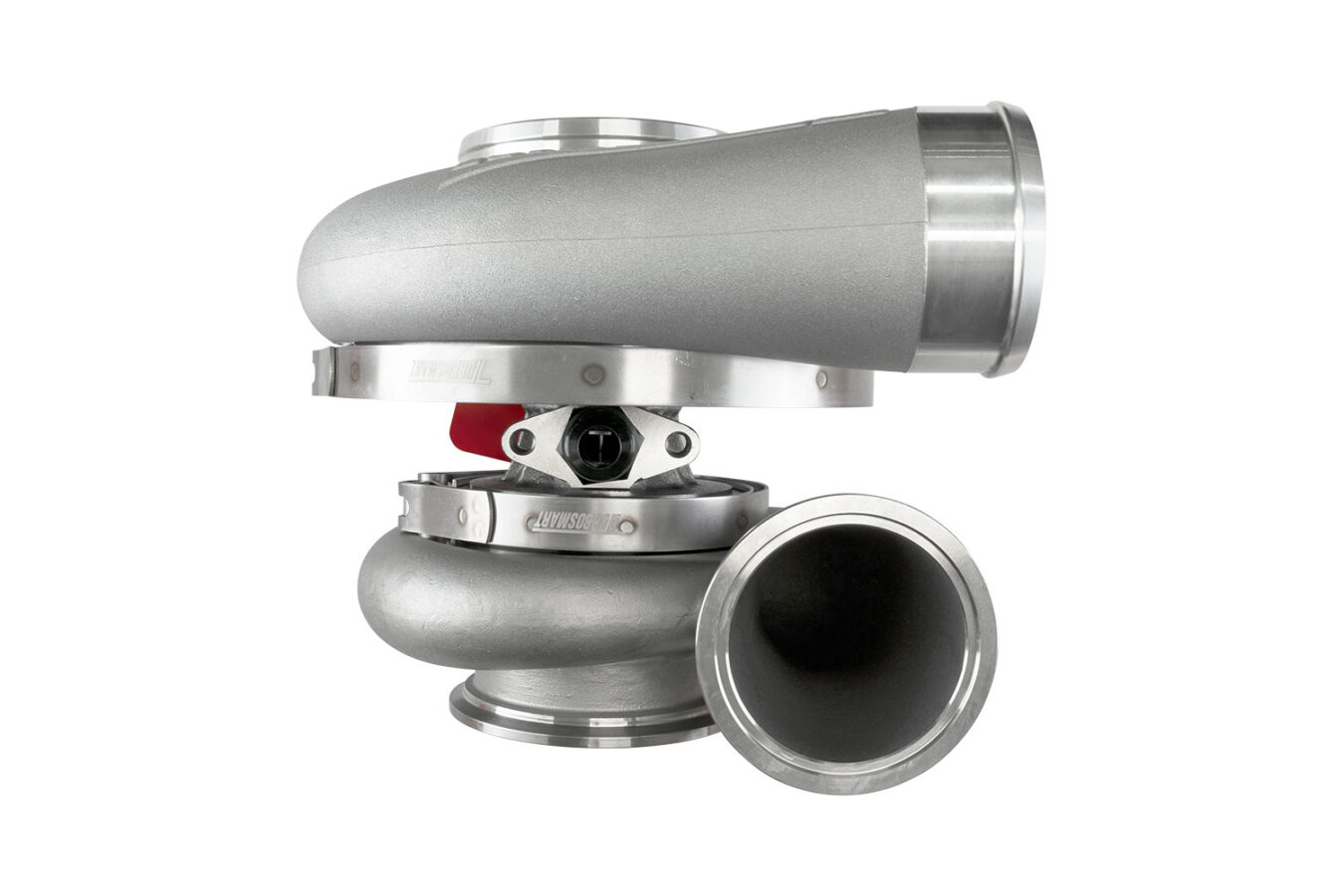

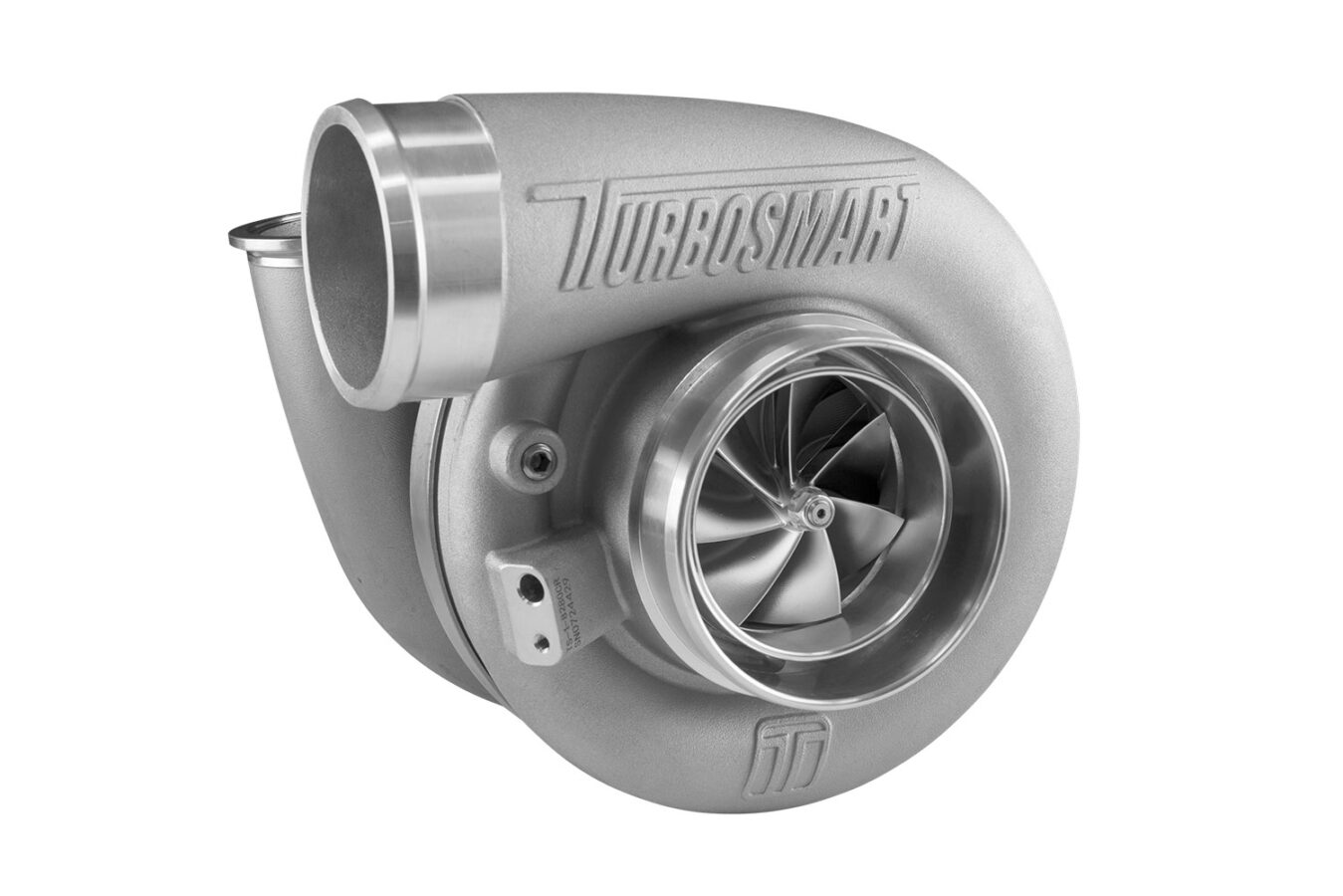

Turbosmart TS-1 Performance Turbocharger 8280 V-Band Reverse Rotation 0.96AR Externally Wastegated

Smaller. Lighter. Faster.

Turbosmart’s TS turbocharger series is built using advanced materials, precision engineering, and cutting-edge manufacturing to meet the demands of motorsport and high-performance enthusiasts alike.

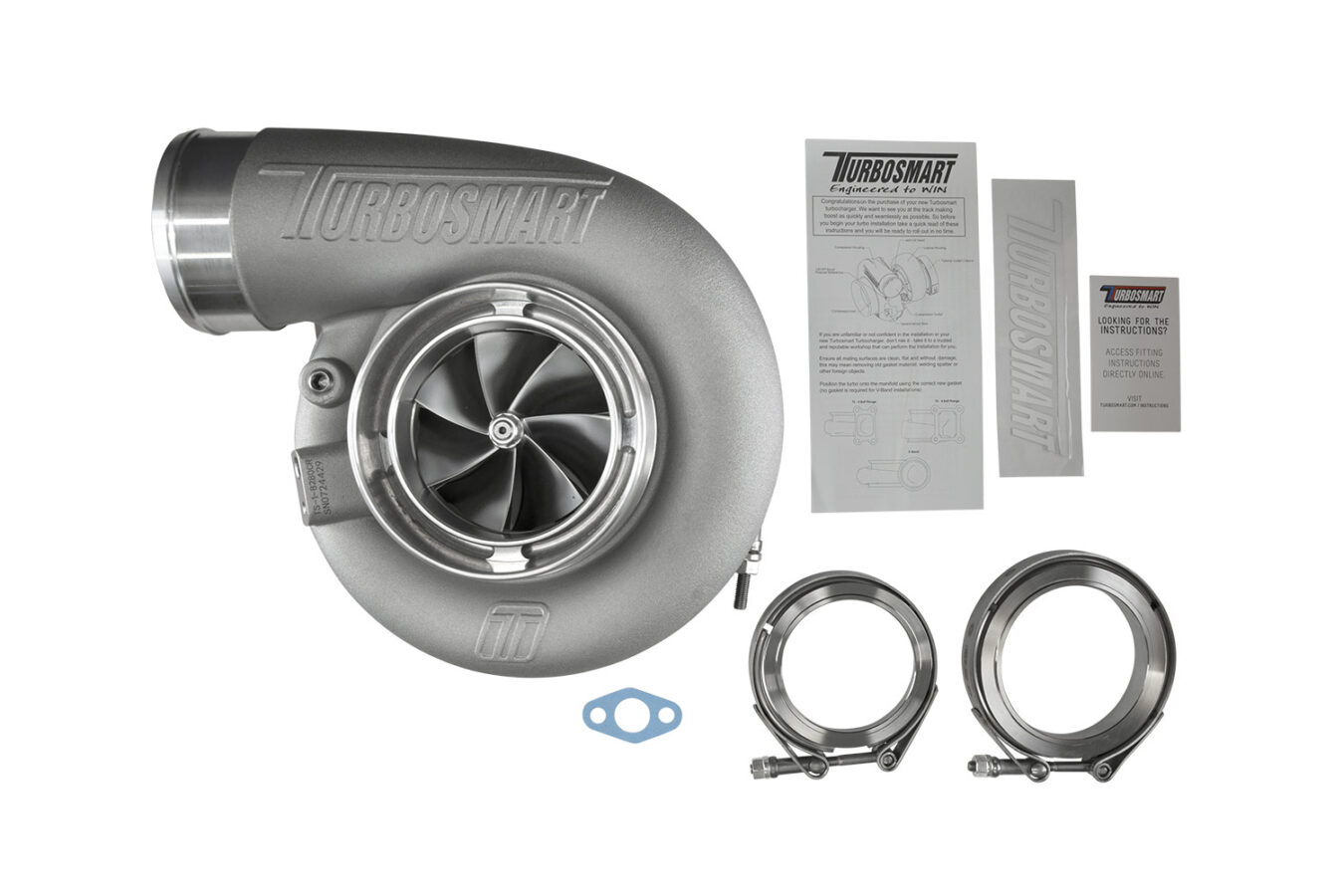

Each turbocharger comes fully equipped for installation with:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

TS-1 Series Overview

• Cooling: Oil-cooled design

• Construction: Lightweight, investment-cast stainless steel turbine housings

• Core: Proprietary bearing and main shaft combo for unmatched transient response

• Design: Aggressive compressor aerodynamics paired with ultra-low rotating mass

• Performance: Maintains flow and power under high loads

• Efficiency: Reduced backpressure for maximum engine output

Available Configurations

• TS-1 (Oil-cooled)

• TS-2 (Oil & water-cooled)

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal or external wastegate compatibility

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for high EGT durability

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 82mm

• Turbine Inlet: V-Band (3.00″)

• Turbine Exducer: 80mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63kg / 21.23lbs

• Horsepower Rating: 1225–1445 HP
