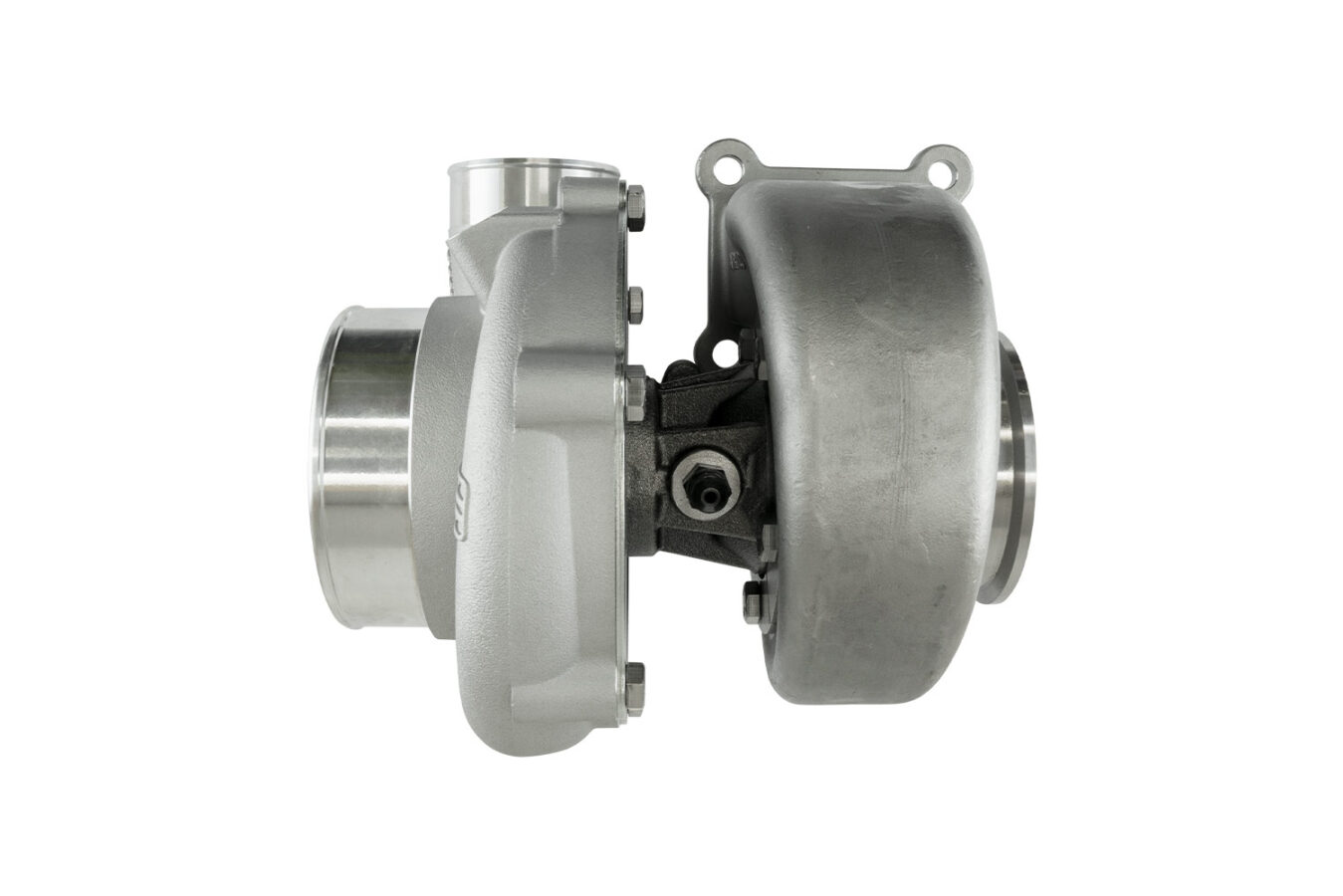

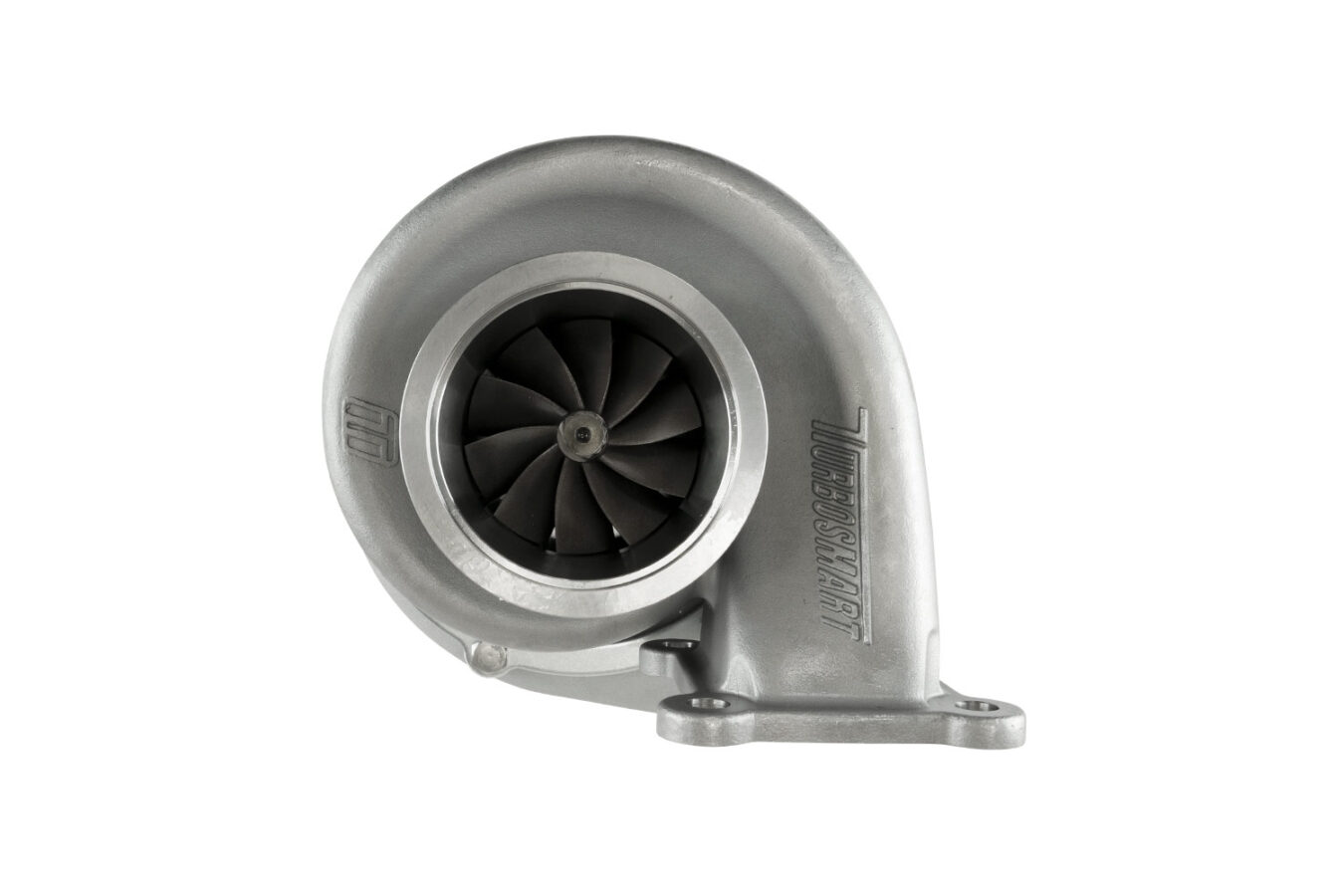

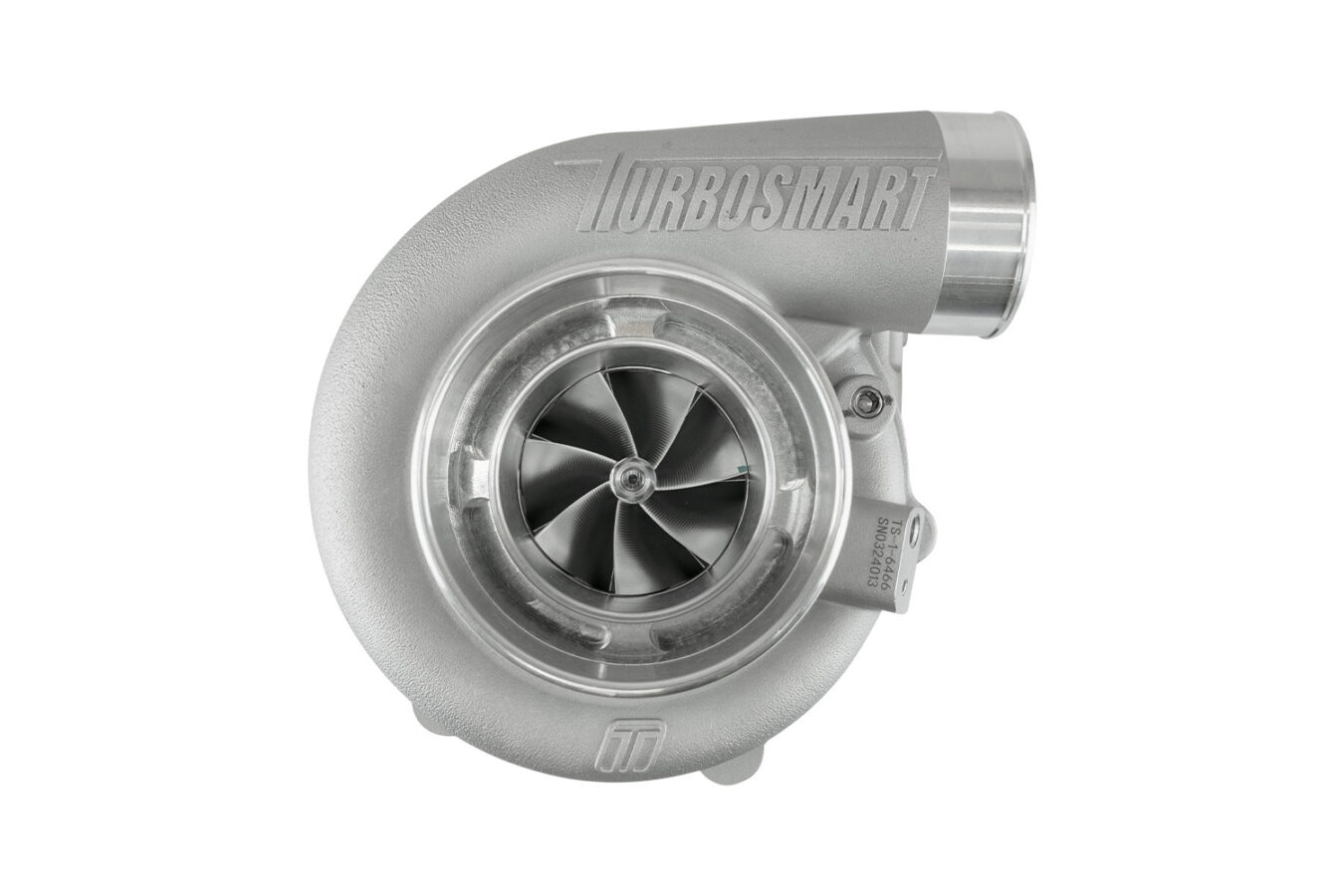

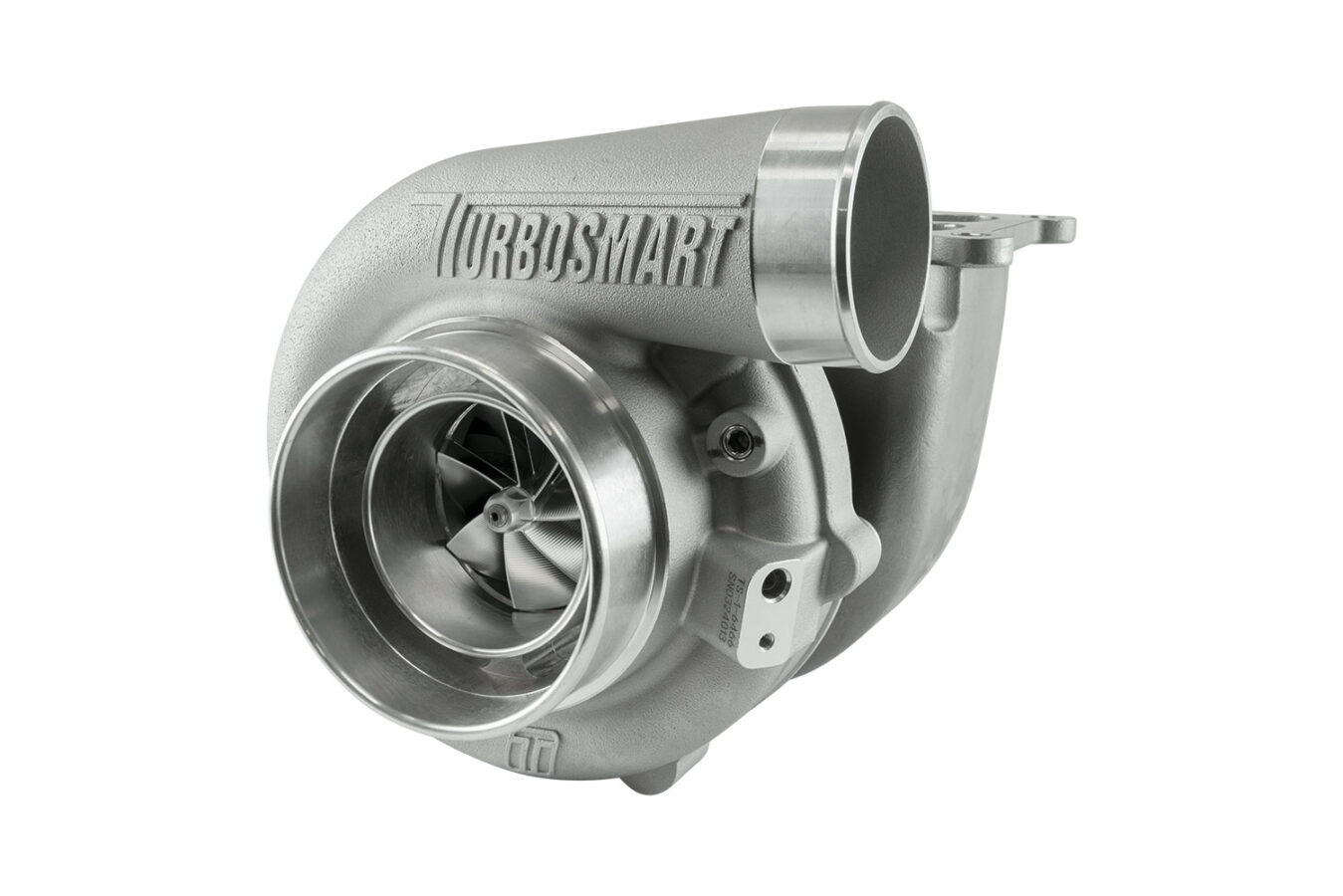

Turbosmart TS-1 Turbocharger 6466 T4 Divided 1.00AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using cutting-edge materials, modern design, and advanced manufacturing techniques to meet the high demands of motorsport and performance enthusiasts alike.

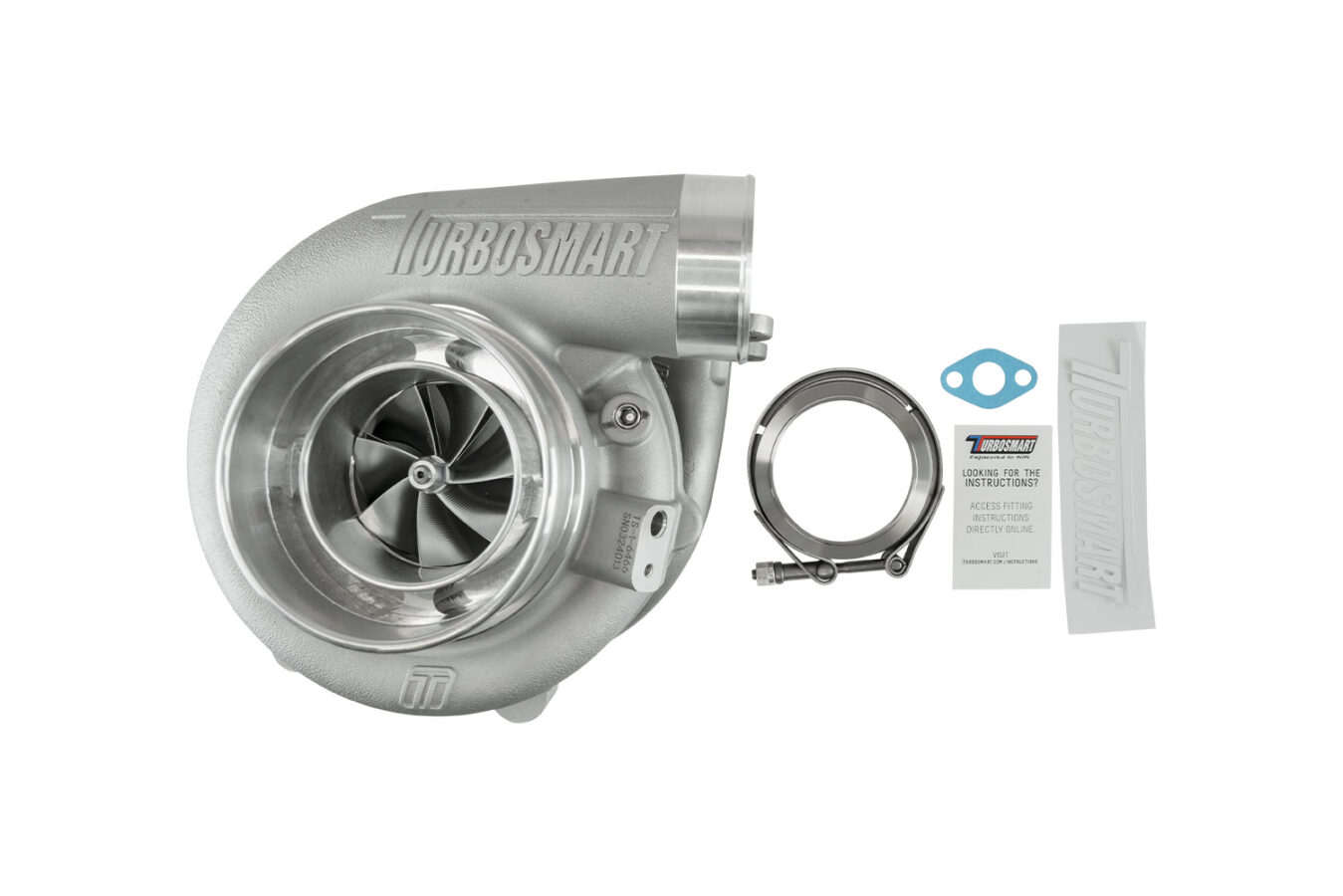

Each turbocharger includes everything needed for installation: weld flanges, V-band clamps, gaskets, oil feed and drain fittings.

The TS-1 Series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft system that delivers unparalleled transient response, along with the performance, reliability, and support you expect from Turbosmart.

Our ultra-low rotating mass bearing assembly is paired with aggressive compressor aerodynamics for top-end performance at lower shaft speeds. A unique turbine wheel ensures consistent power and high flow under heavy loads.

Designed with a complete engine systems approach, Turbosmart turbos provide more power through reduced back pressure and efficient turbine designs—all while being smaller, lighter, and quicker-spooling than traditional options.

Available Configurations

• TS-1 oil-cooled turbochargers

• TS-2 oil & water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R configurations

• Internal or external wastegated options

Key Features

• Lightning-fast transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housing design for maximum flow and ideal A/R

• 713C Inconel turbine wheel rated for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

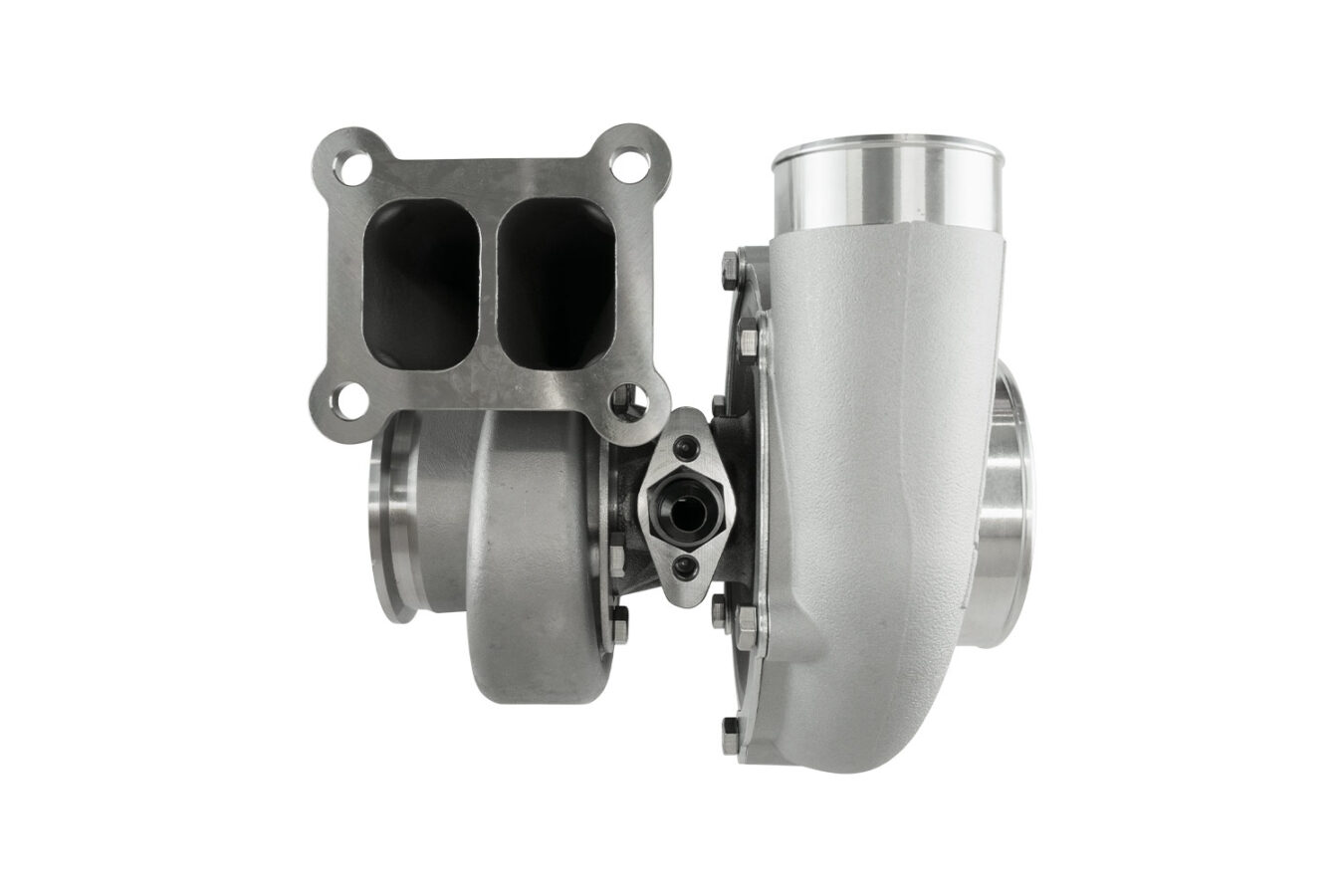

• Turbine Inlet: T4 Divided Flange

• Turbine Exducer: 66 mm

• Turbine A/R: 1.00

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
