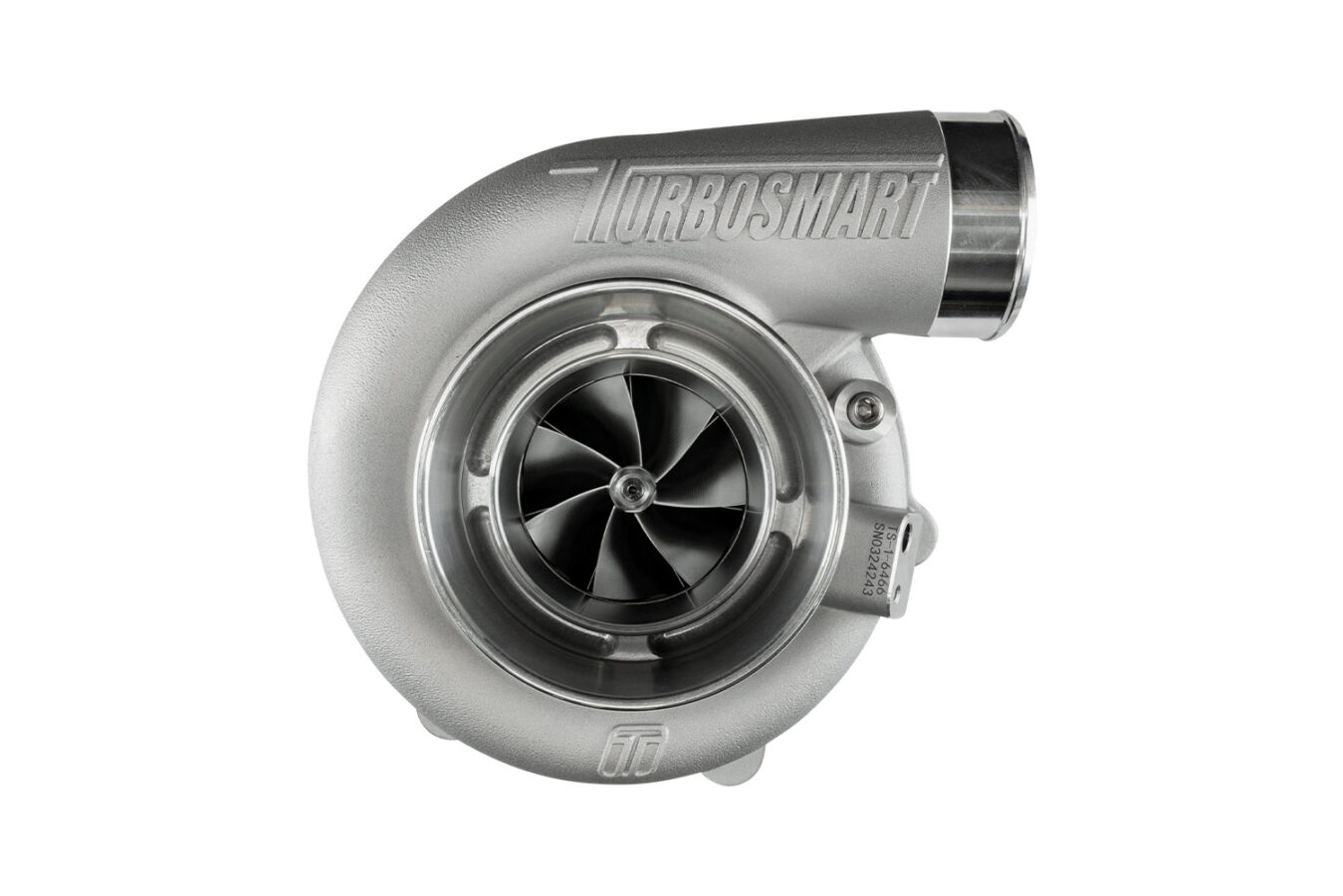

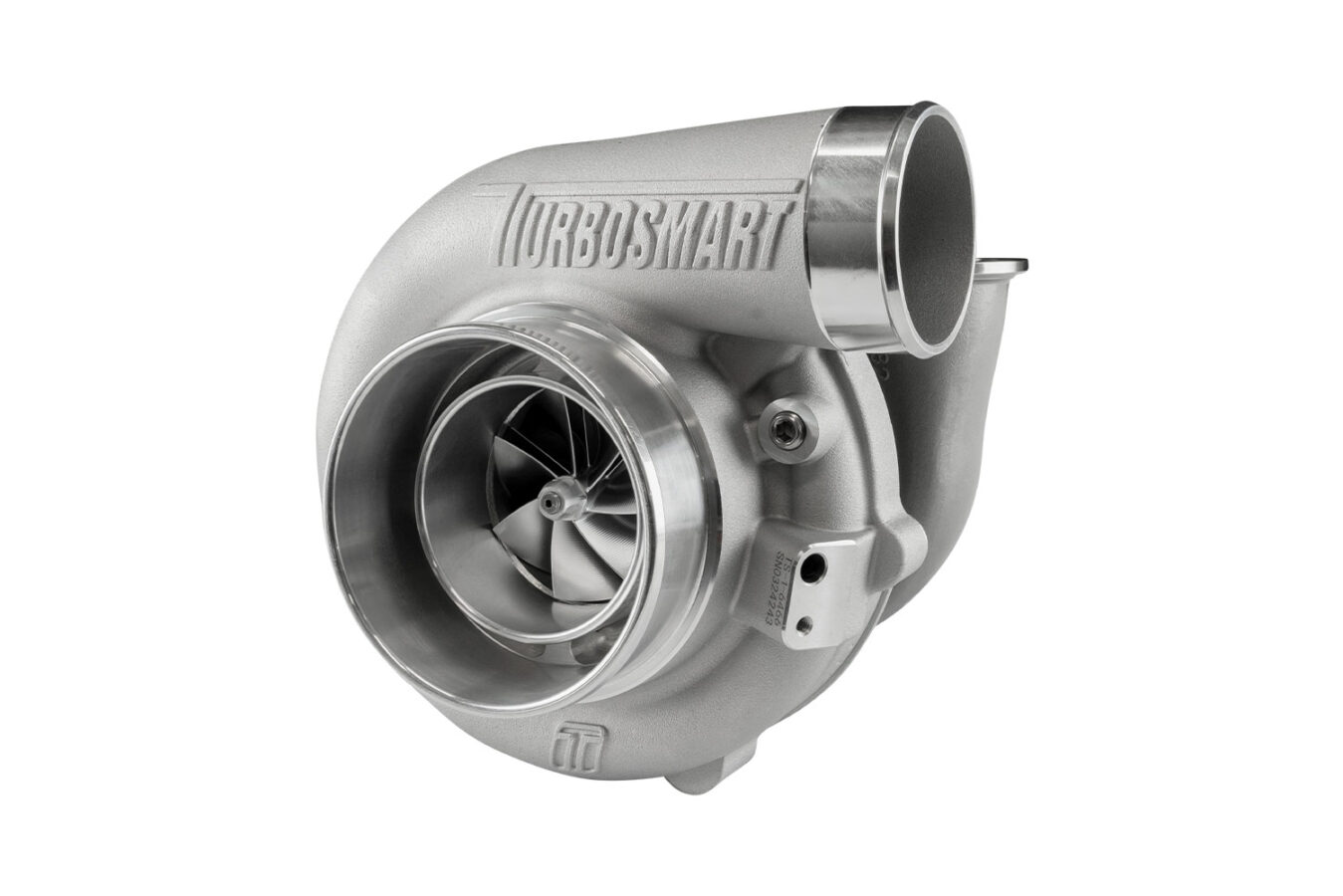

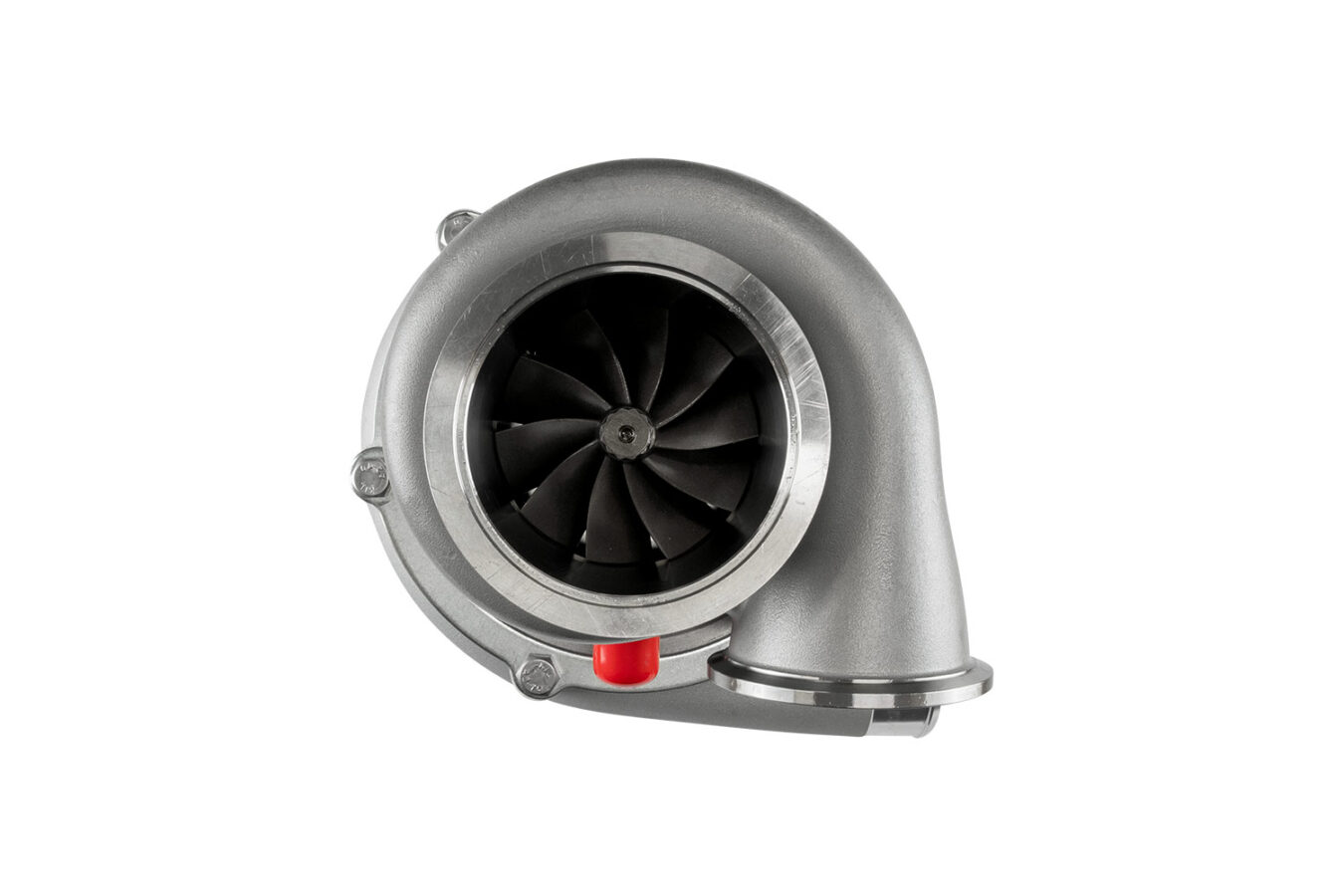

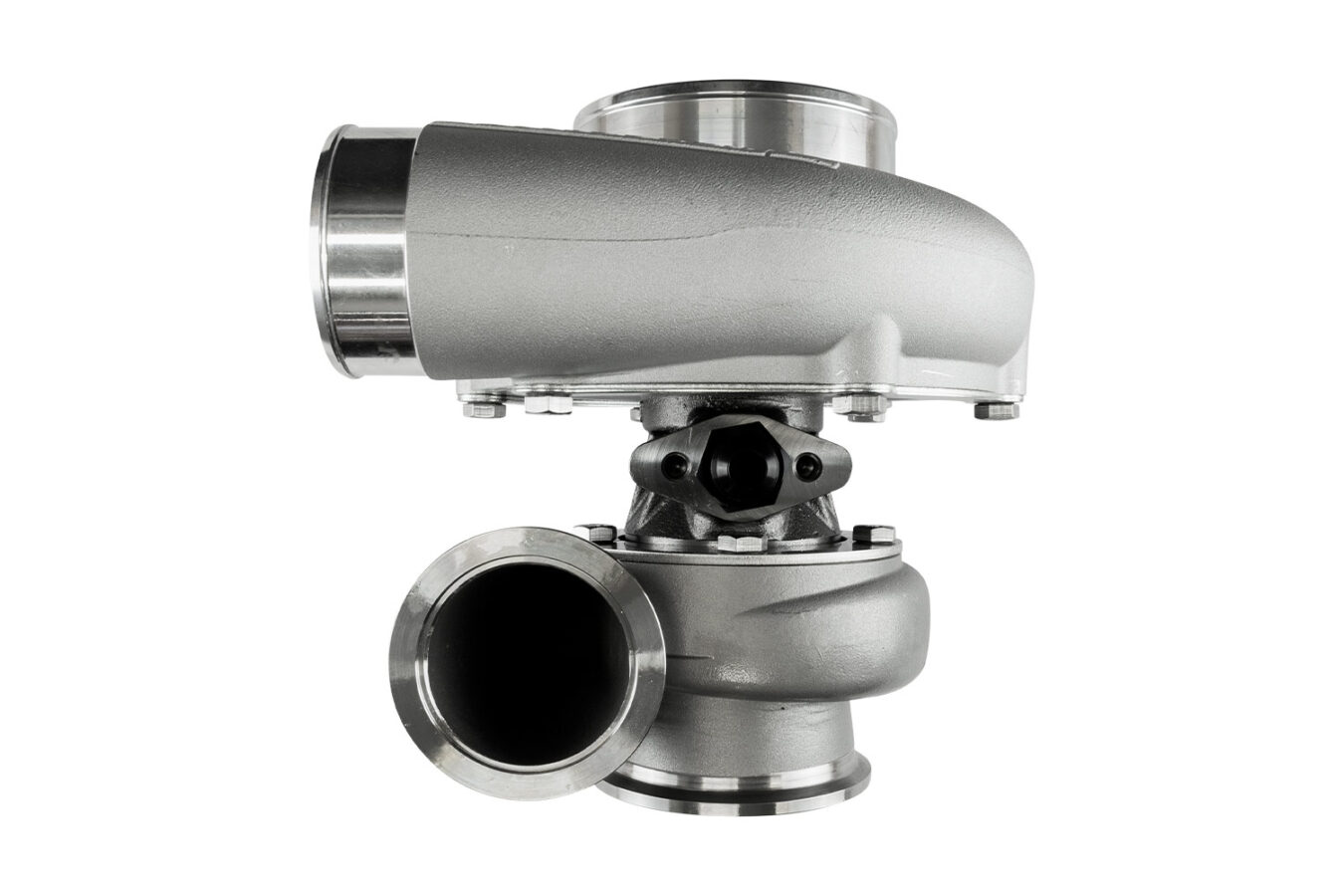

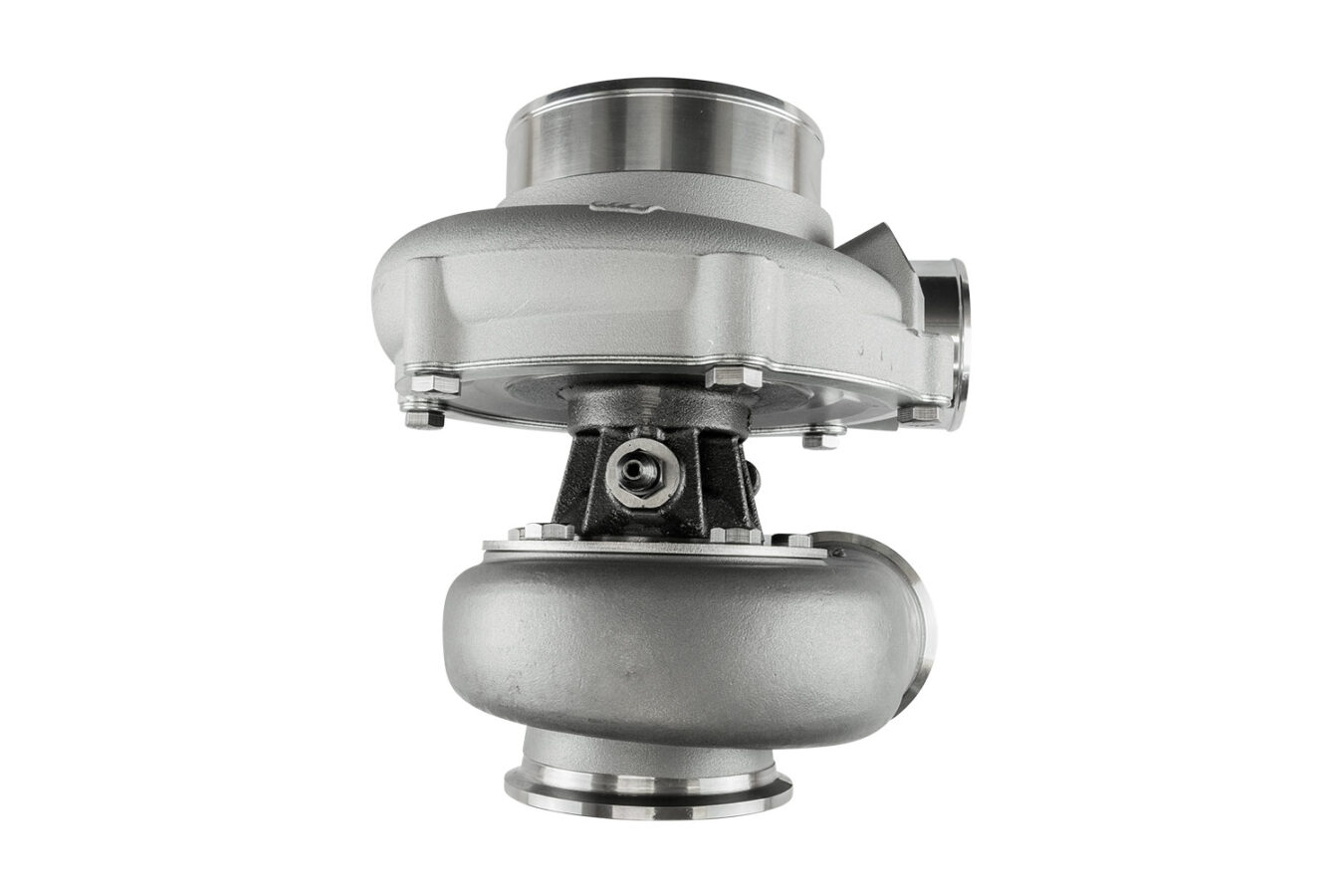

Turbosmart TS-1 Turbocharger 6466 V-Band 0.82AR Externally Wastegated
Smaller. Lighter. Faster. The Turbosmart TS-1 turbocharger series is engineered to deliver peak performance, lightning-fast response, and bulletproof reliability. Developed using advanced materials and cutting-edge design, […]
Smaller. Lighter. Faster.
The Turbosmart TS-1 turbocharger series is engineered to deliver peak performance, lightning-fast response, and bulletproof reliability. Developed using advanced materials and cutting-edge design, this turbo is tailored to meet the high demands of motorsport professionals and performance enthusiasts alike.
Built around a proprietary dual-ceramic bearing system and an ultra-lightweight rotating assembly, the TS-1 6466 achieves lightning-fast spooling with impressive top-end power. The result? A turbocharger that delivers both brutal acceleration and consistent power under load.
Key Features
-
Aggressive Aerodynamics: 7+7 2618 aluminum billet compressor wheel optimized for fast spool and maximum flow
-
Ultra-Responsive Design: Proprietary bearing and shaft assembly ensures unrivaled transient response
-
High-Temperature Durability: 713C Inconel turbine wheel withstands extreme EGTs
-
Lightweight Construction:
-
310S stainless steel investment-cast turbine housing
-
Aluminum compressor cover for weight savings
-
-
Optimized Flow: CFD-designed housings maximize flow and reduce backpressure
-
Balanced for Precision: VSR-speed balanced for reliable high-performance operation
-

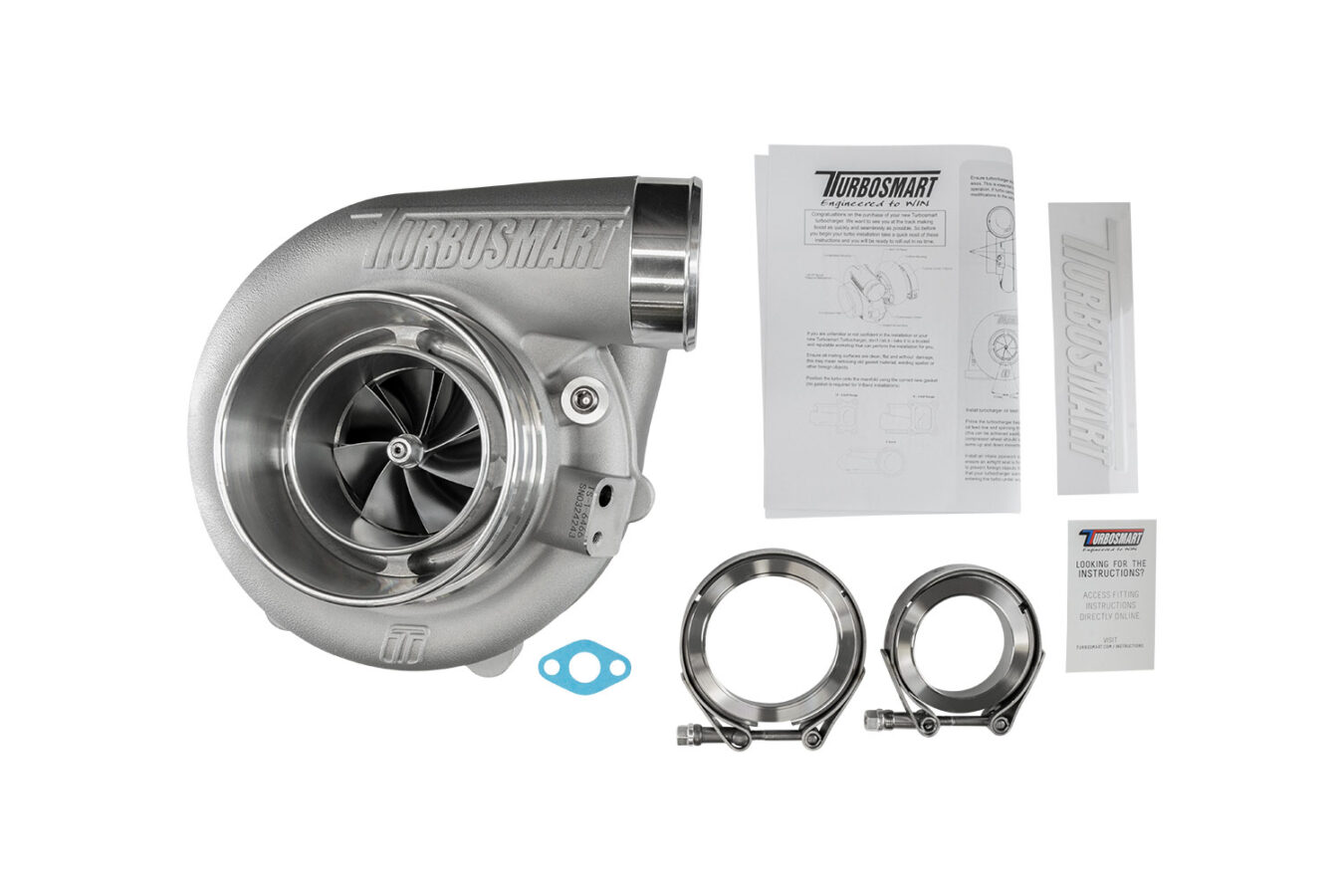

Ready to Install: Includes weld flanges, V-band clamps, gaskets, oil feed and drain fittings
Available Options
-
Cooling Types:
-
TS-1: Oil-cooled
-
TS-2: Oil and water-cooled
-
-
Flange Types: V-Band, T3, and T4
-
Orientation: Standard and reverse rotation (select sizes)
-
Wastegate Options: Internal or external
-
AR Variants: Multiple options available for optimal fitment and tuning
Specifications
-
Compressor Inlet: 4″ (101.6mm)
-
Compressor Inducer: 64mm
-
Turbine Inlet: V-Band (2.25″)
-
Turbine Exducer: 66mm
-
Turbine Outlet: V-Band (3.00″)
-
AR: 0.82
-
Weight: 6.06kg / 13.3 lbs
-
Horsepower Rating: 825–955 HP
Turbosmart turbochargers are built for those who demand more — faster spool, harder hits, and longer durability. Whether you’re chasing time slips or carving canyon roads, the TS-1 6466 delivers the boost you need.
