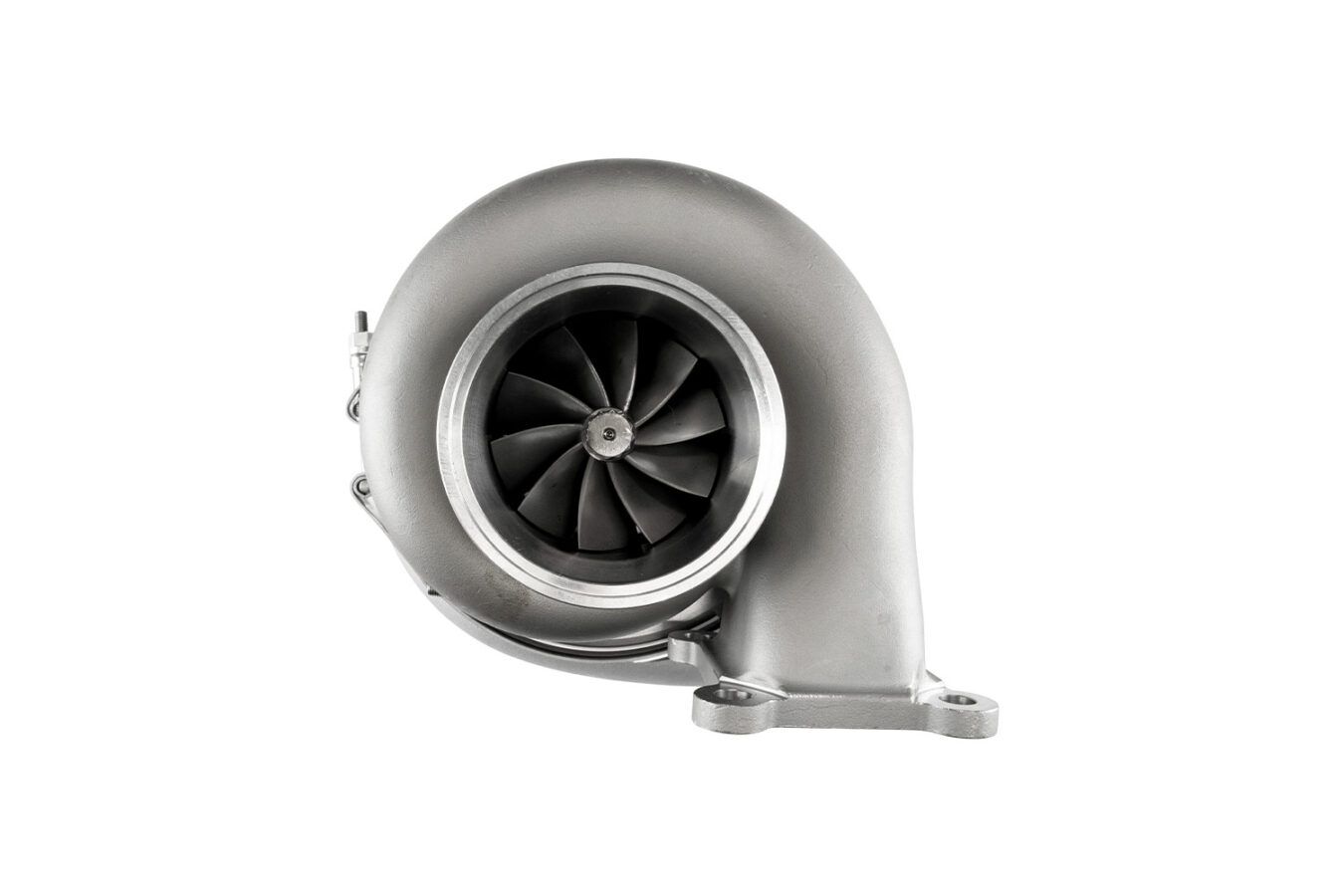

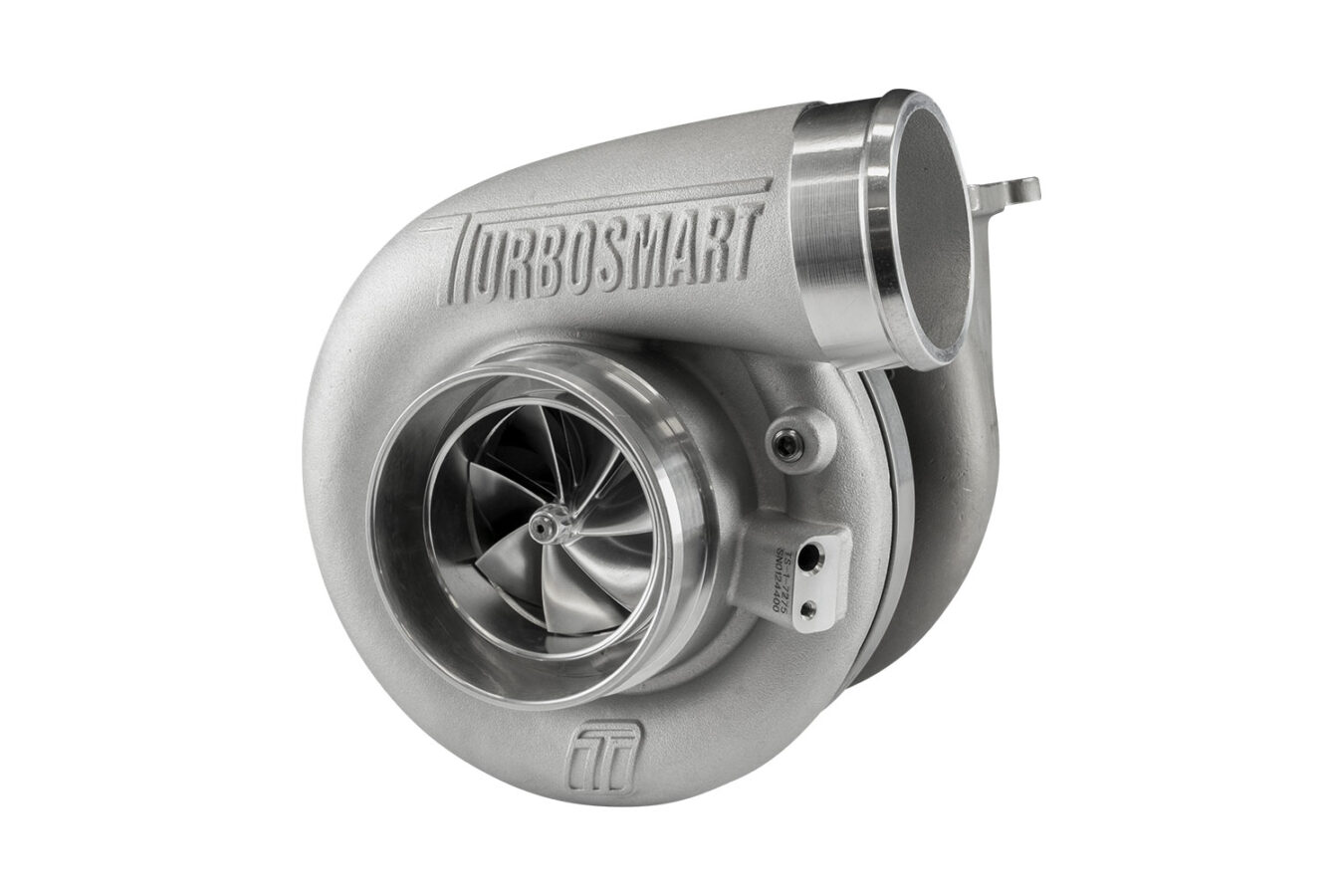

Turbosmart TS-1 Turbocharger 7275 T4 0.96AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using advanced materials, precision design, and modern manufacturing to meet the demands of both motorsport and performance enthusiasts.

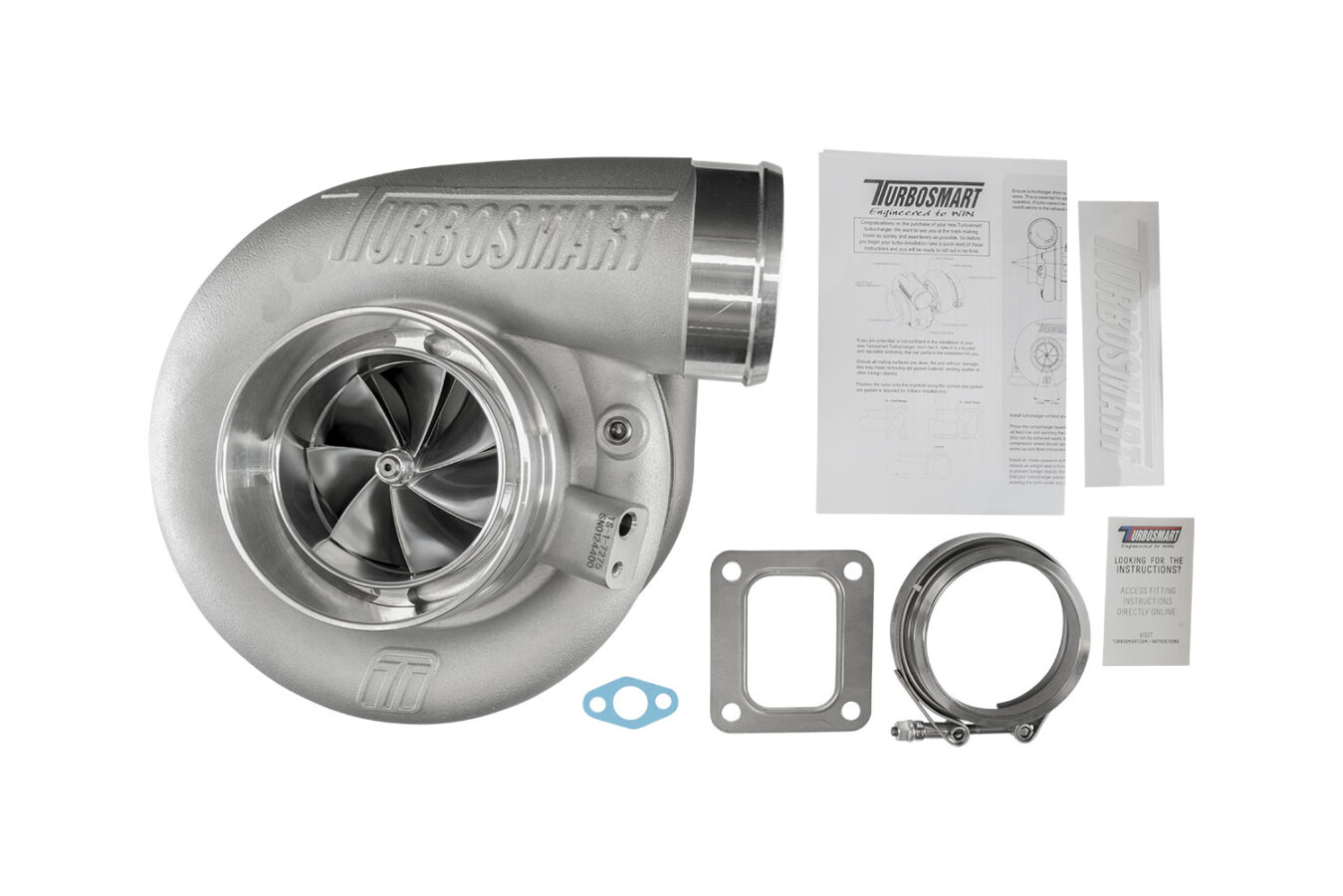

Every Turbosmart turbo comes complete with all essential installation hardware, including:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and shaft combo, delivering lightning-fast transient response and the quality, reliability, and performance Turbosmart is known for.

An ultra-low rotating mass combined with aggressive compressor aerodynamics ensures high performance at lower shaft speeds while maintaining flow and power under heavy load. Designed with a full-engine approach, these turbos reduce back pressure and improve output—all in a smaller, lighter, and faster package.

Available Configurations

• TS-1: Oil-cooled turbochargers

• TS-2: Oil + water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal and external wastegate options

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment-cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 72mm

• Turbine Inlet: T4

• Turbine Exducer: 75mm

• Turbine A/R: 0.96

• Turbine Outlet: V-Band (3.50″)

• Weight: 9.63 kg / 20.23 lbs

• Horsepower Rating: 1050–1240 HP
