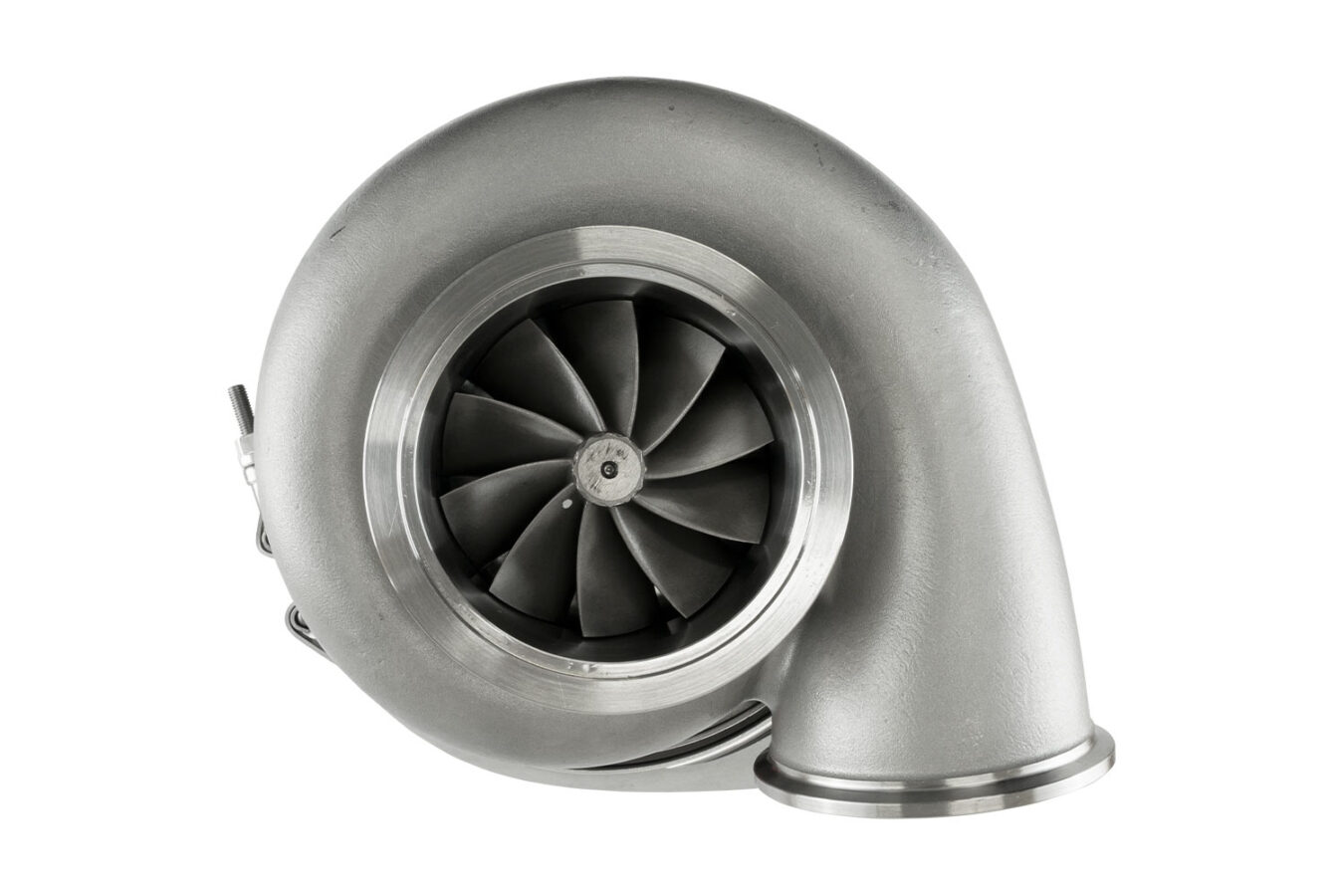

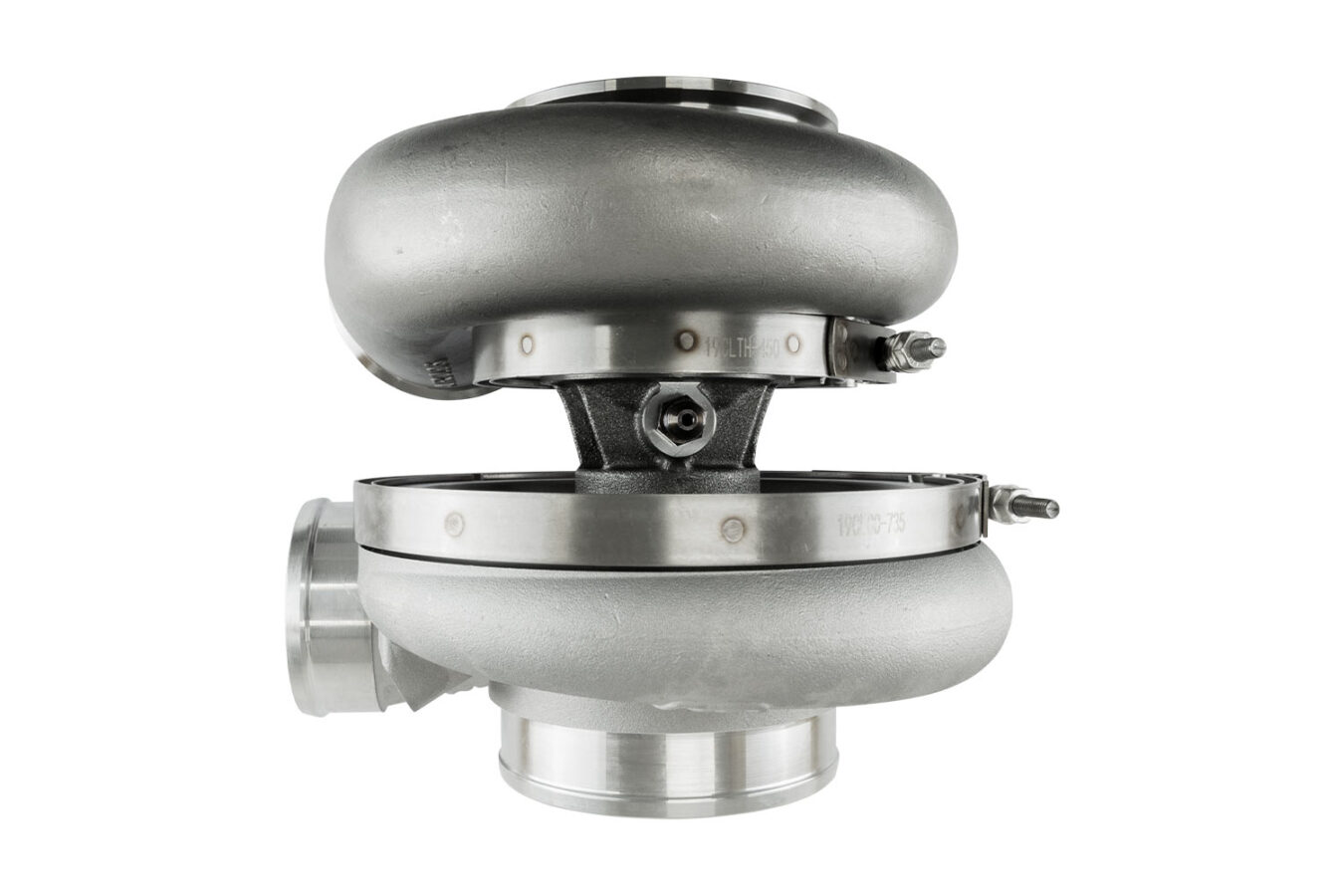

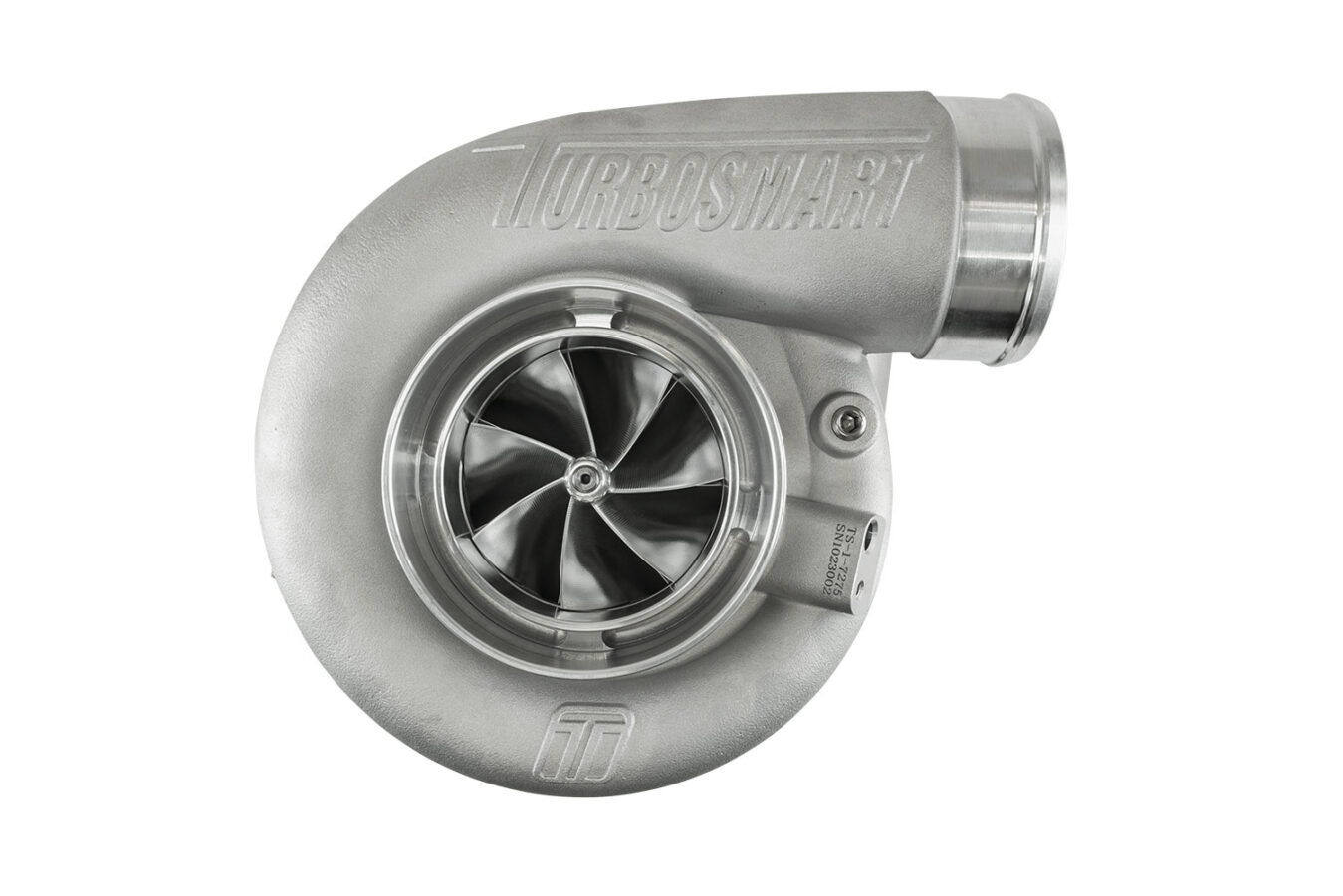

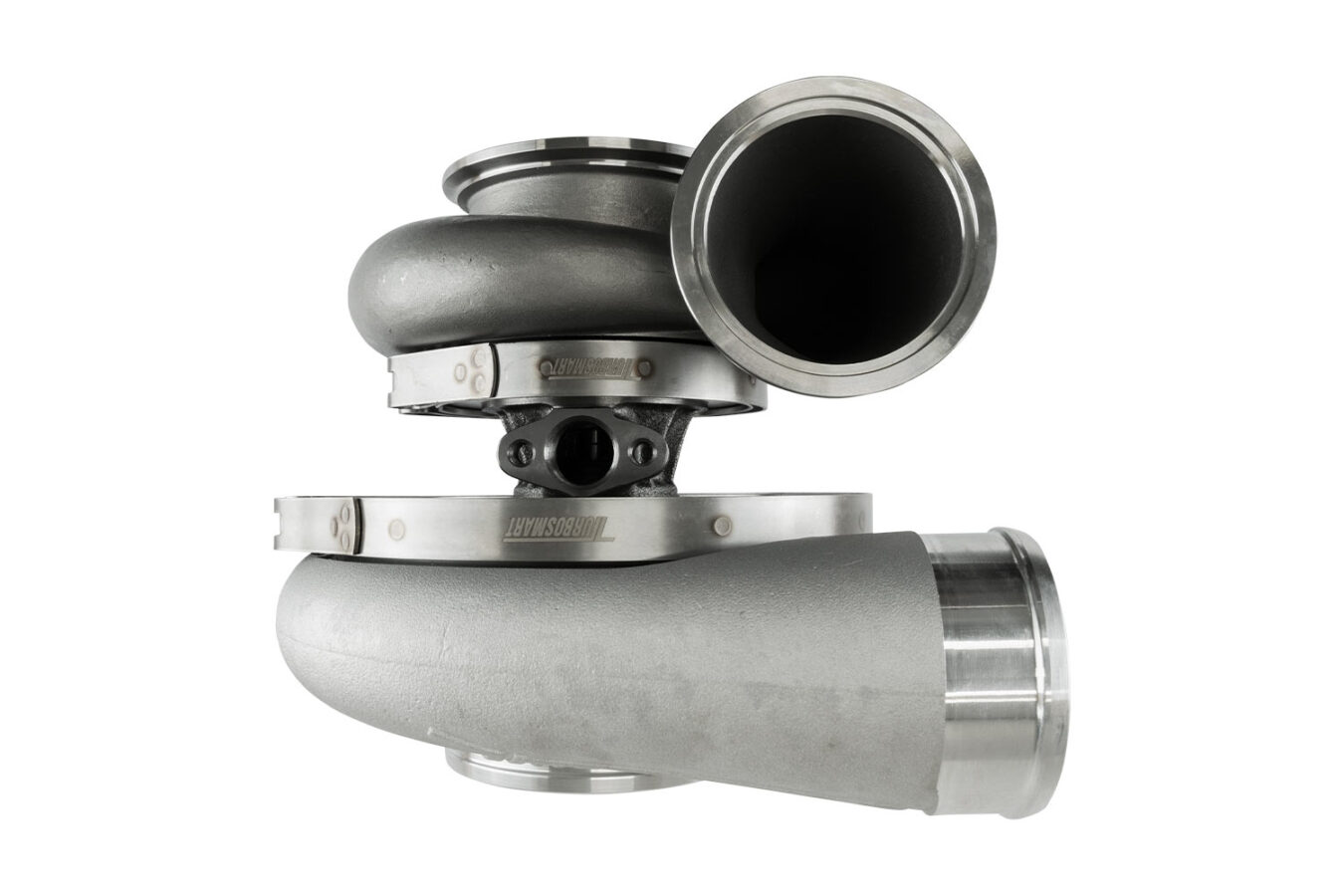

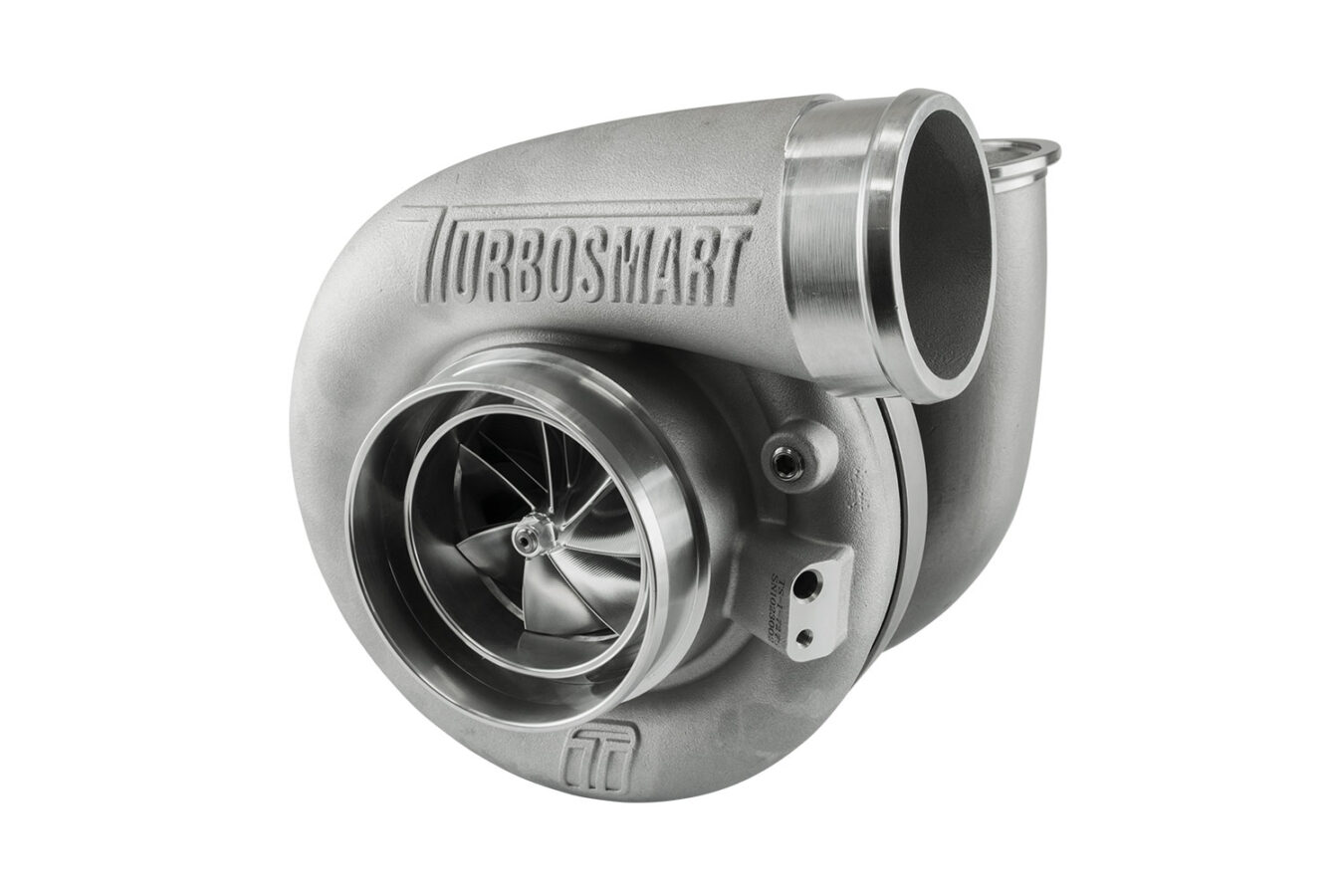

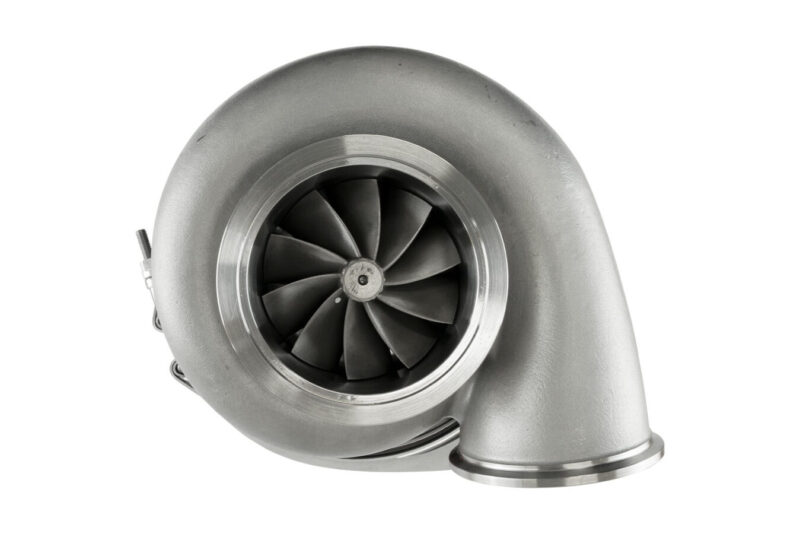

Turbosmart’s turbocharger series is built using advanced materials, cutting-edge design, and precision manufacturing to meet the high-performance demands of motorsport and performance enthusiasts alike.

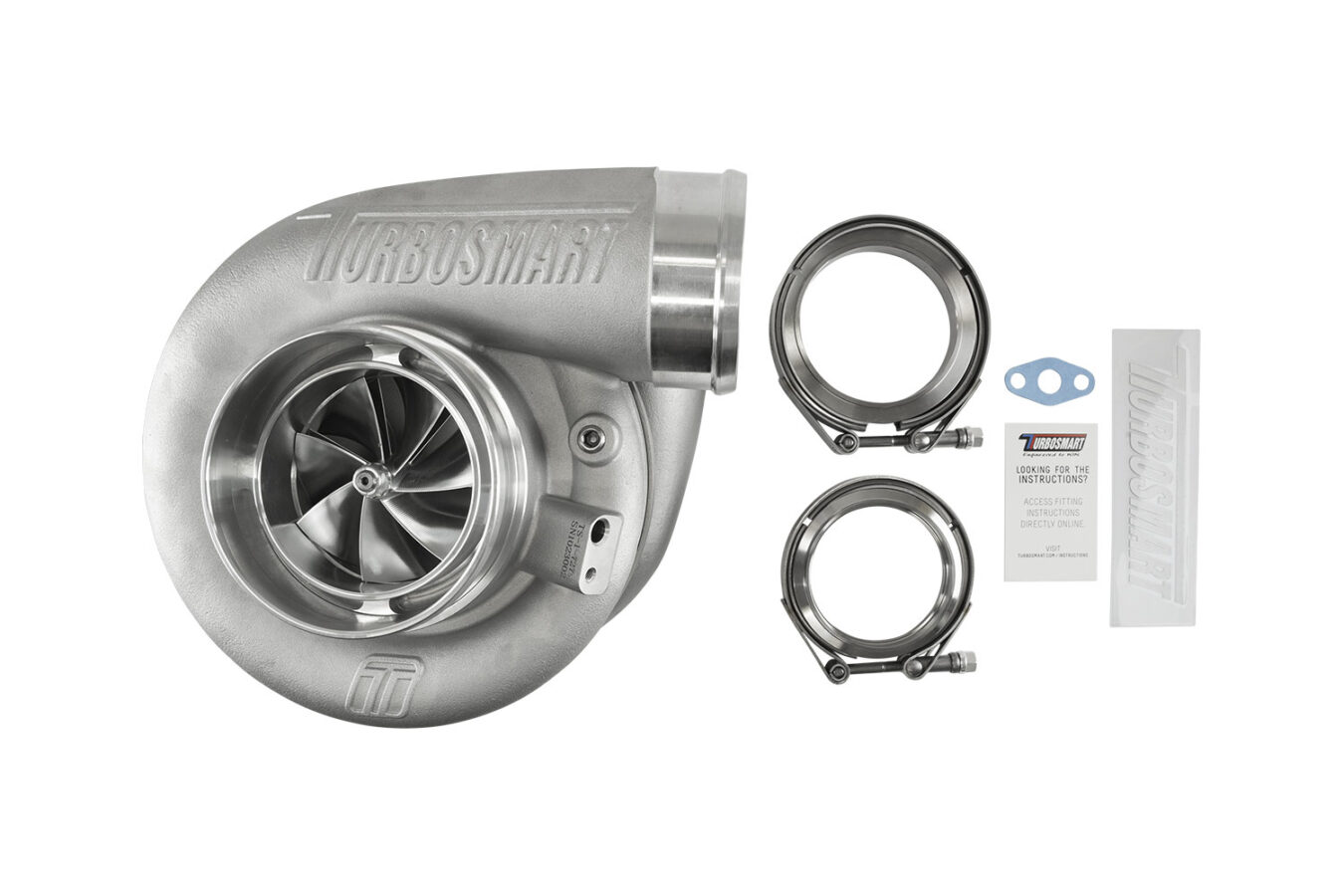

Each Turbosmart turbocharger includes all necessary components for installation: weld flanges, V-band clamps, gaskets, oil feed, and drain fittings.
The TS-1 series features oil-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft combo. This delivers an ultra-responsive, high-performance experience backed by Turbosmart’s renowned reliability and support.
A unique low-mass rotating assembly is paired with aggressive compressor aerodynamics, ensuring maximum performance at low shaft speeds. Its custom turbine wheel maintains power and flow at high loads.
Designed with an engine end-to-end philosophy, all Turbosmart turbos aim to reduce back pressure and boost efficiency—while being smaller, lighter, and quicker in response than the competition.
Available In
-
TS-1 oil-cooled turbochargers
-
TS-2 oil + water-cooled turbochargers
-
V-Band, T3, and T4 flange options
-
Reverse rotation (selected sizes)
-
Multiple A/R options
-
Internal or external wastegate configurations
Key Features
-
Exceptional transient response
-
7+7 2618 aluminum splitter compressor wheels
-
Lightweight 310S stainless investment-cast turbine housings
-
Lightweight aluminum compressor covers
-
CFD-optimized housings for flow and A/R
-
713C Inconel turbine wheel for extreme EGTs
-
VSR speed balanced
-
Dual ceramic bearing system (proprietary)
-
Integrated iron backplate on center housing
Specifications
-
Compressor Inlet: 4″ / 101.6mm
-
Compressor Inducer: 72mm
-
Turbine Inlet: V-Band (3.00″)
-
Turbine Exducer: 75mm
-
Turbine A/R: 0.96
-
Turbine Outlet: V-Band (3.50″)
-
Weight: 9.63kg / 20.23lbs
-
Horsepower Rating: 1050–1240 HP
