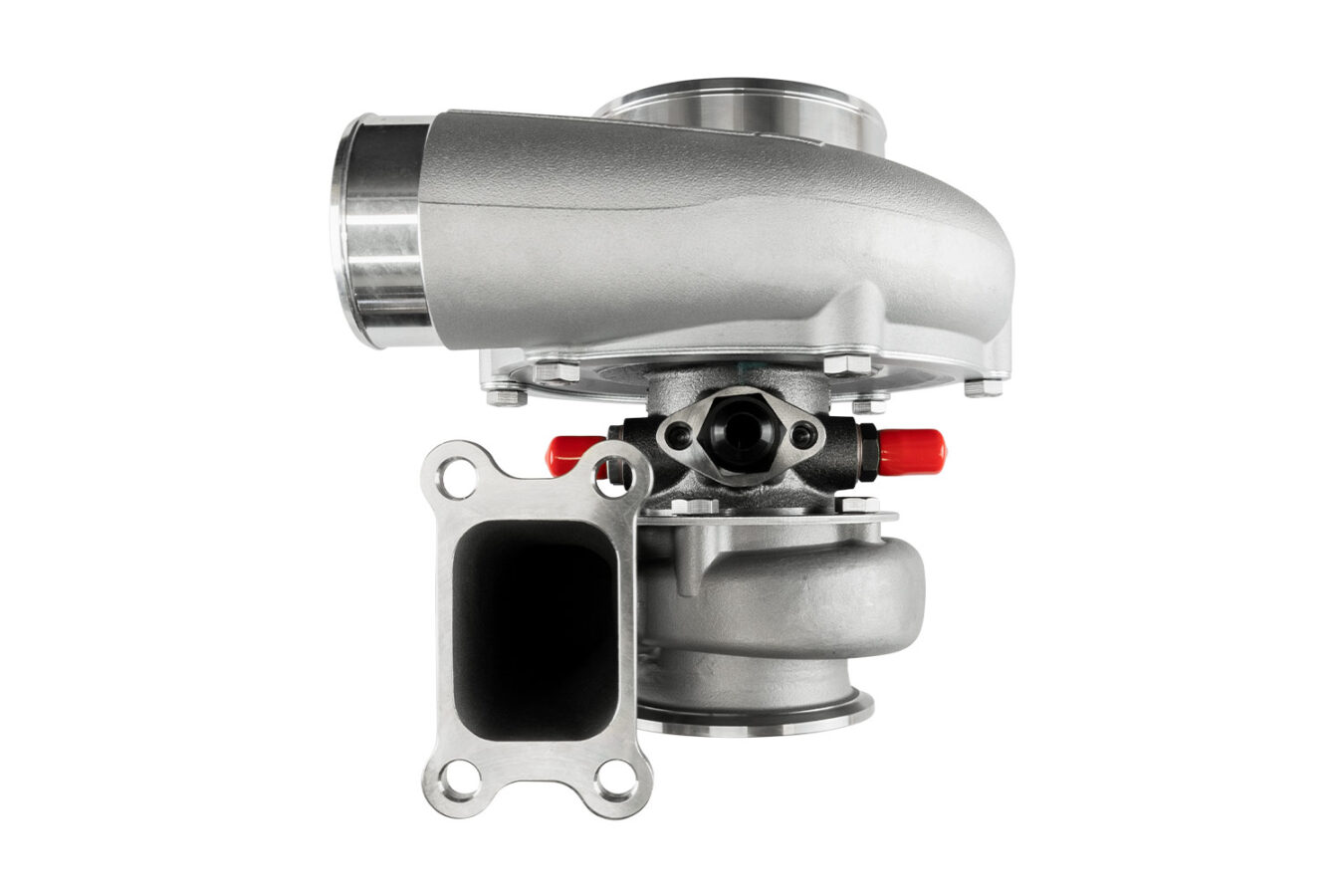

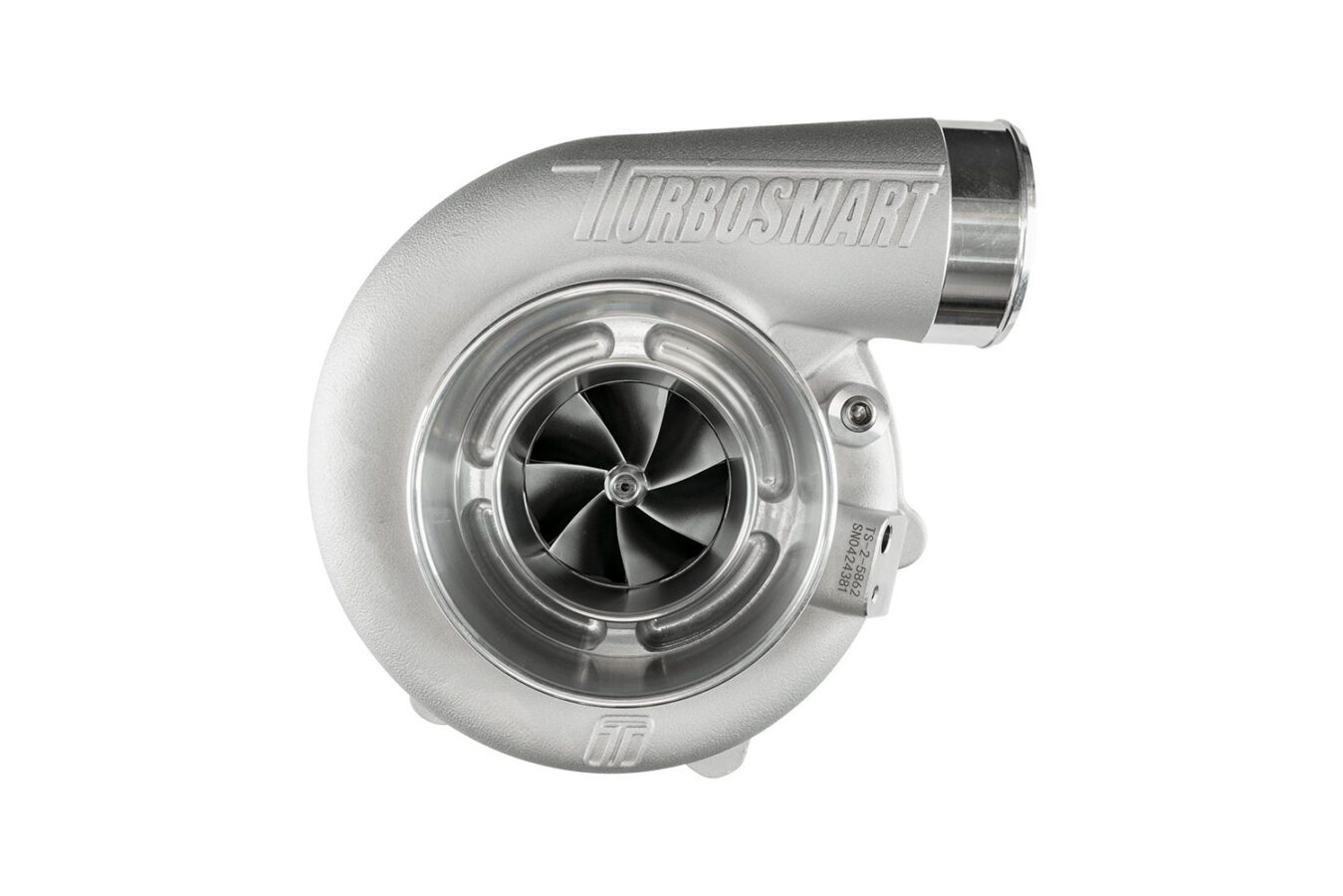

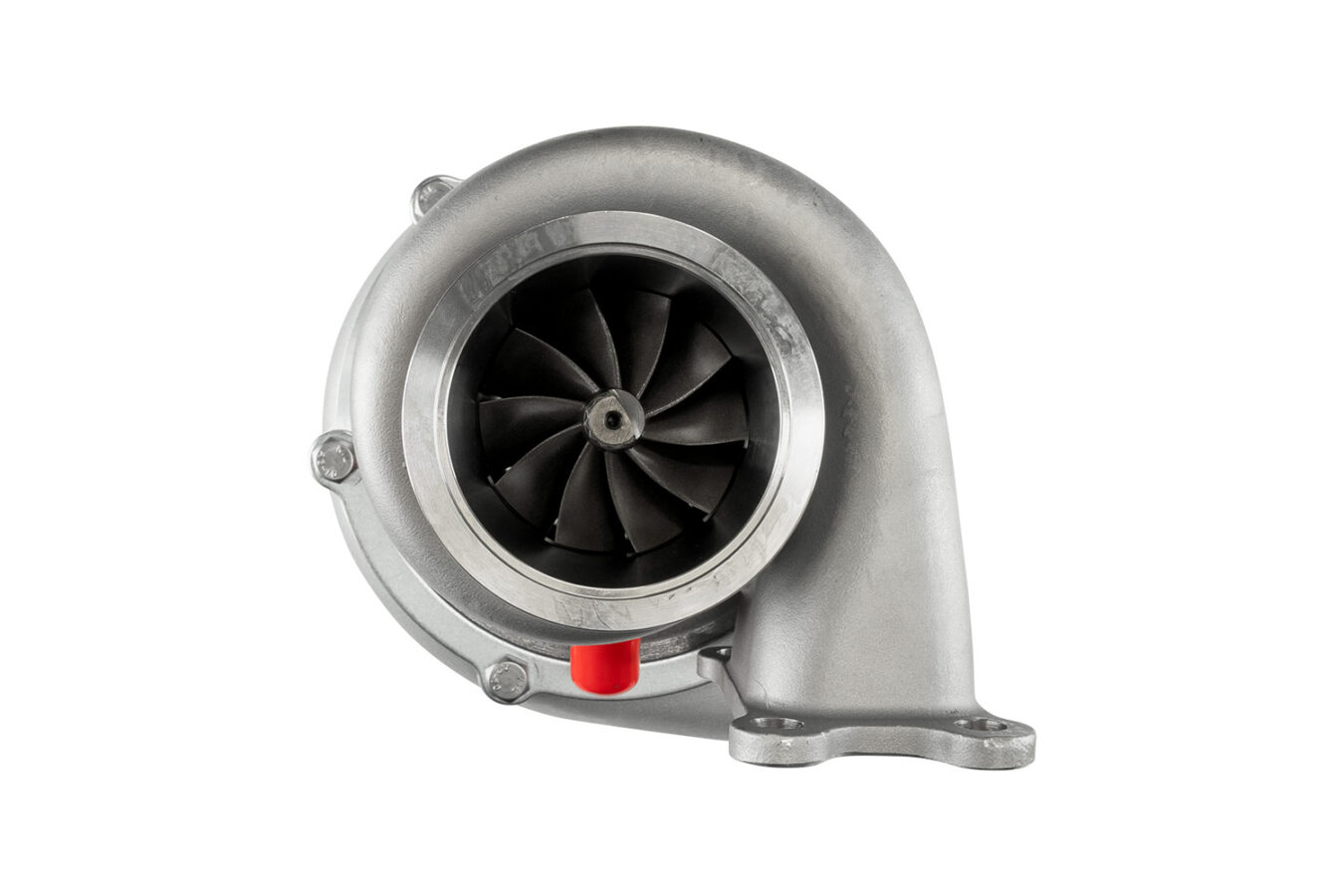

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 5862 T3 0.63AR Externally Wastegated

Turbosmart’s turbocharger series is built using advanced materials, precision design, and modern manufacturing to meet the high-performance demands of motorsport and street enthusiasts alike.

Each turbocharger comes standard with all necessary installation components, including:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings (TS-2 only)

TS-2 Series Overview

• Cooling: Oil and water-cooled

• Housing: Lightweight investment-cast turbine housing

• Core: Proprietary bearing and shaft system for unmatched transient response

• Design: Aggressive compressor aerodynamics paired with ultra-low rotating mass

• Performance: Optimized for power at high loads and exceptional flow efficiency

• Approach: Engineered from end to end for reduced backpressure and lightning-fast response

Available Options

• TS-1: Oil-cooled

• TS-2: Oil & water-cooled

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R configurations

• Internal & external wastegate options

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for precise A/R and flow

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed-balanced for reliability

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.63

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
