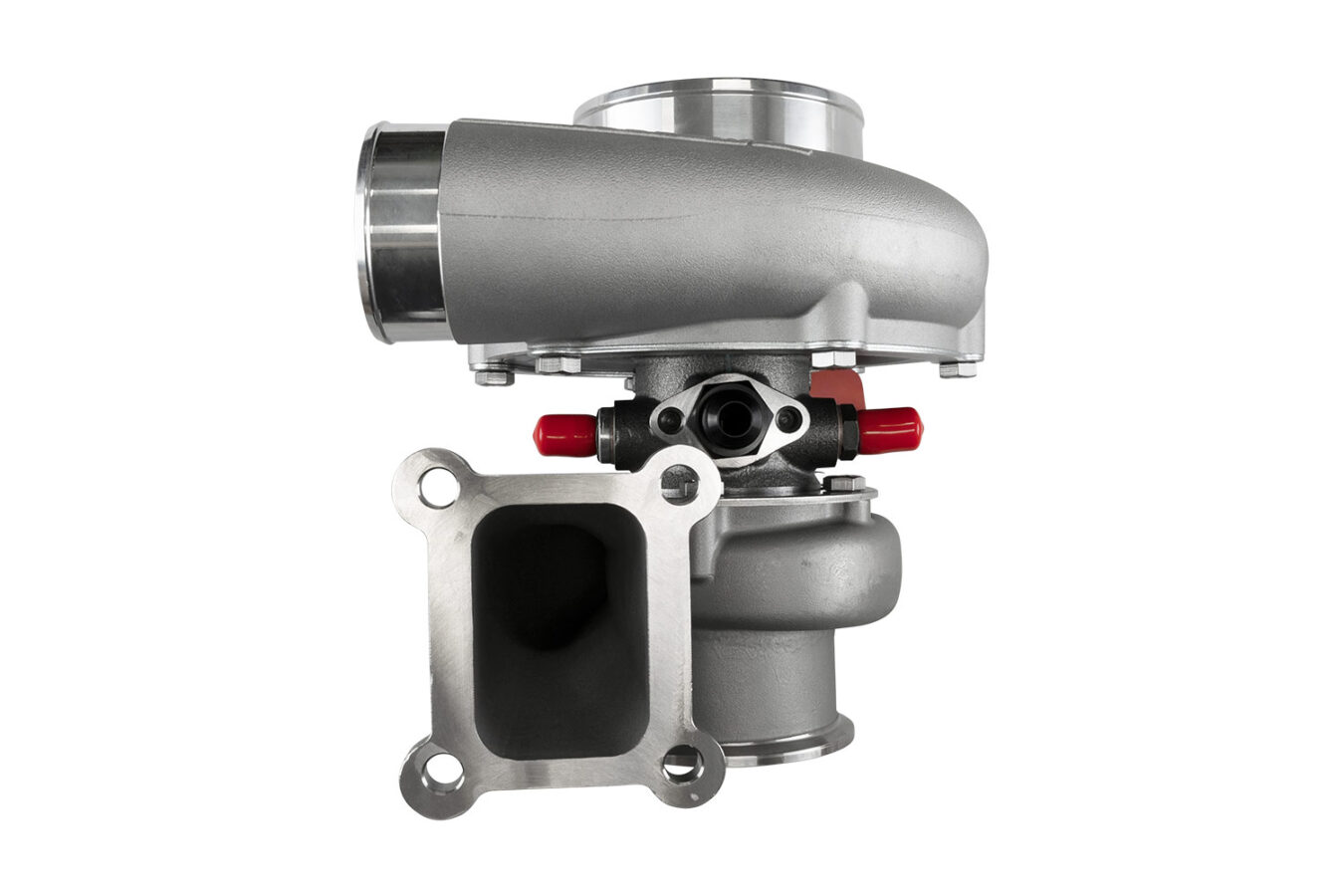

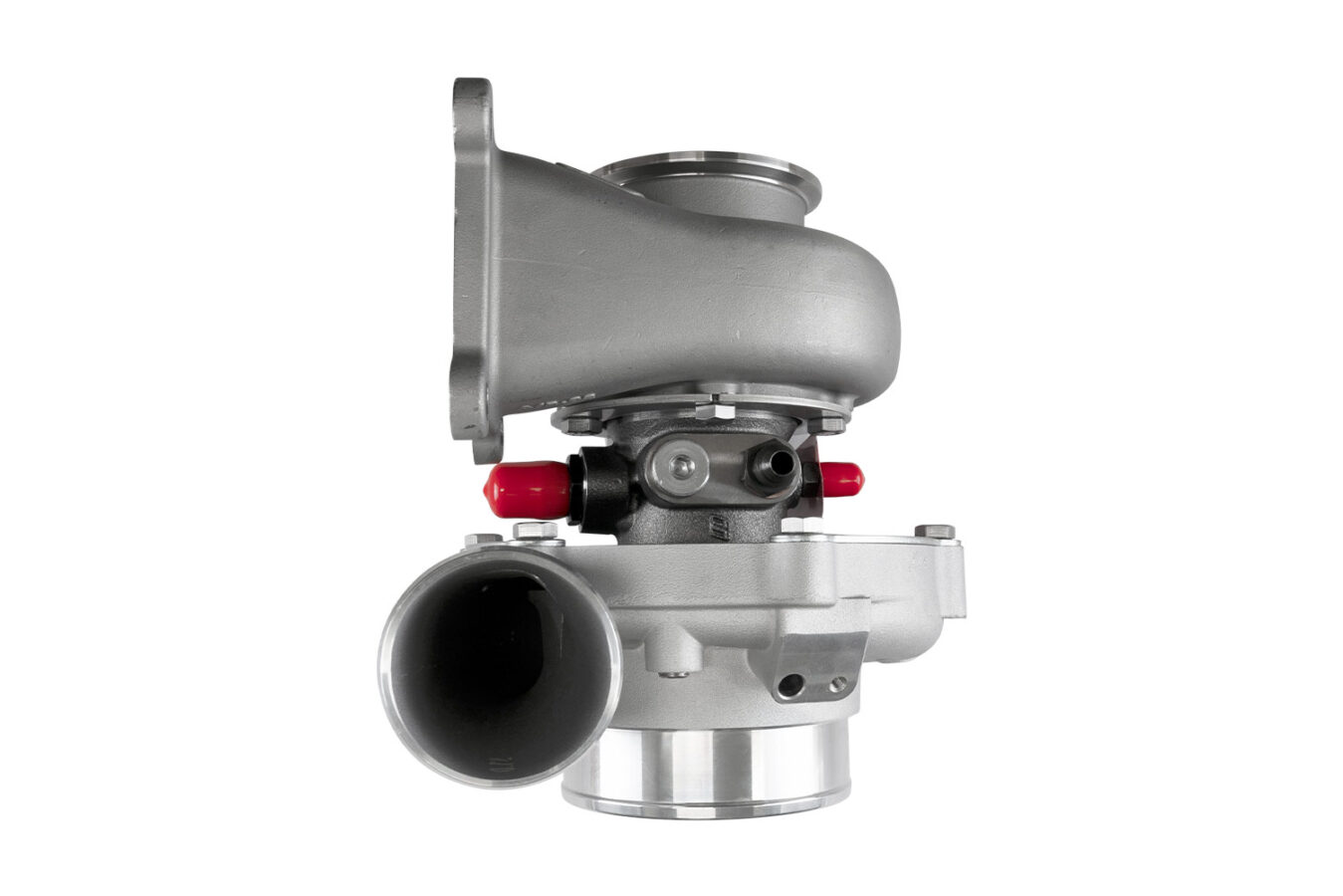

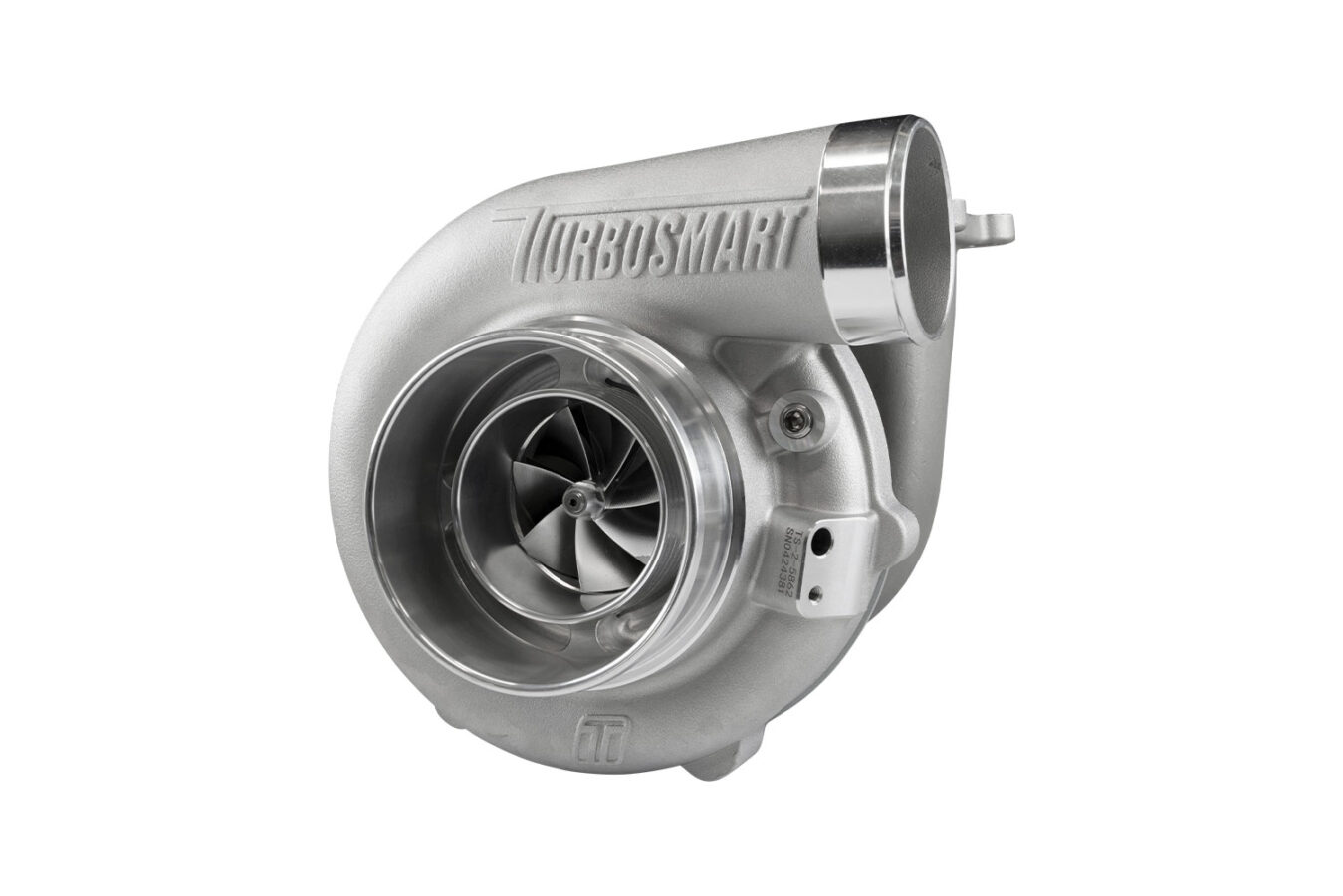

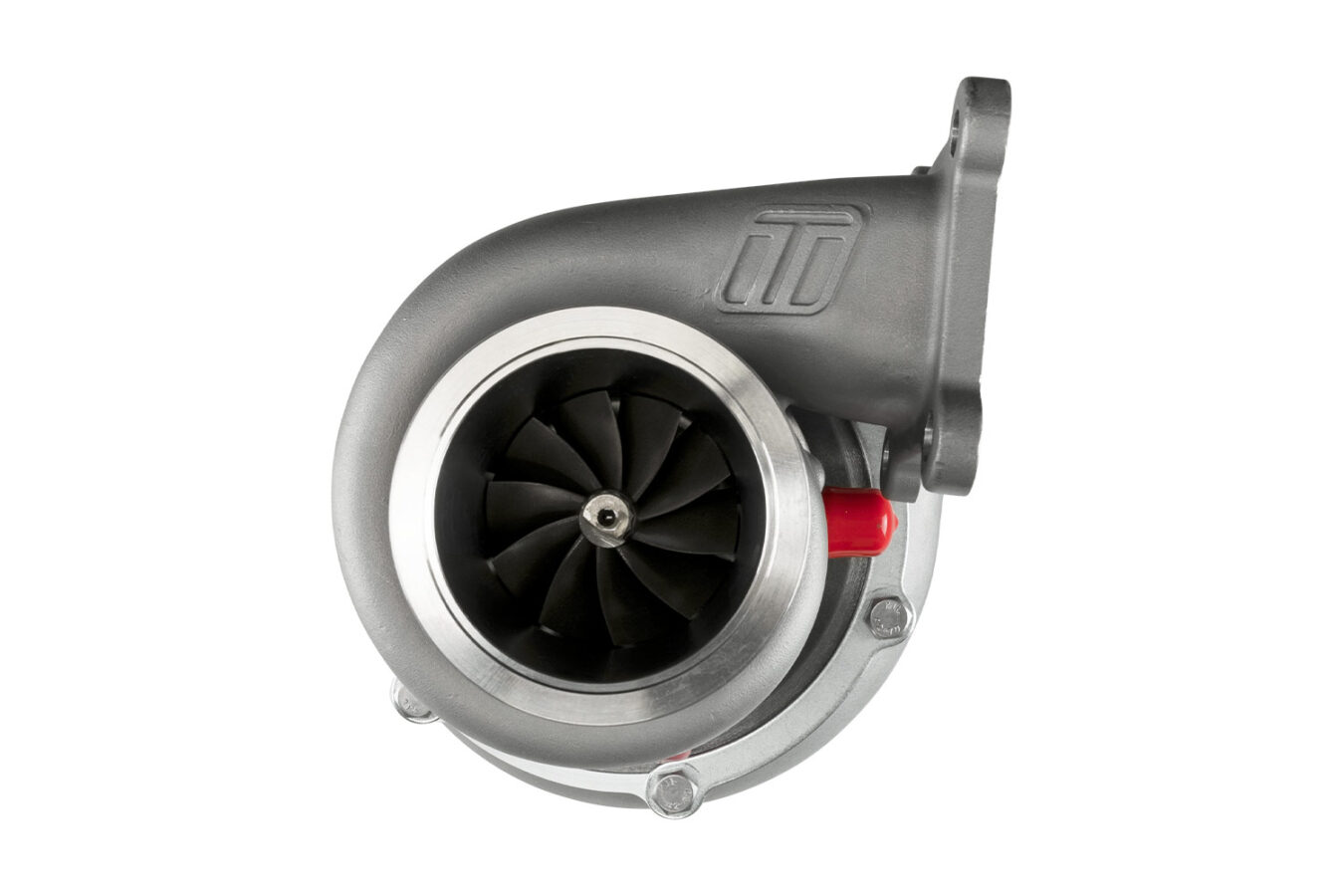

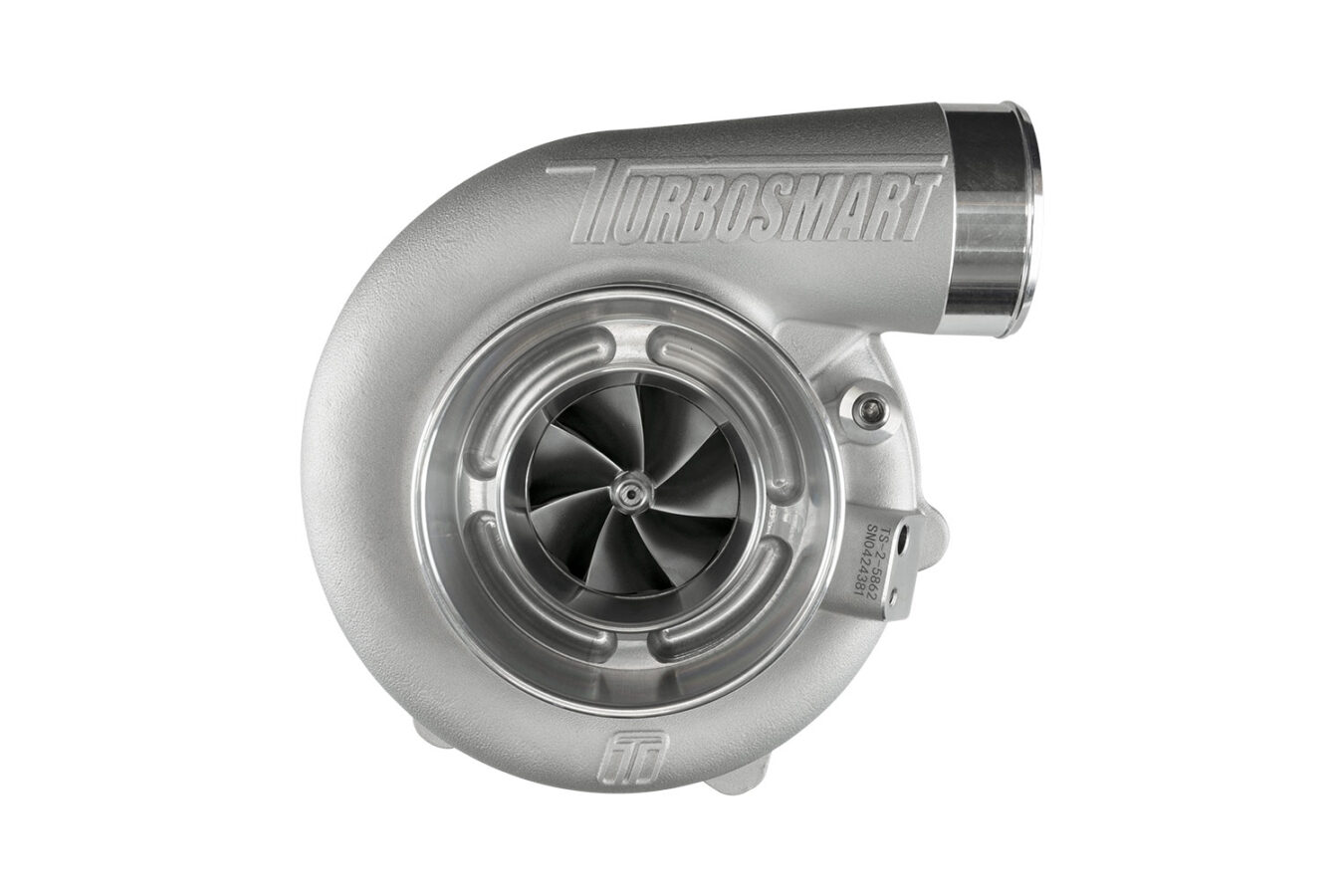

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 5862 T4 0.82AR Externally Wastegated

Turbosmart’s turbocharger series is engineered using advanced materials, cutting-edge design, and modern manufacturing to meet the high demands of motorsport and performance enthusiasts.

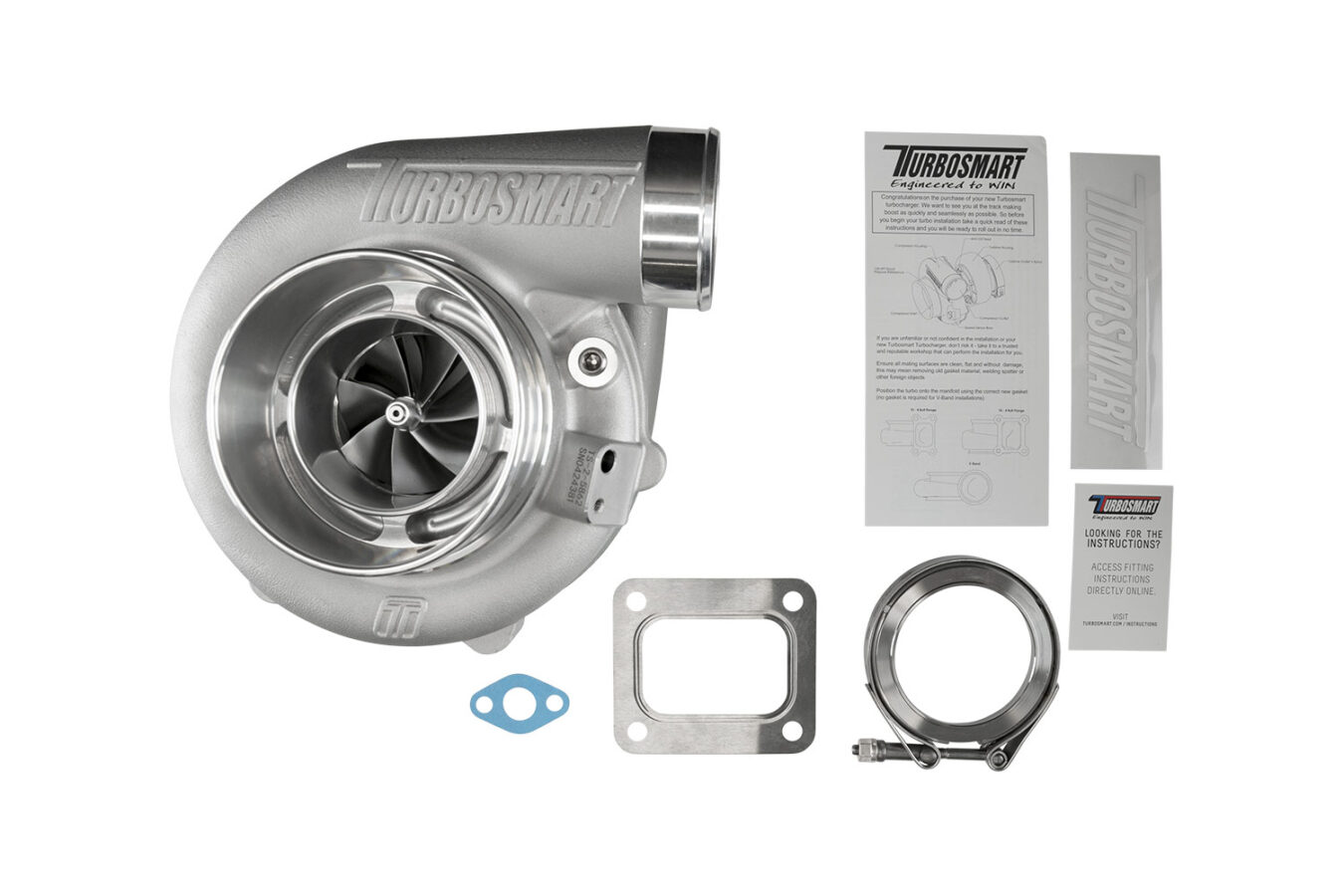

Every Turbosmart turbocharger includes all necessary installation hardware:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed & drain fittings

• Water feed & return fittings

The TS-2 Series features both oil and water cooling, lightweight investment cast turbine housings, and a proprietary bearing and shaft assembly that delivers rapid transient response, power, and unmatched reliability.

With ultra-low rotating mass and aggressive compressor aerodynamics, the TS-2 ensures excellent low-speed performance and sustained flow at high loads. The entire series is built with an end-to-end engine approach—maximizing power through reduced backpressure and advanced turbine efficiency—all in a compact, responsive package.

Available Configurations

• TS-1: Oil-cooled turbochargers

• TS-2: Oil & water-cooled turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R configurations

• Internal or external wastegate compatibility

Key Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and flow

• 713C Inconel turbine wheel for extreme EGTs

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 58 mm

• Turbine Inlet: T4 Flange

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 725–835 HP
