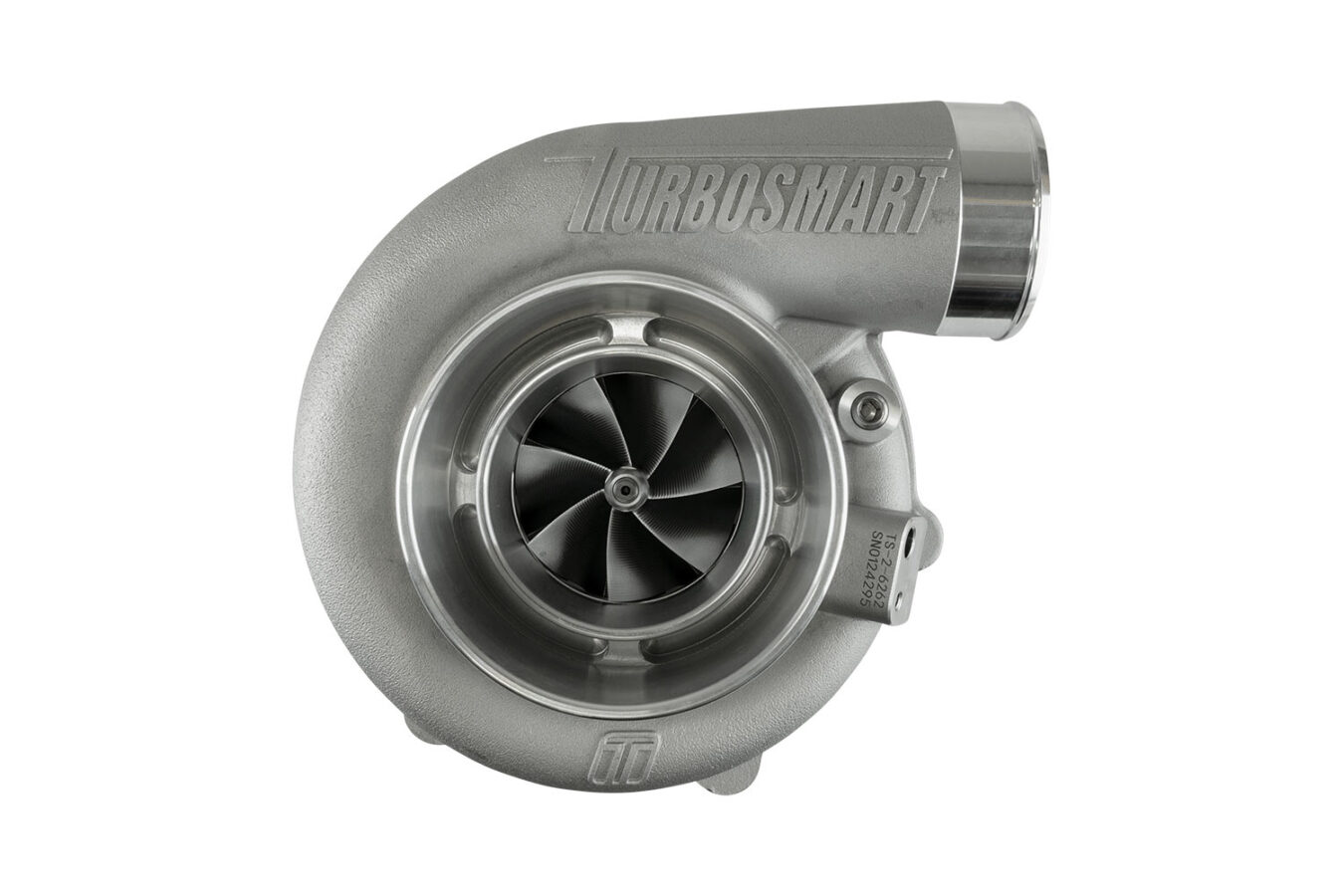

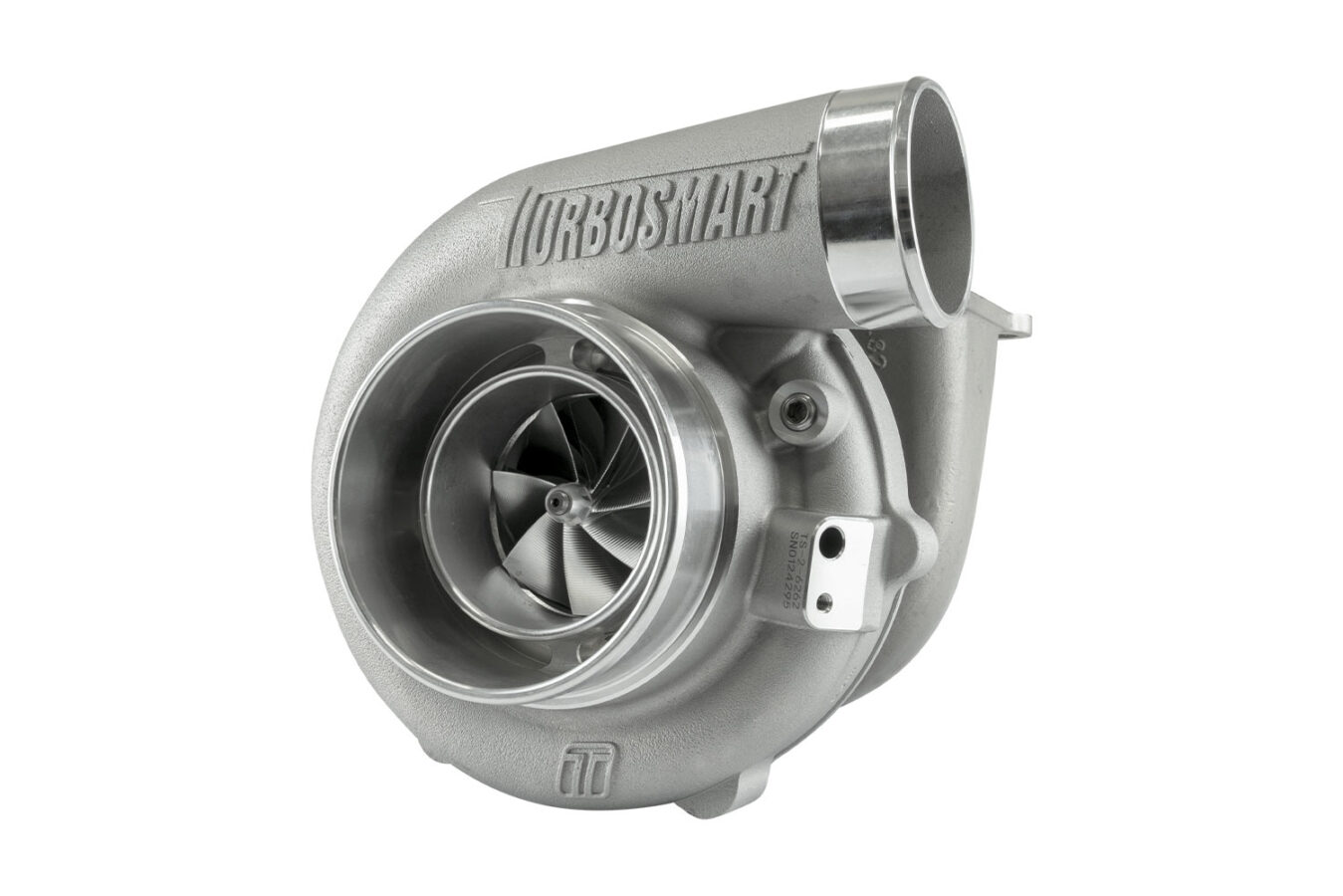

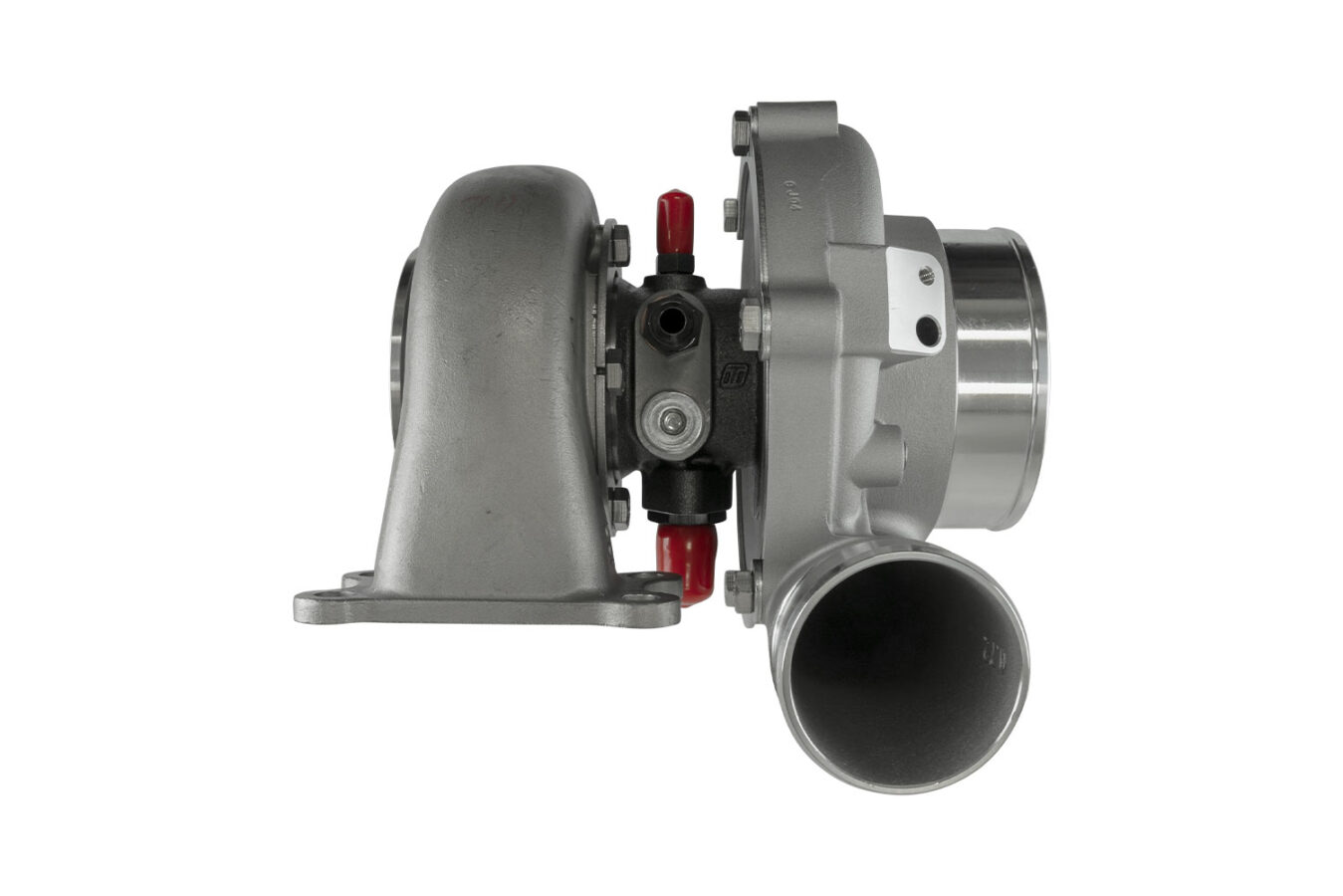

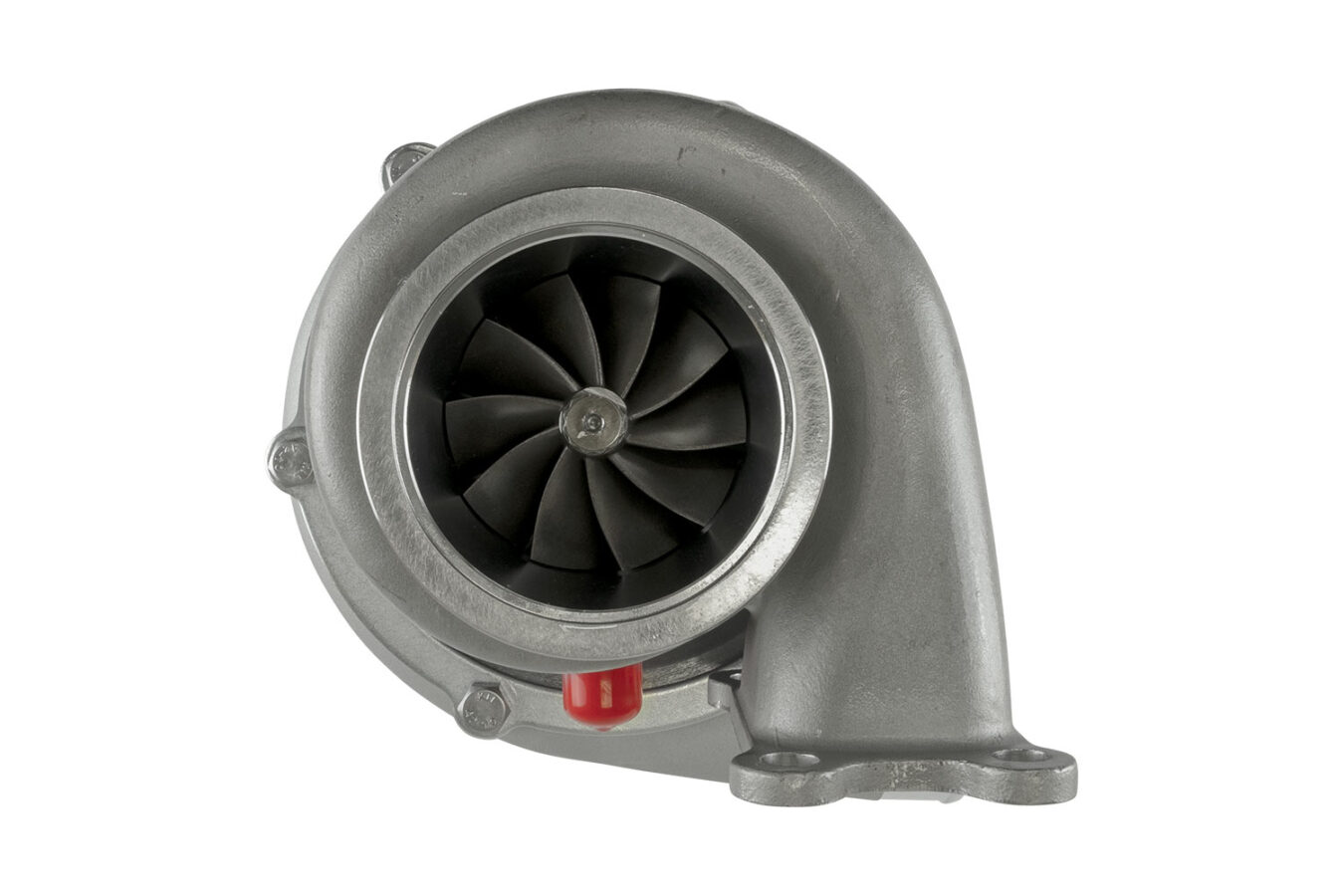

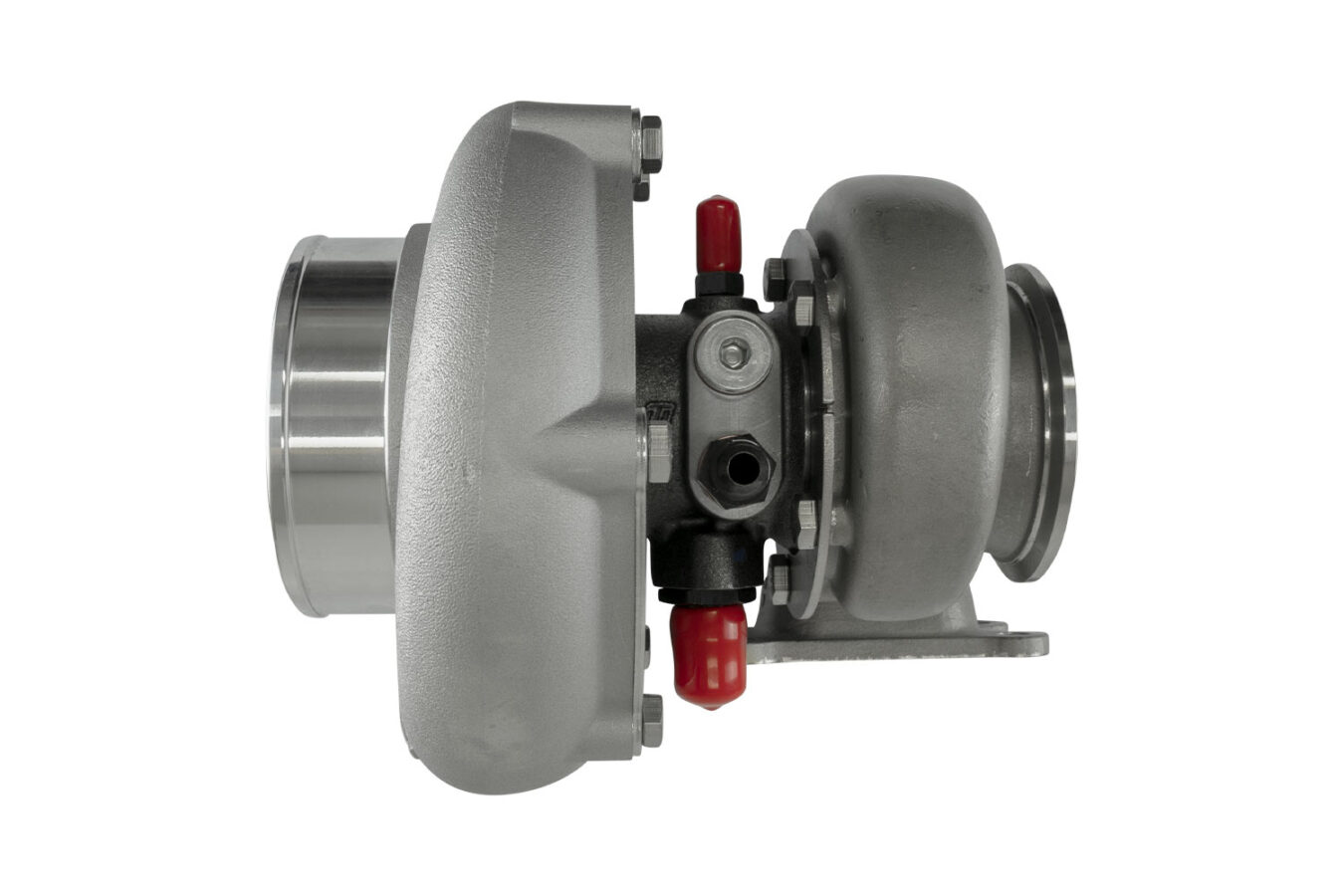

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6262 T3 0.63AR Externally Wastegated

Smaller, Lighter, Faster – Turbosmart’s turbocharger series is engineered with modern materials, advanced design, and precision manufacturing to meet the performance demands of motorsport and serious enthusiasts alike.

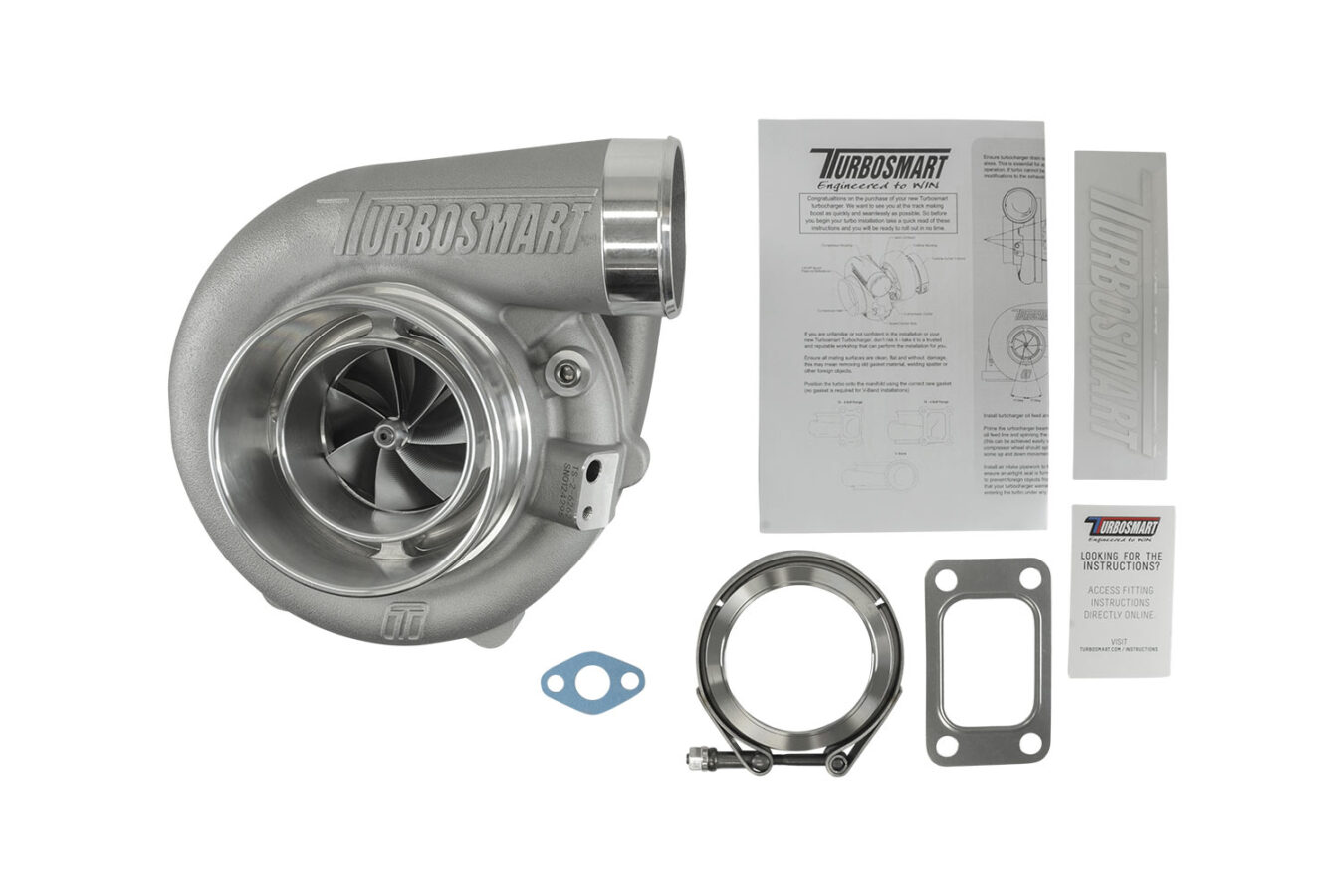

Each turbo includes everything you need for installation: weld flanges, V-band clamps, gaskets, oil feed/drain fittings, and water feed/return fittings.

The TS-2 Series is both oil and water-cooled and features lightweight investment cast turbine housings. Its proprietary bearing and shaft combination delivers lightning-fast transient response with the reliability and quality Turbosmart is known for.

Aggressive compressor aerodynamics and an ultra-low rotating mass allow for strong performance at low shaft speeds, while a unique turbine wheel maintains power and flow under heavy loads. The TS-2 Series is designed with an engine-first approach to reduce back pressure and improve response—making it smaller, lighter, and faster than the competition.

Available Options

• TS-1 (Oil cooled)

• TS-2 (Oil & water cooled)

• V-Band, T3, and T4 flange configurations

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal or external wastegate options

Key Features

• Unmatched transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• High-flow aluminum compressor covers

• CFD-optimized housing design

• 713C Inconel turbine wheel for extreme EGT resistance

• VSR speed balanced for precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 62mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 62mm

• Turbine A/R: 0.63

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
