Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6262 T3 0.82AR Externally Wastegated

Turbosmart TS-2 Series Turbocharger

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using advanced materials, design, and manufacturing techniques to meet the demands of motorsport professionals and performance enthusiasts alike.

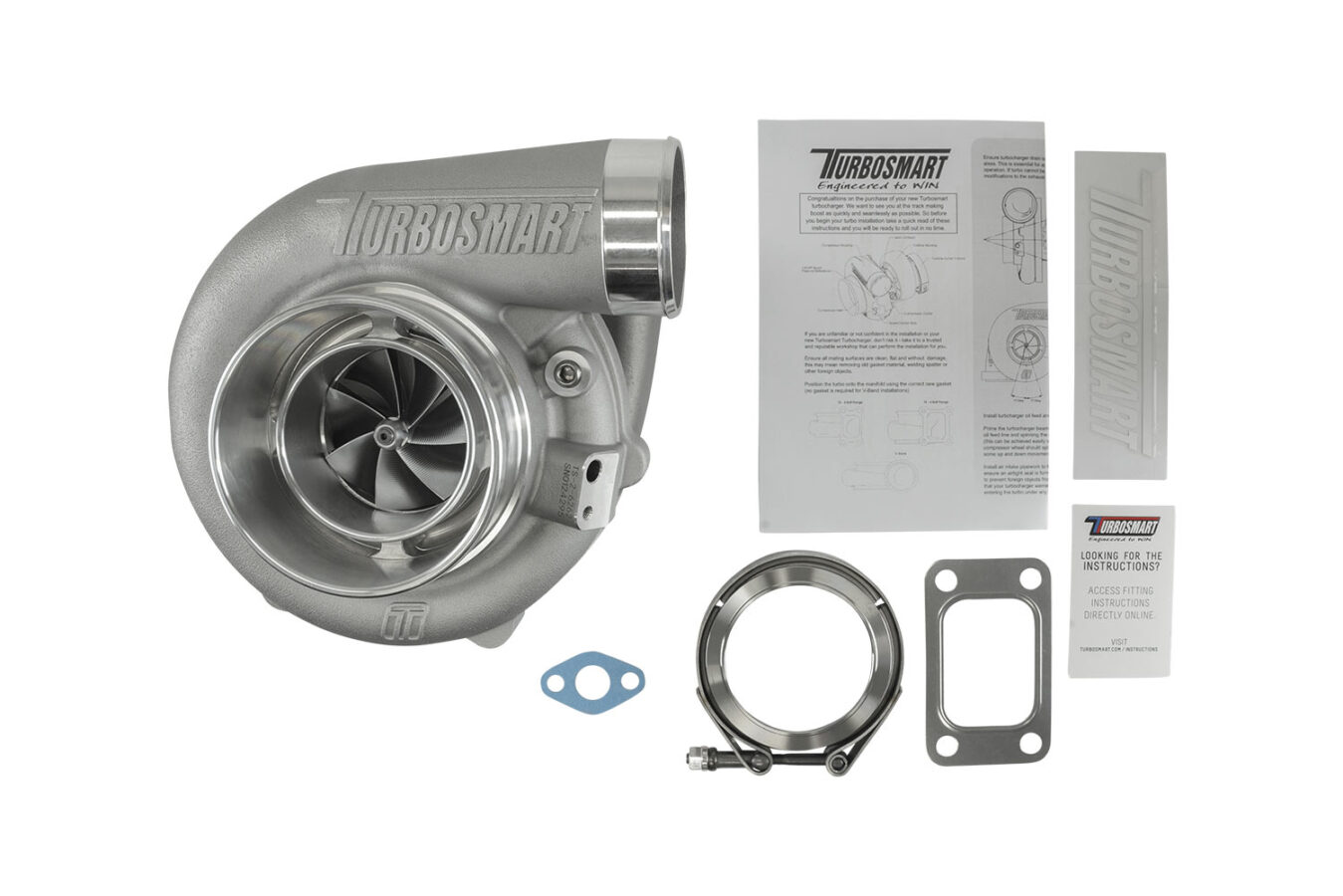

Every Turbosmart turbocharger includes everything needed for installation — weld flanges, V-band clamps, gaskets, oil feed and drain fittings, as well as water feed and return fittings.

The TS-2 Series features both oil and water cooling, lightweight investment cast turbine housings, and a proprietary bearing and shaft combination that delivers exceptional transient response, durability, and performance.

Ultra-low rotating mass in the bearing and shaft assembly is paired with aggressive compressor aerodynamics for peak performance at lower shaft speeds. A uniquely engineered turbine wheel maintains flow and power at high loads.

Designed with an engine-wide perspective, the TS-2 Series focuses on maximizing power by reducing backpressure and optimizing turbine performance — all while being more compact, lighter, and quicker to respond than competing solutions.

Available In:

• TS-1 (oil-cooled) turbochargers

• TS-2 (oil & water-cooled) turbochargers

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal and external wastegate configurations

Key Features:

• Unmatched transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R ratios

• 713C Inconel turbine wheel for high EGT durability

• VSR speed balanced for precision

• Proprietary dual ceramic bearing system

• Integrated iron backplate on center housing

Specifications:

• Compressor Inlet: 4″ / 101.6mm

• Compressor Inducer: 62mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 62mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06kg / 13.3lbs

• Horsepower Rating: 760–880 HP
