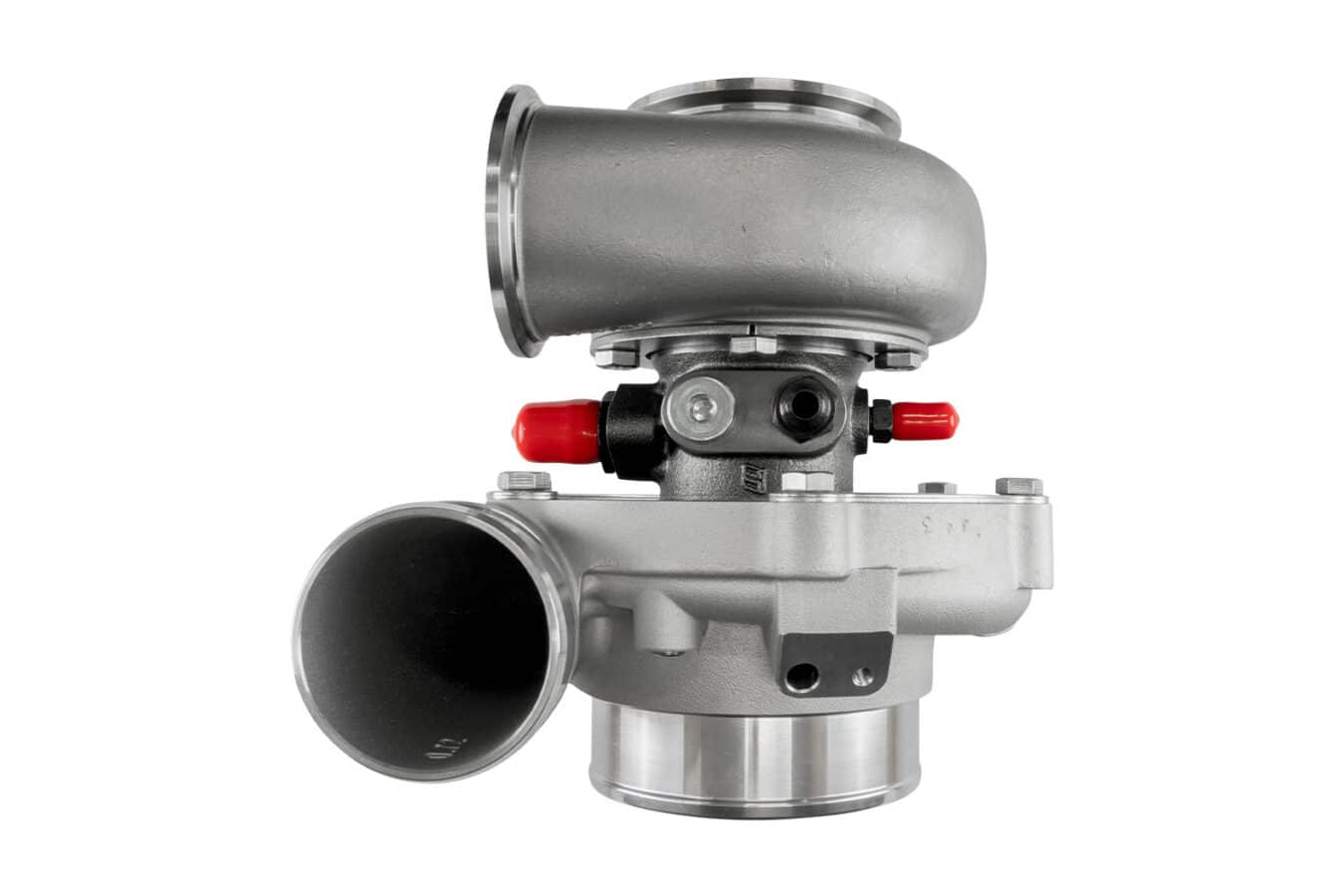

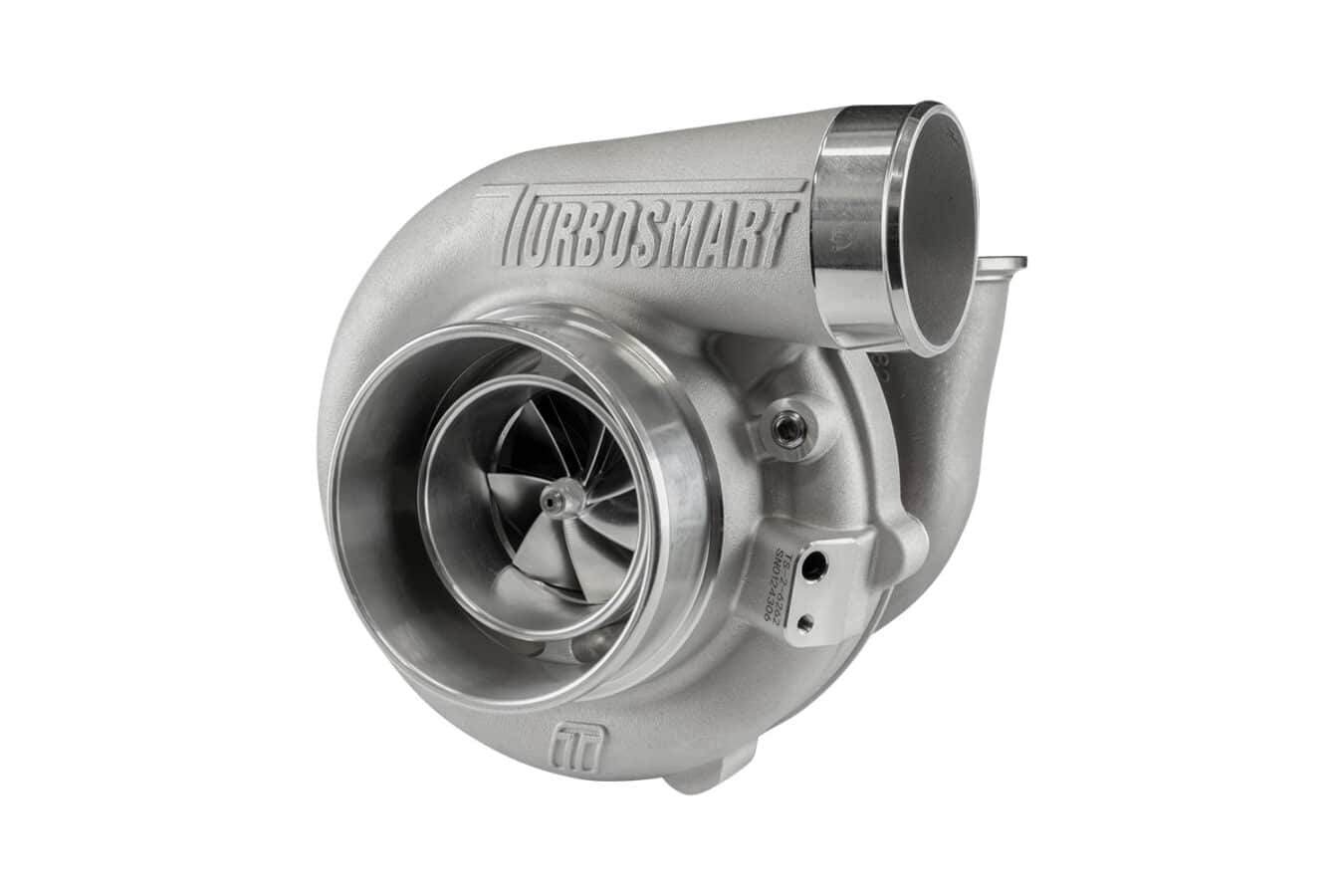

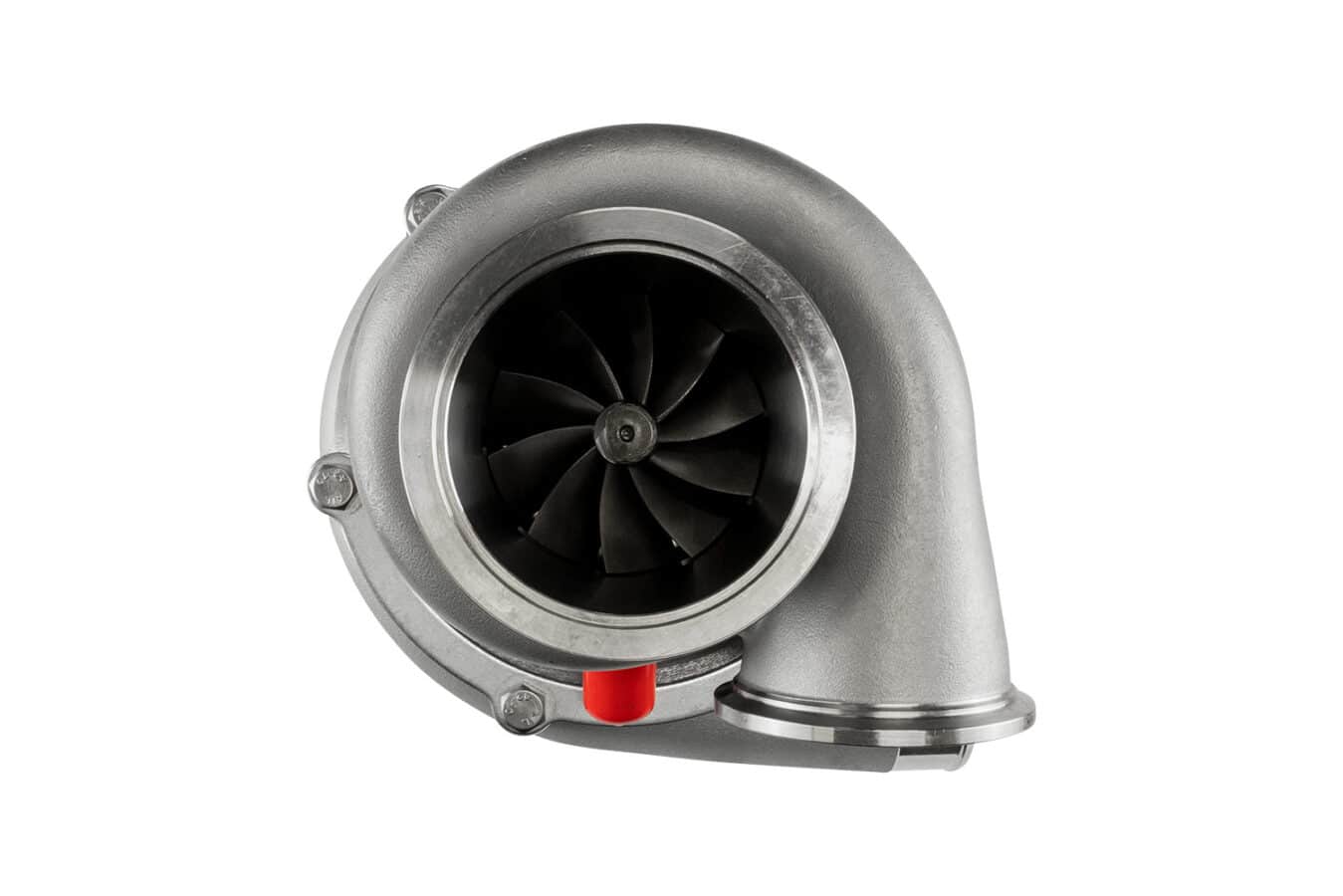

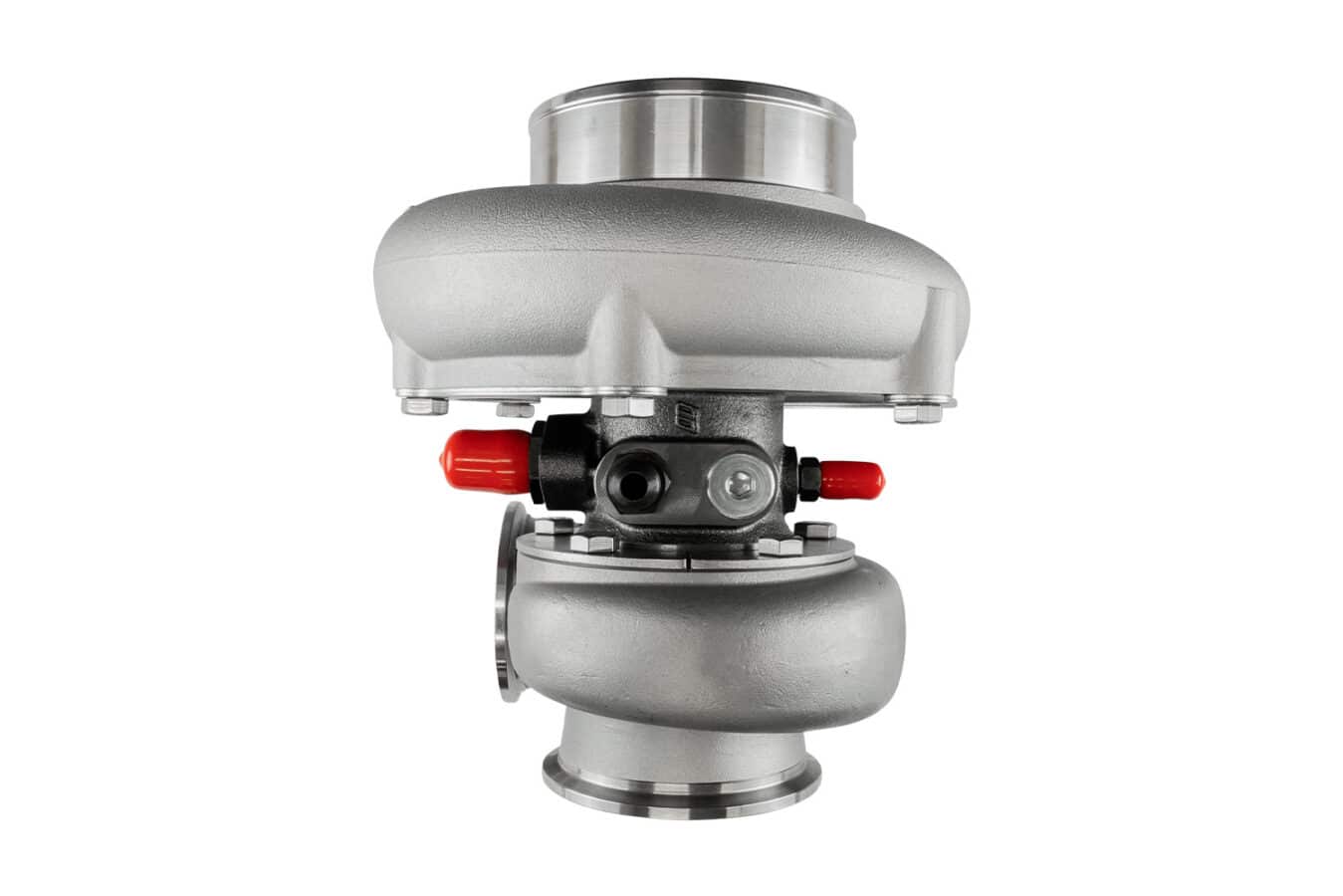

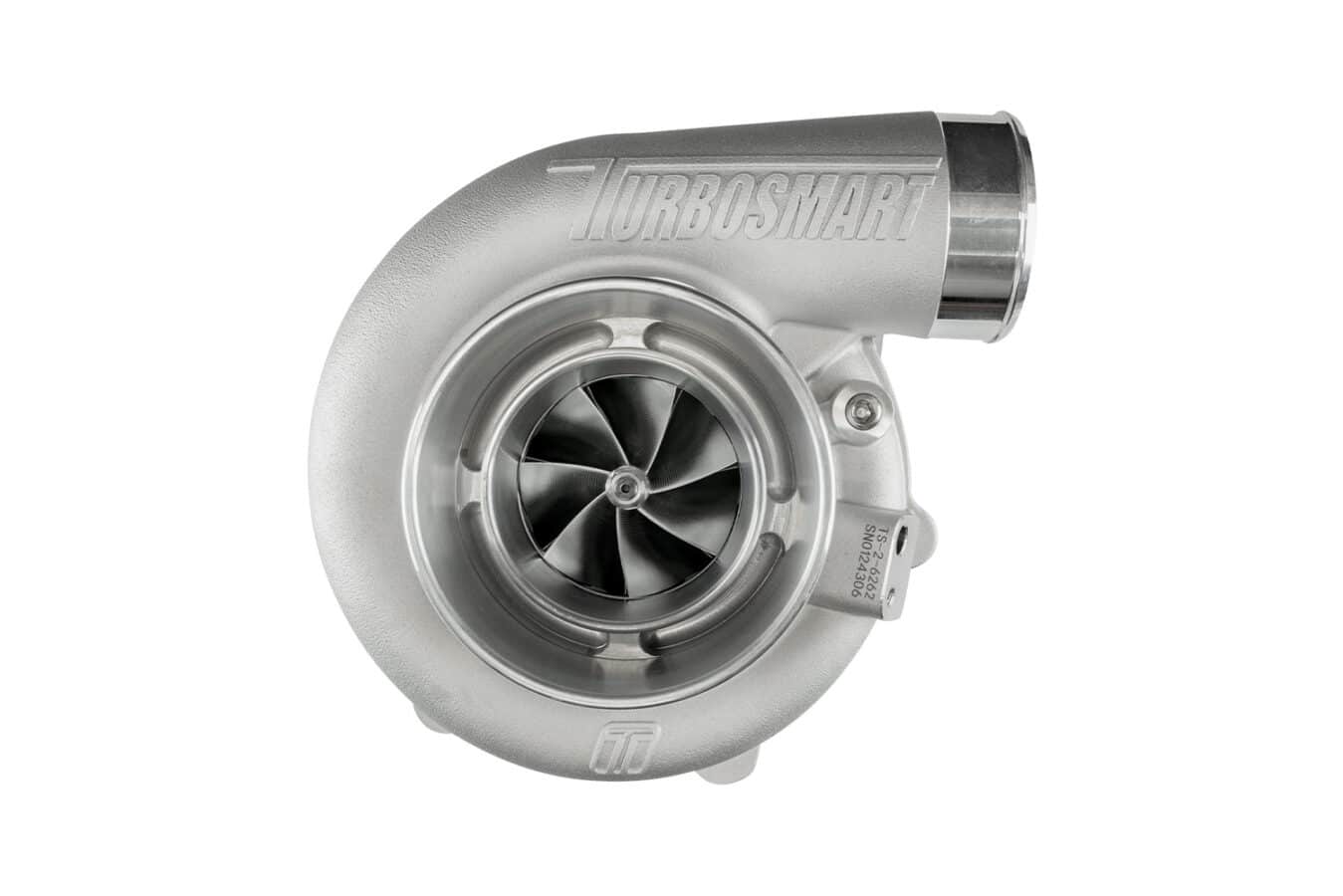

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6262 V-Band 0.82AR Externally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series has been engineered to take full advantage of modern materials, design, and manufacturing techniques—resulting in a range that meets the needs of both motorsport professionals and performance enthusiasts.

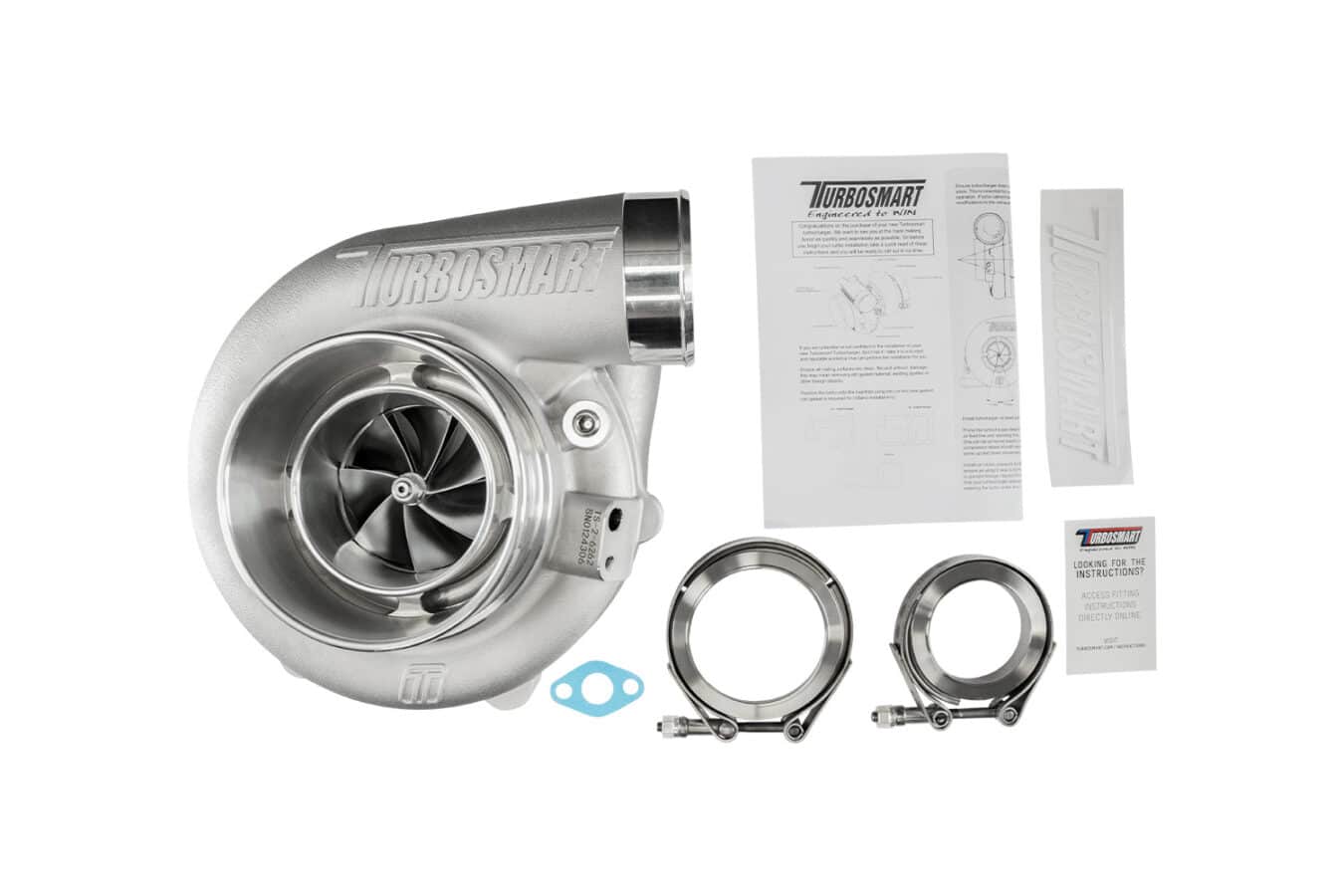

Each turbocharger comes standard with all necessary installation components:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview

The TS-2 turbochargers are both oil and water-cooled, featuring lightweight investment cast turbine housings and a proprietary bearing and main shaft assembly. This combination delivers lightning-fast transient response, outstanding reliability, and high performance.

A low rotating mass is matched to aggressive compressor aerodynamics, ensuring strong performance at lower shaft speeds. A unique turbine wheel design helps maintain power and flow even under high loads.

The TS-2 series takes an end-to-end engine approach—reducing back pressure and maximizing turbine efficiency—while remaining smaller, lighter, and quicker in response than comparable systems.

Available Options

• TS-1 (Oil-cooled)

• TS-2 (Oil + Water-cooled)

• V-Band, T3, and T4 flange configurations

• Reverse rotation (selected sizes)

• Multiple A/R options

• Internal and external wastegate compatibility

Key Features

• Unparalleled transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal flow and A/R

• 713C Inconel turbine wheel built for extreme EGTs

• VSR speed-balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 62 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
