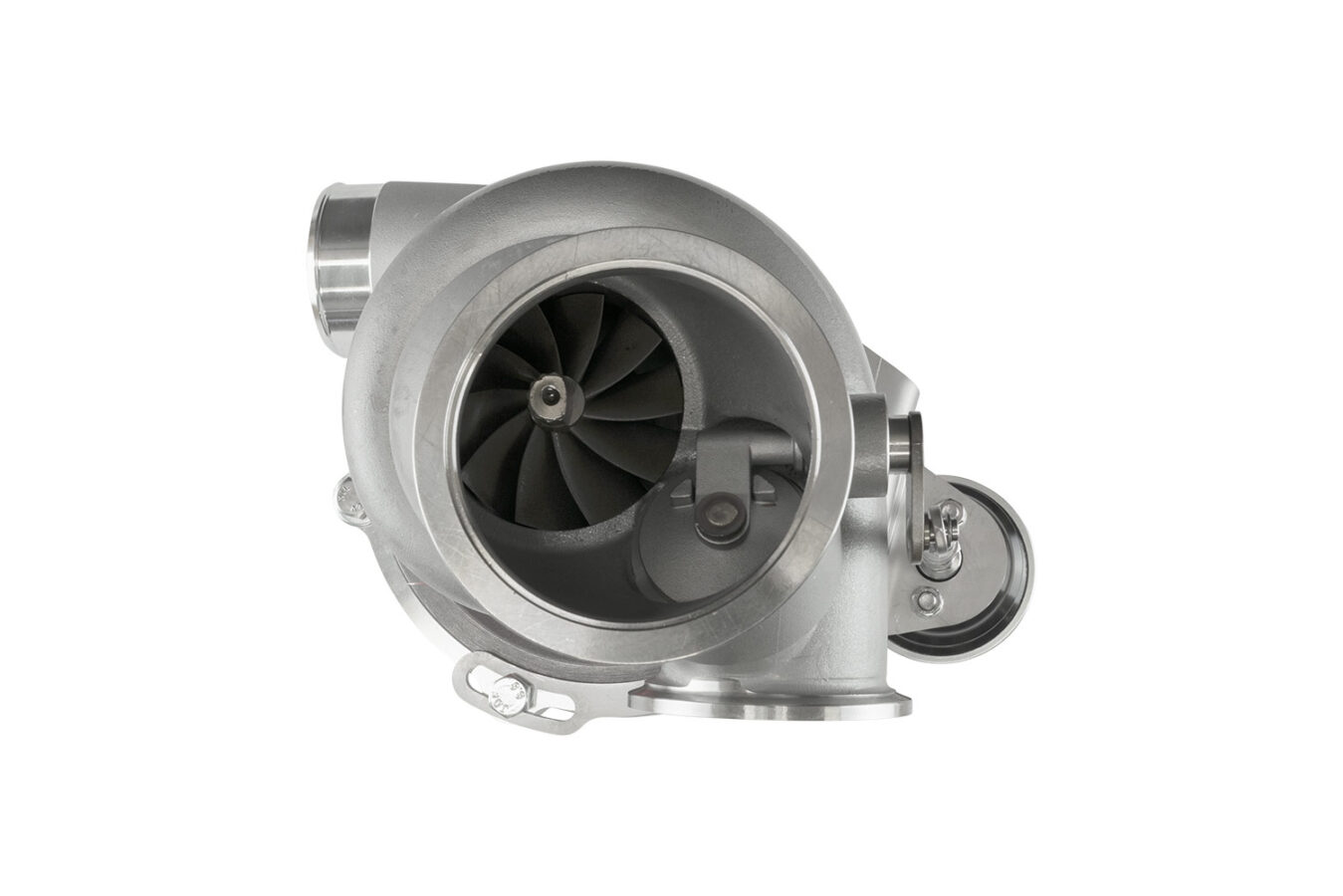

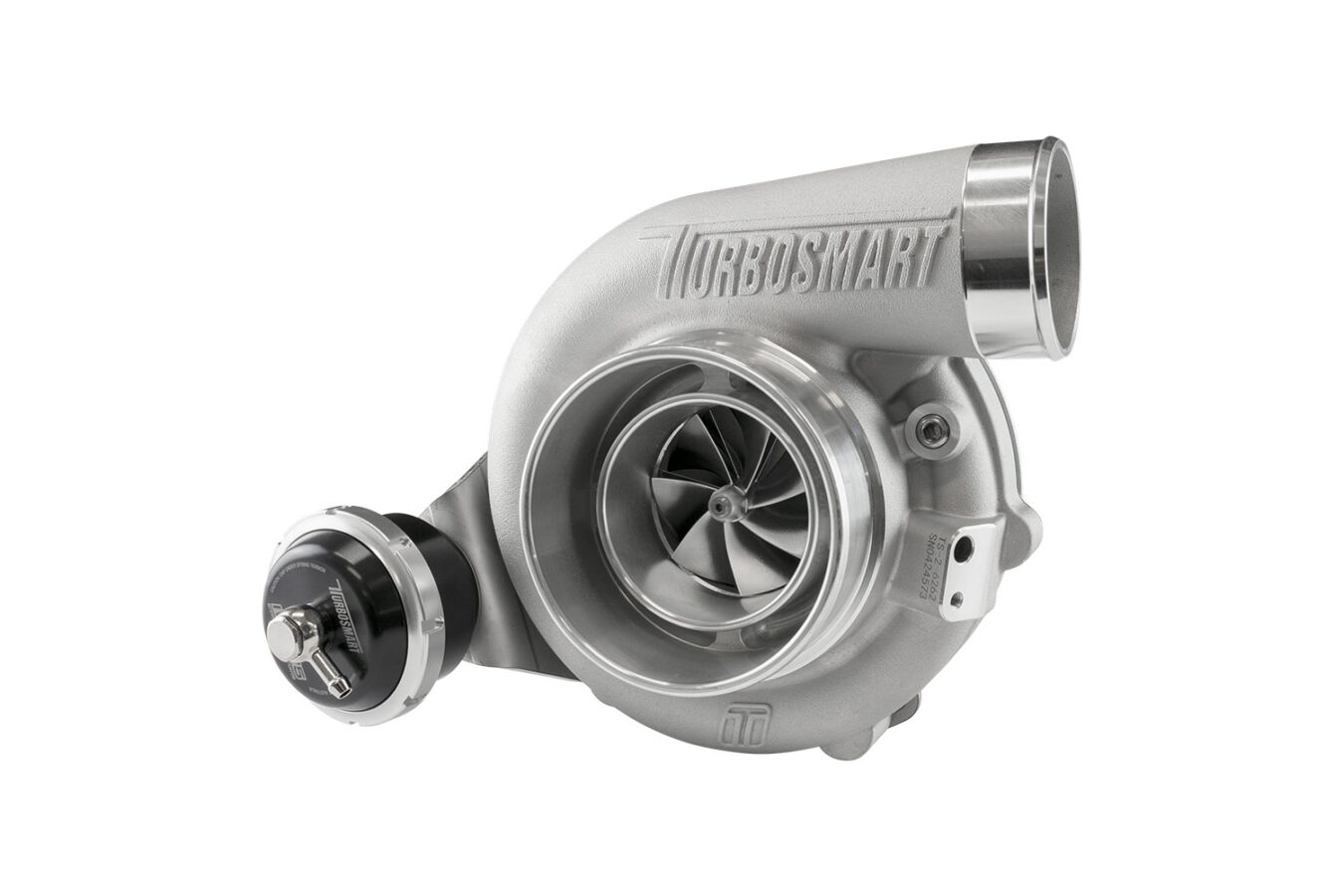

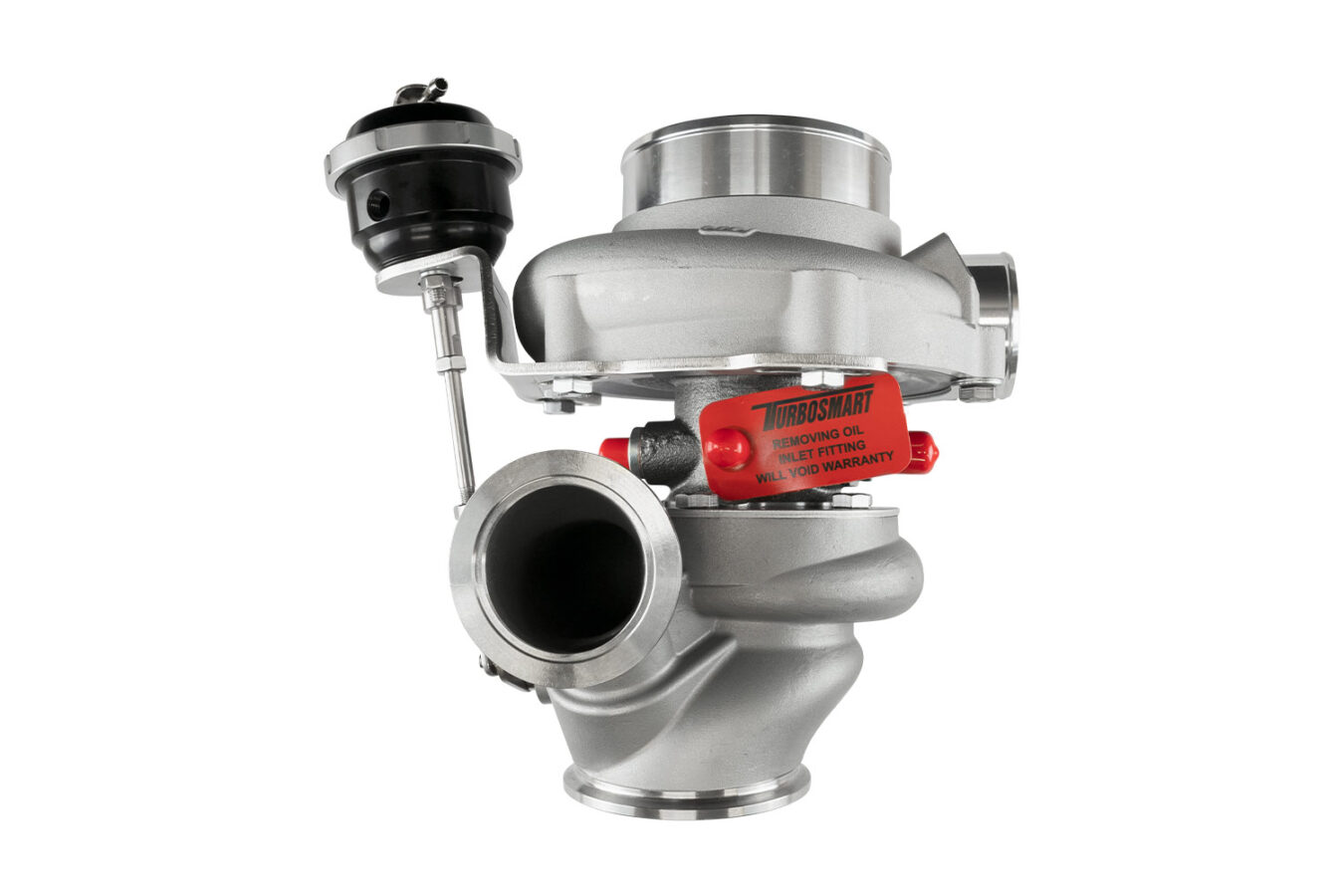

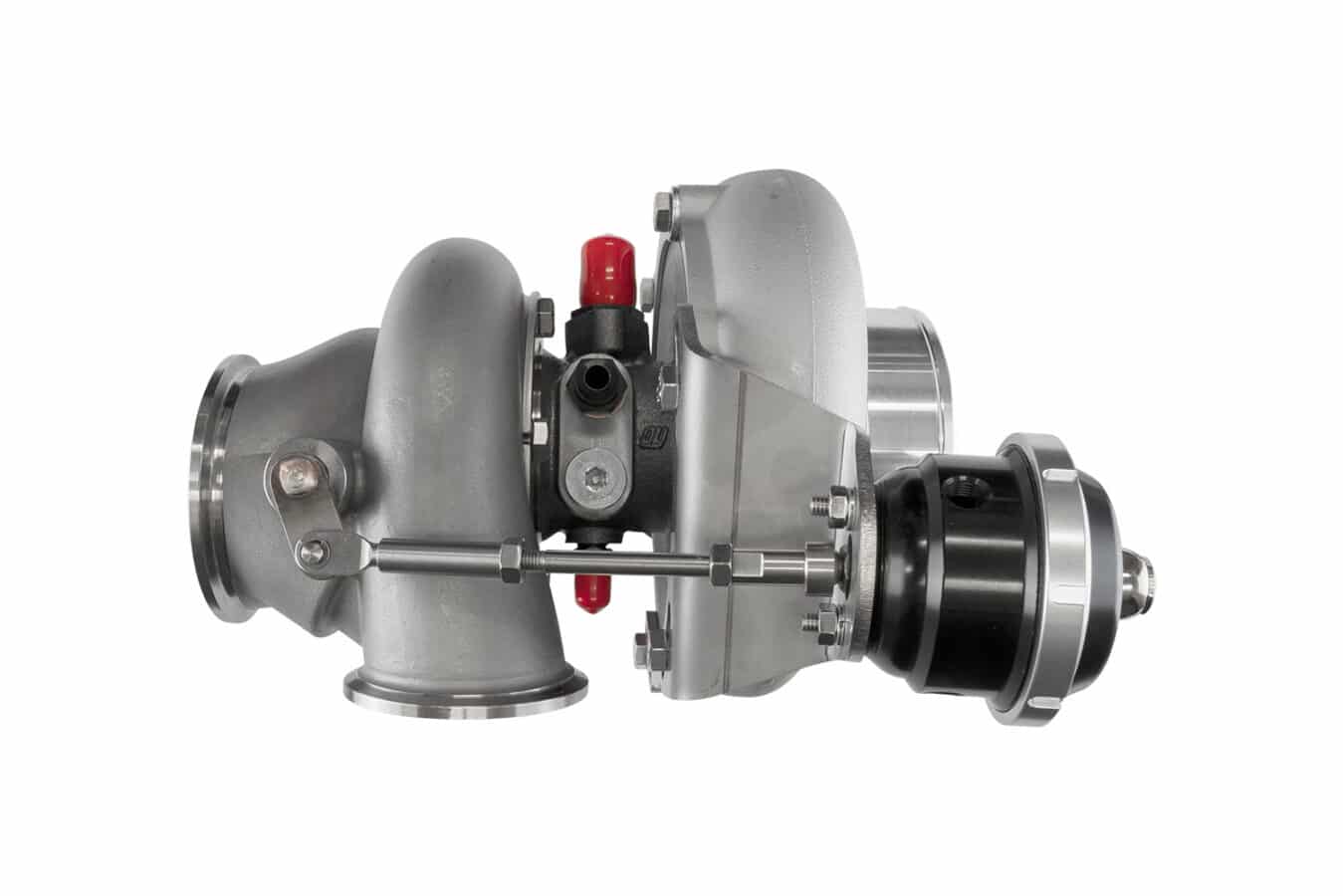

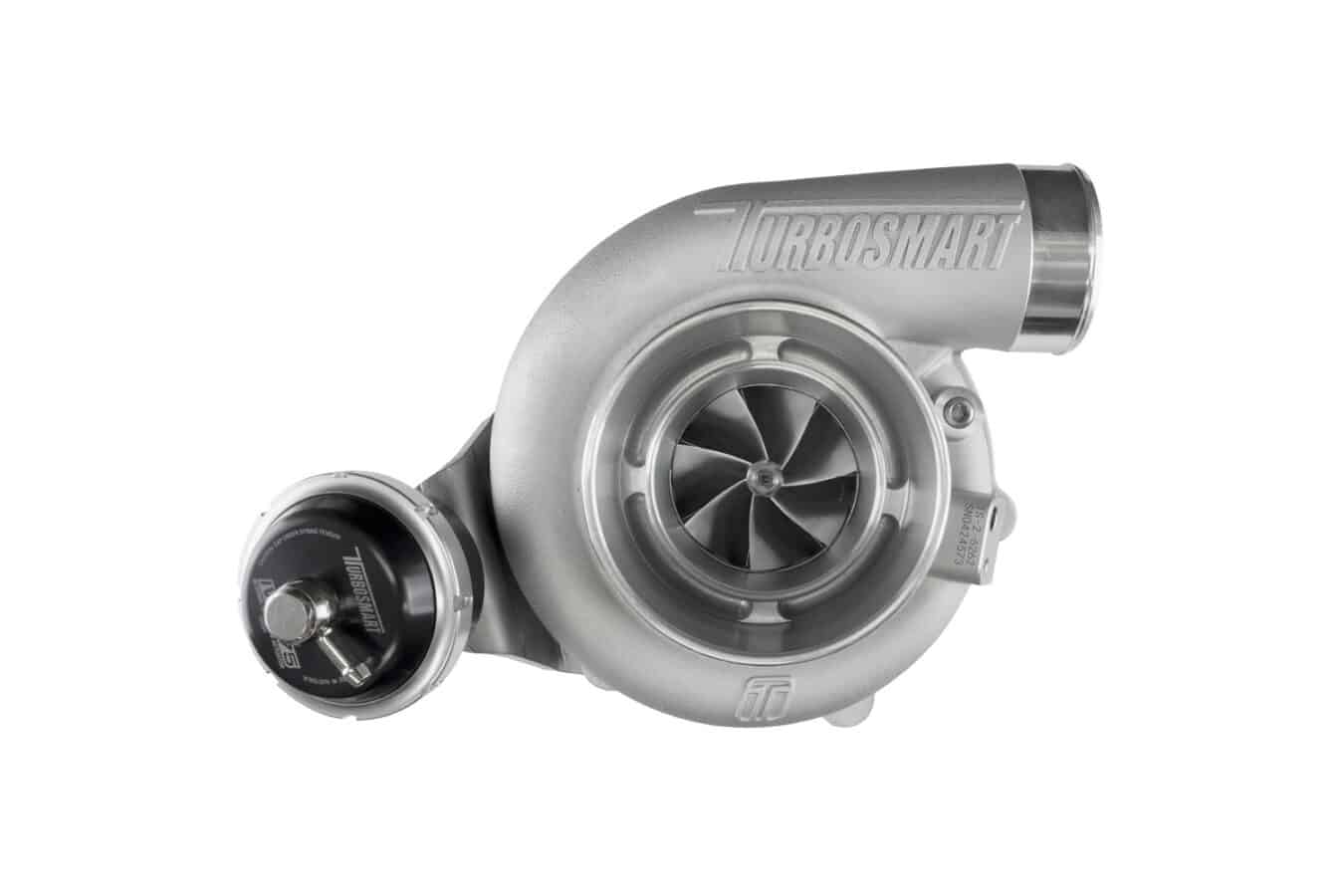

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6262 V-Band 0.82AR Internally Wastegated

Turbosmart Turbocharger Series

Smaller. Lighter. Faster.

Turbosmart’s turbocharger series is engineered using modern materials, advanced design, and precision manufacturing to meet the demands of both motorsport and performance enthusiasts.

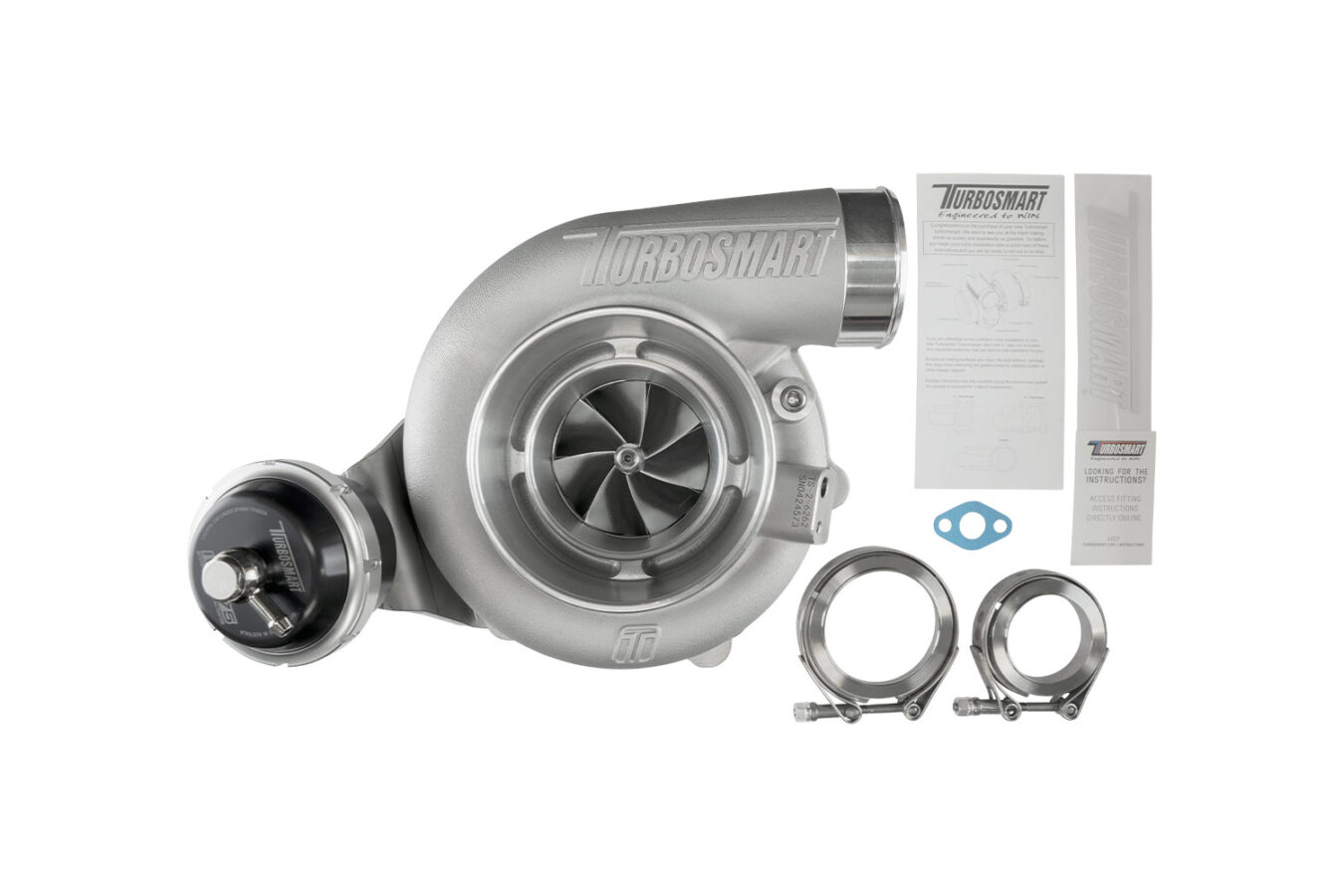

Each turbocharger comes standard with all necessary installation components, including:

• Weld flanges

• V-band clamps

• Gaskets

• Oil feed and drain fittings

• Water feed and return fittings

TS-2 Series Overview

The TS-2 Series features oil and water-cooled turbochargers with lightweight investment cast turbine housings and a proprietary bearing and main shaft combination, offering a level of transient response you didn’t know was possible. Built with the performance, quality, and reliability Turbosmart is known for, the TS-2 delivers unmatched results.

Its ultra-low rotating mass is paired with aggressive compressor aerodynamics to provide high performance at lower shaft speeds. A specially engineered turbine wheel maintains power and flow at high loads.

The TS-2 series takes an end-to-end engine design approach—achieving maximum power by reducing back pressure through high-efficiency turbines—while remaining smaller, lighter, and faster in response than competing systems.

Available Options

• TS-1 (Oil-cooled turbochargers)

• TS-2 (Oil & water-cooled turbochargers)

• V-Band, T3, and T4 flange options

• Reverse rotation (selected sizes)

• Various A/R options

• Internal and external wastegate configurations

Features

• Exceptional transient response

• 7+7 2618 aluminum splitter compressor wheels

• Lightweight 310S stainless steel investment cast turbine housings

• Lightweight aluminum compressor covers

• CFD-designed housings for optimal A/R and flow

• 713C Inconel turbine wheel for extreme EGT durability

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 62 mm

• Turbine Inlet: V-Band (2.25″)

• Turbine Exducer: 62 mm

• Turbine A/R: 0.82

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 760–880 HP
