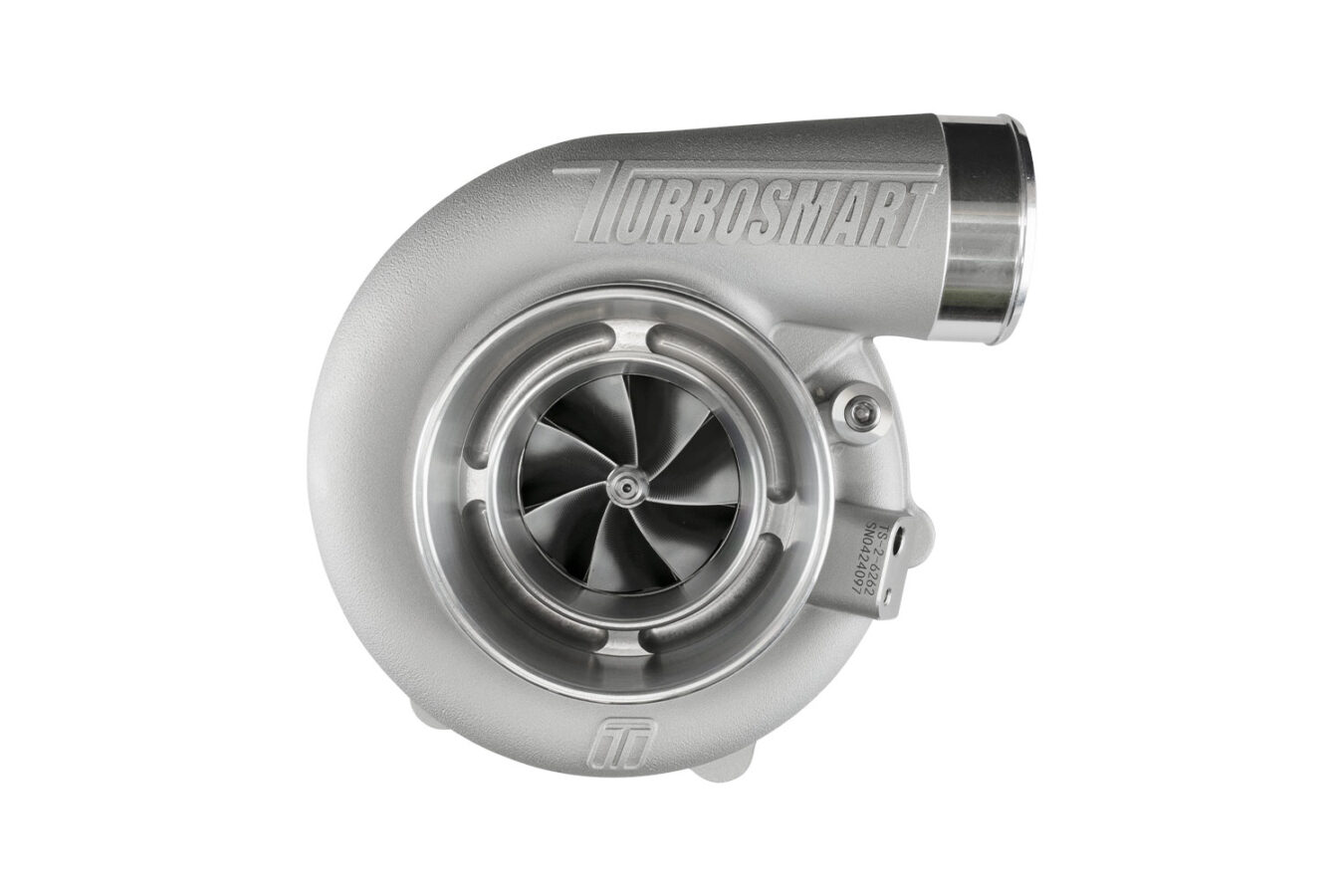

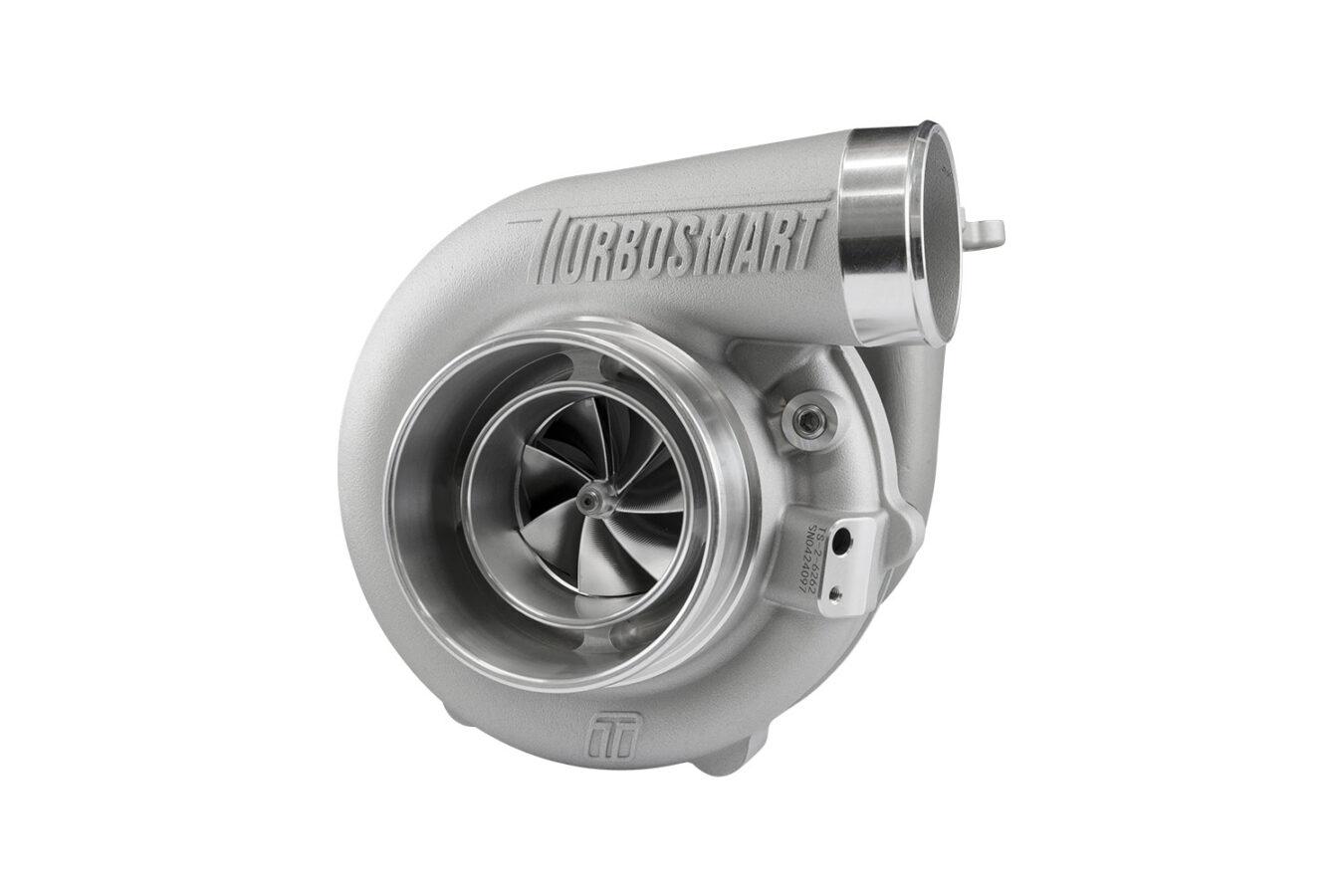

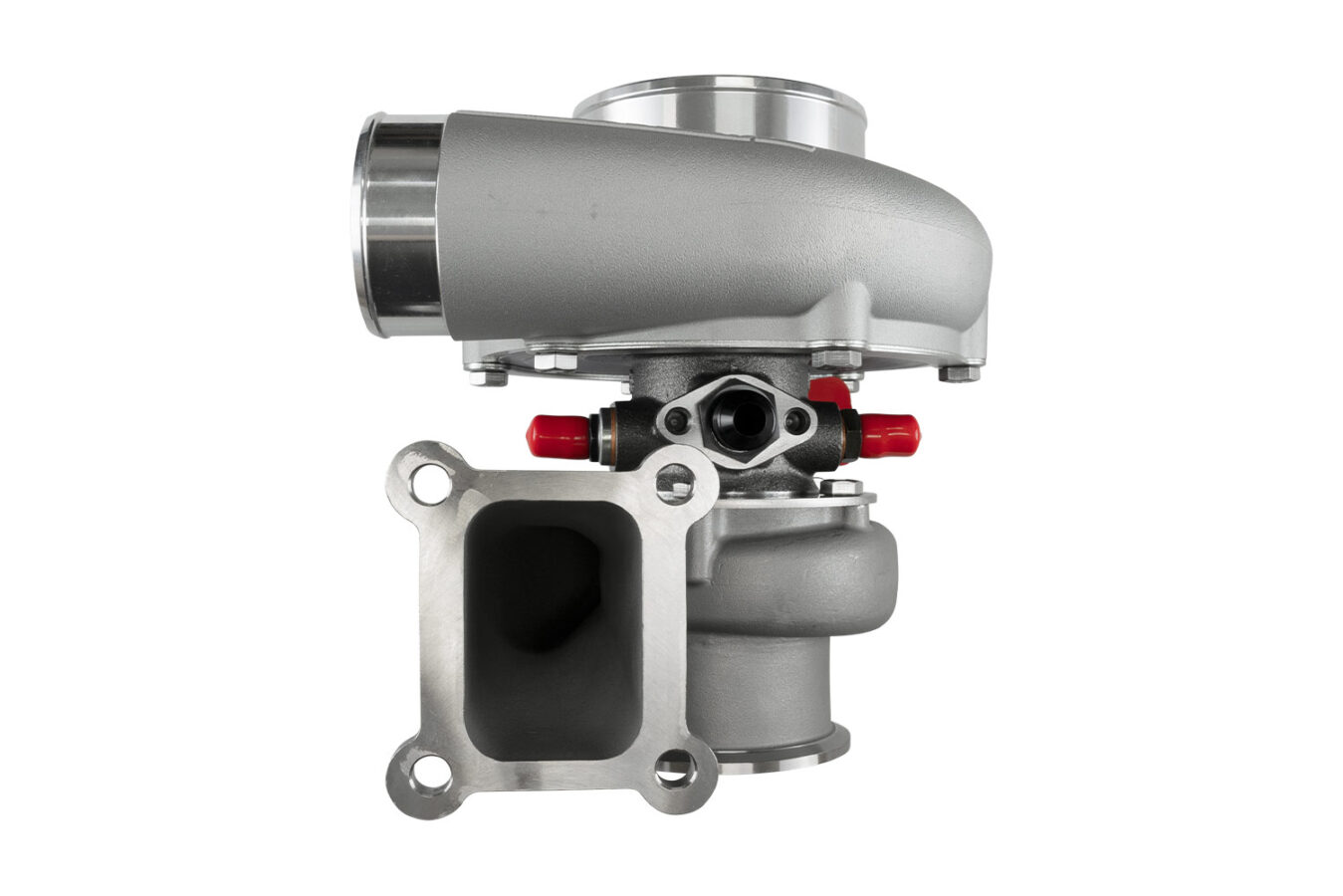

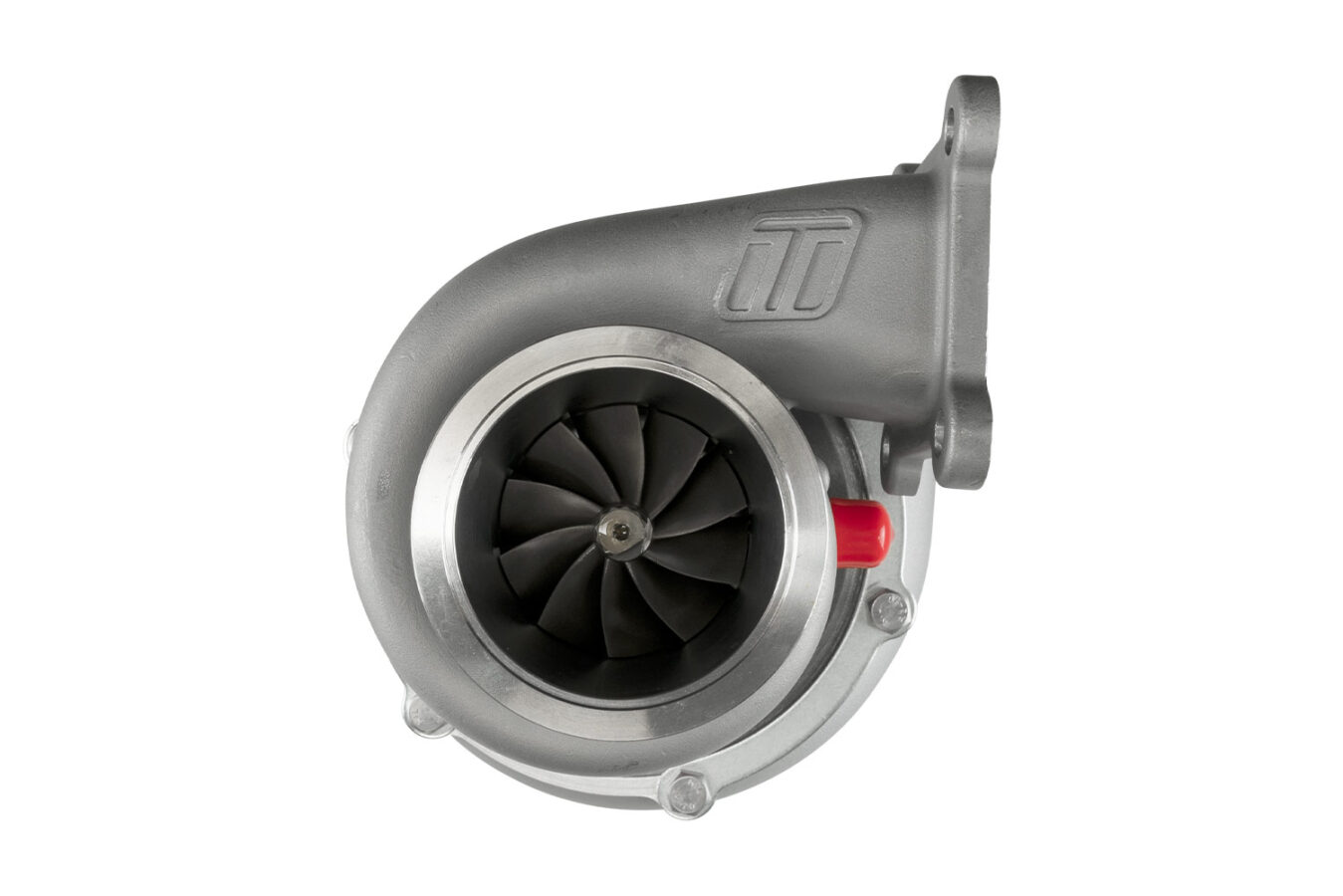

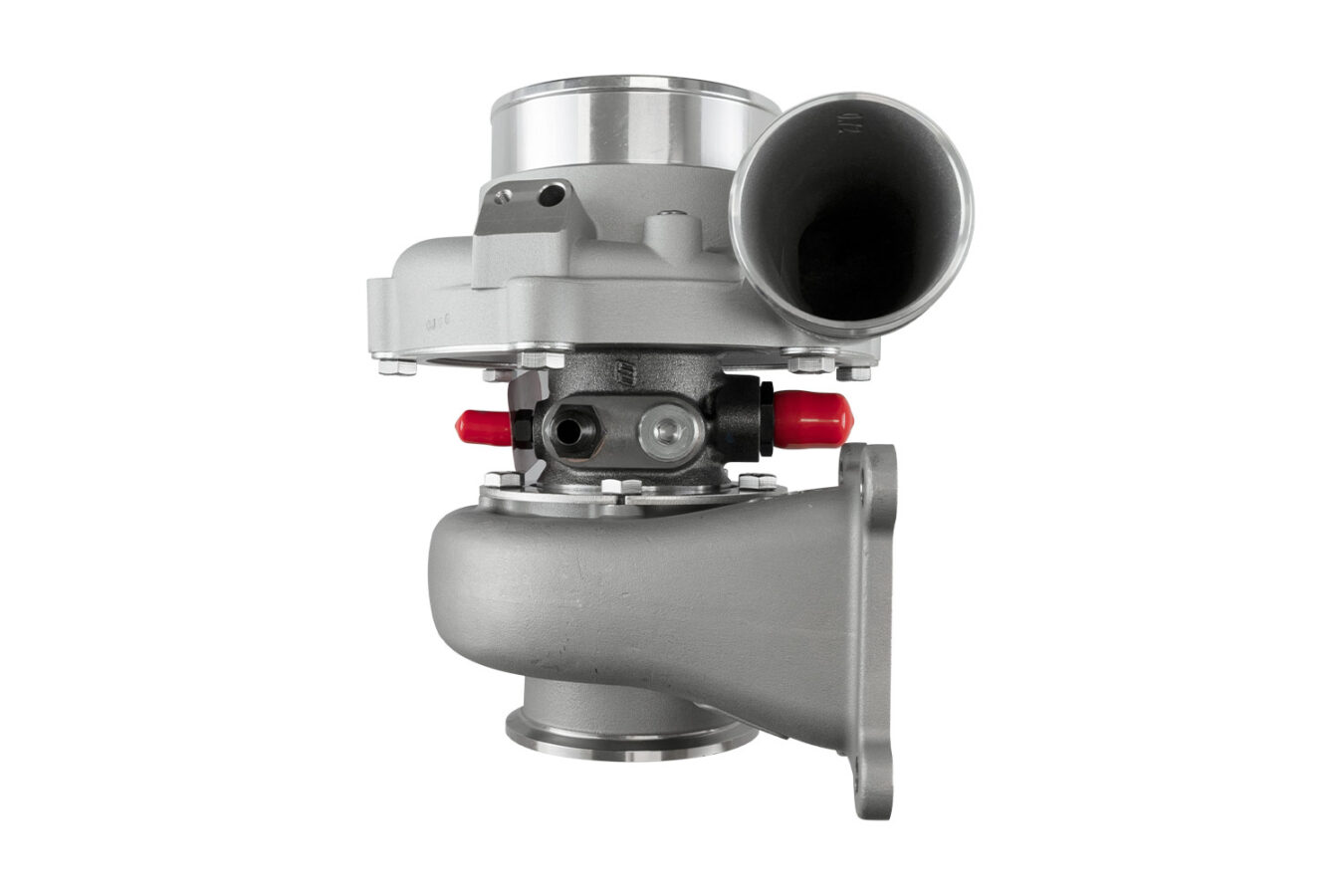

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6466 T3 0.63AR Externally Wastegated

Turbosmart TS-2 Turbocharger Series

Smaller, Lighter, Faster

Turbosmart’s turbocharger lineup is engineered to meet the high demands of motorsport and performance enthusiasts using modern materials, cutting-edge design, and advanced manufacturing techniques.

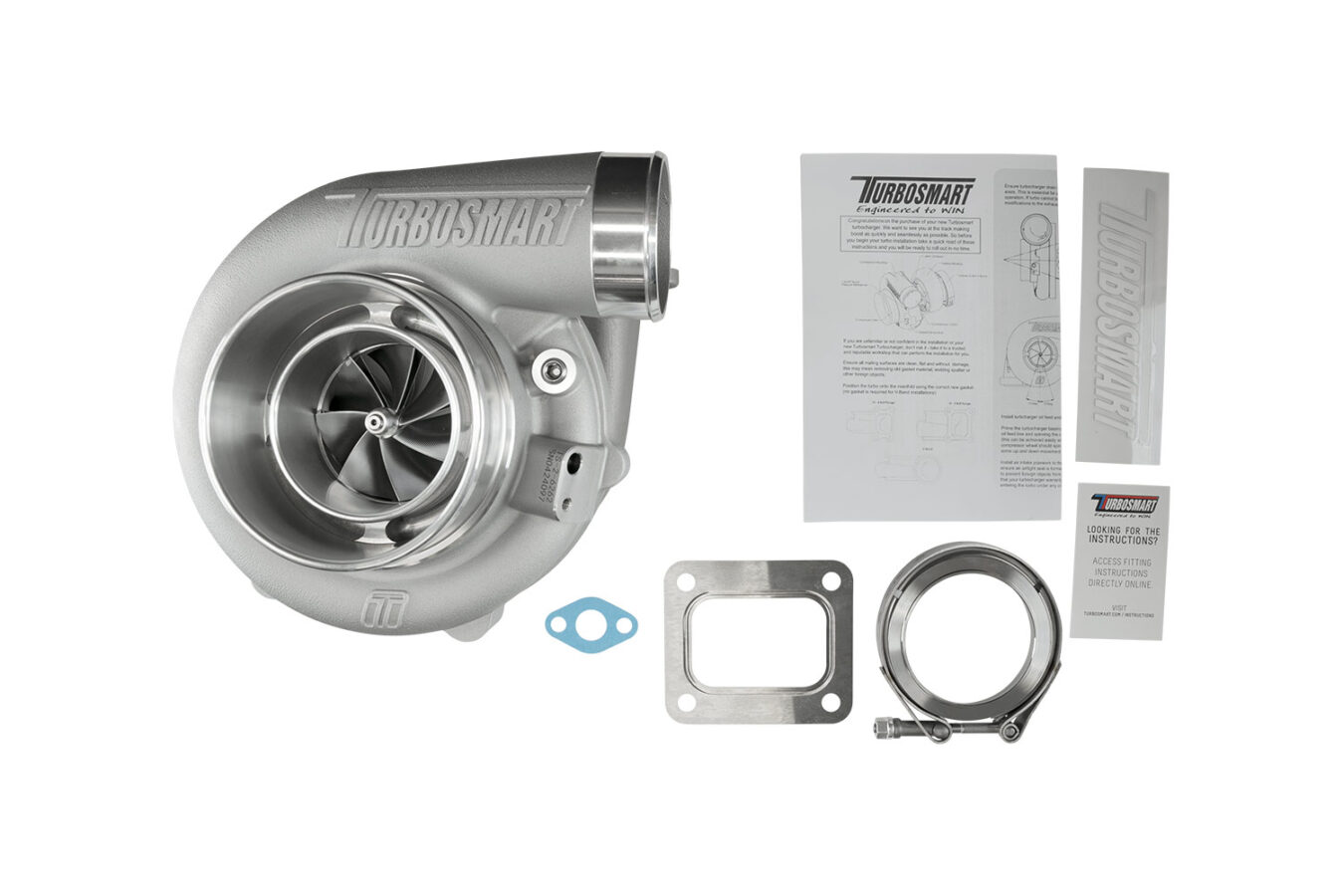

Each turbo comes fully equipped with everything needed for installation, including weld flanges, V-band clamps, gaskets, and both oil and water feed/return fittings.

The TS-2 Series features oil and water-cooled turbochargers with lightweight investment-cast turbine housings and a proprietary bearing and main shaft system. This unique setup delivers unmatched transient response, performance, reliability, and durability — all with the support you expect from Turbosmart.

The ultra-low rotating mass and aggressive compressor aerodynamics provide outstanding performance at lower shaft speeds, while the advanced turbine design maintains power under high loads and flow demands.

Turbosmart took an engine-first approach when designing the TS-2 Series — focusing on reducing back pressure, increasing turbine efficiency, and improving throttle response, all while staying compact and lightweight.

Available Configurations

• TS-1: Oil-cooled

• TS-2: Oil + water-cooled

• V-Band, T3, and T4 flange options

• Reverse rotation (select sizes)

• Multiple A/R options

• Internal and external wastegate versions

Key Features

• Lightning-fast transient response

• 7+7 2618 aluminum splitter wheels for aggressive aerodynamics

• Lightweight 310S stainless steel turbine housings

• Lightweight aluminum compressor covers

• CFD-optimized housings for ideal A/R and airflow

• 713C Inconel turbine wheel for extreme EGT conditions

• VSR speed balanced

• Proprietary dual ceramic bearing system

• Integrated iron backplate in the center housing

Specifications

• Compressor Inlet: 4″ / 101.6 mm

• Compressor Inducer: 64 mm

• Turbine Inlet: T3 Flange

• Turbine Exducer: 66 mm

• Turbine A/R: 0.63

• Turbine Outlet: V-Band (3.00″)

• Weight: 6.06 kg / 13.3 lbs

• Horsepower Rating: 825–955 HP
